Connecting the System

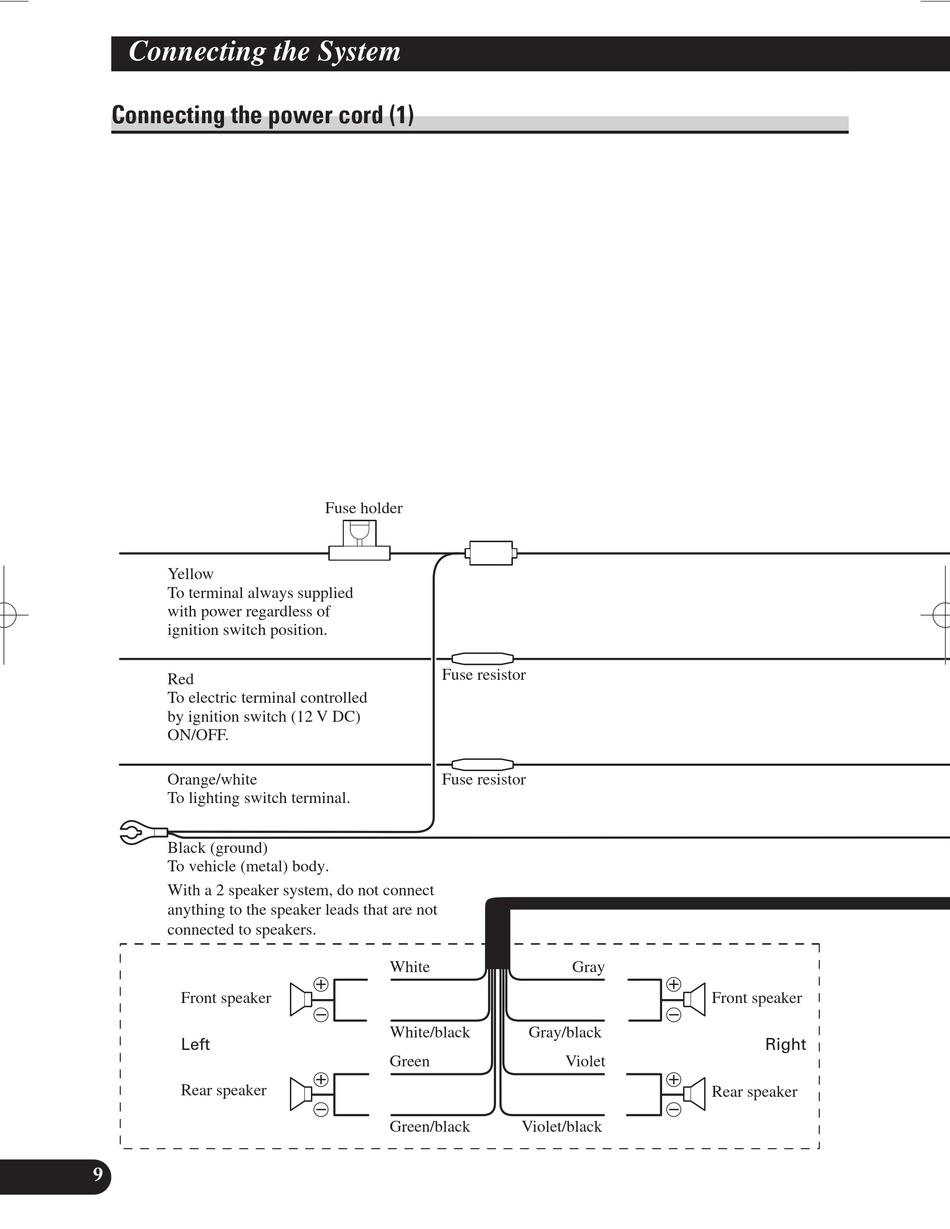

Connecting the power cord (1)

Yellow
To terminal always supplied
with power regardless of
ignition switch position.
Red
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
Orange/white
To lighting switch terminal.
Black (ground)
To vehicle (metal) body.
With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
Front speaker
Left
Rear speaker
9
Fuse holder
Fuse resistor
Fuse resistor
White
+
≠
White/black
Green
+
≠
Green/black
Gray
+
≠
Gray/black
Violet
+
≠
Violet/black
Front speaker
Right
Rear speaker
