Magna-Matic MAG-6000 Series Original Instructions Manual

Professional hedge trimmer blade sharpeners
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Original Instructions
MAG-6000 SERIES
PROFESSIONAL HEDGE TRIMMER BLADE SHARPENERS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAG-6000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Magna-Matic MAG-6000 Series

Summary of Contents for Magna-Matic MAG-6000 Series

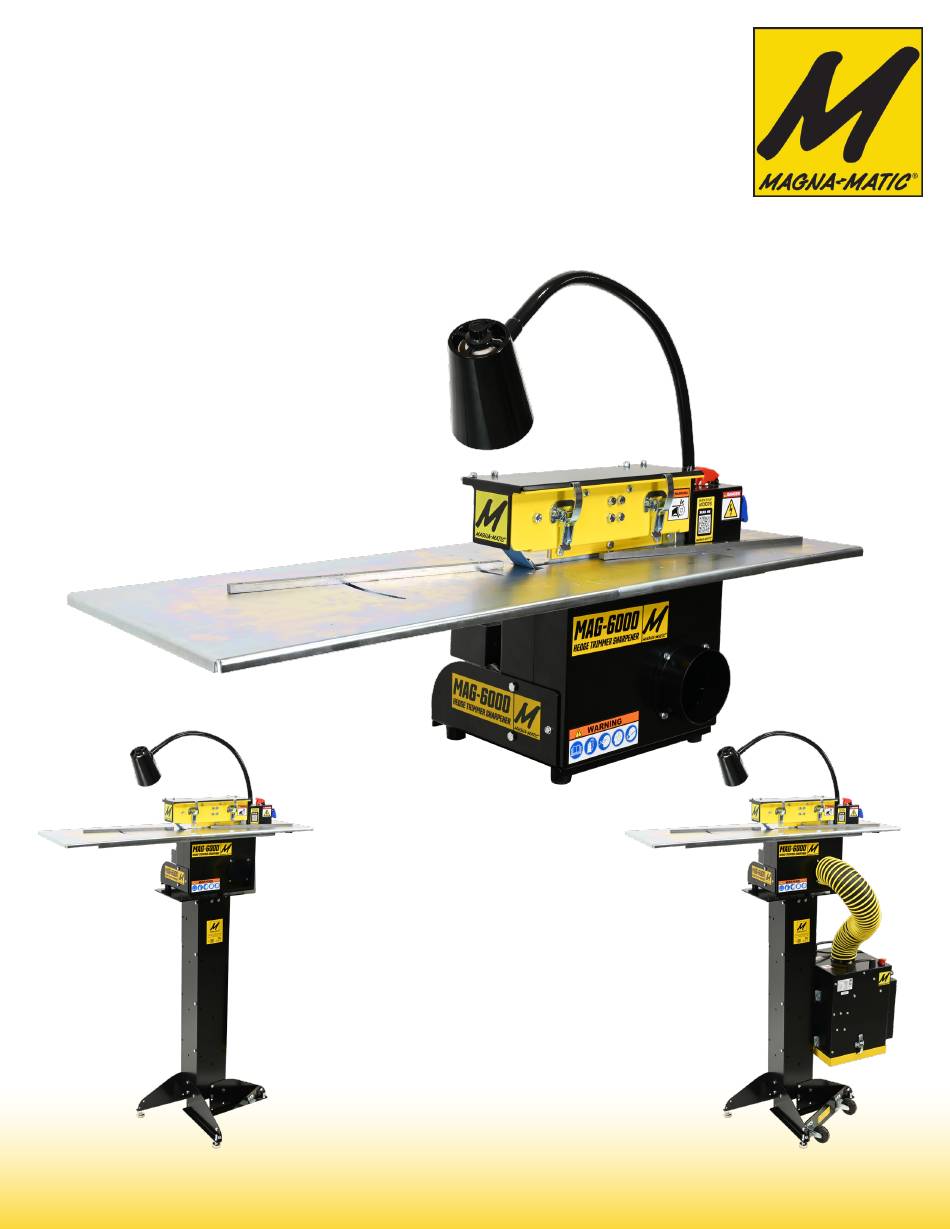

  • Page 1 Original Instructions MAG-6000 SERIES PROFESSIONAL HEDGE TRIMMER BLADE SHARPENERS...

  • Page 2: Box Inventory

    THANK YOU, We sincerely appreciate your decision to make Magna-Matic your hedge trimmer blade sharpener. We understand there are other choices in the marketplace, and we are extremely confident that after the first few blades you sharpen, it will be evident you’ve chosen the best machine for the job. Rest assured that if you have a question or problem you will have complete customer support for all of our products.
  • Page 3 QUICK START QUICK START VIDEOS VIDEOS SCAN QR CODE We recommend using the videos, it makes set-up and understanding the machine much easier. Packed in large flat box Packed in main box...

  • Page 4: Warning / Caution

    THE SAFE WAY IS THE ONLY WAY TO GRIND! WARNING WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAU- TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL INJURY. CAUTION BLADES HAVE SHARP EDGES - ALWAYS WEAR PROTECTIVE GLOVES AND SAFETY GLASSES! Before handling any equipment read and understand the instructions.

  • Page 5: Safety Labels

    SAFETY LABELS SAFETY COLOR DEFINITION DANGER Interaction with the hazard will cause severe injury or death. WARNING Interaction with the hazard could cause severe injury or death. CAUTION Interaction with the hazard could cause minor or moderate injury. SAFETY SAFETY DEFINITION DEFINITION ICON...
  • Page 6 ASSEMBLY & TESTING CAUTION TURN OFF AND UNPLUG BEFORE SERVICING! IF YOU PURCHASED A STAND - ASSEMBLE IT FIRST 1. Assemble the pedestal stand (scan QR code for videos), note the stand will not have the arm for a balancer, it is just a pedestal for the MAG-6000. 2.

  • Page 7: Bottom View

    REMOVE THE LONG ANGLE SUPPORT RAILS FROM THE TABLE TOP. 1. We assembled these rails to the table top at the factory to help keep the table strong during shipment so it would not be damaged in transit. 2. It is necessary to disassemble the long support rails from the two table top sections. 3.
  • Page 8 INSTALL THE SHORT BRACKETS HARDWARE & TOOLS REQUIRED 1. Install the two short support brackets, use 1/4-20 x 1/2” long bolts with the 1/4-20 nuts. 7/16” socket & open end wrench • 2. One bracket is under the belt support the other is under the (4) 1/4-20x1/2 long bolts •...
  • Page 9 INSTALL THE LONG BRACKETS HARDWARE & TOOLS REQUIRED 1. Install the two long angled brackets to the short brackets. 2. Use 1/4-20 x 1/2” long bolts with the 1/4-20 nuts. 7/16” socket & open end wrench • 3. DO NOT TORQUE THESE BOLTS TIGHT YET. (4) 1/4-20x1/2 long bolts •...

  • Page 10: Underside-View

    INSTALL THE LARGE TABLE TOP HARDWARE & TOOLS REQUIRED 1. Install the large table top to the angled brackets. 2. Use 8-32 x 1/2” Torx Flat Head T15 Torx screws with the T15 torx wrench & 11/32” open- • nylon insert nuts. end Wrench 3.
  • Page 11 INSTALL THE SMALL REMOVABLE HARDWARE & TOOLS TABLE TOP REQUIRED 1. Install the large table top to the angled brackets. T15 torx wrench • 2. Use four 8-32 x 1/4” Torx Flat Head T15 Torx screws (4) 8-32 x 1/4” torx screws •...
  • Page 12 INSTALL PORTED BELT COVER HARDWARE & TOOLS REQUIRED 1. The top part of the cover tucks behind the long zinc plated support rail. 5/16” socket • 2. First get the top behind the long support rail, then pivot the (5) #10 self-tapping screws •...
  • Page 13 INSTALL TASK LIGHT HARDWARE & TOOLS REQUIRED 1. Remove the electrical box cover (three sheet metal screws) 5/16” socket • 2. Unscrew the 7/8” nut from the base of the light. 7/8” wrench • 3. Run the light’s wires through the hole next to the on/off 3/4”...
  • Page 14 INSTALL BLADE FENCES 1. Install the three blade fences. 2. Locate the slotted holes in the table top. 3. Two fences are at the rear of the machine (near electrical box on each side) 4. The third fence is the front fence up near the abrasive belt. 5.
  • Page 15 INSTALL INLET FOR DUST COLLECTOR 1. IF YOU PURCHASED A MAG-200 DUST COLLECTOR FOLLOW THESE STEPS. 2. Remove the circular cover by removing the four sheet metal screws. 3. Install the 4” inlet in place of this cover and use the same hardware. HARDWARE &...
  • Page 16 If it does not, (trouble shooting at the back of this manual) or contact MAGNA-MATIC (800-328-1110). You are now ready to use your MAG-6000 Hedge Trimmer Blade Sharpener, be sure to scan the QR code below to watch videos how to use the machine and continue using this manual.
  • Page 17 FENCE ADJUSTMENT WARNING WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAU- TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL INJURY. CAUTION TURN OFF AND UNPLUG BEFORE SERVICING! 45 DEGREE EDGE ANGLE IS PERMANENTLY SET 1.
  • Page 18 Set front fence View before rear fence set Both fences set - ready to sharpen MAG-6000 HEDGE TRIMMER BLADE SHARPENER...

  • Page 19: Fence Adjustment

    FENCE ADJUSTMENT These are the same steps repeated on the “motor-side” of the sharpener. Align Tooth Pitch & Depth to the face of the abrasive belt. Set front fence Set rear fence...
  • Page 20 HOW TO SHARPEN A BLADE CAUTION BLADES HAVE SHARP EDGES - ALWAYS WEAR PROTECTIVE GLOVES AND SAFETY GLASSES! WEAR PROTECTIVE CLOTHING WHILE HANDLING AND SHARPENING BLADES. WEAR SAFETY GLASSES AND PROTECTIVE GLOVES. BLADE & SHARPENER PREPARATION 1. Clean the blade to its base material, using the MAG-12008 blade cleaner, or alternate cleaning process.
  • Page 21 Open top cover to expose the belt. Deburr the underside of the blade, approach the belt at an angle. Only light pressure is required.
  • Page 22 Push the lever back to re-apply the spring pressure onto the belt. Always inspect abrasive belts for possible damage - never mount a torn belt. For optimum performance use only abrasive belts specified by Magna-Matic. ONLY NORTON® brand abrasive belts are used on MAGNA-MATIC® products for their quality and performance.
  • Page 23 MAG-6000 SPECIFICATIONS MAG-6000 (North America) LxWxH 41” x 14” x 19” Weight 80 lbs Ship Weight 65 & 23 lbs Motor Specs US MOTORS® Horse Power Motor RPM 3450 Duty Cycle Continuous Hertz Volts Phase Single Amps (run) Capacitors Dual Motor Type Industrial - Totally Enclosed Insulation...

  • Page 24: Motor Wiring Diagram

    MOTOR WIRING DIAGRAM MAG-6000 HEDGE TRIMMER BLADE SHARPENER...

  • Page 25: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION Fan guard bent/dam- Motor fails to start aged and contacting Replace fan guard fan. Motor has been running, Fuse or circuit breaker Replace fuse or reset the breaker. then fails to start tripped. Motor has been running, Motor overloaded or Inspect to see that the load is free.

  • Page 26: Warranty

    WARRANTY MAGNA-MATIC CORPORATION (the “Manufacturer”) warrants Manufacturer’s products (the “Products”) will be free from defects in manufacture by Manufac- turer (the “Warranty”). The Warranty will be effective and valid for a period of one (1) or two (2) years, as indicated on the Warranty certificate or Manufacturer’s website (http://www.magna-matic.com), beginning on the date in which Manufacturer ships the Product (the “Warranty Period”) from manufacturer’s facility...
