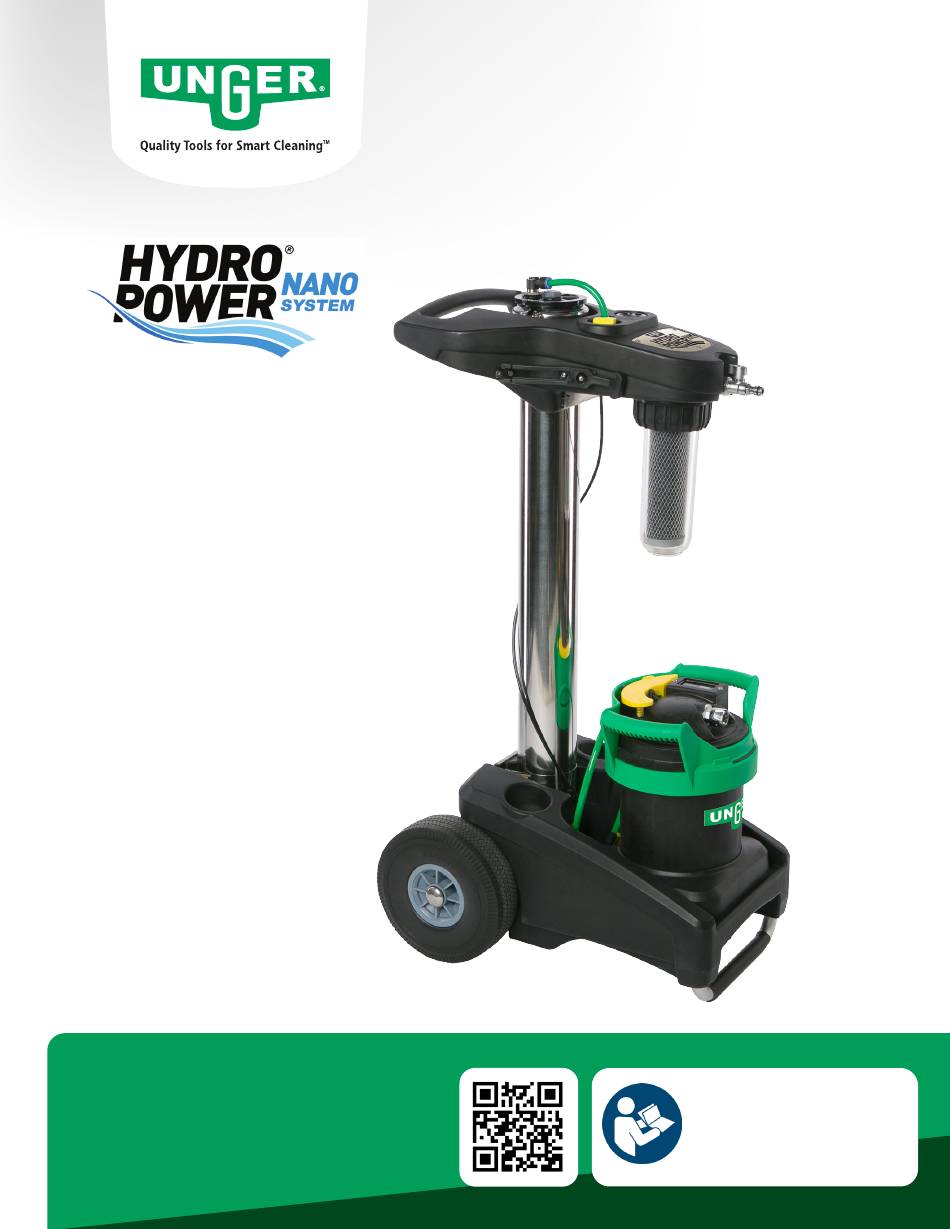

- Page 1 Operating Instructions NANO READ THE OPERATING INSTRUCTIONS BEFORE TURNING ON THE SYSTEM! (NANOC / NAN0B) KEEP OPERATING INSTRUCTIONS WITH THE MACHINE AT ALL TIMES!
-
Page 2: Table Of Contents
Responsibilities of the operator ................10 2.11 Storing the operating instructions ..............11 2.12 Contact address ....................11 About HydroPower NANO ..................12 Using the HydroPower NANO ................12 3.1.1 Intended use ....................12 Technical specifications ..................12 3.2.1 Operating conditions ................... 12 3.2.2... - Page 3 HydroPower® NANO Table of Contents Preparing for use ....................... 14 Construction of the HydroPower NANO ............. 14 Interfaces ......................14 Transport and storage ..................15 4.3.1 Transportation .................... 15 4.3.2 Operating the HydroPower NANO ............... 16 Startup ......................... 17 4.4.1 Starting up a HydroPower NANO ..............
-
Page 4: Introduction
This manual allows you to use the HydroPower NANO safely and efficiently. The operating instructions are part of the HydroPower NANO and must be kept with the HydroPower NANO and accessible to operating personnel in the immediate vicinity of the HydroPower NANO at all times. -
Page 5: Safety Information
Your safety and the safety of others are very important. We have provided important safety messages in this manual and on the HydroPower NANO. Always read and obey all safety messages. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when operating and maintaining the HydroPower NANO. -
Page 6: Warning Signs
HydroPower® NANO Safety Information 2.2 Warning signs Warning of a hazard. Warning of electrical voltage. Warning of overpressure in containers. Warning of hot surfaces. Warning of suspended loads. Warning of injury to the limbs. 2.3 Mandatory signs Application tips and other useful information. Use protective gloves. -
Page 7: General Safety Information
• If the HydroPower NANO is in proper working order This includes: • The safety labels attached to the HydroPower NANO must always be complete and legible condition. Replace damaged or illegible labels. • Before cleaning or maintaining the HydroPower NANO, make sure the vessels are disconnected from the water source and depressurized. -
Page 8: Hazards From Materials And Substances
HydroPower® NANO Safety Information 2.7 Hazards from materials and substances The safety data sheets for materials and substances can be found online at www.ungerglobal.com/service/downloads/safety-data-sheet. Irritation to the eyes, skin and respiratory tract. Resin can cause irritation to the eyes, skin and resiratory tract. Avoid any contact with the resin when replacing the DI resin pack. -
Page 9: General Hazards
HydroPower® NANO Safety Information 2.8 General hazards Read and follow ANSI Standard IWCA 1-14.1 (Window Cleaning Safety). Purified water is delivered to the waterfed pole by hoses from the HydroPower Ultra system. This introduces a risk of tripping to both the operator and the general public. Identify work area with appropriate signage. Any surface that becomes wet must be identified with appropriate signage to direct pedestrians and workers away from work area. -
Page 10: Technical Label
HydroPower NANO. • The operator must insure that all safety labels on the HydroPower NANO are legible at all times. • The HydroPower NANO should not be used if the operator is under the influence of drugs, alcohol, or medications. -
Page 11: Storing The Operating Instructions
2.11 Storing the Operating Instructions This manual must be kept with the HydroPower NANO and must be available to the entire staff at all times. If the manual becomes illegible for any reason, the operator must obtain a replacement manual from the manufacturer. -
Page 12: General Safety Regulations
The HydroPower NANO is intended for commercial use only. The HydroPower NANO may only be connected to municipal water lines. The use of the HydroPower NANO in any way other than as described in this manual, including for bacteria removal, is prohibited. -
Page 13: Pressure Ratings
Standard concentrate connection thread [”] Standard permeate connection thread [”] 3.3 System products & accessories The following is included in each delivery: • HydroPower Nano Base • Filter Key • HydroPower Ultra DI Tank • Concentrate Hose • HydroPower Ultra Resin Pack •... -
Page 14: System Overview
HydroPower® NANO System overview Preparing for use Construction of the HydroPower® NANO Water outlet Flow optimizer dial Water inlet Pre-filter Digital TDS meter HydroPower DI resin unit Manometer Pole straps NANO membrane 10 Concentrate hose 11 NANO unit technical sticker 12 Clamps for HydroPower unit 13 Pole holder 14 Concentrate hose valve... -
Page 15: Transport And Storage
Therefore, immediately check the HydroPower NANO upon delivery for any damage. If the HydroPower NANO has been damaged during transport, show the damage to the company delivering the HydroPower NANO on behalf of your distributor. -
Page 16: Operating The Hydropower Nano
The membrane filter (3) removes up to 90% of the minerals from the water in the HydroPower NANO. The resin filter (4) sits after the membrane, which removes the last 10% of the minerals from the water in the HydroPower NANO. -
Page 17: Startup
100% efficiency can be achieved (see image 5) 4.5 Storage If the unit is not used for more than 14 days, the membranes must be protected in accordance with the storage instructions, (see section “7.2.3 Membrane protection”). The HydroPower NANO must be stored indoors. ungerglobal.com... -
Page 18: Operation Of The Hydropower Nano
HydroPower® NANO Operation 5 Operation of the HydroPower NANO The operating instructions must be read and understood before operating the HydroPower NANO. DANGER Severe injuries or death and property damage due to the HydroPower NANO falling are possible. Place the unit on a level surface only. -
Page 19: Turning Off The Hydropower Nano
Operation PURE MODE 5.1 Turning o the HydroPower NANO To switch off the HydroPower NANO after finishing the work, proceed as follows: 1. For a longer service life, the membrane should be flushed for approximately five (5) minutes after work. To do this, set the flow... -
Page 20: Maintenance And Servicing
Material damage to the unit due to insufficient maintenance is possible. Before each use, perform a visual inspection of the unit for damage. If you notice any damage, do not use the HydroPower NANO and contact your distributor. TOOLS REQUIRED... -
Page 21: Maintenance And Maintenance Plan
”7.2.3 Membrane protection.” If the membrane is not regularly flushed or protected with the UNGER membrane care liquid, there is a risk of blockage and thus a strong reduction in the unit‘s performance or damage to the unit. -
Page 22: Membrane Protection
Storage - Membrane protection The membrane achieves its optimal life with regular water flow or flushing. If the HydroPower NANO is not in use for an extended period of time (longer than 14 days), the membrane must be protected against mineral deposits. -
Page 23: Repair And Replacement Of Parts
HydroPower® NANO Replacing filter cartridges 7.3 Repair and replacement of parts Additional information on replacement parts can be found on the Unger website (www.ungerglobal.com). For all other repairs, please contact your distributor. 7.3.1 Replacing filter cartridges If the display shows a value of 10 ppm or more, the resin filter must be replaced (see section 7.2.1). -
Page 24: Turning Off The System
8.1 Disassembly and storage NOTE To prepare the HydroPower NANO for storage, see section 4.5, p. 17 8.2 Recycling Properly recycle all recyclable materials to help protect our environment. The packaging material is to be separated. It consists of foam, wood, plastic and corrugate cardboard and is to be recycled individually according to local recycling ordinances.
