Star Lake ROC280-A User Manual

1u 19”dc-dc fanless server with intel 14th /13th processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

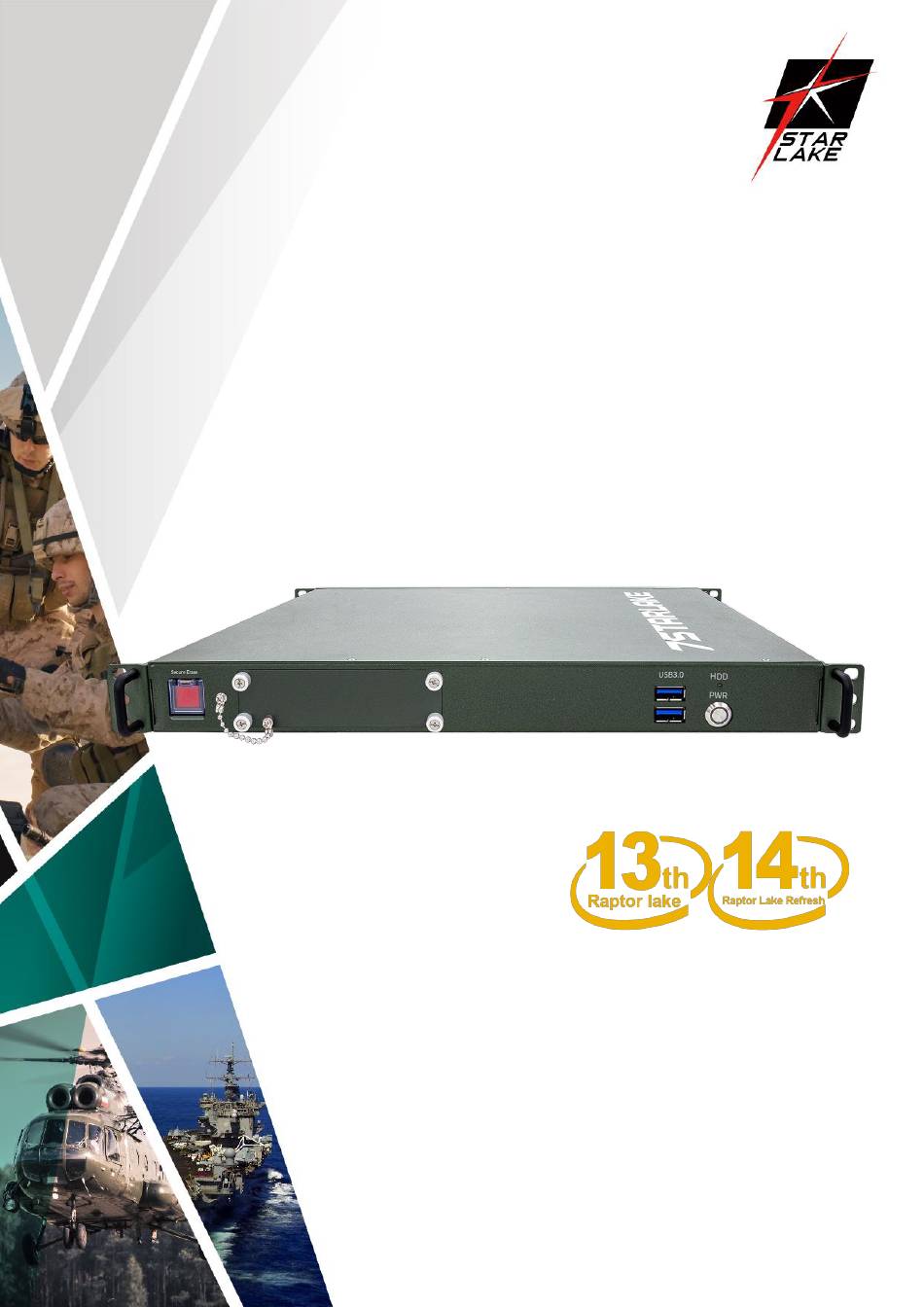

ROC280-A
th
th
1U 19"DC-DC Fanless Server With Intel 14
/13
Processor
User's Manual
Revision Date: Feburary ,7, 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROC280-A and is the answer not in the manual?

Questions and answers

Related Manuals for Star Lake ROC280-A

Summary of Contents for Star Lake ROC280-A

  • Page 1 ROC280-A 1U 19”DC-DC Fanless Server With Intel 14 Processor User’s Manual Revision Date: Feburary ,7, 2025...

  • Page 2: Safety Information

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Safety Information Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.  When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.

  • Page 3: Revision History

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Revision History Revision Date (mm.dd.yyyy) Changes V1.0 2.7.2025 First release Packing list Item Description Q’ty ROC288-AA System CD(Drivier + User’s manual) Ear mounting & Screw 1 Set If any of the above items is damaged or missing, please contact your local distributor.

  • Page 4: Table Of Contents

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Table of Contents Safety Information ..............................1 Electrical safety ..............................1 Operation safety ...............................1 Statement .................................1 Revision History..............................2 Packing list ................................2 Chapter 1 : Product Information ..........................5 1.1 Key Feature ..............................5 1.2 I/O Placement ..............................7 Chapter 2 : I/O Connector &...
  • Page 5 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 3.5 Security ..............................24 3.6 Chipset ..............................33 3.7 Power ................................ 34 3.8 Save & Exit ..............................35...

  • Page 6: Chapter 1 : Product Information

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Chapter 1 : Product Information 1.1 Key Feature System HighPerformance 14th/13th Gen Intel® Raptor Lake-R/Raptor Lake-S LGA1700 Socket Processor / Core Processor i9/i7/i5/i3 Processor / TDP 65W Memory type DDR5 5200 MHz / 2 x 262-pin SO-DIMM / Max. 64 GB (Non-ECC) Chipset Intel®...

  • Page 7: Power Requirement

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 DC-IN 2 x DC plug Power Requirement Power Input DC-IN 16~31V w/Redundant Physical Dimension (W x D x H) 430 x 450 x 44.4 mm Chassis SECC Environment Green Product RoHS compliance Operating Temperature -20 to 60°C (Options for -40°C) Storage Temperature...

  • Page 8: I/O Placement

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 1.2 I/O Placement...

  • Page 9: Chapter 2 : I/O Connector & Ssd Tray Door

    This connector is provided for microphones. 2.5 Line-Out Jack This connector is provided for headphones or speakers. 2.6 Line-Out Jack ROC280-A support Two 2.5” Easy Swap SSD : Use cross pliers to open screw and pull out the 2.5" SSD Tray...
  • Page 10 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Put 2.5" SSD on the tray and make sure SSD is fixed and push the tray back Usecross pliers to lock the tray door...

  • Page 11: Chapter 3 : Bios Setup

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Chapter 3 : BIOS Setup This chapter provides information on the BIOS Setup program and allows users to configure the system for optimal use. Users may need to run the Setup program when: ∙...
  • Page 12 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Control Keys ← → Select Screen ↑ ↓ Select Item Enter Select Change Value Exit General Help Previous Values Optimized Defaults Save & Reset* Screenshot capture <K> Scroll help area upwards <M> Scroll help area downwards * When you press <F10>, a confirmation window appears and it provides the modification information.

  • Page 13: The Menu Bar

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 General Help <F1> The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item.

  • Page 14: Main

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Use this menu to set supervisor and user passwords.  Chipset This menu controls the advanced features of the on-board chipsets  Power Use this menu to specify your settings for power management. ...
  • Page 15 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  System Time This setting allows you to set the system time. Format: <Hour> <Minute> <Second>.  SATA Mode Selection This setting specifies SATA controller mode. [AHCI] AHCI (Advanced Host Controller Interface), is a technical standard for an interface that allows the software to communicate with Serial ATA (SATA) devices.
  • Page 16 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  Enabled VMD Global Mapping Enables or disables Intel VMD mapping. Intel VMD enables direct control and management of NVMe SSDs from the PCIe bus without additional hardware adapters.  Map This Root Port under VMD Enables or disables the mapping of the specified PCIe root port under Intel VMD control.

  • Page 17: Advanced

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 3.3 Advanced  Full Screen Logo Display This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo. [Enabled] BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages. [Disabled] BIOS will display the normal POST messages, instead of the full-screen logo.
  • Page 18 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  CPU Configuration  VT-d Enables or disables Intel VT-D (Intel Virtualization for Directed I/O) technology.  Intel Virtualization Technology Enables or disables Intel Virtualization technology. [Enabled] Enables Intel Virtualization technology and allows a platform to run multiple operating systems in independent partitions.
  • Page 19 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 operating system does not support HT Function or unreliability and instability may occur.  Active Performance-cores Select the number of active Performance-cores (P-cores).  Intel(R) SpeedStep(TM) Enhanced Intel SpeedStep® Technology enables the OS to control and activate performance states (P-States) of the processor.
  • Page 20 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  Serial Port 1/ 2/ 3/ 4 This setting enables or disables the specified serial port. » Device Settings This setting shows the address & IRQ of the specified serial port. » Change Settings This setting is used to change the address &...
  • Page 21 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  Smart Fan Configuration  CPUFAN/ SYSFAN This setting enables or disables the Smart Fan function. Smart Fan is an excellent feature which will adjust the CPU/system fan speed automatically depending on the current CPU/system temperature, avoiding the overheating to damage your system.
  • Page 22 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  Audio Controller This setting enables or disables the detection of the onboard audio controller.  Network Stack Configuration This menu provides Network Stack settings for users to enable network boot (PXE) from BIOS. ...
  • Page 23 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  GPIO Group Configuration  GPO0 ~ GPO7 These settings control the operation mode of the specified GPIO.  PCIE ASPM settings This menu provide settings for PCIe ASPM (Active State Power Management) level for different installed devices. ...

  • Page 24: Boot

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 3.4 Boot  Boot Option #1-2 This setting allows users to set the sequence of boot devices where BIOS attempts to load the disk operating system.

  • Page 25: Security

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 3.5 Security  Administrator Password Administrator Password controls access to the BIOS Setup utility.  User Password User Password controls access to the system at boot and to the BIOS Setup utility. ...
  • Page 26 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 This menu allows you to configure settings related to the PCH firmware.  ME State This menu controls the Intel® Management Engine State (ME state) parameters, which provides various management and security capabilities. The following items will display when ME State is enabled. »...
  • Page 27 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Enables or disables Core BIOS Done Message sent to ME.  Extend CSME Measurement to TPM-PCR This setting enables or disables Intel® Converged Security and Management Engine (CSME) measurement extend to TPM-PCR. ...
  • Page 28 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 » HECI Timeouts This setting enables/ disables the HECI (Host Embedded Controller Interface) send/ receive timeouts. » Force ME DID Init Status Forces the ME Device ID (DID) initialization status value. » CPU Replaced Polling Disable Setting this option disables the CPU replacement polling loop.
  • Page 29 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Enables or disables Management Component Transport Protocol (MCTP) Broadcast Cycle.  Anti-Rollback SVN Configuration » Automatic HW-Enforced Anti-Rollback SVN Setting this item enables will automatically activate the hardware-enforced anti-rollback protection based on the Secure Version Number (SVN).
  • Page 30 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  Security Device Support This item enables or disables BIOS support for security device. When set to [Disable], the OS will not show security device.  SHA256 PCR Bank These settings enables or disables the SHA256 PCR Bank. ...
  • Page 31 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  TPM 2.0 Interface Type This setting shows the TPM 2.0 Interface Type.  Device Select Select your TPM device through this setting.  Serial Port Console Redirection  Console Redirection Console Redirection operates in host systems that do not have a monitor and keyboard attached. This setting enables or disables the operation of console redirection.
  • Page 32 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 » Terminal Type To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s). You can select emulation for the terminal from this setting.
  • Page 33 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 PuTTY is a terminal emulator for Windows. This setting controls the numeric keypad for use in PuTTY.  Secure Boot  Secure Boot Secure Boot function can be enabled only when the Platform Key (PK) is enrolled and running accordingly. ...

  • Page 34: Chipset

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 Press Enter key to enter the sub-menu. Manage the secure boot keys. This item appears when “Secure Boot Mode”sets to [Custom]. 3.6 Chipset  Primary Display Secure Boot function can be enabled only when the Platform Key (PK) is enrolled and running accordingly. ...

  • Page 35: Power

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 system memory made available at boot time by the system BIOS for video. Pre-allocated memory is also known as locked memory. This is because it is “locked” for video use only and as such, is invisible and unable to be used by the operating system.

  • Page 36: Save & Exit

    ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025 required. No previous content is retained. Other components may remain powered so the computer can “wake” on input from the keyboard, clock, modem, LAN, or USB device.  USB, LAN, PCIE PME/ Ring The setting allows the activity of the specified device to wake up the system from power saving modes.
  • Page 37 ROC288-AA User’s Manual Revision Date: Feburary, 7, 2025  Discard Changes and Exit Abandon all changes and exit the Setup Utility.  Discard Changes Abandon all changes.  Load Optimized Defaults Use this menu to load the default values set by the motherboard manufacturer specifically for optimal performance of the motherboard.
