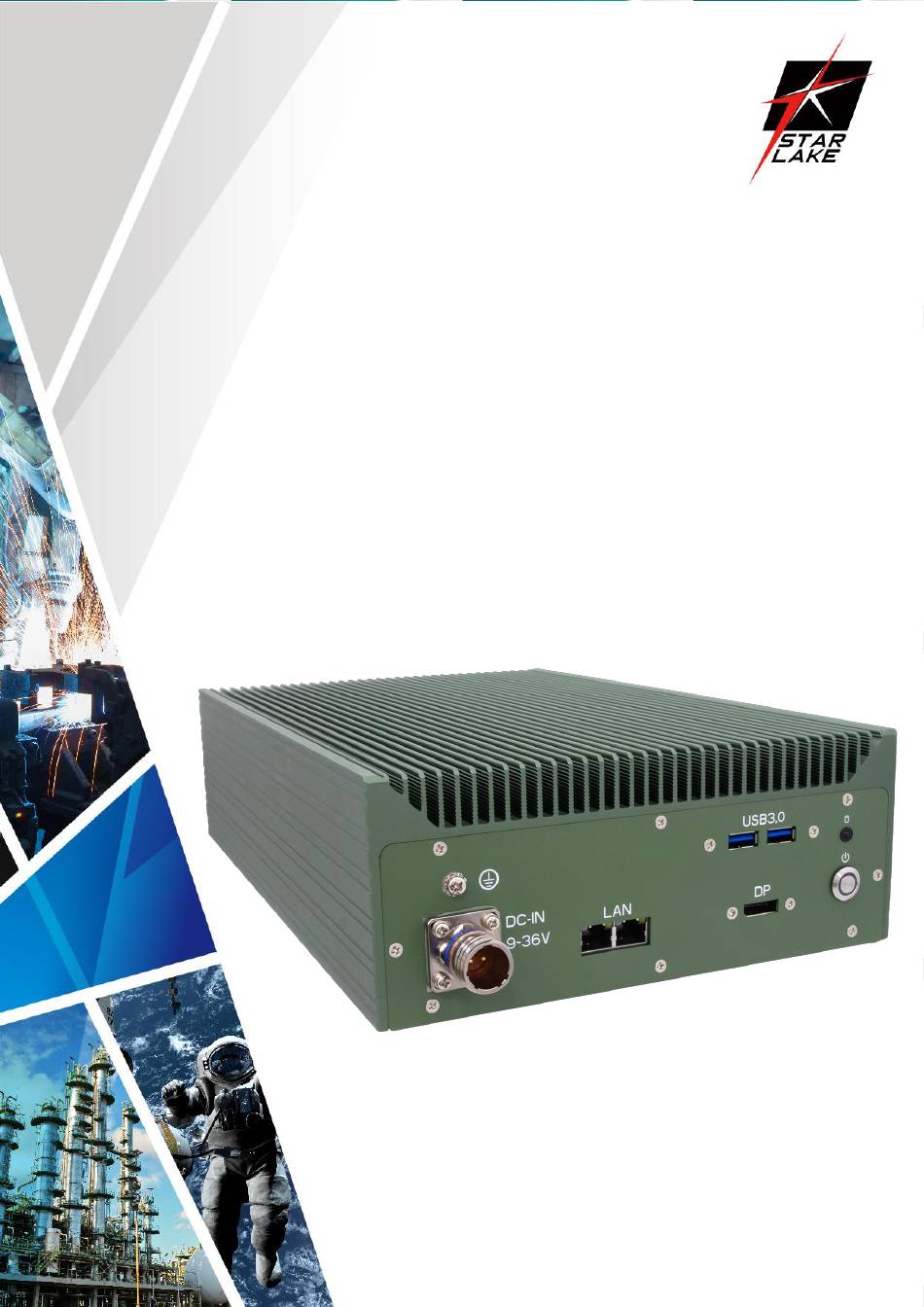

- Page 1 ROC200-DL MIlitary Xeon D Fanless Server with Intel® Xeon® D-1700 processor User’s Manual Revision Date: Nov. 05. 2024...
-
Page 2: Safety Information
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Revision History
User’s Manual Revision Date: Nov. 05. 2024 Revision History Revision Date Changes (yyyy/mm/dd) Version 1.0 2024/11/05 Initial release Packing list ROC200-DL MIlitary Xeon D Fanless Server CD (Driver + Usermanual) Ordering Information ROC200-DL-A20 ROC200-DL-35A ROC200-DL-A45 ROC200-DL-50A ROC200-DL-R ROC200-DL-4S... -
Page 4: Table Of Contents
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 Index Safety Information ..............................1 Revision History..............................2 Packing list ................................2 Ordering Information ............................2 Specifications ..............................5 Dimension ..............................7 System Block Diagram ..........................8 CPU Module Functional Block Diagram ....................8 Chapter 2 Connector Pin Define ...........................9 Power IN: ............................9... - Page 5 ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.4.1 COMe PCIe Port 0/4/8/12 ..................... 21 4.3.4.2 COMe PCIe Port 16~31 ......................22 4.3.5 SATA Configuration ........................ 23 4.3.6 USB Configuration ........................24 4.3.7 Power Control Configuration ....................25 4.3.8 TPM Configuration ........................26 4.3.9...
-
Page 6: Chapter 1 Product Introduction
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 Chapter 1 Product Introduction Specifications System COM Express CPU Intel® Xeon® D-1700 processor (Ice Lake-D LCC) (Type 7) COM Express CPU Intel® Xeon® D-1700 processor (Ice Lake-D LCC) Options •Xeon® D-1746TER 2.0/3.1GHz, 15MB, 67W, 10C (Type 7) •Xeon®... - Page 7 ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 2x RS232 Front I/O 1x SSD LED Power Button 1x Power Button w/Indicator LED 2x USB 3.0 Display port 1x DP 2x RJ45 DC-IN 1x D38999 connector Power Management Power Type Wide Voltage DC-IN 9V~36V (Support AT/ATX mode)
-
Page 8: Dimension
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 Dimension _________ 360mm 220mm 88mm ____... -
Page 9: System Block Diagram
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 System Block Diagram CPU Module Functional Block Diagram ______... -
Page 10: Chapter 2 Connector Pin Define
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 Chapter 2 Connector Pin Define Power IN:... -
Page 11: Chapter 3 Cpu Module
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 Chapter 3 CPU Module 3.1 Introduction PCOM-B705GT, a Type 7 COM Express® basic size(125 x 95 mm) module which based on Intel® Xeon® D-1700 series processors. In this architecture, it could provide up to 10 cores / 20 threads processors with the maximum TDP=67w, and 4x 10G KR ports. -
Page 12: Specifications
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 3.3 Specifications Product PCOM-B705GT Form Factor COM Express® Type 7, Basic Size (125mm X 95mm) Processor Intel® Xeon® D-1746TER Intel® Xeon® D-1732TE Intel® Xeon® D-1715TER BIOS AMI UEFI BIOS Memory Support ECC and Non-ECC, up to 3 Channel Memory Operation... -
Page 13: Supported Operating Systems
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 3.4 Supported Operating Systems Vendor Operating System Support Microsoft Windows 10 IoT Enterprise LTSC Intel, Microsoft Windows Microsoft Windows Server 19H1, 19H2, 20H1 Intel, Microsoft Red Hat Enterprise Linux 7.6 or latest... -
Page 14: Power Consumption
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 3.6 Power Consumption Series PCOM-B705GT Processor D-1746TER D-1732TE D-1715TER S0 Idle 1.56A 1.54A 1.64A 100% workload 4.48A 4.13A 3.43A without turbo mode 100& workload with 4.83A 4.35A 3.81A turbo mode Peak Current 2.83A... -
Page 15: Chapter 4 Bios Setup
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 Chapter 4 BIOS Setup PCOM-B705GT is equipped with the AMI BIOS stored in Flash ROM. These BIOS has a built-in setup program that allows users to modify the basic system configuration easily. This type of information is stored in SPI ROM so that it is retained during power-off periods. -
Page 16: Main
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 Main Feature Description Option ★English System Language System Date The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Time The time format is <Hour> <Minute> <Second>. Use... -
Page 17: Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3 Configuration... -
Page 18: Cpu Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.1 CPU Configuration Feature Description Option Disabled, ★Enabled Enables Hyper Threading (Software Hyper-Threading [ALL] Method to Enable / Disable Logical Processor threads.) Disabled, ★Enabled SpeedStep (Pstates) Enable/Disable EIST (P-States) Disabled, ★Enabled Enable/Disable processor Turbo Mode... -
Page 19: Chipset Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.2 Chipset Configuration Feature Description Option Disabled, ★Enabled Above 4G Decoding Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding). -
Page 20: Lan Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.3 LAN Configuration Feature Description Option Disabled, ★Enabled Enabled I210 LAN Control the PCI Express Root Port. Control... -
Page 21: Pci/Pcie Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.4 PCI/PCIE Configuration Feature Description Option ★Disabled, Enabled Compliance Test Mode Enable when using Compliance Load Board 4x2, 1x4 2x2, 2x2 1x4, ★ COMe PCIe Port 0-7 Allows changing PCIE bifurcation Bifurcation 2x4, 1x8 4x2, 1x4 2x2, 2x2 1x4, ★... -
Page 22: Come Pcie Port 0/4/8/12
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.4.1 COMe PCIe Port 0/4/8/12 Feature Description Option Disabled, ★Enabled COMe PCIe Port Control the PCI Express Root Port. 0/4/8/12 Gen1, Gen2, ★Gen3 PCIe Speed Configure PCIe Speed Auto is equal to Gen2... -
Page 23: Come Pcie Port 16~31
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.4.2 COMe PCIe Port 16~31 Feature Description Option ★Auto, PCI-E Port In auto mode the BIOS will remove the EXP port if there is no device or errors on that Disabled, Enabled device and the device is not HP capable. -
Page 24: Sata Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.5 SATA Configuration Feature Description Option Disabled, ★Enabled Enabled or Disabled SATA Port Port 0 Disabled, ★Enabled Enabled or Disabled SATA Port Port 1... -
Page 25: Usb Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.6 USB Configuration Feature Description Option ★Enabled , Disabled, Enables Legacy USB support. AUTO option Legacy USB Support disables legacy support if no USB devices are Auto connected. Disabled, ★Enabled This is a workaround for OSes without XHCI XHCI Hand-off hand-off support. -
Page 26: Power Control Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.7 Power Control Configuration Feature Description Option Power On, ★Power Off Specify what state to go to when power is AC Power Loss re-applied after a power failure (G3 state) -
Page 27: Tpm Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.8 TPM Configuration Feature Description Option ★Enabled, Enables or Disables BIOS support for security device. TPM v1.2 Support O.S. will not show Security Device. TCG EFI protocol Disabled and INT1A Interface will not be available. - Page 28 ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 TCG_1_2, ★ Select the TCG2 Spec Version Support, TPM 2.0 UEFI Spec TCG_1_2: the Compatible mode for Win8/Win10, TCG_2 Version TCG_2: Support new TCG2 protocol and event format for Win10 or later.
-
Page 29: Super Io Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.9 Super IO Configuration Feature Description Option ★Disabled, Enabled Enable/Disable Watch Dog Timer Watch Dog Timer ★Second, Minute Select Timer count unit of WDT [Watch Timer Unit Dog Timer [Enabled]] ★20 Set WDT Timer value seconds / minutes... -
Page 30: Serial Port 1 Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.9.1 Serial Port 1 Configuration Feature Description Option ★Enabled, Disabled Enable or Disable Serial Port (COM) Module Serial Port 1 ★Auto ,IO=3F8h; IRQ=4; Select an optimal settings for Super IO Change Settings Device IO=3F8h;... -
Page 31: Serial Port 2 Configuration
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.9.2 Serial Port 2 Configuration Feature Description Option ★Enabled, Disabled Enable or Disable Serial Port (COM) Module Serial Port 2 ★Auto ,IO=3E8h; IRQ=3; Select an optimal settings for Super IO Change Settings Device IO=3F8h;... -
Page 32: H/W Monitor
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.10 H/W Monitor... -
Page 33: Serial Port Console Redirection
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.11 Serial Port Console Redirection Feature Description Option Disabled, ★Enabled Console Redirection Enable or Disable COM0 Console Redirection ★Enabled, Disabled Console Redirection Enable or Disable COM1 Console Redirection... -
Page 34: Console Redirection Settings
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.11.1 Console Redirection Settings Feature Description Option ★VT100+, VT100, Emulation: ANSI: Extended ASCII char set. VT100: Terminal Type ASCII char set. VT100+: Extends VT100 to support ANSI, VT-UTF8 color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes. - Page 35 ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. ★None, Flow control can prevent data loss from buffer Flow Control overflow.
-
Page 36: Ec Firmware Update
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.3.12 EC Firmware Update... -
Page 37: Security
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.4 Security Feature Description Option ★Setup, Power [Setup] check password when enter setup Password Check Mode screen. [Power on] check password on every time system power on. Set Administrator Password Administrator Password... -
Page 38: Secure Boot
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.4.1 Secure Boot Feature Description Option Secure Boot feature is Active if Secure Boot is Enable, Disabled, Secure Boot ★Enabled Platform Key(PK) is enrolled and the System is in User mode. The mode change requires platform reset ★Standard,... -
Page 39: Boot
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.5 Boot Feature Description Option ★3 Set the default timeout before system boot. A value of Setup Prompt 65535 will disable the timeout completely. Timeout ★On, Off Select the keyboard NumLock state. -
Page 40: Save & Exit
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.6 Save & Exit Feature Description Option Reset the system after saving the changes. Save Changes and Reset Restore/Load Default values for all the setup options. Restore Defaults Values Reset the system after saving the changes. (Boot option... -
Page 41: Bios/Ec Update
ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 4.7 BIOS/EC Update PCOM-B705GT only support BIOS/EC update under UEFI shell environment, refer the following step, please. Step 1. The switch need to set on “on” Step 2. Unzip update file to the USB DOK (USB DOK must be FAT or FAT32 format) ... - Page 42 ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 Step 4. Under the UEFI shell, change prompt to your USB DOK, the below example is “ fs0: “ Step 5. Then change the folder with updated file and use command: “ update “...
- Page 43 ROC200-DL User’s Manual Revision Date: Nov. 05. 2024 (BIOS updating progress) (EC updating progress)
