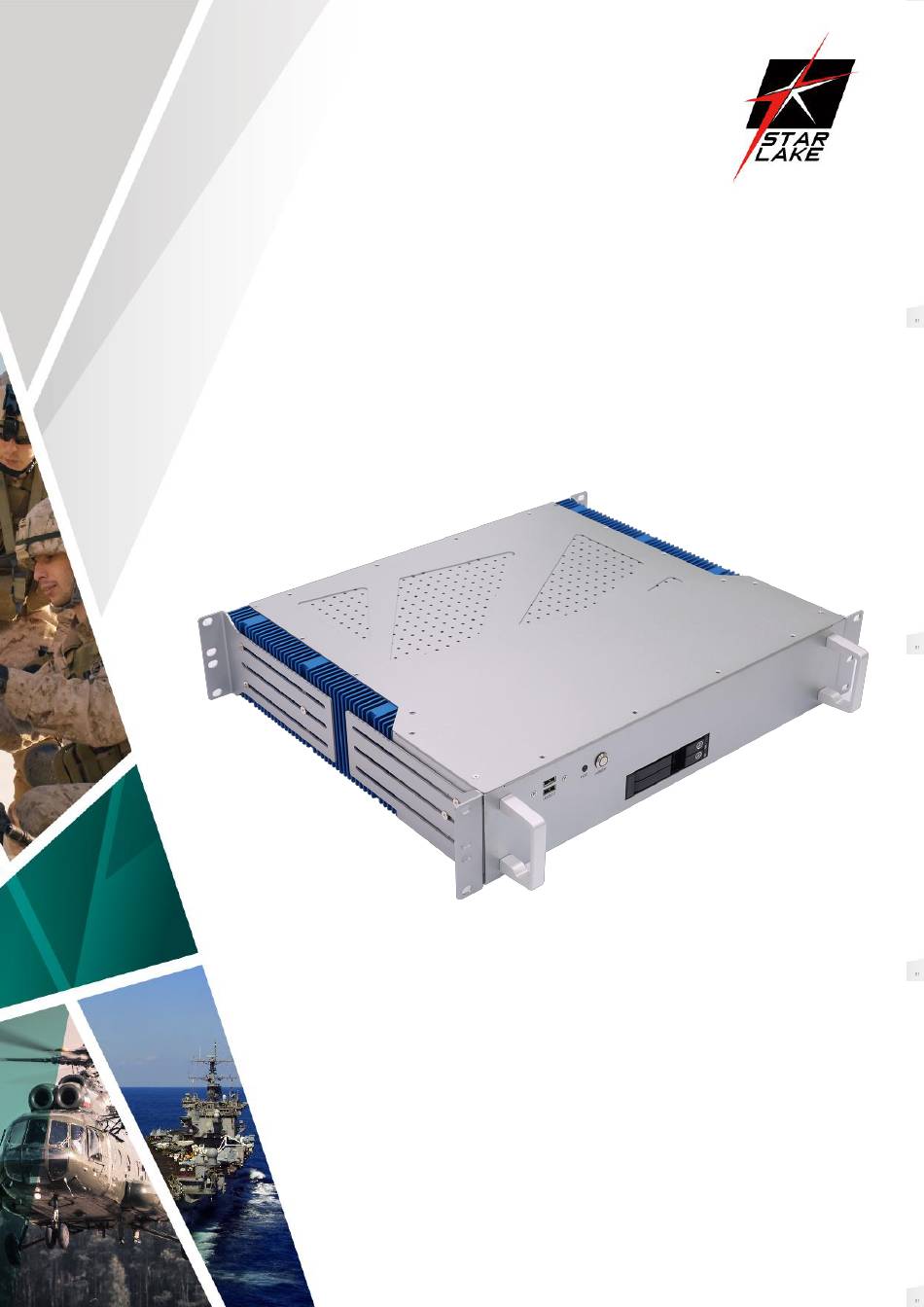

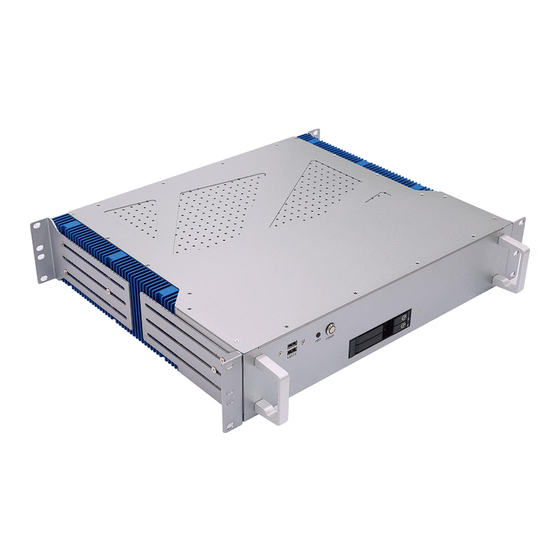

- Page 1 HORUS420-R1 2U RUGGED RACK MOUNT SERVER User’s Manual User’s Manual Revision Date: Jul. 25. 2023...
-
Page 2: Safety Information
HORUS420-R1 User’s Manual Revision Date: Feb.02. 2024 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Specifications
HORUS420-R1 User’s Manual Revision Date: Feb.02. 2024 Specifications System 6th Gen Intel® Xeon E3-1268L v5, i7-6700TE, 4C, 2.4/3.4GHz, 8MB cache, TDP 35W Memory type 4x DDR4 XR-DIMM up to 64GB Chipset Intel® Q170 Chipset NVIDIA GTX 1050Ti Storage Device Internal: 2x 2TB 3D TLC SSD... -
Page 4: Packing List
Revision Date (yyyy/mm/dd) Changes Version 1.0 2024/02/02 Initial release Packing list □ HORUS420-R1 Rugged Rack Mount Server □ CD (Driver + usermanual) Ordering Information Model Number Description HORUS420-R1 2U Rugged Rack mount Fanless Redundant Storage Server , Intel® i7-6700TE ,2x 10GbE, AC-DC redundant support 100V~240V AC-IN, 4x SATA3.0 SSD, extended temp -20°C to 60°C degree supports NVIDIA®... -
Page 5: Table Of Contents
HORUS420-R1 User’s Manual Revision Date: Feb.02. 2024 Table of contents Safety Information ................................ 1 Electrical safety ............................... 1 Operation safety .............................. 1 Statement ................................ 1 Specifications ................................2 Packing list ................................... 3 Ordering Information ..............................3 Chapter 1: Product Introduction ..........................5 1-1 Key Features ............................. -
Page 6: Chapter 1: Product Introduction
HORUS420-R1 User’s Manual Revision Date: Feb.02. 2024 Chapter 1: Product Introduction 1-1 Key Features System Intel®14 nm Skylake-S Intel® Core™ i7-6700TE Processor (8M Cache, 2.40/3.40 GHz) Chipset Intel® Q170 Memory Type 4x XR-DIMM DDR4 up to 64GB BIOS AMI® UFEI BIOS... -
Page 7: Mechanical Dimensions
HORUS420-R1 User’s Manual Revision Date: Feb.02. 2024 1.2 Mechanical Dimensions... -
Page 8: Front Panel Component
HORUS420-R1 User’s Manual Revision Date: Feb.02. 2024 1.3 Front Panel Component 2x USB2.0 HDD/SSD LED Power ON/Off Switch with LED 2x 2.5” Easy Swap trays 1.4 Rear Panel Component 4x RJ45 4x USB3.0 1x Display Port 3x Display Ports 1x GND screw... -
Page 9: Chapter 2: Jumpers And Connectors Locations
HORUS420-R1 User’s Manual Revision Date: Feb.02. 2024 Chapter 2: Jumpers and Connectors Locations 2.1 Connector & LED Pin Definitions LAN: LAN1-LAN4 and LAN LED LAN Port LED Indications Activity/Link LED SPEED LED DP: DISPLAY PORT USB3.0: 1-4 USB2.0: 1-2... - Page 10 HORUS420-R1 User’s Manual Revision Date: Feb.02. 2024 HDMI:...
