Star Lake ROC235B Series User Manual

19" 1u rack-mount intel qm77 fanless rugged system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ROC235B
19" 1U Rack-mount Intel®
QM77 Fanless Rugged System
User's Manual
Revision Date: June. 18. 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROC235B Series and is the answer not in the manual?

Questions and answers

Related Manuals for Star Lake ROC235B Series

Summary of Contents for Star Lake ROC235B Series

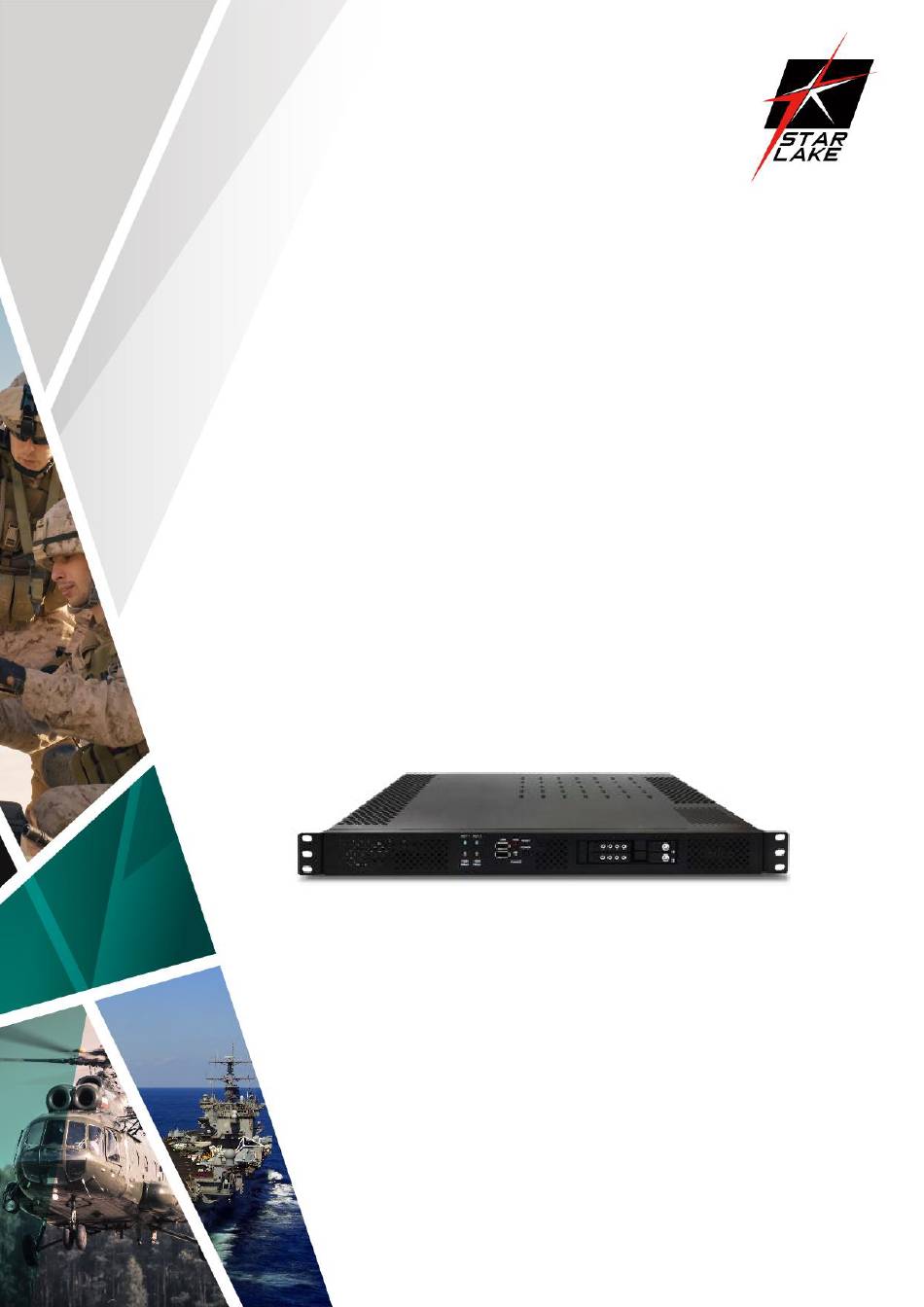

  • Page 1 ROC235B 19” 1U Rack-mount Intel® QM77 Fanless Rugged System User’s Manual Revision Date: June. 18. 2017...
  • Page 2 ROC235B User’s Manual Revision Date: June. 18. 2017 Safety Information Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.  When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.
  • Page 3 ROC235B User’s Manual Revision Date: June. 18. 2017 Specifications System High Performance Intel® 22nm Ivy Bridge Processor (Mobile) socket(rPGA988) Processor Intel® Core™ i7-3610QE (4C x 3.3 GHZ), 6M L2 cache (45W) Intel® Core™ i5-3610ME (2C x 2.7 GHZ), 3M L2 cache (35W) Intel®...
  • Page 4 ROC235B User’s Manual Revision Date: June. 18. 2017 Operating Temp -20 to 60°C (ambient with air flow) Storage Temp. -20 to 80°C Relative Humidity 0% to 95%, non-condensing CE, FCC...

  • Page 5: Revision History

    ROC235B User’s Manual Revision Date: June. 18. 2017 Revision History Packing list Ordering information...

  • Page 6: Table Of Contents

    ROC235B User’s Manual Revision Date: June. 18. 2017 Table of Contents Revision History..............................4 Packing list................................4 Ordering information ............................4 Table of Contents ............................... 5 Chapter 1: Product Introduction ........................7 1.2 Front Panel Components .......................... 8 Chapter 2: Jumpers and Connectors ........................ 10 2.1 Front Panel Connector Pin Definitions ....................
  • Page 7 ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.4 Thermal Configuration........................30 4.4.5 Intel Rapid Start Technology......................31 4.4.6 Intel TXT(LT) Configuration ......................31 4.4.7 PCH-FW Configuration ........................32 4.4.8 Intel Anti-Theft Technology Configuration ..................32 4.4.9 AMT Configuration .......................... 33 4.4.11 F81866 Super IO Configuration .....................

  • Page 8: Chapter 1: Product Introduction

    ROC235B User’s Manual Revision Date: June. 18. 2017 Chapter 1: Product Introduction 1.1 Key Features...

  • Page 9: Front Panel Components

    ROC235B User’s Manual Revision Date: June. 18. 2017 1.2 Front Panel Components 1.2 Rear Panel Components...
  • Page 10 ROC235B User’s Manual Revision Date: June. 18. 2017 1.3 Mechanical Dimensions...

  • Page 11: Chapter 2: Jumpers And Connectors

    ROC235B User’s Manual Revision Date: June. 18. 2017 Chapter 2: Jumpers and Connectors 2.1 Front Panel Connector Pin Definitions...

  • Page 12: Rear Panel Connector Pin Definitions

    ROC235B User’s Manual Revision Date: June. 18. 2017 2.2 Rear Panel Connector Pin Definitions...
  • Page 13 ROC235B User’s Manual Revision Date: June. 18. 2017...
  • Page 14 ROC235B User’s Manual Revision Date: June. 18. 2017...
  • Page 15 ROC235B User’s Manual Revision Date: June. 18. 2017...

  • Page 16: Chapter 3: System Setup

    ROC235B User’s Manual Revision Date: June. 18. 2017 Chapter 3: System Setup 3.1 2.5" SATA HDD/SSD installation...
  • Page 17 ROC235B User’s Manual Revision Date: June. 18. 2017...

  • Page 18: Cpu Installation

    ROC235B User’s Manual Revision Date: June. 18. 2017 3.2 CPU installation...
  • Page 19 ROC235B User’s Manual Revision Date: June. 18. 2017...

  • Page 20: Memory Module Installation

    ROC235B User’s Manual Revision Date: June. 18. 2017 3.3 Memory module installation ROC235B supports 2 x 204-pin SO-DIMM DDR3 1333/1600 MHz up to 16GB...

  • Page 21: Pci Riser Card Installation

    ROC235B User’s Manual Revision Date: June. 18. 2017 3.4 PCI riser card installation ROC235B supports 2 x PCI expansion slots.
  • Page 22 ROC235B User’s Manual Revision Date: June. 18. 2017...

  • Page 23: Rack Mount Bracket Installation

    ROC235B User’s Manual Revision Date: June. 18. 2017 3.5 Rack mount bracket installation...

  • Page 24: Chapter 4: Ami Bios Utility

    ROC235B User’s Manual Revision Date: June. 18. 2017 Chapter 4: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 4.1 Starting To enter the setup screens, perform the following steps: ...

  • Page 25: Main Menu

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.3 Main Menu...

  • Page 26: Advanced Menu

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4 Advanced Menu...

  • Page 27: Acpi Settings

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.1 ACPI Settings...

  • Page 28: Cpu Configuration

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.2 CPU Configuration...
  • Page 29 ROC235B User’s Manual Revision Date: June. 18. 2017...

  • Page 30: Sata Configuration

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.3 SATA Configuration...

  • Page 31: Thermal Configuration

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.4 Thermal Configuration 4.4.4.1 Platform thermal configuration...

  • Page 32: Intel Rapid Start Technology

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.5 Intel Rapid Start Technology 4.4.6 Intel TXT(LT) Configuration...

  • Page 33: Pch-Fw Configuration

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.7 PCH-FW Configuration 4.4.8 Intel Anti-Theft Technology Configuration...

  • Page 34: Amt Configuration

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.9 AMT Configuration...
  • Page 35 ROC235B User’s Manual Revision Date: June. 18. 2017...
  • Page 36 ROC235B User’s Manual Revision Date: June. 18. 2017...

  • Page 37: F81866 Super Io Configuration

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.11 F81866 Super IO Configuration...

  • Page 38: F81866 H/W Monitor

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.12 F81866 H/W Monitor...

  • Page 39: Serial Port Console Redirection

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.13 Serial Port Console Redirection...

  • Page 40: Cpu Ppm Configuration

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.4.14 CPU PPM Configuration...

  • Page 41: Chipset

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.5 Chipset 4.5.1 PCH-IO Configuration...
  • Page 42 ROC235B User’s Manual Revision Date: June. 18. 2017...
  • Page 43 ROC235B User’s Manual Revision Date: June. 18. 2017 4.5.1.1 USB Configuration...
  • Page 44 ROC235B User’s Manual Revision Date: June. 18. 2017 4.5.1.2 PCH Azalia Configuration...

  • Page 45: System Agent (Sa) Configuration

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.5.2 System Agent (SA) Configuration...
  • Page 46 ROC235B User’s Manual Revision Date: June. 18. 2017 4.5.2.1 Graphics Configuration...
  • Page 47 ROC235B User’s Manual Revision Date: June. 18. 2017 4.5.2.2 Memory Configuration...

  • Page 48: Boot Setting

    ROC235B User’s Manual Revision Date: June. 18. 2017 4.6 Boot Setting...

  • Page 49: Security

    ROC235B User’s Manual Revision Date: June. 18. 2017 Boot Option Priorities Sets the system boot order. 4.7 Security...
  • Page 50 ROC235B User’s Manual Revision Date: June. 18. 2017...
