PI WALL DESK
ASSEMBLY INSTRUCTIONS FOR WALL DESK INSTALLATION
HARDWARE ENCLOSED
PIN SHELF
JIG
20X10 / 6
(1pc)
(3pcs)
AS WALL MATERIALS VARY, SCREWS FOR FIXING TO WALL
ARE NOT INCLUDED. FOR ADVICE ON SUITABLE SCREW SYSTEMS,
CONTACT YOUR LOCAL SPECIALISED DEALER.
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTIONS
HARDWARE (AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. METAL HANGING BRACKETS (2 pcs)
2. SHELF SUPPORTS (2 pcs)
3. SHELVES (2 pcs)
NOTICE
C TIO
N
ST RU
LY IN
MB
A
S
SE
SYMBOLS
DIRECTION
NUMBER OF
PERSONS NEEDED
HARDWARE REQUIRED
(Not included in this package)
WALL SCREW
M4x50
(8pcs)
1
20
kg
MAXIMUM LOAD
X2
EACH SHELF
USE HAND
WALL PLUG
S4
(8pcs)
1
(L)
(L)
2
USE DRILL
TOOLS REQUIRED
(Not included in this package)
SCREW DRIVER
PENCIL
(R)
(R)
2
3
3
LOWER SHELF / DESK
USE SCREWDRIVER
TO TIGHTEN
1 / 4
LE TRI
DRILL
LEVEL
UPPER SHELF
USE PENCIL
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ethnicraft PI WALL DESK
Summary of Contents for Ethnicraft PI WALL DESK

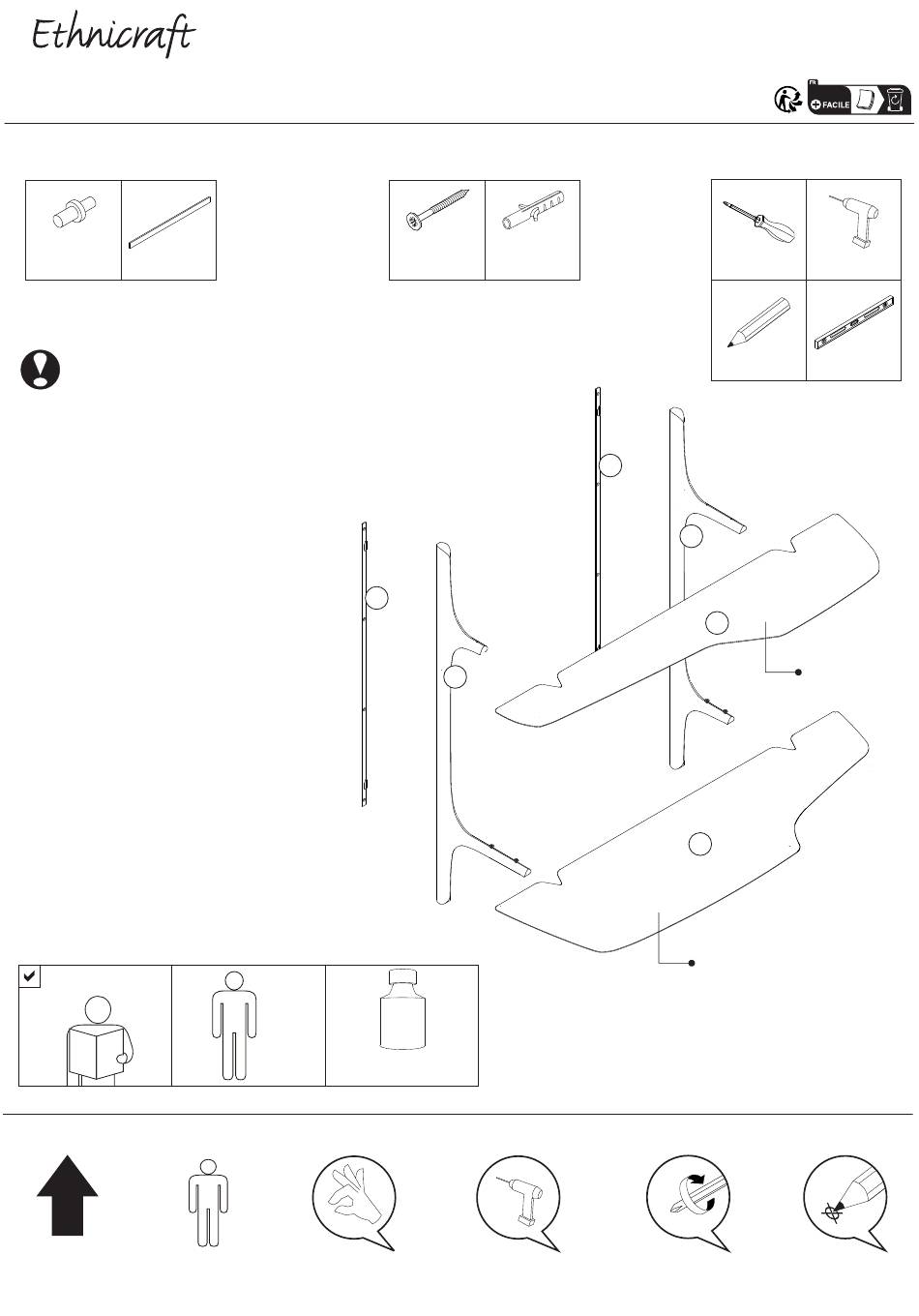

- Page 1 1 / 4 PI WALL DESK ASSEMBLY INSTRUCTIONS FOR WALL DESK INSTALLATION LE TRI HARDWARE REQUIRED TOOLS REQUIRED HARDWARE ENCLOSED (Not included in this package) (Not included in this package) PIN SHELF WALL SCREW WALL PLUG 20X10 / 6 M4x50...
