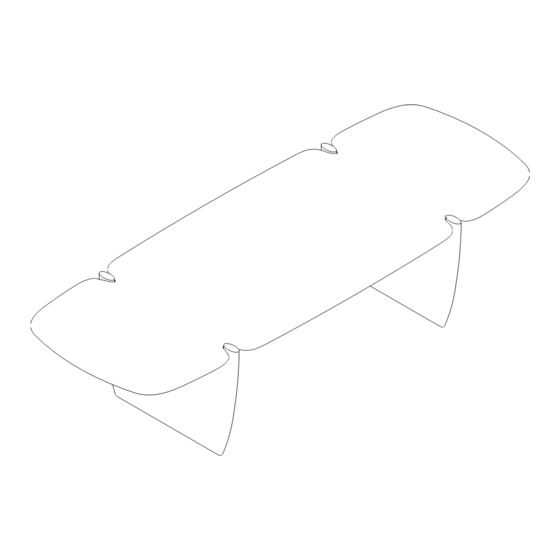

PI COFFEE TABLE
ASSEMBLY INSTRUCTIONS FOR COFFEE TABLE INSTALLATION
HARDWARE ENCLOSED
JCBC SCREW
M6x40
(8pcs)
DOWEL
Ø8x30 mm
(2pcs)
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTIONS
HARDWARE & TOOLS (AS LISTED ABOVE)
PARTS TO BE INSTALLED
A. TABLE TOP 1pc
B. LEGS 2pcs
SYMBOLS
DIRECTION
NUMBER OF
PERSONS NEEDED
WASHER
SPRING WASHER
M6
M6
(8pcs)
(8pcs)
USE HAND
B
1
1
USE ALLEN KEY
TO TIGHTEN
TOOL ENCLOSED
B
2
2
A
LEGS ARE SPECIFIC TO EACH SIDE
NOTICE
N
C TIO
ST RU
LY IN
MB
S
SE
A
X
1 / 2
ALLEN KEY
X2
