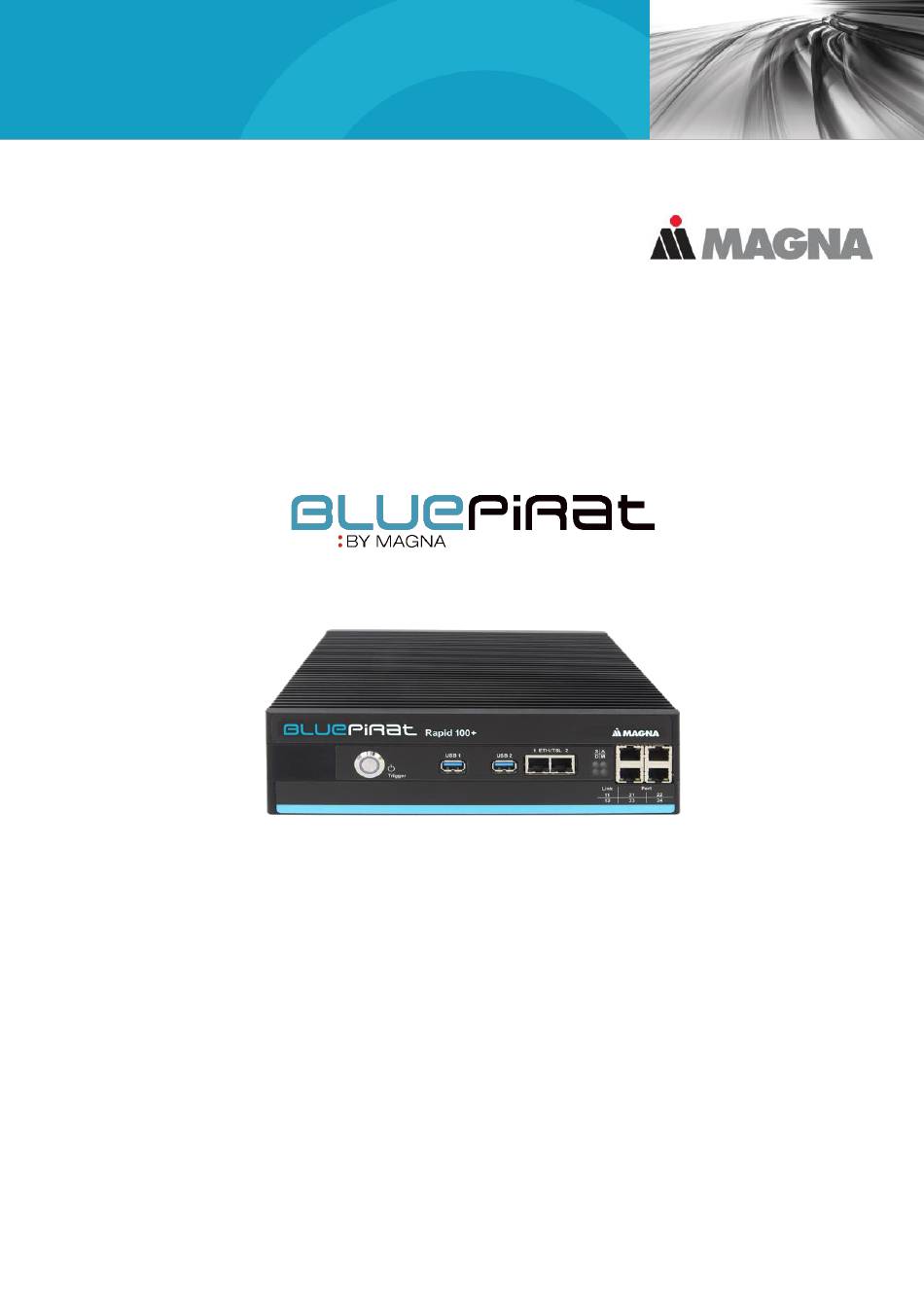

- Page 1 BLUEPIRAT Series MLBevo User Guide / 30.09.2020 Version 5.0.1...
-
Page 2: Table Of Contents
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 2 of 18 Table of contents 1 LICENSE AGREEMENT ..............3 2 PRODUCT LIABILITY ................4 2.1 Terms and Conditions of Sale and Delivery ............4 2.2 Important operating instructions ................ 4 3 Overview....................5 4 System requirements ................. -
Page 3: License Agreement
Licensor is and remains the owner of all titles, rights and interests in the soft- ware. The software is a copyright property of the MAGNA Telemotive GmbH. The program or parts of it may not be further licensed to third parts, rented, sold or be further marketed in any form without explicit written ap- proval by MAGNA Telemotive GmbH. -
Page 4: Product Liability
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 4 of 18 2 PRODUCT LIABILITY Terms and Conditions of Sale and Delivery The General Terms and Conditions of Sale and Delivery of MAGNA Telemotive GmbH can be found on our website (https://telemotive.magna.com) under imprint. Important operating instructions... -
Page 5: Overview
BLUEPIRAT Remote BLUEPIRAT Rapid of MAGNA Telemotive GmbH. These data loggers are supporting logging of data of the ATOP control unit MLBevo via USB. This user guide describes the configuration and usage of this feature. The general configuration is described in the user guides of the used data logger as well as the System Client, which is valid together. -
Page 6: System Requirements
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 6 of 18 4 System requirements The communication between bus systems and control units is monitored, and relevant data can be recorded very precisely with the data logger. The collected data are stored to the logger and can be downloaded via Ethernet to a PC. - Page 7 BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 7 of 18 License For the additional feature Connected-Gateway MLBevo an installed license is required. Set- tings for licensed features can be performed with a valid license only. If you need a license for your logger, please contact our sales department (please find the ad-...
-
Page 8: Further Manuals
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 8 of 18 Further manuals Beside this user Manual, we offer the main manuals for our System Client as well as for the dif- ferent data logger generations in our Service Center at https://sc.telemotive.de/bluepirat. -
Page 9: Additional Features By Optional Licenses
MOST150 synchronous/isochronous data MLBevo / QXDM The license Connected-Gateway MLBevo enables the recording of data of the ATOP control unit MLBevo via USB to the Magna Telemotive data log- ger and convert these data with the System Client. (from FW 02.03.01) Additional this license allows to log Qualcomm QXDM logs via USB (from FW 03.06.XX) -
Page 10: Firmware Care
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 10 of 18 Firmware Care MAGNA Telemotive GmbH invests a great amount in the further development of its products. For this we regularly provide new functions and enhancements via firmware and client releases. Basic conditions As part of the "... -
Page 11: Installing The License
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 11 of 18 5 Installing the license Figure 5.1: License free USB feature Figure 5.2: Features with installed license... -
Page 12: Configuring
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 12 of 18 6 Configuring Connected-Gateway MLBevo The license Connected-Gateway MLBevo enables the recording of data of the ATOP control unit MLBevo via USB to the Telemotive data logger and convert these data with the System Cli- ent. -
Page 13: Downloading And Converting The Data
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 13 of 18 7 Downloading and converting the data This chapter describes the data download and conversion of the recorded data. For more infor- mation about download and converting data please have a look at the User manual for the System Client. -
Page 14: Abbreviations
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 14 of 18 8 Abbreviations Kürzel / abbreviation Bedeutung / meaning BLUEPIRAT Processing Information Recording Analyzing Tool BLUEPIRAT BLUEPIRAT2 bP2 5E BLUEPIRAT2 5E bPMini BLUEPIRAT Mini RC Touch Remote Control Touch bP Remote... - Page 15 BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 15 of 18 Universal Time, Coordinated Wi-Fi Wireless Fidelity WLAN Wireless Local Area Network Universal Measurement and Calibration Protocol Table 8.1: Abbreviations...
-
Page 16: List Of Figures
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 16 of 18 9 List of figures Figure 4.1: links to the manuals in the System Client ..............8 Figure 5.1: License free USB feature ..................11 Figure 5.2: Features with installed license ................11 Figure 6.1: Activating the Connected-Gateway MLBevo ............ -
Page 17: List Of Tables
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 17 of 18 10 List of tables Table 4.1: Additional features by optional licenses ..............9 Table 8.1: Abbreviations ......................15 Index... -
Page 18: Contact
BLUEPIRAT SERIES | MLBEVO USER GUIDE/ page 18 of 18 11 Contact MAGNA Telemotive GmbH Office München Frankfurter Ring 115a 80807 München / Germany Tel.: +49 89 357186-0 Fax.: +49 89 357186-520 E-Mail: TMO.info@magna.com Web: https://telemotive.magna.com Sales Tel.: +49 89 357186-550 Fax.:...
