Merax MF295082 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
SKU CODE: (MF295082)
Weight Limits: 350 lbs
Weight Limits: 350 lbs
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MF295082 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Merax MF295082

Summary of Contents for Merax MF295082

  • Page 1 ASSEMBLY INSTRUCTIONS SKU CODE: (MF295082) Weight Limits: 350 lbs Weight Limits: 350 lbs...

  • Page 2: Safety Warning

    SAFETY WARNING 1. This bed is designed for use only mattress (es) meeting the following specifications on the upper bunk, and lower bunk: Lower bunk Bed type Length Width Thickness Twin Standard 74” - 75” 38 ½'' Upper bunk Bed type Length Width Thickness...

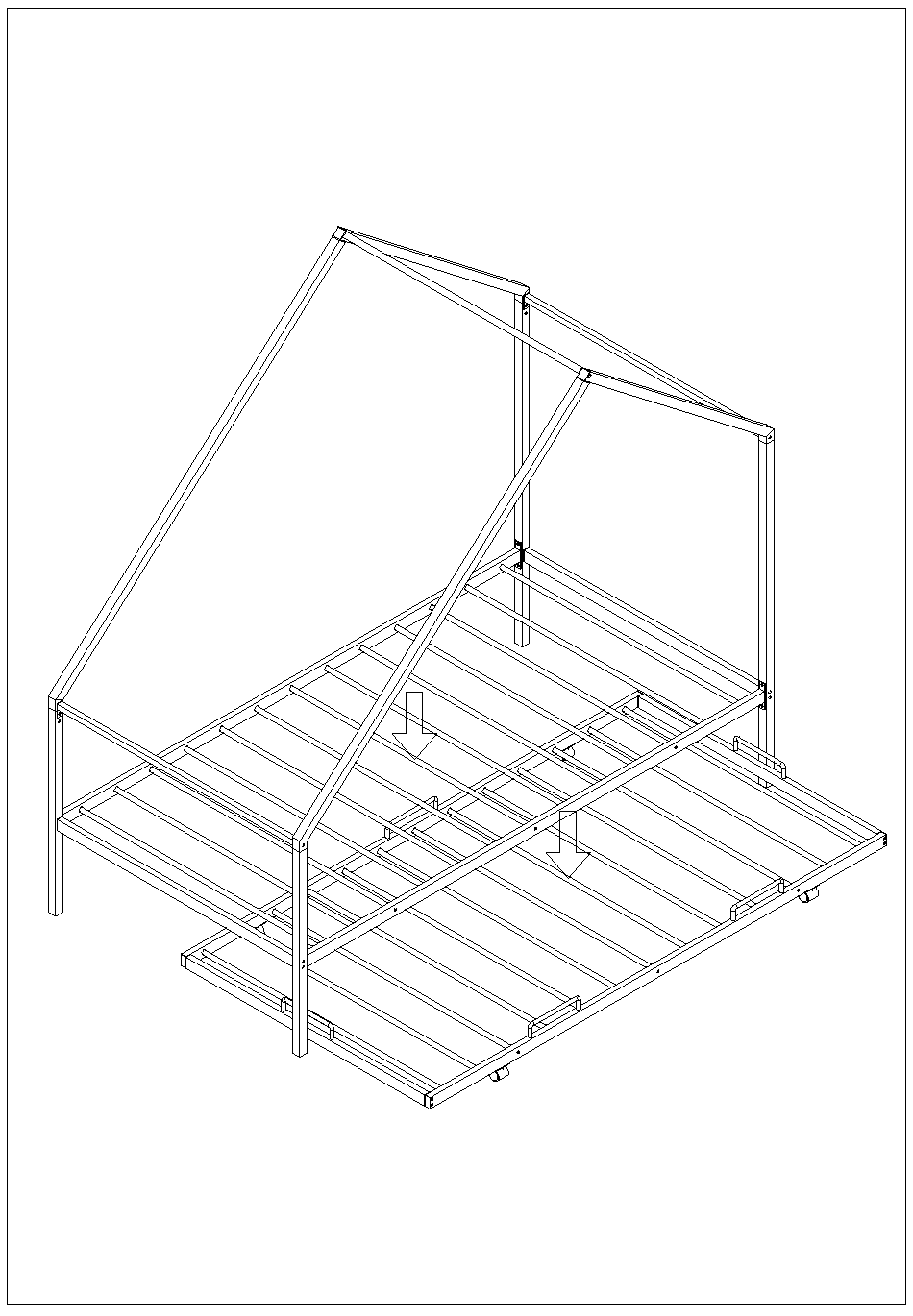

  • Page 3 Detail View HOUSE BED WITH TRUNDLE IMPORTANT: PLEASE READ INSTRUCTION BEFORE STARTING THE ASSEMBLY...
  • Page 4 ASSEMBLY INSTRUCTIONS HOUSE BED WITH TRUNDLE Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and hardware. Compare with the parts list to be sure all parts are present.
  • Page 5 PART LIST MF295082 B2 Vertical bar A1 Vertical bar A2 Vertical bar B1 Vertical bar 1 pc 1 pc 1 pc 1 pc C1 Horizontal bar C2 Horizontal bar D2 Horizontal bar D1 Horizontal bar 1 pc 1 pc 1 pc...
  • Page 6 HARDWARE LIST MF295082 1 Bolts 2 Bolts 3 Bolts 4 Washer Ø6*Ø16 1/4*50 1/4*40 1/4*18 16 pcs 8 pcs 28 pcs 52 pcs 5 Allen Key 6 Wheels 7 Wrench 13*90 4*59 1 pc 1 pcs 4 pcs...
  • Page 7 HOUSE BED WITH TRUNDLE ASSEMBLY INSTRUCTIONS ITEM: MF295082 STEP 1 1/4*50 8 pcs 8 pcs Ø6*Ø16 STEP 2 1/4*18 6 pcs 6 pcs Ø6*Ø16...
  • Page 8 HOUSE BED WITH TRUNDLE ASSEMBLY INSTRUCTIONS ITEM: MF295082 STEP 3 1/4*18 8 pcs Ø6*Ø16 8 pcs STEP 4 1/4*50 2 pcs Ø6*Ø16 2 pcs...
  • Page 9 HOUSE BED WITH TRUNDLE ASSEMBLY INSTRUCTIONS ITEM: MF295082 STEP 5 1/4*18 4 pcs Ø6*Ø16 4 pcs STEP 6 1/4*50 6 pcs 1/4*18 4 pcs 10 pcs Ø6*Ø16...
  • Page 10 HOUSE BED WITH TRUNDLE ASSEMBLY INSTRUCTIONS ITEM: MF295082 STEP 7 1/4*40 8 pcs 6 pcs 1/4*18 Ø6*Ø16 14 pcs STEP 8...
  • Page 11 HOUSE BED WITH TRUNDLE ASSEMBLY INSTRUCTIONS ITEM: MF295082 COMPLETE...
