Merax VD - 9005 Assembly Instructions Manual

Storage bed
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

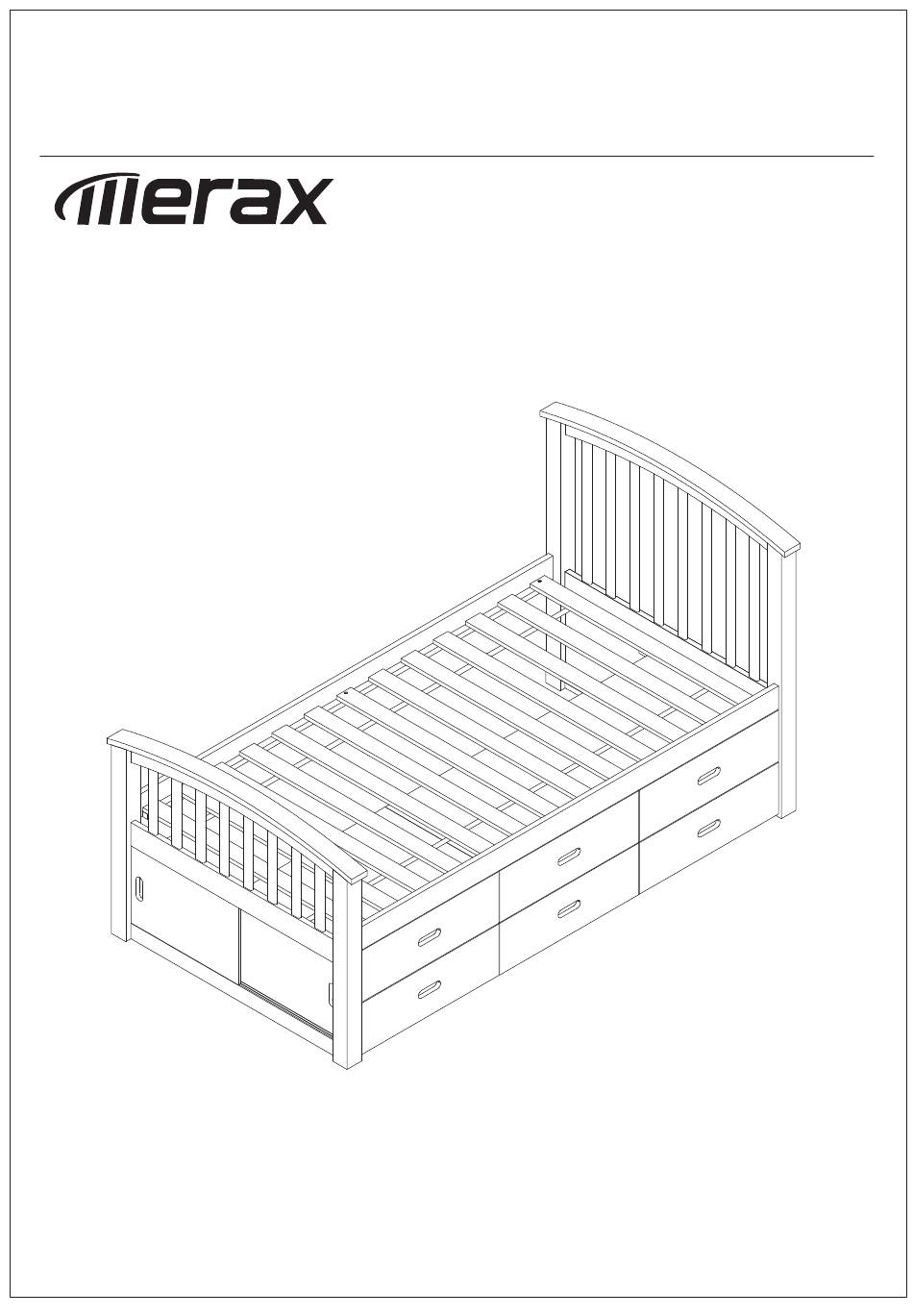

ASSEMBLY INSTRUCTIONS
®
STORAGE BED
VD - 9005
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VD - 9005 and is the answer not in the manual?

Questions and answers

Related Manuals for Merax VD - 9005

Summary of Contents for Merax VD - 9005

  • Page 1 ASSEMBLY INSTRUCTIONS ® STORAGE BED VD - 9005...

  • Page 2: Detail View

    Detail View...
  • Page 3 Leg - 1pc Leg - 1pc Leg - 1pc Leg - 1pc Horizontal rail - 2pcs Door panel - 4pcs Footboard - 1pc Headboard - 1pc Top rail - 2pcs Side rail - 2pcs Slat - 1 set Side frame - 2pcs Front frame - 1pc Back frame - 1pc Slide bar - 4pcs...
  • Page 4 1/4*110 #13 Ø10*13 Ø10*40 Hex-Head bolts (16pcs) Horizontal-hole bolts (16pcs) Wood dowel (24pcs) 1/4*70 #13 Ø8*30 Ø10*30 Hex-Head bolts (4pcs) Wood dowel (42pcs) Wood dowel (8pcs) 1/4*50 #13 4*25 Hex-Head screws (10pcs) Wood screws (16pcs) Wheels (6pcs) 3.5*15 3.5*25 Wood screws (32pcs) Wood screws (48pcs) Allen key (1pc) 4*30...
  • Page 5 STEP 1: - Insert the Wood dowels (3), the Horizontal-hole bolts (2) into the Horizontal rail (E) and the Headboard (H) as shown. - Attach the Leg (B) into the Horizontal rail (E) and the Headboard (H) with the Hex-head bolts (1). Tighten the Hex-head bolts (1) about 80% with the Allen key (12).
  • Page 6 STEP 3: - Attach the Slat (K) into the Side rails (J) with the Screws (13). - Tighten the Screws (13) with the Screwdriver (not included). * No pre-drilled holes on the rails, please use the screwdriver (not included) to drill the holes with a little vigor.
  • Page 7 STEP 5: - Insert the Wood dowels (5) into the Front frame (M) and the Back frame (N) as shown. - Attach the Side frames (L) into the Front frame (M) and the Back frame (N) with the Hex-head screws (7). - Tighten the Hex-head screws (7) with the Allen key (12).
  • Page 8 STEP 7: - Attach the Drawer sides (S) into the Drawer backs (R) with the Screws (11). - Tighten the Screws (11) with the Screwdriver (not included). - Insert the Drawer bottoms (T) into the groove of the Drawer sides (S) and the Drawer backs (R). - Attach the Drawer fronts (U/V/W/X/Y/Z) into the Drawer sides (S) with the Screws (11).
  • Page 9 COMPLETED: Push the Drawer frame under the Storage bed.
