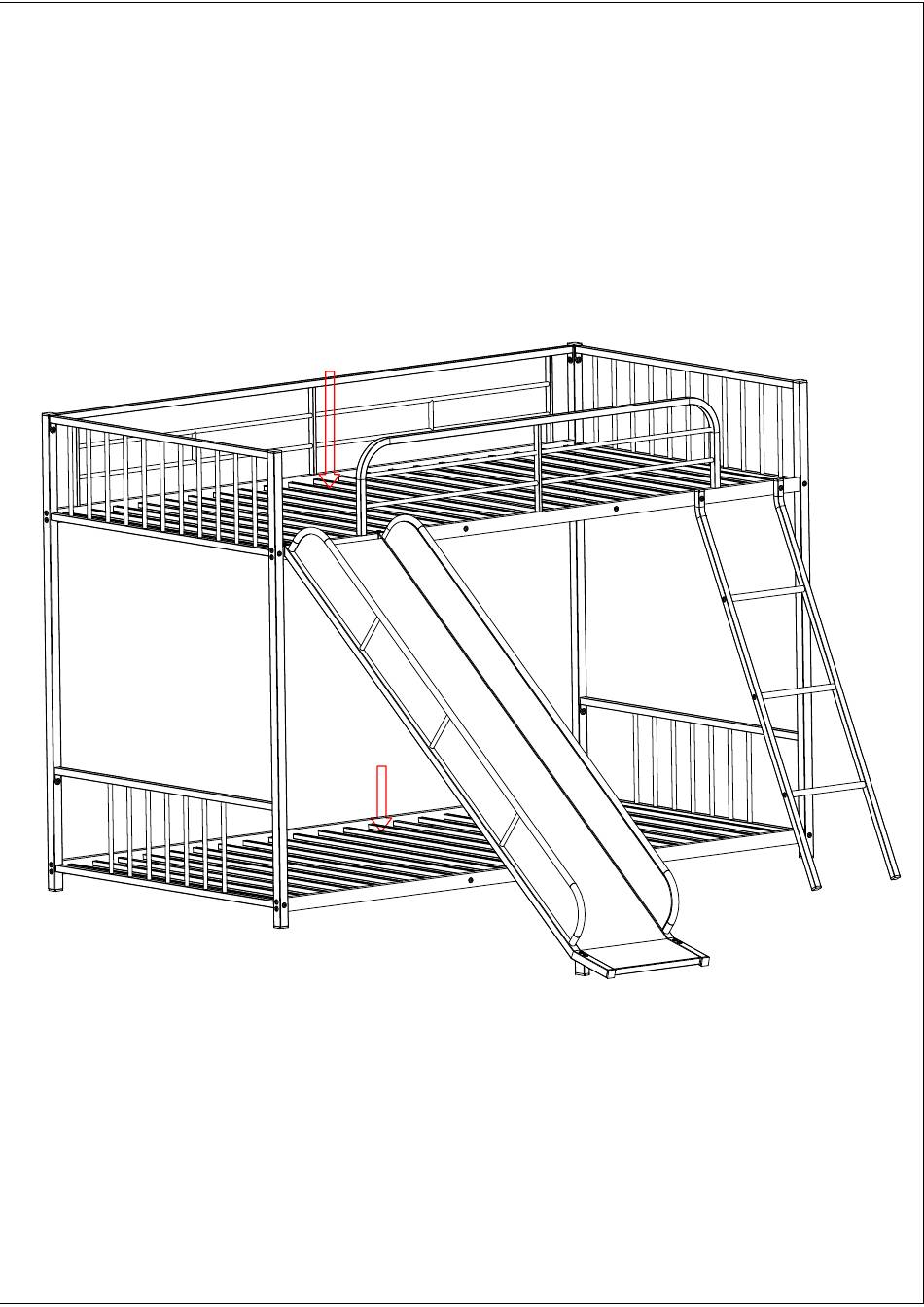

- Page 1 TWIN OVER TWIN BUNK BED ASSEMBLY INSTRUCTIONS SKU : MF285671 Weight Limit 250 Lbs Weight Limit 350 Lbs PAGE 1 OF 8...
- Page 2 TWIN OVER TWIN BUNK BED ASSEMBLY INSTRUCTIONS SKU : MF285671 SAFETY WARNINGS AND GENERAL NOTES ： 1. Follow the information on the warnings on the bunk bed end structure and on the carton. Do not remove the warning label from the bed.
- Page 3 TWIN OVER TWIN BUNK BED ASSEMBLY INSTRUCTIONS SKU : MF285671 PART LIST MF285671 1 Post 4 End guard rail 2 Post 3 Post 2PCS 2PCS 8 Side rail 5 End guard rail 6 Guard rail 7 Guard rail 2PCS 2PCS...
- Page 4 TWIN OVER TWIN BUNK BED ASSEMBLY INSTRUCTIONS SKU : MF285671 DETAIL VIEW STEP 1 : Following below illustration Assembly Frame # 1.Using hardware #A, #D ,#E connect #1, #2 with #4, #5 to complete Frame #1. A 4PCS 1/4*45 D 4PCS...
- Page 5 TWIN OVER TWIN BUNK BED ASSEMBLY INSTRUCTIONS SKU : MF285671 STEP 2 : Following below illustration Assembly Frame # 2.Using hardware #A, #D ,#E connect #2, #3 with #4, #5 to complete Frame #2. A 4PCS 1/4*45 D 4PCS 1/4*15...
- Page 6 TWIN OVER TWIN BUNK BED ASSEMBLY INSTRUCTIONS SKU : MF285671 STEP 4 : Following below illustration Assembly Frame #4. Using hardware #D connect #8 with #9, #10 to complete Frame #4. D 4PCS 1/4*15 NOTE : In this step, DO NOT tighten any bolt until you connect all part together...
- Page 7 TWIN OVER TWIN BUNK BED ASSEMBLY INSTRUCTIONS SKU : MF285671 STEP 6 : Following below illustration Assembly Frame #6. Using hardware #B, #F, #G connect #13 with #14 to complete Frame #6. B 4PCS 1/4*40 F 2PCS 40*20 G 2PCS...
- Page 8 TWIN OVER TWIN BUNK BED ASSEMBLY INSTRUCTIONS SKU : MF285671 STEP 8 : Following below illustration Assembly Frame #8. Using hardware #C, #D connect Frame #7 with Frame #5, Frame #6 to complete Frame #8. Frame #7 C 2PCS 1/4*35...
