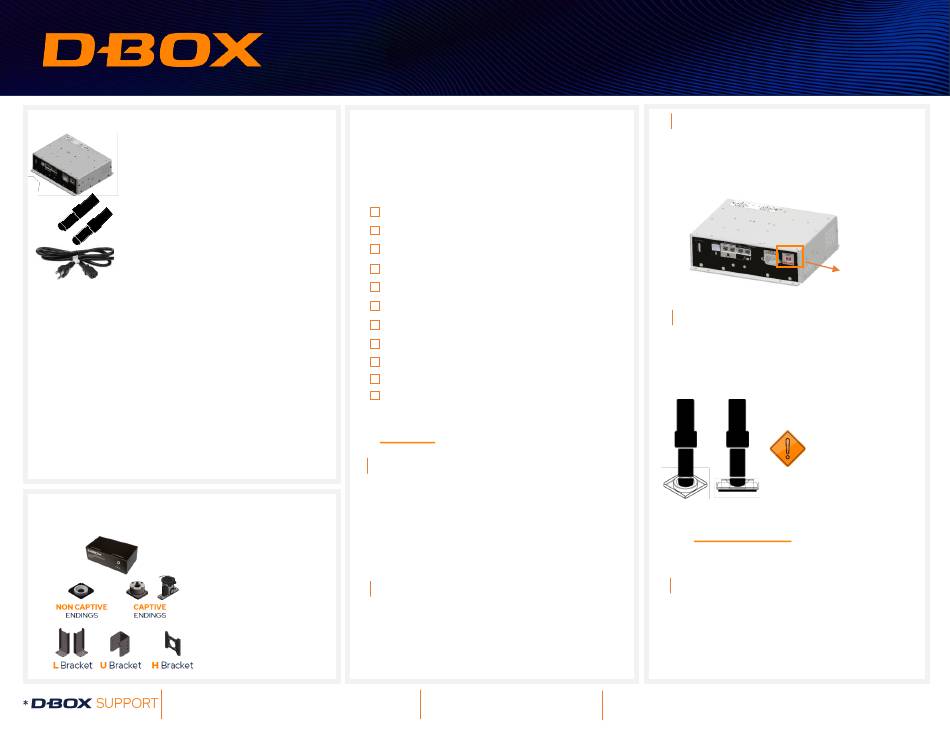

D-Box G3 HAPTIC SYSTEM Quick Start Manual

PACKAGE CONTENTS
(Kit of 2 actuators)
>
1 x Actuator Control Module
(ACM G3 FLEX)
>
2 x Haptic Actuator(s)
>
Power Cables (US and Euro)
>
2 shielded ethernet cables
(1 ft, 13 ft)
>
Installation hardware
Different for each system, refer to the table
below.
1.5" and 3" systems: 6" system:
>
>
1x ACM access door
10x M6 hex bolt
and lock washers
>
6x quadrex 6-32x3/8
YOU ALSO NEED
(NOT INCLUDED IN THIS PACKAGE)
>
KCU-1P
(Communication Unit)
>
Endings (captive
or non captive)
>
Brackets
Address: 2172 de la Province, Longueuil, QC Canada J4G 1R7
Email: support@d-box.com
QUICK START GUIDE
OVERVIEW
Thank you for purchasing your G3 haptic
system! Please make sure to follow each
step one by one to make your system
operational.
Unboxing
Inventory
Voltage Selection
Haptic Actuator Endings
Brackets Installation
System Connection
D-BOX Connect Account Creation
D-BOX HaptiSync Center Installation
Firmware Update
System Configuration (Optional)
Test & Play
Complete G3 User Guide is available on
our website.
1 UNBOXING
1 Unpack the product from the box.
2 Visually inspect the product for damage.
3 If any part appears to be broken, contact
your reseller or the D-BOX Support
Team*.
2 INVENTORY
Ensure that you have all the components
necessary to assemble your system.
Refer to the ''Package Contents''
section if needed.
Phone: US: 1 888 442-3269 ext.931
Other regions: +1 450 442-3003 ext.931
G3 HAPTIC SYSTEM
QUICK START GUIDE

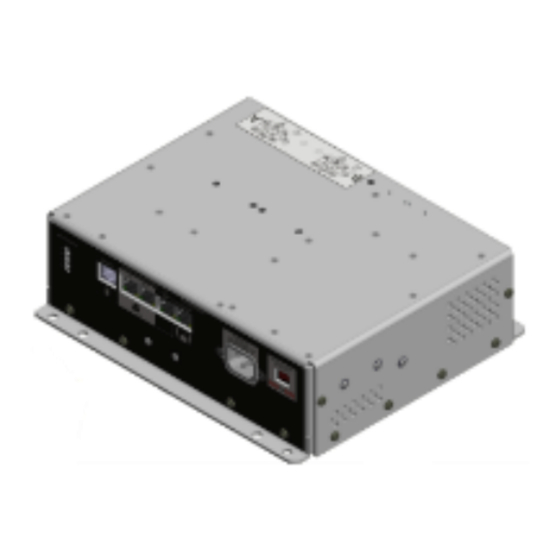

3 VOLTAGE SELECTION
Set the ACM to meet your region power
voltage by using the switch selector
located at the back of the ACM:
4 ACTUATOR ENDINGS
If using non-captive endings, once the
actuators are installed on your platform,
simply drop the actuators into the ending.
Operating the
haptic actuator(s)
without the ending
installed may cause
irreparable damage.
If using captive endings, please refer to
the G3 User Guide for detailed
instructions.
5 BRACKETS INSTALLATION
Attach your haptic actuators to your
platform using either the brackets
provided by D-BOX or your reseller.
120V/230V
246-914-0004-EN1
January 2025
