Installation and Operating Instructions
Electric Instantaneous Water Heater
Tronic 7000
TR7001 L 18 DESOAB | TR7001 L 27 DESOAB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tronic 7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bosch Tronic 7000

Summary of Contents for Bosch Tronic 7000

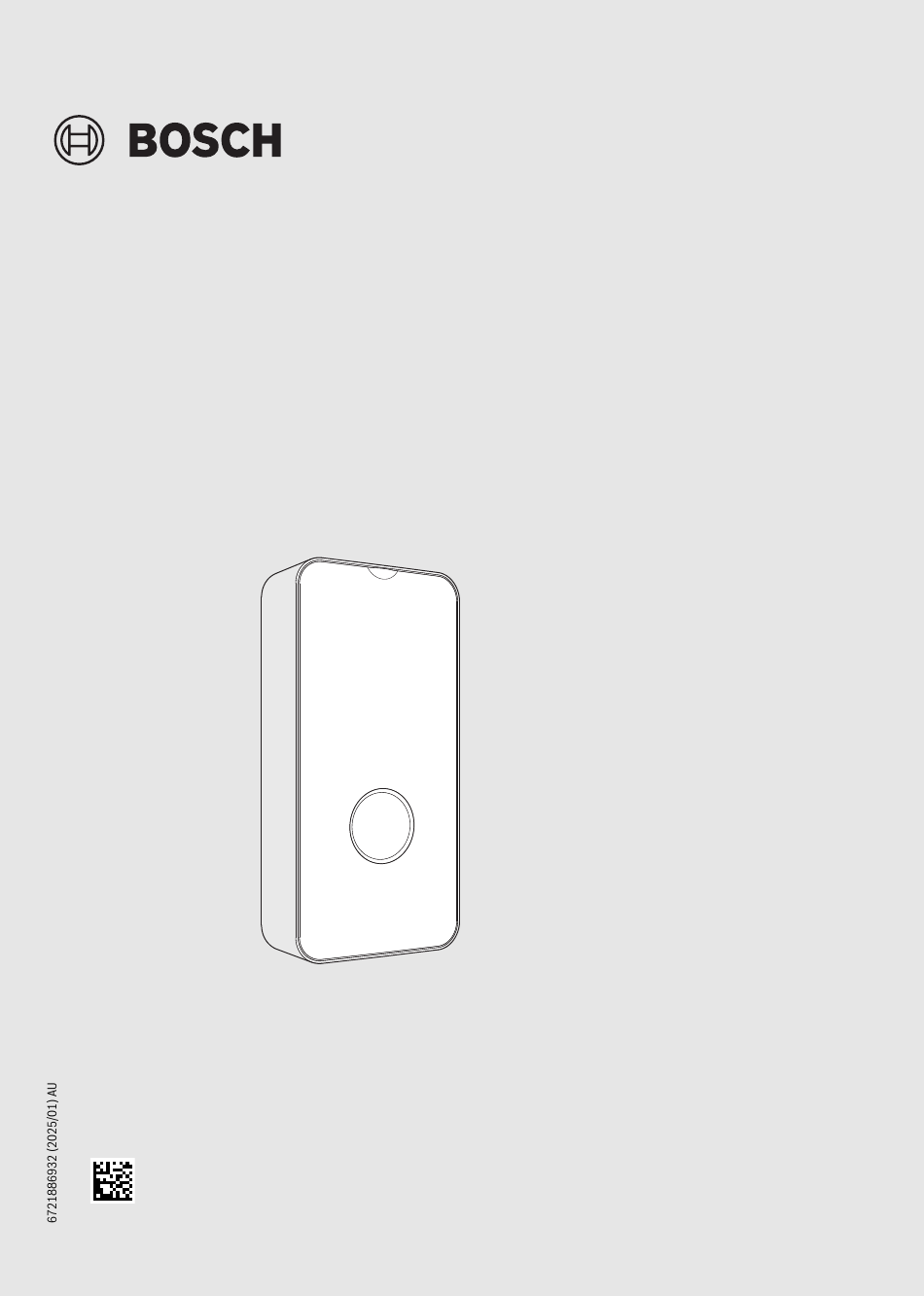

  • Page 1 Installation and Operating Instructions Electric Instantaneous Water Heater Tronic 7000 TR7001 L 18 DESOAB | TR7001 L 27 DESOAB...

  • Page 2: Table Of Contents

    ........11 Tronic 7000 – 6721886932 (2025/01)

  • Page 3: Explanation Of Symbols And Safety Instructions

    ▶ Install the appliance into a cold-water circuit containing – a list entry (second level) water for human consumption (closed circuit). Table 1 ▶ The installation must only be carried out by an authorised contractor. Tronic 7000 – 6721886932 (2025/01)
  • Page 4 The work can only be carried out by a specialized and water supply is closed. authorized contractor that has to carry out all the work and ▶ Prepare the water connections before the electrical immediately eliminate the detected faults. connections. Tronic 7000 – 6721886932 (2025/01)

  • Page 5: Standards, Regulations And Directives

    Use as intended The appliance was designed to heat potable water. Please observe all country-specific regulations, guidelines and standards for potable water. The appliance should only be installed in sanitary installations with a pressurised circuit. Tronic 7000 – 6721886932 (2025/01)

  • Page 6: Dimensions

    About the appliance Dimensions Fig. 1 Appliance dimensions in mm Fig. 2 Installation dimensions in mm [1] Cold water Inlet [2] Hot water Outlet Tronic 7000 – 6721886932 (2025/01)

  • Page 7: Appliance Design

    [15] Appliance wall-mounting point Transportation and storage The appliance must be transported and stored in a dry, frost- The appliance heats the water as it circulates inside it. free location. When handling, ▶ Do not drop the appliance. Tronic 7000 – 6721886932 (2025/01)

  • Page 8: Operating Panel

    White LED flashes Holiday mode active (only possible [6] Wi-Fi/Connectivity (1x every through the APP). The appliance does [7] Locked 4 seconds) not heat the water. [8] Handwashing operating mode [9] Operating mode Shower Table 2 Tronic 7000 – 6721886932 (2025/01)

  • Page 9: Temperature Control

    In addition to the indicated operating modes, it is possible to set any other temperature within the range of 20 °C to 50 °C. Appliance operating modes: • Wash your hands Minimum temperature • Shower To obtain the minimum temperature of 20 °C; Tronic 7000 – 6721886932 (2025/01)

  • Page 10: Appliance Consumption

    • Deactivates the vacation mode (if enabled by the App) The device is locked. • Deactivates the safety temperature (if enabled by the App) To restart the Wi-Fi accessory: Tronic 7000 – 6721886932 (2025/01)

  • Page 11: Customer Service

    ▶ Use a thermostatic valve to limit the temperature of the water entering the appliance. Fig. 8 [1] Wi-Fi pairing button After the LED turns off, Tronic 7000 – 6721886932 (2025/01)

  • Page 12: Choose The Installation Location

    ▶ Install the appliance near to the most used hot water tap, so as to reduce thermal loss and wait times. ▶ Install the appliance in a location where it is possible to carry out maintenance. Tronic 7000 – 6721886932 (2025/01)

  • Page 13: Unpack And Remove The Cover Of The Appliance

    ▶ Dispose of the packaging according to the recycling systems applicable in the country. ▶ Remove the front fascia of the appliance. Fig. 12 ▶ Turn around the hot water pipe. Fig. 10 Remove the front fascia Tronic 7000 – 6721886932 (2025/01)

  • Page 14: Water Connection

    (under pressure). Fig. 14 Water connection NOTICE Damages to the installation! Damages to the water pipework. ▶ Ensure that the pipework can withstand a maximum pressure of 10 bar and a maximum temperature of 100 °C. Tronic 7000 – 6721886932 (2025/01)

  • Page 15: To Mount The Appliance On The Wall

    ▶ Use the back of the appliance as a hole pattern. ▶ Support the appliance on the cold water accessory to facilitate marking on the wall. Fig. 16 Horizontal water connections [1] Cold water inlet (G ½") [2] Hot water outlet (G ½") Tronic 7000 – 6721886932 (2025/01)
  • Page 16 ▶ Attach the back of the appliance to the wall. Fig. 19 For models with Aquastop system (TR...A), ▶ Ensure the vertical alignment of the appliance. The appliance cannot be tilted by more than 1°. ▶ Separate the fixing parts. Fig. 22 Fig. 20 Tronic 7000 – 6721886932 (2025/01)

  • Page 17: Electrical Installation Of The Appliance

    ▶ Pass the power cable through the cable conduit, ensuring tightness. Fig. 23 The opening of the cable conduit must fit the power cable perfectly. If the cable conduit is damaged during assembly, the holes must be covered in a watertight manner. Fig. 25 Tronic 7000 – 6721886932 (2025/01)
  • Page 18 ▶ Use spacers at the bottom to level the appliance. ▶ Use the screws to fix the spacers to the wall. ▶ The spacers should be placed at the back of the appliance. Fig. 29 Fig. 27 [1] Spacers Tronic 7000 – 6721886932 (2025/01)
  • Page 19 ▶ Install the additional bushing to allow for the correct installation of Aquastop (Image 30). Fig. 30 Additional bushing After levelling the appliance, ▶ Tighten the fixings so that the appliance is secured to the wall. Fig. 31 Tronic 7000 – 6721886932 (2025/01)

  • Page 20: Hydraulic Block Assembly

    ▶ Position the water inlet and outlet pipes into the sealing membrane. Fig. 33 ▶ Place the bonded washers onto the water connections. Fig. 32 ▶ Tighten the water connections. ▶ Check if there are leaks. Tronic 7000 – 6721886932 (2025/01)

  • Page 21: Aquastop Installation

    ▶ Tighten the water connection. Fig. 37 ▶ Press the two tabs and remove the Aquastop protection Fig. 34 device. ▶ Place the Aquastop in the hole in the sealing membrane. Fig. 38 Fig. 35 Tronic 7000 – 6721886932 (2025/01)

  • Page 22: The Air Must Be Purged From The Appliance

    5.10.1 Setting maximum temperature ▶ Use Jumper J5 to set the maximum temperature of the appliance, according to the table below. Max. Temperature Jumper: J5 Maximum Temperature 42 °C ▶ Remove jumper J5. Table 5 Setting maximum temperature Tronic 7000 – 6721886932 (2025/01)

  • Page 23: Hot Water Temperature Calibration

    Fig. 42 All regulation, control and safety equipment of the device is ▶ Check the water temperature at the closest hot water tap connected at the factory and supplied ready for operation. with a thermometer. Tronic 7000 – 6721886932 (2025/01)

  • Page 24: Electrical Connection

    Maximum length for short cables For installations using the lower connection for short cables, the length of the cables must not exceed 70 mm. Fig. 43 Upper connection Fig. 46 [A] > 150 mm [B] ≤ 70 mm Tronic 7000 – 6721886932 (2025/01)
  • Page 25 10 mm of insulating cover for the electrical cable. Fig. 47 ▶ Remove the appliance's sealing membrane. Fig. 50 Fig. 48 Fig. 51 [A] ≥ 10 mm ▶ Replace the sealing membrane on the back of the appliance. Tronic 7000 – 6721886932 (2025/01)

  • Page 26: Install The Appliance Cover

    ▶ Tighten the fixing screw on the cover of the appliance. Install the appliance cover Connect the cable to the operating panel Before attaching the appliance cover, ▶ Connect the cable from the operating panel to the electronic board. Fig. 55 Fig. 53 Tronic 7000 – 6721886932 (2025/01)

  • Page 27: Commissioning Of The Device

    ▶ Check if the cable from the operating panel is correctly connected to the electronic board ( Fig. 53). If the appliance does not heat the water ▶ Remove the aerator from the hot water taps. Tronic 7000 – 6721886932 (2025/01)

  • Page 28: Maintenance

    NOTICE Damage to the appliance! ▶ For safe and environmentally compatible operation, maintenance and cleaning must be carried out at least once every 12 months in accordance with chapter 8. Tronic 7000 – 6721886932 (2025/01)

  • Page 29: Problems

    The display shows an Malfunction in the ▶ Close and open the hot water tap. error code “E..”. appliance. If the error remains; ▶ Contact customer support. Table 8 Problems Tronic 7000 – 6721886932 (2025/01)

  • Page 30: Technical Information

    AS/NZS 3000. 2) The first time the appliance is commissioned, the minimum water flow rate should be 3.5 l/min. 3) The pressure drop in the mixer should be added to this value. Table 9 Technical characteristics Tronic 7000 – 6721886932 (2025/01)

  • Page 31: Water Quality

    Or via post to: Used appliances Robert Bosch Aust Pty Ltd, Attention TT Warranty Department, Used appliances contain valuable materials that can be Locked Bag 66, Clayton South, Victoria, 3169. recycled. Claims received by post will take longer to process and we The various assemblies can be easily dismantled.

  • Page 32: Terms And Conditions Of Product Warranty

    "Important Note: Mandatory Australian Consumer Law statement” above. Warranty Period and Coverage The following is a list of the classes of products sold by Bosch which are covered by this voluntary warranty, and the warranty periods which apply in each case. Product Group...
  • Page 33 Operation, use, or maintenance of the Products otherwise than in accordance with instructions provided for the Products by Bosch, or without reasonable care; connection to water from a bore, dam or swimming pool; connection to faulty equipment, such as damaged valves; foreign matter in the water supply;...
  • Page 34 Australia, you can post details of your claim to Robert Bosch (Australia) Pty Ltd, Attn HC Warranty Department, Locked Bag 66, Clayton Sth, Victoria, 3169. Claims received by post will take longer to process and we encourage you to call. Bosch may refer you to one of its Bosch Warranty Authorised Service Dealers.
  • Page 35 It is therefore critical that all warranty claims are promptly submitted to Bosch as soon as the product fails, and in any event before the end of the warranty period.
  • Page 36 Robert Bosch (Australia) Pty Ltd Thermotechnology Division 1555 Centre Road Clayton Victoria 3168 Australia Phone: 1300 30 70 37 Fax: 1300 30 70 38 www.bosch-homecomfort.au New Zealand Phone: 0800 54 33 52 Fax: 0800 54 33 55 www.bosch-homecomfort.nz...
