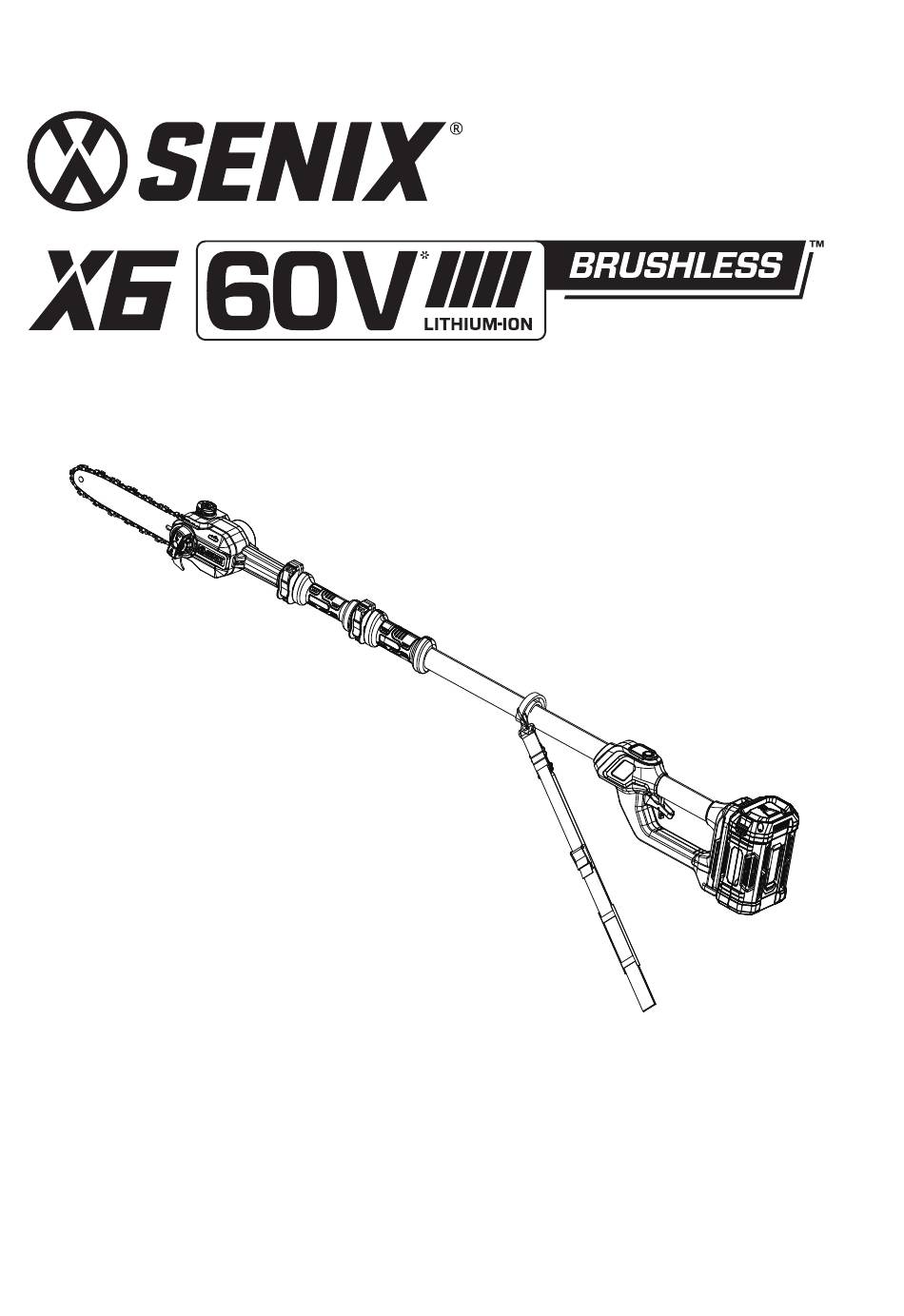

Instruction Manual
Model:
CSPX6-M-EU
CORDLESS POLE SAW
• SAFETY
• ASSEMBLY
• OPERATION
CAUTION:Before using this tool, please read this manual completely, and
• MAINTENANCE
follow all operating safety measures.
Senix Australia Pty Ltd. 32/3 Westside Avenue, #Port Melbourne, Victoria, 3207
For customer support, please call 1300 461 825 or email us at info@senixtool.com
SENIX.COM.AU
v. 1.1
English
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Senix CSPX6-M-EU
Summary of Contents for Senix CSPX6-M-EU
- Page 1 CAUTION:Before using this tool, please read this manual completely, and • MAINTENANCE follow all operating safety measures. Senix Australia Pty Ltd. 32/3 Westside Avenue, #Port Melbourne, Victoria, 3207 For customer support, please call 1300 461 825 or email us at info@senixtool.com SENIX.COM.AU v.
-
Page 2: Table Of Contents
Do not expose the product to rain or wet conditions. The product complies with the applicable European directives and Wear protective, slip-resistant footwear. an evaluation method of conformity for these directives was done. Wear protective gloves. RCM Mark EN - 2 SENIX.COM.AU... -
Page 3: Safety Instructions
Damaged or entangled cords increase the safety principles. A careless action can risk of electric shock. cause severe injury within a fraction of a When operating a power tool outdoors, second. 3 - EN SENIX.COM.AU... - Page 4 WARNING! Keep handles and grasping surfaces dry, clean and free from oil and grease. Use only with SENIX X6 battery: Slippery handles and grasping surfaces do B30X6/B40X6/B60X6/B80X6/B120X6 not allow for safe handling and control of the And chargers: CHX6-L-EU/CHQX6-EU/CHQX6- tool in unexpected situations.
-
Page 5: Causes And Operator Prevention Of Kickback
Kickback is • Carry the product by the soft grip with the result of tool misuse and/or incorrect the product switched off and away from operating procedures or conditions and can 5 - EN SENIX.COM.AU... -
Page 6: Vibration And Noise Reduction
• To reduce this risk when using the product, changes in skin colour or condition. These always wear protective gloves and keep symptoms normally appear in the fingers, EN - 6 SENIX.COM.AU... -
Page 7: Intended Use
SAVE THESE INSTRUCTIONS INTENDED USE This tool is a cutting implement mounted on a pole to enable the operator to cut the branches of standing trees. It is not intended for use as a regular chainsaw. 7 - EN SENIX.COM.AU... -
Page 8: Know Your Unit
KNOW YOUR UNIT APPLICATIONS Model: CSPX6-M-EU As a pole saw: Cutting small limbs. General tree pruning. Battery pack support Guide bar Housing Saw chain Safety switch Oil tank cap Trigger Telescoping lock clip Guide bar cover Connection support Oil tank... -
Page 9: Specifications
Remove all packing materials and shipping devices, if applicable. Guide Bar Model ES104MLEA041 The scope of delivery varies depending on the country and purchased variant. Adjustment Model CSPX6-M-EU 1.6 - 2.8 m Range • Pole saw x1 • Saw chain x1 Max Reach** 4.3 m •... - Page 10 Twist the adjusting knob till the saw chain Loop the new chain into the slot of the can be lifted by 2-3 mm from the center of guide bar according to the provided figure. the guide bar. EN - 10 SENIX.COM.AU...
-
Page 11: Filling The Oil Tank
Close the oil tank cap and wipe off residual oil around the opening. Harness Hook 2. Adjust the length of the harness to attain a comfortable working position. Ensure that the quick-release clamp is on your chest 11 - EN SENIX.COM.AU... -
Page 12: Installing/Removing Battery Pack
Fig. 8 OF SAW CHAIN The chain will be loose( beyond 8mm) after a long time work. If adjustments are needed, slightly loosen the locking knob. Then turn the adjusting knob clockwise. Tighten the locking knob EN - 12 SENIX.COM.AU... -
Page 13: Adjusting Pole Length
Control panel To start, push the safety switch forward then depress the trigger. You can choose Battery pack power display to press ECO button to switch to economy mode. ECO indicator To stop, release the trigger. 13 - EN SENIX.COM.AU... - Page 14 Do not try to force the FOLLOWING FOUR CUTS ARE NECESSARY: pole saw through the wood, let the chain do • First cut into the branch from below, the work. Use the gripping teeth to apply EN - 14 SENIX.COM.AU...
-
Page 15: Sawing Techniques
• Only pull the saw out of the cut with the saw guard. This provides protection against chain running. By doing so, you can prevent 15 - EN SENIX.COM.AU... -
Page 16: Replacing The Saw Chain And Guide Bar
Only perform repairs and maintenance work sure it can run smoothly. according to these instructions! All further Replace the side cover and slightly tighten works must be performed by a qualified the locking knob. Meanwhile, protect the EN - 16 SENIX.COM.AU... - Page 17 When necessary, use a flat file to file down the ridge to achieve the 6 mm (0.25 inch) depth gauge setting. Depth gauge measuring tools are available from most pole saws retailers. • If the saw is not functioning properly, take 17 - EN SENIX.COM.AU...
- Page 18 • Install the guide bar cover and place an absorbent pad under the bar. • Store in a dry place. • Keep out of reach of children or pets. • We recommend using the original package EN - 18 SENIX.COM.AU...
-
Page 19: Troubleshooting
Refer to chapter “INSTALLING Chain installed backwards THE SAW CHAIN AND THE GUIDE BAR” Battery pack capacity too Remove and recharge battery pack Product suddenly stops Release the trigger and restart The machine is overloaded the machine 19 - EN SENIX.COM.AU...
