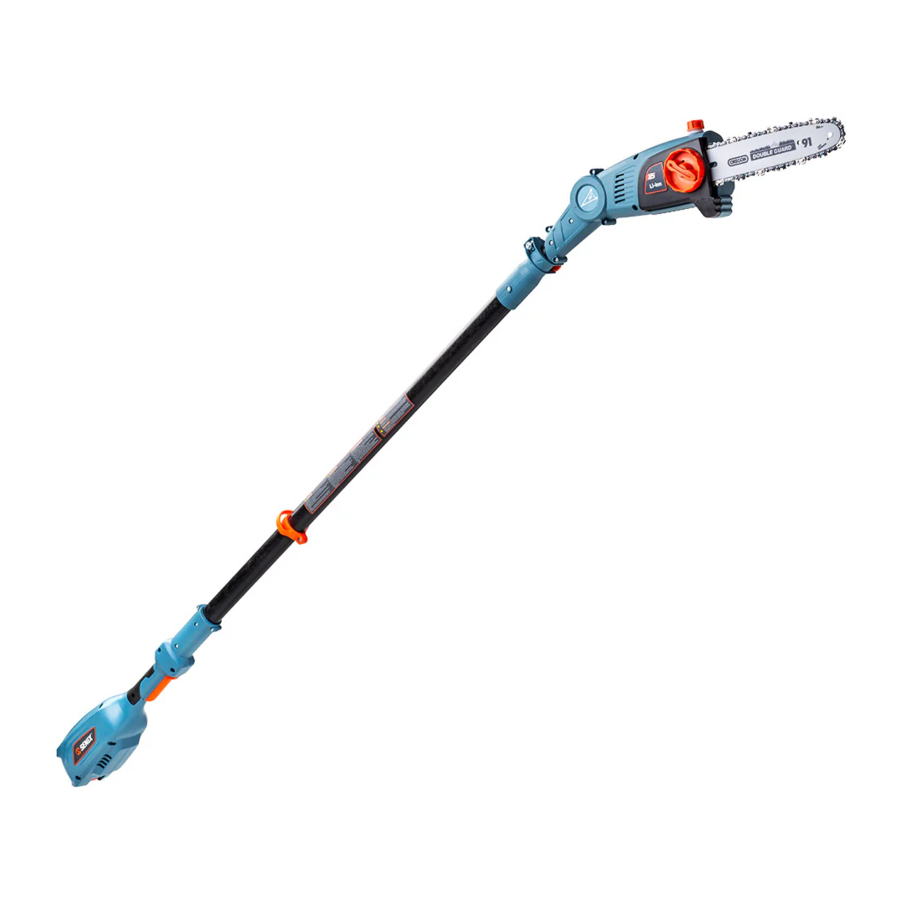

Senix CSPX5-M, CSPX5-M-0 - Pole Saw Manual

SAFETY INFORMATION

SAFETY SYMBOLS

	To reduce the risk of injury, user must read instruction manual.
	Wear ear protection.
	Wear eye protection.
	Wear dust mask.
	Wear hand protection.
	Wear non-slip safety footwear.
	Failure to keep your hands away from the blade will result in serious personal injury.
	Avoid power lines, use in dry conditions.
	Do not expose to rain.
	Risk of electrocution!
	Thrown objects can ricochet and result in personal injury or property damage.
	Keep all bystanders at least 50 ft. away.
	Contact of the guide bar tip with any object should be avoided.
	Tip contact can cause the guide bar to to move suddenly upward and backward, which can cause serious injury.
	Always use two hands when operating the chain saw.

TECHNICAL DATA

Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: Lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemical: Work in a well ventilated area and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

This product can expose you to chemicals including lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

GENERAL POWER TOOL SAFETY WARNINGS
Read All Instructions
All Operators Must Read These Instructions Before Use. Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

When using cordless yard tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following:

1. Avoid Dangerous Environment – Don't use appliances in damp or wet locations.
2. Don't Use In Rain.
3. Keep Children Away – All visitors should be kept at a distance from work area.
4. Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of protective gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
5. Use Safety Glasses – Always use face or dust mask if operation is dusty.
6. Use Right Appliance – Do not use appliance for any job except that for which it is intended.
7. Avoid Unintentional Starting – Don't carry plugged-in appliance with finger on switch. Be sure switch is off when plugging in.
8. Don't Force Appliance – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
9. Don't overreach – Keep proper footing and balance at all times.
10. Stay Alert – Watch what you are doing. Use common sense. Do not operate appliance when you are tired.
11. Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place – out of reach of children.
12. Maintain Appliance With Care – Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect appliance cord periodically, and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.
13. Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

SPECIFIC SAFETY RULES FOR POLE PRUNERS

Do not operate near electrical power lines. The unit has not been designed to provide protection from electric shock in the event of contact with overhead electric lines. Consult local regulations for safe distances from overhead electric power lines and ensure that the operating position is safe and secure before operating the saw chain pole pruner.

1. Wear head and eye protection and personal protective equipment (PPE), including correct clothing.
2. Keep bystanders, especially children at a safe distance during operation of the saw chain pole pruner.
3. Keep all parts of the body away from the saw chain. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. The saw chain continues to move after the switch is turned off. A moment of inattention while operating the extended-reach pruner may result in serious personal injury.
4. Carry the extended-reach pruner by the handle with the saw chain stopped. When transporting or storing the extended-reach pruner, always fit the saw chain device cover. Proper handling of the extendedreach pruner will reduce possible personal injury from the saw chain.
5. Hold the extended-reach pruner by insulated gripping surfaces only, because the saw chain may contact hidden wiring. A saw chain contacting a 'live'wire may make exposed metal parts of the extended-reach pruner 'live' and could give the operator an electric shock.
6. Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the saw chain.
7. Do not use the extended-reach pruner in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
8. To reduce the risk of electrocution, never use near any electrical power lines.
9. Contact with or use near power lines may cause serious injury or electric shock resulting in death.
10. Always use two hands when operating the extended- reach pruner. Hold the extended-reach pruner with both hands to avoid loss of control.
11. Always use head protection when operating the extended-reach pruner overhead. Falling debris can result in serious personal injury.

SAVE THESE INSTRUCTIONS

ADDITIONAL SAFETY WARNINGS FOR OPERATION

• Always remove the battery pack before assembling, adjusting or cleaning, and before leaving the machine unattended for any period.
• Always use the harness to carry the tool weight on the shoulder. If you use the harness across your body, learn how to use the quick release on the harness and keep it in front of your body.
• It is recommended that the unexperienced user should have practical instruction in the use of the saw and the protective equipment from an experienced operator. The initial practice should be cutting logs on a saw horse or cradle.
• This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Children and juveniles, with the exception of apprentices older than 16 years and under supervision, may not operate the product. The same applies for persons who do not or do not sufficiently know how to handle the product.
• The operating instructions should always be at hand.
  Persons unfit or tired must not operate the tool.
• Wait until the chain has come to a standstill completely before placing it down.
• Any servicing should be performed by an authorized service representative.

BATTERY PACK SAFETY WARNINGS

• Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on can cause accidents.
• Use only original battery packs intended specifically for this machine. Use of any other battery packs may create a risk of injury and fire.
• Do not open the battery. Danger of short-circuiting.
• Protect the battery against heat (e. g., against continuous intense sunlight and fire) water and moisture. Danger of explosion.
• Use the battery pack only in conjunction with this product and/or product family. This measure alone protects the battery against dangerous overload.
• The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.
• Do not short-circuit the battery. There is danger of explosion.
• Store and use the battery only within a temperature range between –20°C and 45°C. As an example, do not leave the battery in the car in summer.
• Occasionally clean the venting slots and contact pins of the battery pack using a soft, clean and dry brush.
• Do not charge appliance in rain, or in wet locations.
• Do not use battery-operated appliance in rain.
• Remove or disconnect battery before servicing, adjusting, or cleaning.
• Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions.
• Do not open or mutilate the battery.
  Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
• xercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.

BATTERY CHARGER SAFETY WARNINGS

Read all safety warnings and instructions before using the charger. Only for indoor use!

• This appliance is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• Only charge the Lithium-Ion battery pack with a capacity of 2.5Ah (B25X5 LithiumIon battery cells) as mentioned in this instruction manual. Do not charge non- rechargeable batteries.
• The battery and charger must be placed in a well ventilated area.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not operate the battery charger on easily flammable surfaces (e. g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.
• Do not cover the ventilation slots of the battery charger. Otherwise, the battery charger can overheat and no longer operate properly.

EMERGENCY
Familiarize yourself with the use of this product by means of this instruction manual. Memorize the safety directions and follow them to the letter. This will help to prevent risks and hazards. Always be alert when using this product, so that you can recognize and handle risks early. Fast intervention can prevent serious injury and damage to property. Switch off the product and remove the battery pack if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

REDUCING KICKBACK
Kickback can occur when the tip of the guide bar touches an object or when the wood closes in and pinches the saw chain inside of the cut. Tip contact can kick the guide bar up and back towards the operator.

The danger of a kickback is greatest when attempting to cut near or with the guide bar tip. Always apply the saw as flatly as possible in order avoid a loss of control during operation.
Pinching the saw chain along the top of the guide bar can push the bar rapidly towards the operator. Either of these reactions may cause a loss in control of the saw, increasing the chances of serious personal injury. Do not rely on the safety devices built into the saw. Kickback is the result of tool misuse and/ or incorrect operating procedures. These conditions can be minimized with the following steps:

1. Maintain a firm grip, with thumbs and fingers encircling the pole saw handles. Both hands should be on the saw with your body and arms in a position to resist kickback forces.
2. Do not overreach and keep the work area free from obstructions.
3. Only use replacement bars and chains specified by Senix. Replace dull blades as necessary.
4. Do not let the tip of the guide bar contact any surfaces.
5. Keep proper tension on the blade at all times. Check the tension at regular intervals. Remove the battery from the tool before making any adjustments to the blade or the tool.
6. Cuts should only take place while the chain is moving at full speed. Do not turn the saw ON or OFF in the middle of a cut. Use extreme caution when re-entering a previous cut.
7. Cut one branch at a time. Do not attempt plunge or bore cuts. Watch for shifting logs or other external forces that could close a cut and pinch the chain.
8. Make a precut on the opposite side of the log to avoid the blade from being pinched during operation as another safeguard against kickback.

SAWING TECHNIQUES

When removing branches, hold the pole saw at an angle ranging from 0 to 60° in order to avoid being struck by a falling branch. The saw should never be operated directly above head.
Saw off the lower branches on the tree first. By doing so, it is easier for the cut branches to fall to the ground.

• At the end of the cut, the weight of the saw suddenly increases for the user since it is no longer being supported by a branch. There is a risk of losing control of the saw, so make sure to stay alert during the entire sawing operation.
• Only pull the saw out of a cut while the saw is running. By doing so, you prevent the chain from jamming in the wood.
• Do not saw with the tip of the guide bar. Do not saw into the branch formations (where the tree branches outwards). This will impede the tree's ability to heal.
• For sawing off smaller branches, place the stop face of the saw on the branch. This prevents unwanted movements of the saw at the beginning of the cut. While applying light pressure, guide the saw through the branch from top to bottom.
• For sawing off larger branches, first make a relief cut. Saw through 1/3 of the branch diameter from the bottom to top using the top side of the guide bar. Then saw from top to bottom for the other 2/3 using the bottom side of the guide bar.
• Saw off longer branches in sections in order to maintain control over the location of impact.
• When working on an incline, always stand above or to the side of the branch being sawed. Hold the tool as close as possible to your body. By doing so, you maximize your balance.

COMPONENT LOCATION

KNOW YOUR POLE SAW

ASSEMBLY

Remove the battery before inspecting, adjusting, performing maintenance, or cleaning the unit.

Always wear protective gloves when handling saw chains.

ASSEMBLY OF GUIDE BAR AND SAW CHAIN

1. Loosen the cover release knob to release the chain sprocket cover (Figure 1). Remove the chain sprocket cover.


1. Release knob
2. Wearing protective gloves, wrap the saw chain around the guide bar, making sure that the teeth are aimed in the direction of rotation (Figure 2). The chain should be properly set in the slot running along the entire outside edge of the guide bar.

3. Insert the guide bar and chain into the mount on the pole saw (Figure 3). In the process, guide the chain around the pinion and hang the guide bar in the chain tensioning bolts.


TENSIONING THE CHAIN

Remove the battery before inspecting, adjusting, performing maintenance, or cleaning the unit.

Always wear protective gloves when handling saw chains.

1. Loosen the retaining nut of the chain sprocket cover by a few rotations.
2. Adjust the chain tension by rotating the Tension Adjustment Knob (the outermost knob on the cover release knob). Clockwise rotation increases the chain tension; counter-clockwise rotation reduces the chain tension. The saw chain is correctly tensioned if it can be raised approximately 2 mm from the center of the guide bar (Figure 4).


Do not over-tension the chain:
this will lead to excessive wear and reduces the life of both the bar and chain.

The saw chain must be tensioned properly in order to ensure safe operation.
The chain tension is optimal if the saw chain can be lifted (2 mm) from the center of the guide bar.
Because the saw chain heats up during operation, its length can fluctuate. Check the chain tension every 10 minutes of operation and adjust as necessary, particularly for new saw chains.
TIP: The saw chain shortens when cooling down. Loosen the saw chain after work is completed to elongate the chain's life and prevent possible damage.

SAW CHAIN LUBRICATION
The pole saw features automatic chain lubrication. Never operate the pole saw without saw chain oil. The use of the pole saw without enough saw chain oil will damage the unit.
Only use special saw chain oil. Other oils will run the risk of damaging the unit and voiding the warranty.
Take note of temperature conditions. Using the saw at various temperatures requires the use of differing oils. To ensure a sufficient layer of lubricant at lower temperatures, use liquid oil (low viscosity).

FILLING THE OIL TANK

1. Place the saw on a level surface. Clean the area around the oil tank cap and then open it.

   Make sure that no dirt gets into the oil tank to prevent clogging in the oil nozzle.
2. Fill the oil tank with 2.73 oz. (80 ml) of saw chain oil (Figure 5).

3. Close the oil tank cap.

ATTACH /REMOVE THE BATTERY

Only use a Senix-approved battery and charger.
Note: The battery is not fully charged at the time of purchase. Charge it fully before using it for the first time.
To insert the battery, slide it into the back of the unit until a "click" is heard. Make sure the battery is fully inserted and latched into position.
To remove the battery, press the release button and slide the battery out.

Do not insert or remove the battery while the trigger is pressed or while the chain is in motion.

OPERATION

Keep all parts of the body away from the saw chain. Make sure the switch is off when clearing jammed material. The saw chain continues to move after the switch is turned off. A moment of inattention while operating the extended-reach pruner may result in serious personal injury.

Carry the extended-reach pruner by the handle with the saw chain stopped. When transporting or storing the extended-reach pruner, always fit the saw chain device cover. Proper handling of the extendedreach pruner will reduce possible personal injury from the saw chain.
Do not overwork yourself. Take regular breaks and change working position to ensure you can concentrate on the work and have full control over the product. Maintain firm footing and balance during operation.

ADJUSTING THE TELESCOPING HANDLE

1. Unlock the telescope release lever so that the pole can freely extend outwards and inwards.
2. Extend it to the desired length and lock the telescope release lever to hold it in place.

ADJUSTING THE HARNESS
Adjust the harness to a length which is suitable for your operation (Figure 6). Always use the harness to carry the product weight on your shoulder (on the same side of tool or cross your body)!
Ensure that the quick release is on your chest (NOT on your back).
Open the quick release clamp (Figure 7) if it is necessary to open the harness quickly.

TURNING THE POLE SAW ON AND OFF
To turn ON, hold the pole saw firmly with both hands. Press and hold the safety switch located on the left-hand side of the rear handle above the main power trigger. Press down the trigger to turn it ON. The safety switch can now be released.
To turn OFF, release the ON/OFF trigger switch.

PREPARATION
Before each use, check the following items to ensure safe working conditions.
POLE SAW: Before beginning work, inspect the pole saw for damage to the housing, the extension cable, the saw chain and the guide bar. Never use an obviously damaged machine.
OIL TANK: check the fill level of the oil tank. Also check whether there is sufficient oil available while working. Never operate the saw if there is no oil or the oil level has dropped below the minimum oil level mark in order to prevent damage to the pole saw. On average, an oil filling is sufficient for approximately 10 minutes of cutting operation (depending on the duration of pauses and the density of the workpiece).
SAW CHAIN: check the tension of the saw and the condition of the blades. The sharper the saw chain is, the easier and more manageable operations will be. The same applies to chain tension. Check the tension every 10 minutes of operation to maximize safety. New saw chains in particular are subject to changes due to the heat created by operation.
PROTECTIVE CLOTHING: make sure to wear the appropriate close-fitting protective clothing such as chainsaw-protective pants, gloves and safety shoes. Wear a safety helmet with integrated hearing protection and a face guard to provide protection against falling and recoiling branches.
HEAD ADJUSTMENT: The angle of the saw's head can be adjusted anywhere from 0 to 30 degrees by pushing down on the Angle Adjustment Button. If you would like to change the angle of the saw's head, first remove the battery and then adjust to the desired angle.

MAINTENANCE

Remove the battery before inspecting, adjusting, performing maintenance, or cleaning the unit.

CLEANING

• Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the air vents in water.
• Wipe off the housing and the plastic components using a moist, soft cloth. Do not use strong solvents or detergents on the plastic housing or plastic components. Certain household cleaners may cause damage or cause a shock hazard.
• Routinely clean out the dust and debris that gathers under the tension housing, the oil outlet, and around the bar and the chain sprocket. Otherwise it can jam up the sprocket, the chain, and the lubrication system.

REPLACING THE SAW CHAIN AND GUIDE BAR

Only use replacement bar/chain combination listed. DO NOT use any other bar/chain combination.

CHAIN AND BAR COMBINATIONS

The guide bar must be replaced if the groove of the guide is worn out or the spur wheel in the guide bar is damaged or worn out.

1. Loosen the cover release knob to release the chain sprocket cover (Figure 1). Remove the chain sprocket cover.

   Always wear protective gloves when handling saw chains.
2. Lift the worn saw chain out of the fitted slot in the guide bar.
3. Place the new chain in this position, making sure the teeth are facing the correct direction and that the edge of the chain fits into the slot around the guide bar (Figure 2).
4. Replace the cover and tighten the release knob. Adjust tension before operating.

CHECKING THE AUTOMATIC CHAIN LUBRICATION
Regularly check the functionality of the automatic chain lubrication in order to prevent overheating and the subsequent damage to the guide bar and saw chain.
For this purpose, align the guide bar tip against a smooth surface (board, cut-in of a tree) and allow the pole saw to run. If an increasing amount of oil appears, the automatic chain lubrication functions properly.

STORAGE
Examine the unit thoroughly for worn, loose or damaged parts. If you need to repair or replace a part, contact Senix customer service at 1-800-261-3981.

• Clean the unit before storing or transporting. Be sure to secure the unit while transporting.
• Remove the battery pack before storing. Charge the battery completely before longterm storage.
• Store the tool out of reach for children and other unauthorized persons in a wellventilated, dry and frost- free environment.
• Protect the machine against dusts and moisture.
• Always protect the blades with a scabbard (blade cover) when transporting or storing the chain saw. Carefully handling the chain saw greatly reduces the risk of accidentally touching the sharp cutting blades.

  Shorting the battery terminals together may cause burns or a fire.
• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Store the unit in a clean, dry place. Cover it in order to provide added protection.

PARTS

EXPLODED VIEW
For replacement parts, email: parts@SENIXtools.com.

TROUBLESHOOTING

Use this table to see possible solutions for possible problems with the pole saw.
