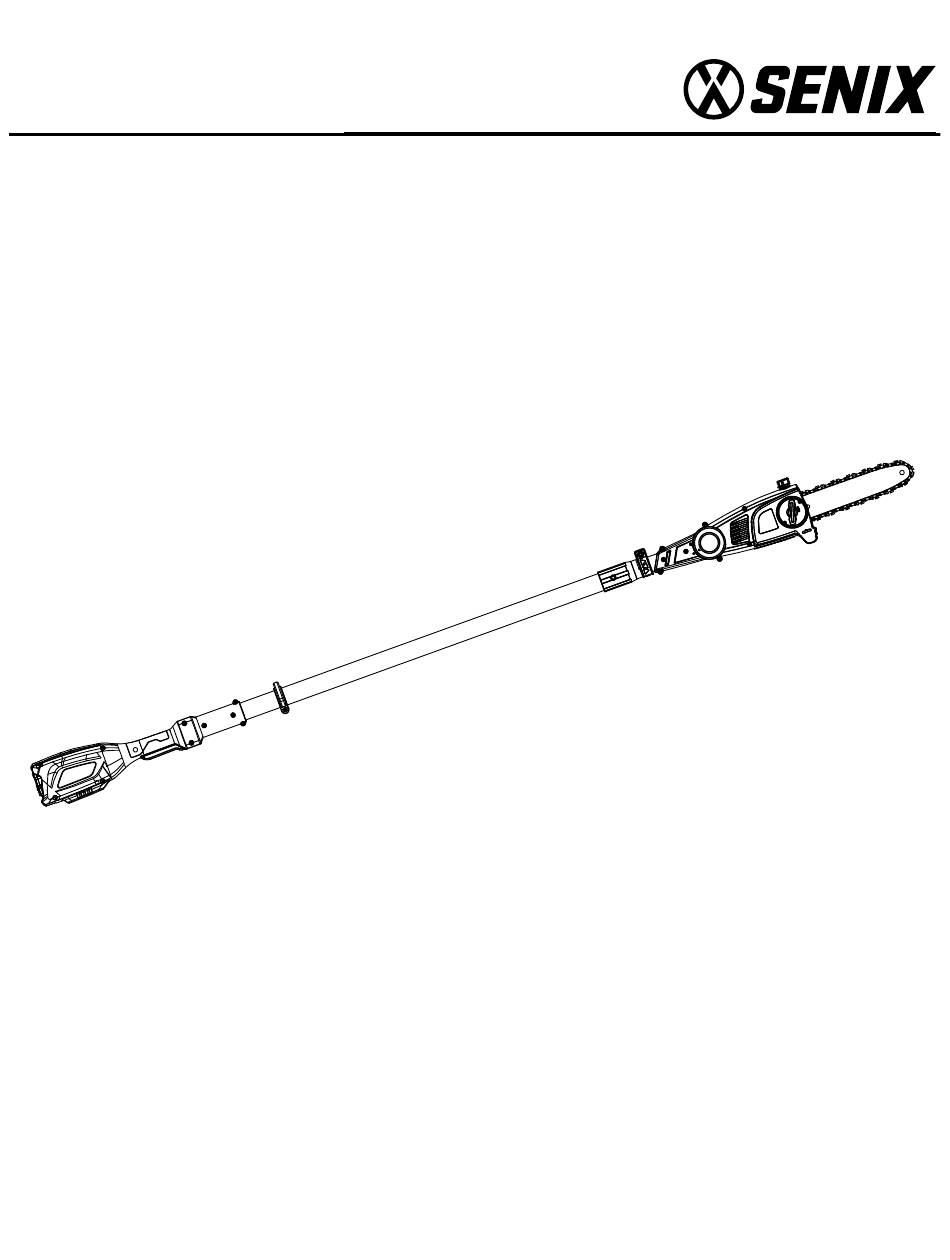

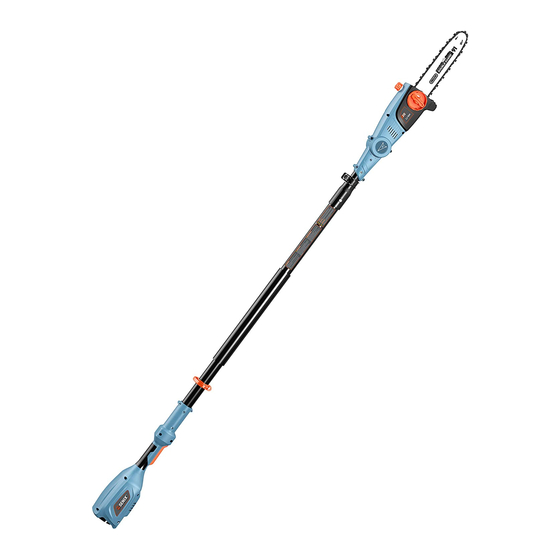

- Page 1 58V MAX LITHIUM ION CORDLESS POLE SAW Operator’s manual Model: CSPX5-M For customer support, please call 1-800-261-3981 or send email to: support@senixtools.com SAVE THIS MANUAL FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
TECHNICAL DATA TABLE OF CONTENTS TECHNICAL DATA Model Number: CSPX5-M TECHNICAL DATA ���������������������������������������������������������������������������������������������1 SAFETY Motor: 58V brushless Motor Guide Bar: 10 in. SPECIFIC RULES FOR THE POLE SAW ���������������������������������������������������������3 REDUCING KICKBACK ������������������������������������������������������������������������������������4 Speed (no load): 4800 RPM SAWING TECHNIQUES ������������������������������������������������������������������������������������4 Max Reach: 10 ft. - Page 3 SAFETY SAFETY 13. NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit. DO NOT store Safety is a combination of common sense, staying alert anything above or near the tool. and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS.
-
Page 4: Safety
SAFETY SPECIFIC RULES FOR THE POLE SAW 11. Never attempt to use an incomplete or altered saw. FOLLOW THESE RULES WHILE OPERATING 12. This machine is not intended for use by persons with THE POLE SAW. an impaired physical, sensory or mental capacity or by persons with insufficient pole saw knowledge WARNING —... -
Page 5: Reducing Kickback
3. Only use replacement bars and chains specified by Saw through 1/3 of the branch diameter from the bottom Senix. Replace dull blades as necessary. to top using the top side of the guide bar. Then saw from 4. Do not let the tip of the guide bar contact any surfaces. -
Page 6: Component Location
COMPONENT LOCATION COMPONENT LOCATION KNOW YOUR POLE SAW 1 — Battery Slot 8 — Motor Housing 2 — Safety Switch 9 — Tension Adjustment Knob 3 — Trigger (Outside Knob) 4 — Pole 10 — Cover Release Knob 5 — Telescoping Release Clasp (Inside Knob) 6 —... -
Page 7: Assembly
ASSEMBLY/ADJUSTMENT ASSEMBLY TENSIONING THE CHAIN WARNING — Remove the battery before inspecting, WARNING — Remove the battery before inspecting, adjusting, performing maintenance, or adjusting, performing maintenance, or cleaning the unit. cleaning the unit. CAUTION: Always wear protective gloves when CAUTION: Always wear protective gloves when handling saw chains. -
Page 8: Saw Chain Lubrication
Figure 4 - Oil tank 3. Close the oil tank cap. ATTACH /REMOVE THE BATTERY CAUTION: Only use a Senix-approved battery and charger. Note: The battery is not fully charged at the time of purchase. Charge it fully before using it for the first time. -
Page 9: Operation
OPERATION OPERATION HEAD ADJUSTMENT The angle of the saw’s head can be adjusted anywhere ADJUSTING THE TELESCOPING HANDLE from 0 to 30 degrees by pushing down on the Angle Adjustment Button. If you would like to change the 1. Unlock the telescope release lever so that the pole can angle of the saw’s head, first remove the battery and then freely extend outwards and inwards. -
Page 10: Maintenance
Examine the unit thoroughly for worn, loose or damaged detergents on the plastic housing or plastic components. parts. If you need to repair or replace a part, contact Senix Certain household cleaners may cause damage or customer service at 1-800-261-3981. -
Page 11: Exploded View
MAINTENANCE PARTS EXPLODED VIEW For replacement parts, email: parts@SENIXtools.com. WWW.SENIXTOOLS.COM... - Page 12 PARTS Part # Description Qty. Part # Description Qty. Battery (2Ah) Female Terminal Battery Latch Heat Shrinkable Tube (Female) Button Spring Nozzle Assembly Electronic Components Transparent Oil Tube Double Torsion Spring Oil Pump Assembly Shaft 33-1 Oil Pump Assembly Left Handle 33-2 Oil Pump Tension Spring Safety...
-
Page 13: Parts
PARTS WARRANTY LIMITED TWO-YEAR WARRANTY WWW.SENIXTOOLS.COM...
