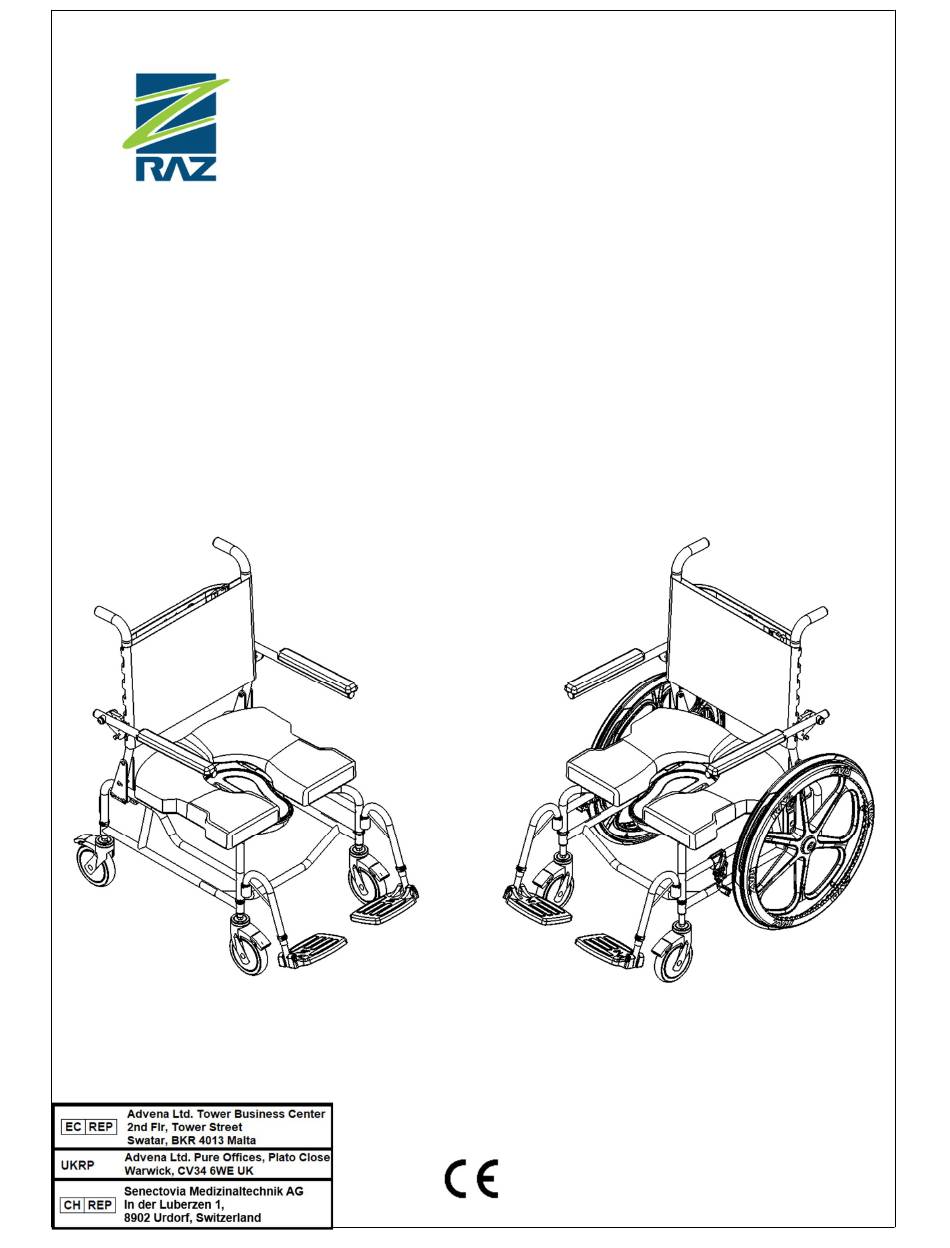

- Page 1 Mobile Shower Commode Chairs Raz-AP600(Z160) Raz-SP600(Z260) User and Dealer Manual BASIC UDI-DI: 628758RAZDESIGNINC2004V9 RTD033ENr06 Rev.Date:2024-12-31...
-
Page 2: Chair Classification Based On Maximum User Weight
SAFETY Failure to comply may cause injury or It is important that the Raz Mobile Shower Commode Chair be properly assembled and that all adjustments be made carefully. Please ensure that the user(s), dealer(s), and attendant(s) have read this manual and thoroughly understood the safe operation of the Raz Mobile Shower Commode Chair. -
Page 3: Lateral Stability
A qualified healthcare professional should be consulted to assist with this process. DO NOT push or pull the Raz-AP600 up or down an incline or ramp that exceeds a 1:12 grade (5° slope). DO NOT allow any user to be propelled (pushed or pulled) in a Raz- AP600 Shower Chair in any other manner than by an attendant. - Page 4 Be aware that area rugs and shower mats can slide on floors and thereby present a hazardous surface. DO NOT stand on any part of the frame of the Raz Mobile Shower Commode Chair. RTD033ENr06 Rev.Date:2024-12-31...
- Page 5 USERS SHOULD NEVER BE LEFT UNATTENDED IN A RAZ MOBILE SHOWER COMMODE CHAIR. IMPORTANT DO NOT LIFT A RAZ MOBILE SHOWER COMMODE CHAIR AND OCCUPANT BY THE ARM SUPPORTS OR FOOT SUPPORTS! IMPORTANT ALWAYS BE SURE THAT THE SEAT IS PROPERLY INSTALLED AND LATCHED BEFORE A USER IS TRANSFERRED ONTO THE CHAIR.
- Page 6 PURPOSES. ALL PRODUCTS WITHIN THE RAZ FAMILY ARE NON-STERILE, REUSABLE, NON-INVASIVE, AND NON-IMPLANTABLE. THE RAZ-AP600 AND RAZ-SP600 ARE INTENDED TO BE USED BY PEOPLE WITH MOBILITY IMPAIRMENTS, WHO MAY HAVE DIFFICULTY IN STANDING OR KEEPING THEIR BALANCE WHILE COMPLETING ACTIVITIES SUCH AS SHOWERING, TOILETING, OR PERSONAL HYGIENE.
- Page 7 LABELS OR SYMBOLS ON THE PRODUCT RAZ-AP600 / PRODUCT DESIGNATION RAZ-SP600 MANUFACTURER ADDRESS AUTHORIZED UKRP REPRESENTATIVE DETAIL PRODUCT IDENTIFER (PI) SC-XXXXXX UDI-DI AP600: 628758001607 SP600: 628758002604 MEDICAL DEVICE EUROPEAN CONFORMITY DATE OF MANUFACTURE MAXIMUM USER WEIGHT READ USER MANUAL RTD033ENr06 Rev.Date:2024-12-31...
- Page 8 USER & DEALER MANUAL TABLE OF CONTENTS 1.0 GENERAL INFORMATION ......................... 9 1.1 Raz-AP600/SP600 Mobile Shower Commode Chairs Overview ............9 1.2 Raz-AP600/SP600 Mobile Shower Commode Chairs Specifications ..........9 2.0 SET-UP: INTENDED FOR DEALER USE ONLY................10 2.1 Back Support ..........................10 2.1.1 Back Support Installation ......................
-
Page 9: General Information
1.0 GENERAL INFORMATION 1.1 Raz-AP600/SP600 Mobile Shower Commode Chairs Overview 1.2 Raz-AP600/SP600 Mobile Shower Commode Chairs Specifications SPECIFICATIONS Raz-AP600 Raz-SP600 WEIGHT CAPACITY 275 kg (605 lbs) 275 kg (605 lbs) FRAME WIDTH 56 cm (22”) 56 cm (22”) seat and back frame OVERALL WIDTH 68 cm (26.75”) - Page 10 2.0 SET-UP: INTENDED FOR DEALER USE ONLY IMPORTANT NOTE: Apply a lubricant (liquid detergent, soap, lip balm, wax, etc.) to the threads before tightening the fasteners to reduce the possibility of cold welding. Do not overtighten fasteners. IMPORTANT ! ADJUSTMENTS SHOULD NEVER BE ATTEMPTED WITH THE USER IN THE CHAIR. 2.1 Back Support 2.1.1 Back Support Installation Tools required: 3/16”...
- Page 11 2.1.3 Back Support Depth Adjustment Tools required: 3/16” hex key, ½” wrench 1. Loosen and remove the locknuts, screws, washers and spacers at the bottom of the back support mounting plates on both sides. 2. Slide the back support mounting plates to the desired seat depth. 3.
- Page 12 2.2 Casters IMPORTANT ! ALL CASTER STEMS MUST BE ADJUSTED TO THE SAME HEIGHT. NEVER ATTEMPT TO CHANGE THE FRAME ANGLE BY ALTERING THE CASTER POSITION. UNEQUAL CASTER POSITIONS WILL REDUCE THE CHAIR’S STABILITY AND MAY RESULT IN TIPPING. 2.2.1 Caster Installation For the SP600 model, casters must be installed to the height corresponding to the rear wheel height to level the chair.
- Page 13 2.3 Wheels – SP600 only 2.3.1 Wheel Installation with Standard Axle Bolt – SP600 only Tools required: 3/4” wrench, 3/4” socket wrench 1. Remove both wheels from the shipping carton. 2. Remove the axle bolts and nyloc nuts from the carton divider.
- Page 14 2.4 Wheel Lock Set-Up – SP600 only The Raz wheel locks have a unique pivoting brake shoe that digs into the tire increasingly as the wheel rotation force increases. This allows the lock to engage with less force than conventional wheel locks.
- Page 15 Reinstall the seat on frame, closing the front seat brackets around the front seat support tubes. Slide/wiggle the seat to the desired position. Ensure rear seat brackets are firmly positioned against the rear seat support tube. Tighten all eight screws attaching the front and rear seat brackets to the seat to prevent further movement of the seat.
-
Page 16: Use And Operation
IMPORTANT ! FRAME AND SEAT ADJUSTMENTS SHOULD BE PERFORMED ONLY BY TECHNICIANS FROM QUALIFIED RAZ DEALERS. NEVER ATTEMPT TO CHANGE THE FRAME ANGLE BY CHANGING THE CASTER POSITION. THE FRAME SHOULD ALWAYS BE LEVEL. IMPROPER CASTER POSITIONS MAY REDUCE THE CHAIR’S STABILITY AND RESULT IN TIPPING. THIS HAS THE POTENTIAL TO CAUSE SERIOUS HARM TO THE USER AND/OR DAMAGE TO THE CHAIR. - Page 17 3.4 Adjustable Foot Supports (Footrests) Adjustable Footrests are standard on all Raz Mobile Shower Commode Chairs. For transfers, the footrests can be flipped up, rotated away, or removed entirely. Adjustable Footrests can be extended for users with longer legs with the optional footrest extension tube, a 2” longer tube that can be ordered for any Raz Mobile Shower Commode Chair.
-
Page 18: Cleaning And Maintenance
DO NOT use chlorine bleach on any Raz components. It is recommended to the user that a qualified Raz dealer check over all fasteners and subassemblies on a continuing basis or if there is cause for concern about the chair’s performance. -
Page 19: Limited Warranty
(1) year and are subject to normal wear and tear exclusions. If within such warranty period any such product shall be proven to be defective, the part will be repaired or replaced, at Raz Design’s discretion. This warranty does not include any labor or shipping charges incurred in replacement, part installation, or repair of any such product. - Page 20 Raz Design Inc. frame and hardware material are made of stainless steel for which we offer a lifetime warranty against corrosion. Please be advised this lifetime warranty is only extended to the original purchaser/user of Raz Shower Chairs that have been purchased from a qualified Raz dealer.
