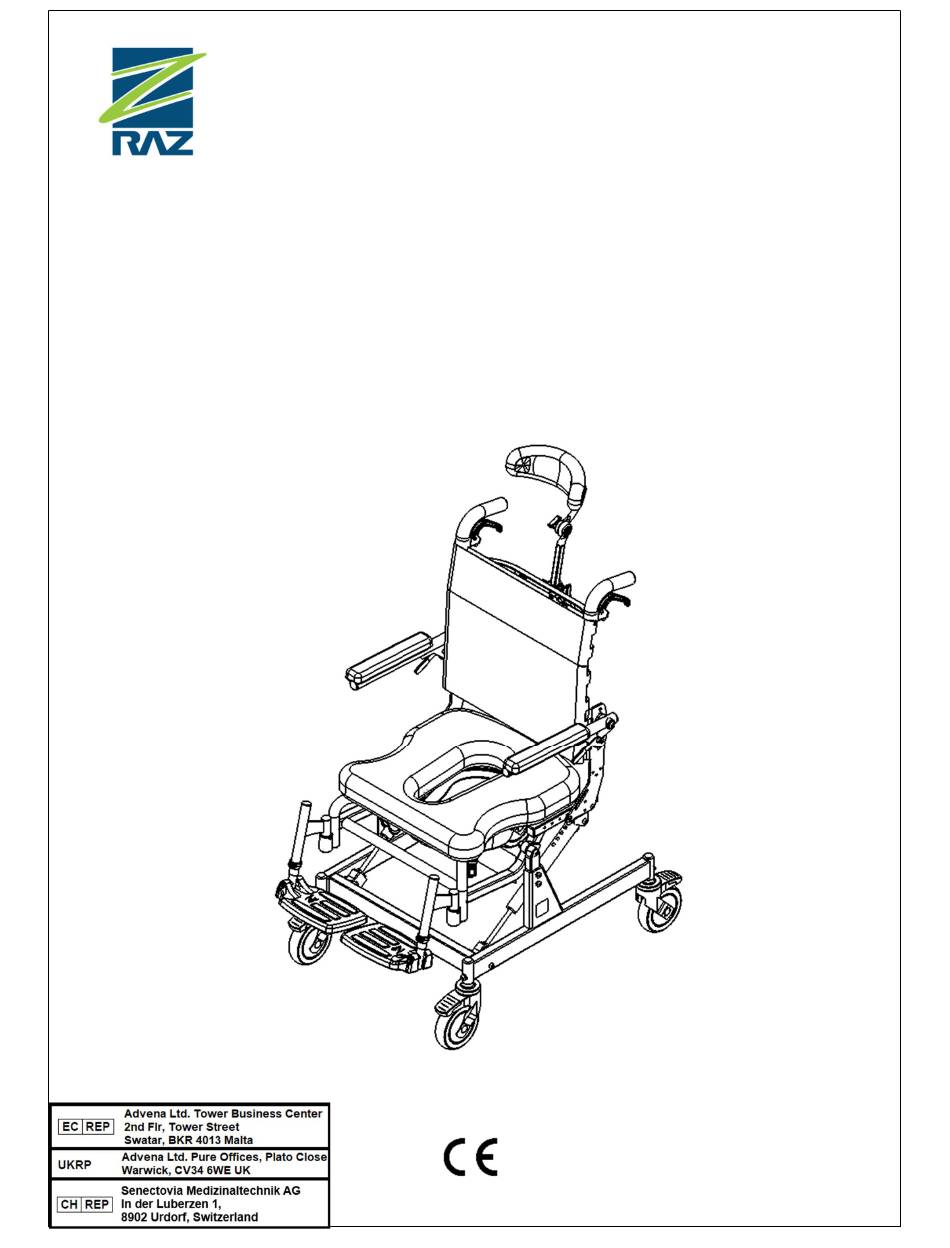

- Page 1 Mobile Shower Commode Chairs Raz-CAT (Z303) User and Dealer Manual UDI-DI: 628758RAZDESIGNINC2004V9 BASIC RTD034ENr05 Rev.Date:2024-12-31...
-
Page 2: Safety Precautions
SAFETY PRECAUT I ONS Failure to comply may cause injury or damage! It is important that the Raz Mobile Shower Commode Chair be properly assembled and that all adjustments be made carefully. Please ensure that the user(s), dealer(s), and attendant(s) have read this manual and thoroughly understood the safe operation of the Raz Mobile Shower Commode Chair. -
Page 3: Lateral Stability
A qualified healthcare professional should be consulted to assist with this process. DO NOT push or pull the Raz-CAT up or down an incline or ramp that exceeds a 1:12 grade (5° slope). DO NOT allow any user to be propelled (pushed or pulled) in a Raz-CAT in any other manner, than by an attendant. -
Page 4: Tilt Function
NEVER leave the user unattended in a Raz-CAT. IMPORTANT ! The Raz-CAT is NOT intended for use as a transportation device or a long-term seating system. USERS SHOULD NEVER BE LEFT UNATTENDED IN A RAZ SHOWER CHAIR. IMPORTANT ! - Page 5 PRODUCTS WITHIN THE RAZ FAMILY ARE NON-STERILE, REUSABLE, NON-INVASIVE, AND NON-IMPLANTABLE. THE RAZ-CAT IS INTENDED TO BE USED BY PEOPLE WITH MOBILITY IMPAIRMENTS, WHO MAY HAVE DIFFICULTY IN STANDING OR KEEPING THEIR BALANCE WHILE COMPLETING ACTIVITIES SUCH AS SHOWERING, TOILETING, OR PERSONAL HYGIENE. TYPICAL USERS...
- Page 6 LABELS OR SYMBOLS ON THE PRODUCT RAZ-CAT PRODUCT DESIGNATION MANUFACTURER ADDRESS AUTHORIZED UKRP REPRESENTATIVE DETAIL PRODUCT IDENTIFER (PI) CAT-XXXXXX UDI-DI 628758003038 MEDICAL DEVICE EUROPEAN CONFORMITY DATE OF MANUFACTURE MAXIMUM USER WEIGHT READ USER MANUAL RTD034ENr05 Rev. Date: 2024-12-31...
- Page 7 FRONT SEAT BRACKET INSTALLATION (IF APPLICABLE) TORONTO, CANADA Please refer to the above image for the installation procedure. Note: Please install the Phillips Pan Head Screws by hand. The use of power tools may cause the bracket to deform. After installation, ensure the brackets are secured onto the seat. Open and close the brackets to check for proper functionality.
- Page 8 USER & DEALER MANUAL TABLE OF CONTENTS 1.0 GENERAL INFORMATION ........................9 1.1 Raz-CAT Mobile Shower Commode Chair Overview ................. 9 1.2 Raz-CAT Mobile Shower Commode Chair Specifications..............9 2.0 SET-UP: INTENDED FOR DEALER USE ONLY ................10 2.1 Back Support........................... 10 2.1.1 Back Support Installation ......................
-
Page 9: General Information
1.0 GENERAL INFORMATION 1.1 Raz-CAT Mobile Shower Commode Chair Overview 1.2 Raz-CAT Mobile Shower Commode Chair Specifications SPECIFICATIONS Raz-CAT 136 kg (300 lbs) WEIGHT CAPACITY FRAME WIDTH 46 cm (18”) seat frame BACK FRAME WIDTHS 35 cm (14”), 40 cm (16”), or 46 cm (18”) 58 cm (22.75”) with the 46 cm (18”) back... -
Page 10: Back Support
2.0 SET-UP: INTENDED FOR DEALER USE ONLY IMPORTANT NOTE: If the threads are not lubricated, cold-welding of fasteners can occur. Apply a lubricant (liquid detergent, soap, lip balm, wax, etc.) to the threads before tightening the fasteners to reduce the possibility of cold welding. Do not overtighten fasteners. - Page 11 For example, the second and third straps from the bottom can be tightened to create more pronounced support in the lumbar area of the back. 2.2 Caster Installation The Raz-CAT chairs are shipped with casters not installed. Please follow the instructions below for caster installation. Tool required: 5mm hex key Insert caster stem into caster housing on the base frame.
- Page 12 2.4 Raz Seats 2.4.1 Raz Seat Installation Ensure that the front brackets are in the open position. To open the front brackets, simply squeeze the tabs on the hinged portion of the bracket. Slide the rear of the seat over the rear cross tubes as the front of the seat is lowered onto the frame.
-
Page 13: Seat-To-Floor Height Adjustment
2.5 Seat-To-Floor Height Adjustment To change the seat-to-floor height on a Raz-CAT model, adjust the pivot post heights on both sides of the chair. Tools required: 5mm hex key, 13mm socket wrench 1. Ensure the chair is out of tilt by squeezing both tilt triggers. -
Page 14: Foot Supports
3. Re-insert the screw and nyloc nut, then tighten. 2.7 Molded Head Support Adjustment A molded head support is included with all Raz-CAT Shower Chairs. It is shaped to cradle the head comfortably and is easy to clean. The head support can be adjusted indefinitely forward and backward within a 5”... -
Page 15: Fastener Installation
2.8 Fastener Installation All fasteners should be installed securely. Locknuts that are removed for any reason may need to be replaced rather than re- used. Check the performance of nyloc nuts when re-attaching to the screw. There should be significant detectable resistance when tightening. -
Page 16: Use And Operation
25” the chair can be tilted back 36 IMPORTANT ! DO NOT ATTEMPT TO TILT A RAZ MOBILE SHOWER COMMODE CHAIR IF THE ATTENDANT IS PHYSICALLY INCAPABLE OF SAFELY AND SMOOTHLY OPERATING THE TILT MECHANISM WITH A USER OCCUPYING THE CHAIR. ANY ATTENDANT MUST BE FAMILIAR WITH PROPER TILTING TECHNIQUES PRIOR TO ASSISTING A USER IN THE SHOWER COMMODE. - Page 17 To remove the Adjustable-Tension Back Upholstery, release the buckles on the straps. 3.5 CAT Seat To install a Raz Seat: 1. Ensure that the front brackets are in the open position. To open the front brackets, simply pry open. 2. Slide the rear of the seat over the rear cross tubes as the front of the seat is lowered onto the frame.
-
Page 18: Commode Pan
3.6 Standard MFX12 Foot Supports (Footrests) The MFX12 Footrests are standard on all Raz-CAT. The footrests can be flipped up, rotated away, or removed entirely for transfers. Adjustable MFX12 Footrests can be extended for users with longer legs with the optional footrest extension tube, a 2” longer tube that can be ordered for any Raz Mobile Shower Commode Chair. - Page 19 IMPORTANT ! A QUALIFIED RAZ DEALER SHOULD BE CONTACTED TO CHECK ALL FASTENERS, CASTER AND WHEEL LOCKS, HARDWARE, AND ALL OTHER MOVING COMPONENTS AT LEAST ONCE PER YEAR.
-
Page 20: Cleaning And Maintenance
DO NOT mix a calcium/lime removal solution with any other liquid or toxic fumes may occur. DO NOT use chlorine bleach on any Raz components. It is recommended to the user that a qualified Raz dealer check all fasteners and subassemblies to see if there is cause for concern regarding the shower chair’s performance. -
Page 21: Limited Warranty
(1) year and are subject to normal wear and tear exclusions. If within such warranty period any such product shall be proven to be defective, the part will be repaired or replaced, at Raz Design’s discretion. This warranty does not include any labor or shipping charges incurred in replacement, part installation, or repair of any such product. - Page 22 Raz Design Inc. frame and hardware material are made of stainless steel for which we offer a lifetime warranty against corrosion. Please be advised this lifetime warranty is only extended to the original purchaser/user of Raz Shower Chairs that have been purchased from a qualified Raz dealer.
