Raz -ART User And Dealer Manual

Mobile shower commode chairs
Hide thumbs Also See for Raz-ART:

Advertisement

Table of Contents

Mobile Shower
Commode Chairs
Raz-ART
(Z333)
User and Dealer
Manual
BASIC UDI-DI:
628758RAZDESIGNINC2004V9
RTD038ENr04 Rev. Date: 2024-12-31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raz-ART and is the answer not in the manual?

Questions and answers

Related Manuals for Raz Raz-ART

Summary of Contents for Raz Raz-ART

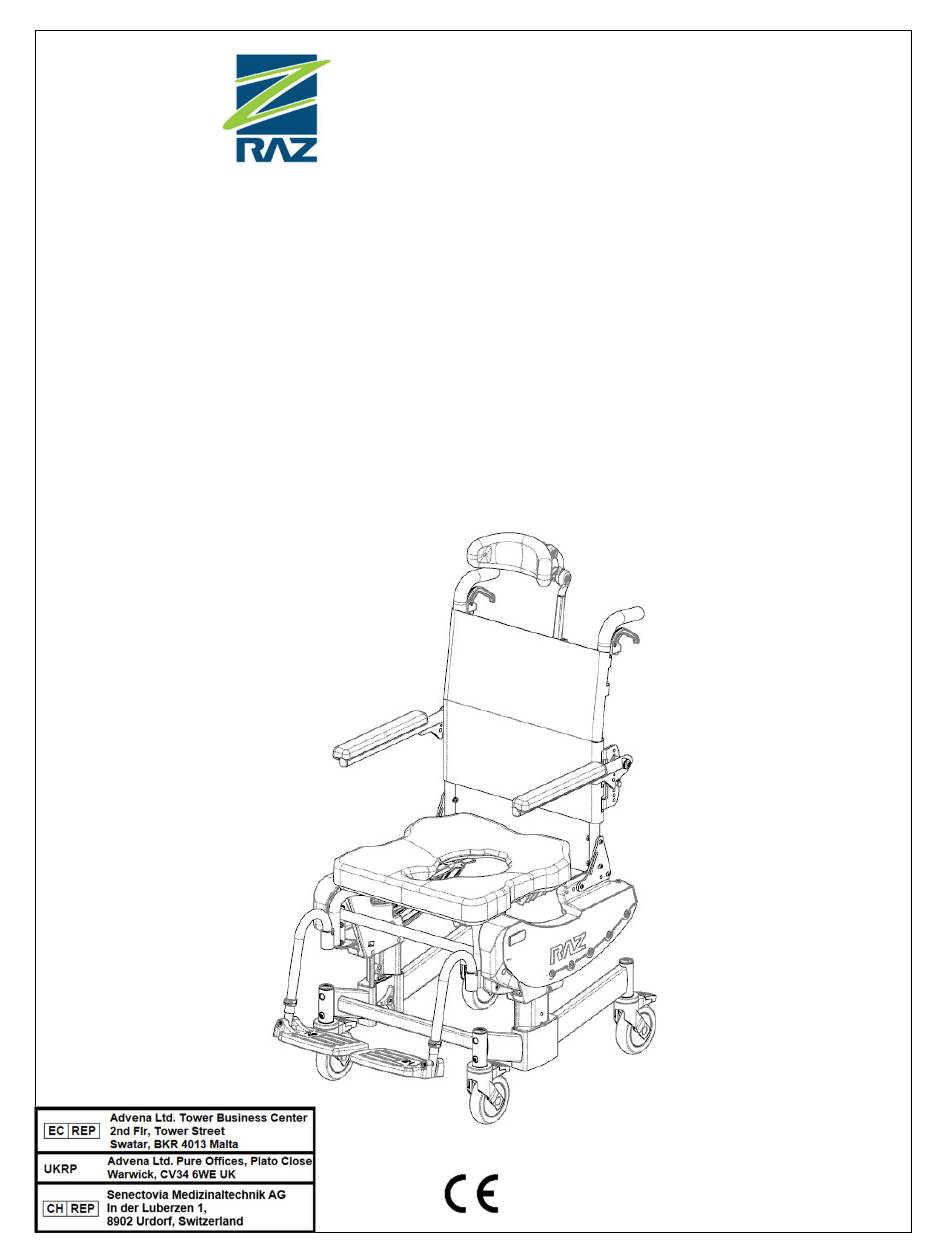

  • Page 1 Mobile Shower Commode Chairs Raz-ART (Z333) User and Dealer Manual BASIC UDI-DI: 628758RAZDESIGNINC2004V9 RTD038ENr04 Rev. Date: 2024-12-31...

  • Page 2: Safety Precautions

    USERS MUST NOT lean forward while sitting in the Raz-ART as this may cause the chair to tip forward. USERS MUST NOT lean over the edge of the Raz-ART as this could cause the chair to tip. USERS MUST NOT attempt to pick up objects from the floor by leaning over and reaching –...
  • Page 3 ART in any other manner than by an attendant. Immersion The Raz-ART is not designed to be used as a pool chair. Do not immerse the shower chair in whole or in part, in water or any other liquid. Damage to the shower chair components may result.
  • Page 4 DO NOT attempt to tilt an occupant if the attendant is physically incapable of safely and smoothly operating the tilt function. NEVER leave the user unattended in a Raz-ART Shower Chair. The Raz-ART Shower Chair is NOT intended for use as a transportation device or a long-term seating system.
  • Page 5 DIAGNOSTIC PURPOSES. ALL PRODUCTS WITHIN THE RAZ FAMILY ARE NON- STERILE, REUSABLE, NON-INVASIVE, AND NON-IMPLANTABLE. THE RAZ-ART IS INTENDED TO BE USED BY PEOPLE WITH MOBILITY IMPAIRMENTS, WHO MAY HAVE DIFFICULTY IN STANDING OR KEEPING THEIR BALANCE WHILE COMPLETING ACTIVITIES SUCH AS SHOWERING, TOILETING, OR PERSONAL HYGIENE.
  • Page 6 LABELS OR SYMBOLS ON THE PRODUCT RAZ-ART PRODUCT DESIGNATION MANUFACTURER ADDRESS AUTHORIZED UKRP REPRESENTATIVE DETAIL PRODUCT IDENTIFER (PI) ART-XXXXXX UDI-DI 628758003335 MEDICAL DEVICE EUROPEAN CONFORMITY DATE OF MANUFACTURE MAXIMUM USER WEIGHT READ USER MANUAL RTD038ENr04 Rev. Date: 2024-12-31...
  • Page 7 FRONT SEAT BRACKET INSTALLATION (IF APPLICABLE) TORONTO, CANADA Please refer to the above image for the installation procedure. Note: Please install the Phillips Pan Head Screws by hand. The use of power tools may cause the bracket to deform. After installation, ensure the brackets are secured onto the seat. Open and close the brackets to check for proper functionality.
  • Page 8 USER & DEALER MANUAL TABLE OF CONTENTS 1.0 GENERAL INFORMATION ........................9 1.1 Raz-ART Overview ........................9 1.2 Raz-ART Specifications ......................... 9 2.0 SET-UP: INTENDED FOR DEALER / DISTRIBUTOR ONLY ..............10 2.1 Base Frame ..........................10 2.1.1 Base Frame Configuration .................... 10 2.1.2 Seat-To-Floor Height Adjustment ..................

  • Page 9: General Information

    1.0 GENERAL INFORMATION 1.1 Raz-ART Overview 1.2 Raz-ART Specifications SPECIFICATIONS Raz-ART WEIGHT CAPACITY 160 kg (352 lbs) FRAME WIDTH 46 cm (18”) OVERALL WIDTH 57 cm (22.5”) OVERALL LENGTH 89 cm (35”) at 0° tilt, with foot supports OVERALL LENGTH 128 cm (50.5”)
  • Page 10 6. Refer to the following section to reinstall the base frame to the desired seat-to-floor height. 2.1.2 Seat-To-Floor Height Adjustment To change the seat-to-floor height on the Raz-ART model, the seat frame is raised or lowered using the adjustment knob located on the inside of the base frame.
  • Page 11 2.2 Back Support 2.2.1 Back Support Installation Tools Required: 5/32” hex key, 7/16” wrench 1. Lift the back support to an upright position. TIP: A #2 Phillips screwdriver with a ¼” diameter shaft can be inserted through one of the plates and back posts to temporarily hold the back support in an upright position.
  • Page 12 2.2.4 Adjustable-Tension Back Upholstery Adjustment In order to adjust the back upholstery, each strap can be tightened or loosened in the buckles to achieve a wide range of positions. For example, the second and third straps from the bottom can be tightened to create more pronounced support in the lumbar area of the back.
  • Page 13 2.5 Raz Seats 2.5.1 Raz Seat Installation 1. Ensure that the front brackets are in the open position. 2. Slide the rear of the seat over the rear seat support tubes as the front of the seat is lowered onto the frame. Ensure the rear seat brackets hook below the rear seat support tubes.
  • Page 14 2.6 Arm Support Adjustment – Adjusta-Back Option Only Tools required differ by hardware, make sure the correct tools are selected for secure installation. Frame with the identifier hole is Metric. for Imperial 3/8” hardware: 7/32” hex key, 9/16” wrench; for Metric M8 hardware: 5mm hex key, 13mm wrench 2.6.1 Arm Support Height Adjustment The arm supports are adjustable in height within a 3”...
  • Page 15 2.8 Molded Head Support A molded head support is included with all Raz-AT Shower Chairs. It is shaped to cradle the head comfortably and is easy to clean. The head support can be adjusted indefinitely forward and backward within a 5” range and vertically within an 11½”...
  • Page 16 IMPORTANT ! DO NOT ATTEMPT TO TILT A RAZ SHOWER CHAIR IF THE ATTENDANT IS PHYSICALLY INCAPABLE OF SAFELY AND SMOOTHLY OPERATING THE TILT MECHANISM WITH A USER OCCUPYING THE CHAIR. ANY ATTENDANT MUST BE FAMILIAR WITH PROPER TILTING TECHNIQUES PRIOR TO ASSISTING A USER IN THE SHOWER COMMODE.
  • Page 17 Adjustable Footrests can be extended for users with longer legs with the optional footrest extension tube, a 2” longer tube that can be ordered for any Raz Shower Chair. To insert the Adjustable Footrests: 1.
  • Page 18 3.8 Commode Pan The Raz commode pan is designed with an elongated shape that fits directly under the seat to minimize backsplash. A unique splash- reduction ridge is located at the center of the pan. The high gloss surface facilitates cleaning and rinsing, while the pouring spout and handle facilitate emptying.

  • Page 19: Cleaning And Maintenance

    Spray the frame and components with a multi-purpose disinfectant cleaner, scrub with a soft brush, and rinse with water. It is recommended to the user that a qualified Raz dealer check over all fasteners and subassemblies on a continuing basis or if there is cause for concern about the shower chair’s performance.

  • Page 20: Limited Warranty

    (2) years from the date of purchase. All other components on the Raz-ART are covered for a period of one (1) year and are subject to normal wear and tear exclusions. If within such warranty period, any such product shall be proven to be defective, the part will be repaired or replaced, at Raz Design’s discretion.
  • Page 21 INCLUDING THE BACK SUPPORT, ARM SUPPORT, SEAT, BASE FRAME, AND CASTERS SHOULD BE SECURED IN PLACE. IF IT IS EVER FELT THAT ANY ASPECT OF THE Raz-ART IS IN NEED OF MAINTENANCE, CONTACT YOUR DEALER / DISTRIBUTOR. ANY PROBLEMS THAT COULD AFFECT THE SAFE USAGE OF THE CHAIR MUST BE ATTENDED TO IMMEDIATELY.
