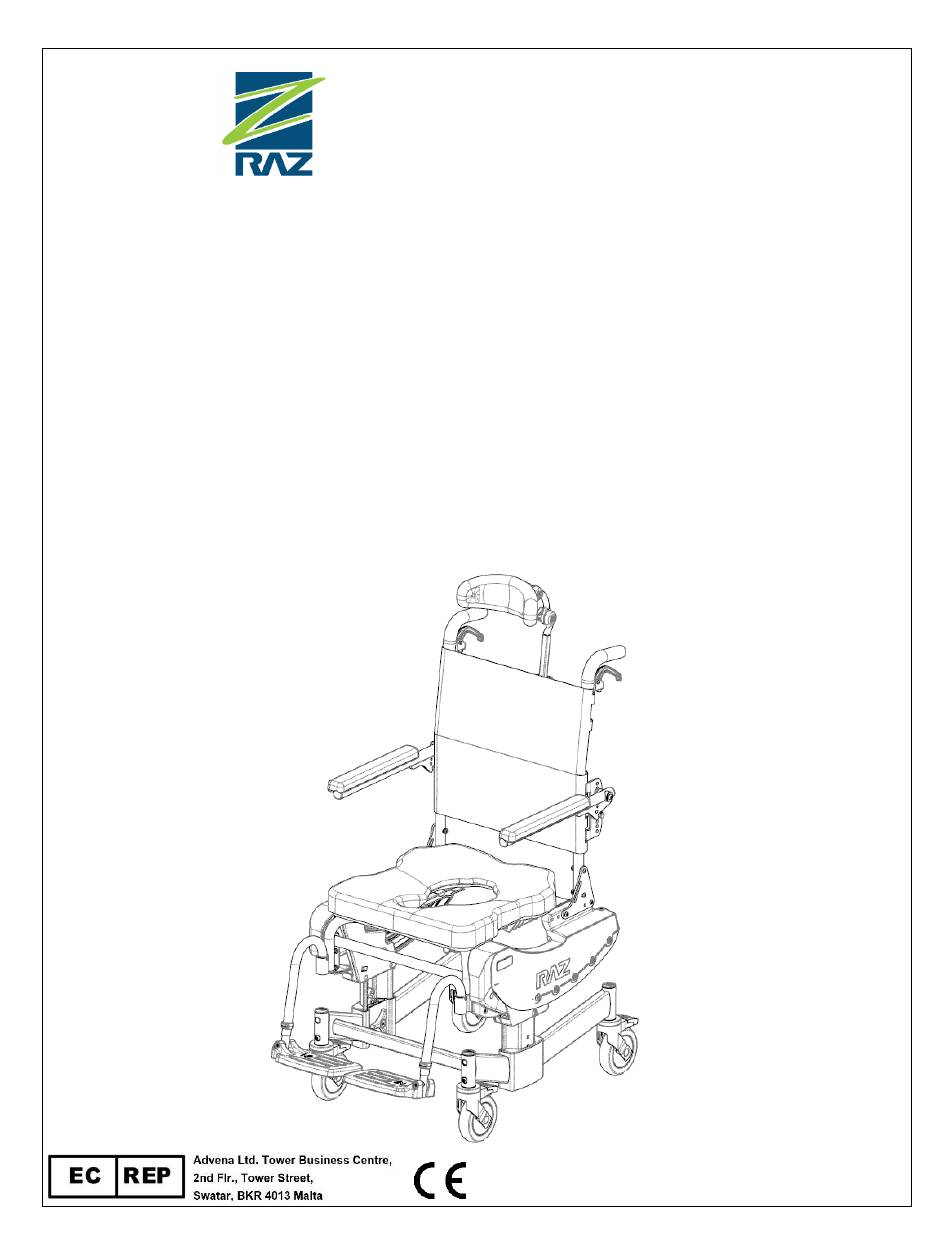

- Page 1 Mobile Shower Commode Chairs Raz-ART (Z333) User and Dealer Manual BASIC UDI-DI: 628758RAZDESIGNINC2004V9 RQD031ENr02 Rev. Date: 2021-12-16...
- Page 2 USERS MUST NOT be rolled up or down a ramp without an attendant who is capable of controlling the Raz-ART with the user in the chair, during the ascent or descent. CASTER LOCKS ARE NOT BRAKES! Never use the caster locks to slow down the Raz-ART when descending inclines as this could cause the chair to tip in the direction of travel.
- Page 3 Immersion The Raz-ART is not designed to be used as a pool chair. Do not immerse the shower chair in whole or in part, in water or any other liquid. Damage to the shower chair components may result.
- Page 4 DO NOT attempt to tilt an occupant if the attendant is physically incapable of safely and smoothly operating the tilt function. NEVER leave the user unattended in a Raz-ART Shower Chair. The Raz-ART Shower Chair is NOT intended for use as a transportation device or a long-term seating system. IMPORTANT!
- Page 5 PRODUCTS MANUFACTURED BY RAZ DESIGN ARE NON-STERILE, REUSABLE, NON- INVASIVE, AND NON-IMPLANTABLE. THE RAZ-ART IS INTENDED TO BE USED BY PEOPLE WITH MOBILITY IMPAIRMENTS, WHO MAY HAVE DIFFICULTY IN STANDING OR KEEPING THEIR BALANCE WHILE COMPLETING ACTIVITIES SUCH AS SHOWERING, GOING TO THE TOILET, OR PERSONAL HYGIENE.
- Page 6 FRONT SEAT BRACKET INSTALLATION (IF APPLICABLE) TORONTO, CANADA We have improved the design of our front seat brackets. Similar to the original design in its provision of stability, this design also provides improved durability and functionality. Please refer to the above image for the installation procedure. Note: Please install the Phillips Pan Head Screws by hand.
-
Page 7: Table Of Contents
Table Of Contents 1.0 GENERAL INFORMATION ......................8 1.1 Raz-ART Overview ........................8 1.2 Raz-ART Specifications ......................8 2.0 SET-UP (FOR DEALER / DISTRIBUTOR ONLY) ............... 9 2.1 Base Configuration ........................9 2.1 Caster Installation ........................9 2.2 Backrest Installation ......................... 9 2.3 Cable Installation........................10... -
Page 8: General Information
1.0 GENERAL INFORMATION 1.1 Raz-ART Overview 1.2 Raz-ART Specifications SPECIFICATIONS Raz-ART User Weight Capacity 160 kg (352 lbs) 46 cm (18”) Seat / Back Frame Width 57 cm (22.5”) Overall Width (w/ std arm pads) Overall Length (w/ footrests) 89 cm (35”) 46 cm (18”). -
Page 9: Set-Up (For Dealer / Distributor Only)
2.1 Caster Installation Tools Required: 5mm hex key 1. Remove the Raz-ART from the shipping carton. 2. Insert one caster stem into caster housing on the base frame. 3. Align the threaded hole in the caster stem with the hole in the caster housing. -
Page 10: Cable Installation
1-3 complete rotations - counter-clockwise. Tilt the chair and listen for the clicking noise. Tighten the jam nut on the cable fitting if the noise has stopped. 2.4 Raz Seat Installation 1. Ensure that the front brackets are in the open position. -
Page 11: Adjustments (For Dealer / Distributor)
3.0 ADJUSTMENTS (FOR DEALER / DISTRIBUTOR) IMPORTANT ! ADJUSTMENTS SHOULD NEVER BE ATTEMPTED WITH THE USER IN THE CHAIR. 3.1 Back Support Angle Adjustment Tools Required: 5/32” hex key, 7/16” wrench 1. Loosen the top screws and lock nuts attaching the back mounting plate to the vertical back frame tubes. -
Page 12: Foot Support Adjustment
“off” position. 4.3 Commode Pan The Raz commode pan is designed with an elongated shape that fits directly under the seat to minimize back splash. A unique splash-reduction ridge is located at the center of the pan. -
Page 13: Cleaning And Maintenance
Spray the frame and components with a multi-purpose disinfectant cleaner, scrub with a soft brush and rinse with water. It is recommended to the user that a qualified Raz dealer check over all fasteners and subassemblies on a continuing basis or if there is cause for concern to the shower chair’s performance. -
Page 14: Limited Warranty
(2) years from the date of purchase. All other components on the Raz-ART are covered for a period of one (1) year and are subject to normal wear and tear exclusions. -
Page 15: Contacts
INCLUDING THE BACKREST, ARMREST, SEAT, BASE FRAME AND CASTERS SHOULD BE SECURED IN PLACE. IF IT IS EVER FELT THAT ANY ASPECT OF THE Raz-ART IS IN NEED OF MAINTENANCE, CONTACT YOUR DEALER. ANY PROBLEMS THAT COULD AFFECT THE SAFE USAGE OF THE CHAIR MUST BE ATTENDED TO IMMEDIATELY.
