Mobile Pool Chair
Zwim
User and Dealer
Manual
BASIC UDI-DI:
628758RAZDESIGNINC2004V9
RTD102ENr00 Rev. Date: 2024-08-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zwim and is the answer not in the manual?

Questions and answers

Related Manuals for Raz Zwim

Summary of Contents for Raz Zwim

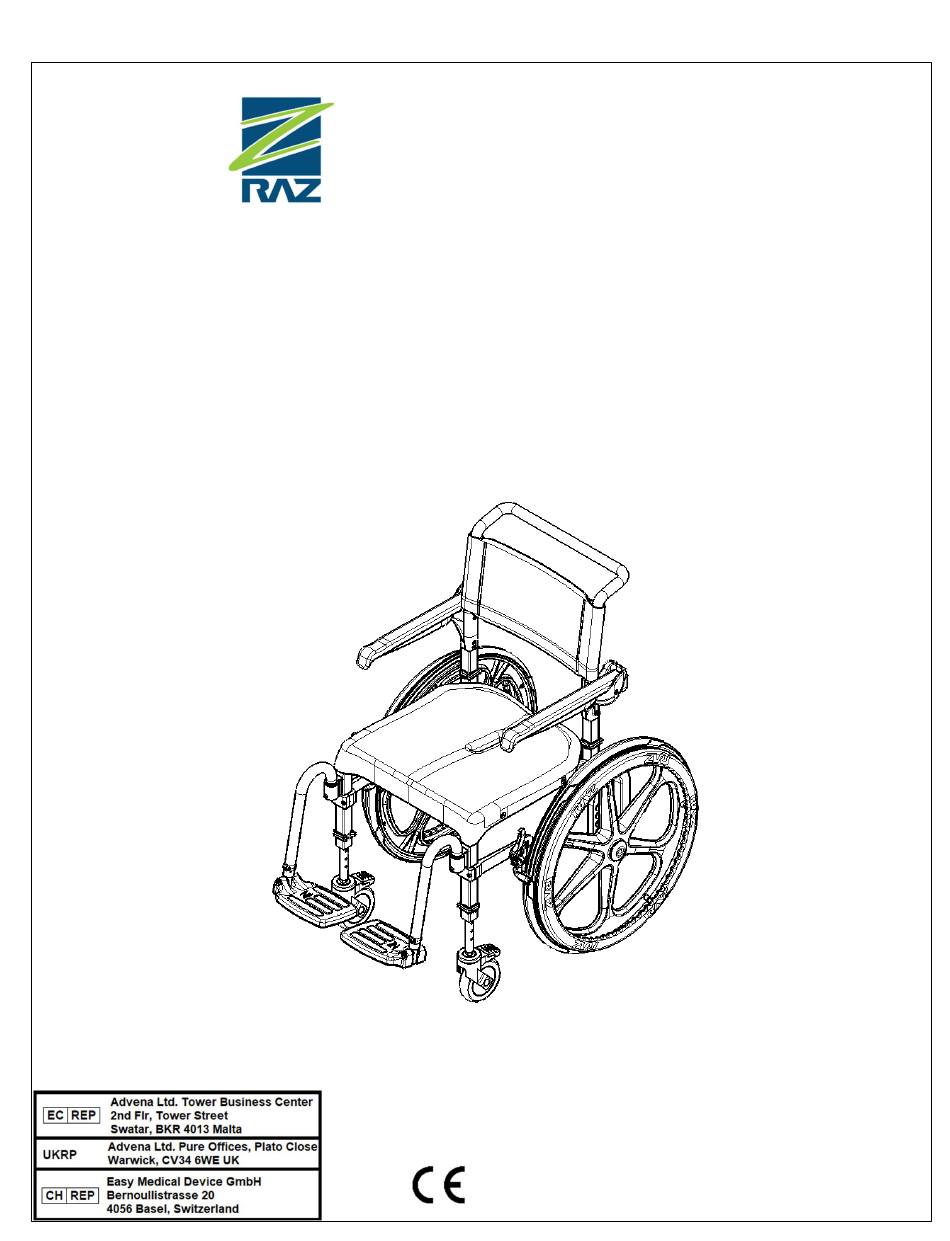

  • Page 1 Mobile Pool Chair Zwim User and Dealer Manual BASIC UDI-DI: 628758RAZDESIGNINC2004V9 RTD102ENr00 Rev. Date: 2024-08-07...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS Failure to comply may cause injury or damage! It is important that the Zwim Pool Chair be properly assembled and that all adjustments be made carefully. Please ensure that the user(s), dealer(s) and attendant(s) have read this manual and thoroughly understood the safe operation of the Zwim Pool Chair.

  • Page 3: Lateral Stability

    A qualified healthcare professional should be consulted to assist with this process. DO NOT push or pull the Zwim chair up or down an incline or ramp that exceeds a 1:12 grade (5° slope). RTD102ENr00 Rev. Date: 2024-08-07...
  • Page 4 A fully-carpeted surface is optimal. DO NOT stand on any part of the frame of the Zwim chair. NEVER use the footplates to assist in transfers. This could cause the chair to tip.
  • Page 5 USERS SHOULD NEVER BE LEFT UNATTENDED IN A RAZ POOL CHAIR. IMPORTANT ! DO NOT LIFT A RAZ POOL CHAIR AND OCCUPANT BY THE ARMRESTS OR FOOTRESTS! IMPORTANT ! THE ZWIM CHAIR IS INTENDED FOR FOLLOWING USES (WITH OR WITHOUT THE ASSISTANCE OF AN ATTENDANT): ...
  • Page 6 LABELS OR SYMBOLS ON THE PRODUCT PRODUCT ZWIM DESIGNATION MANUFACTURER ADDRESS AUTHORIZED UKRP REPRESENTATIVE DETAIL PRODUCT IDENTIFER (PI) ESP-XXXXXX UDI-DI 628758009009 MEDICAL DEVICE EUROPEAN CONFORMITY DATE OF MANUFACTURE MAXIMUM USER WEIGHT READ USER MANUAL RTD102ENr00 Rev. Date: 2024-08-07...
  • Page 7 USER & DEALER MANUAL TABLE OF CONTENTS GENERAL INFORMATION Zwim Pool Chair Overview ..................... 8 Zwim Pool Chair Specifications ..................... 8 SET-UP Backrest Installation ......................9 Caster Installation ........................9 Wheel Installation with Standard Axle Bolt ................9 Adjustable Footrest Installation ....................10 Wheel Lock Mount Installation ...……………………………………………………………………10...

  • Page 8: General Information

    GENERAL INFORMATION 1.1 Zwim Pool Chair Overview Back Upholstery Seat Dual-Lock Casters Rear Wheel Adjustable Footrests Wheel-Lock 1.2 Zwim Pool Chair Specifications SPECIFICATIONS WEIGHT CAPACITY 150 kg (331 lbs) FRAME WIDTH (seat and back frame) 50 cm (19.75”) OVERALL WIDTH 71 cm (28”)
  • Page 9 2.0 SET-UP 2.1 Back Support Installation 1. Remove the pool chair from the shipping carton. 2. Remove both snap-pins from base frame. 3. Insert backrest tubes into base frame receivers. 4. Line up the hole on the backrest to the base frame. 5.
  • Page 10 If not, replace the nyloc nut with a new one. It is advisable to check annually that all fasteners are secure. NOTE: If you purchased the Zwim directly, and not through a dealer, assembly instruction is available from Raz Design. This can be via a video conferencing app such as Zoom or Teams.
  • Page 11 3.0 ADJUSTMENTS: INTENDED FOR DEALER USE ONLY IMPORTANT ! ADJUSTMENTS SHOULD NEVER BE ATTEMPTED WITH THE USER IN THE CHAIR. IMPORTANT ! BOTH CASTER STEMS MUST BE ADJUSTED TO THE SAME HEIGHT. NEVER ATTEMPT TO CHANGE THE FRAME ANGLE BY ALTERING THE CASTER POSITION. UNEQUAL CASTER POSITIONS WILL REDUCE THE CHAIR’S STABILITY AND MAY RESULT IN TIPPING.

  • Page 12: Footrest Adjustment

    IMPORTANT ! INCREASING THE SEAT HEIGHT WILL DECREASE STABILITY. IT IS ESSENTIAL THAT A STABILITY CHECK BE PERFORMED AFTER ANY OF THESE ADJUSTMENTS ARE MADE. STABILITY CHECKS SHOULD BE PERFORMED WITH AN ATTENDANT BEHIND THE CHAIR. ANTI- TIPPERS MAY BE REQUIRED IF REARWARD STABILITY IS COMPROMISED. 3.2 Wheel Lock Adjustment Tool required: 5mm hex key, 10mm wrench 1.

  • Page 13: Use And Operation

    USE AND OPERATION 4.1 Adjustable Footrests Adjustable Footrests are standard on all Zwim pool chairs. For transfers, the footrests can be flipped up, rotated away or removed entirely. To insert the Adjustable Footrests: 1. Place the footrest hanger tubes into the footrest receivers.

  • Page 14: Cleaning And Maintenance

    DO NOT mix a calcium/lime removal solution with any other liquid as toxic fumes may result. It is recommended to the user that a qualified Raz dealer check over all fasteners and subassemblies if there is cause for concern regarding the Zwim chair’s performance.

  • Page 15: Limited Warranty

    (2) years from the date of purchase. All other components on the Zwim pool chair are covered for a period of one (1) year and are subject to normal wear and tear exclusions.
  • Page 16 7.0 CONTACTS It is important that the Zwim Pool Chair be properly assembled and all adjustments be made carefully. Up- to-date manuals can be downloaded from www.razdesigninc.com. For clarification of any section of this manual, contact the distributor or manufacturer.
