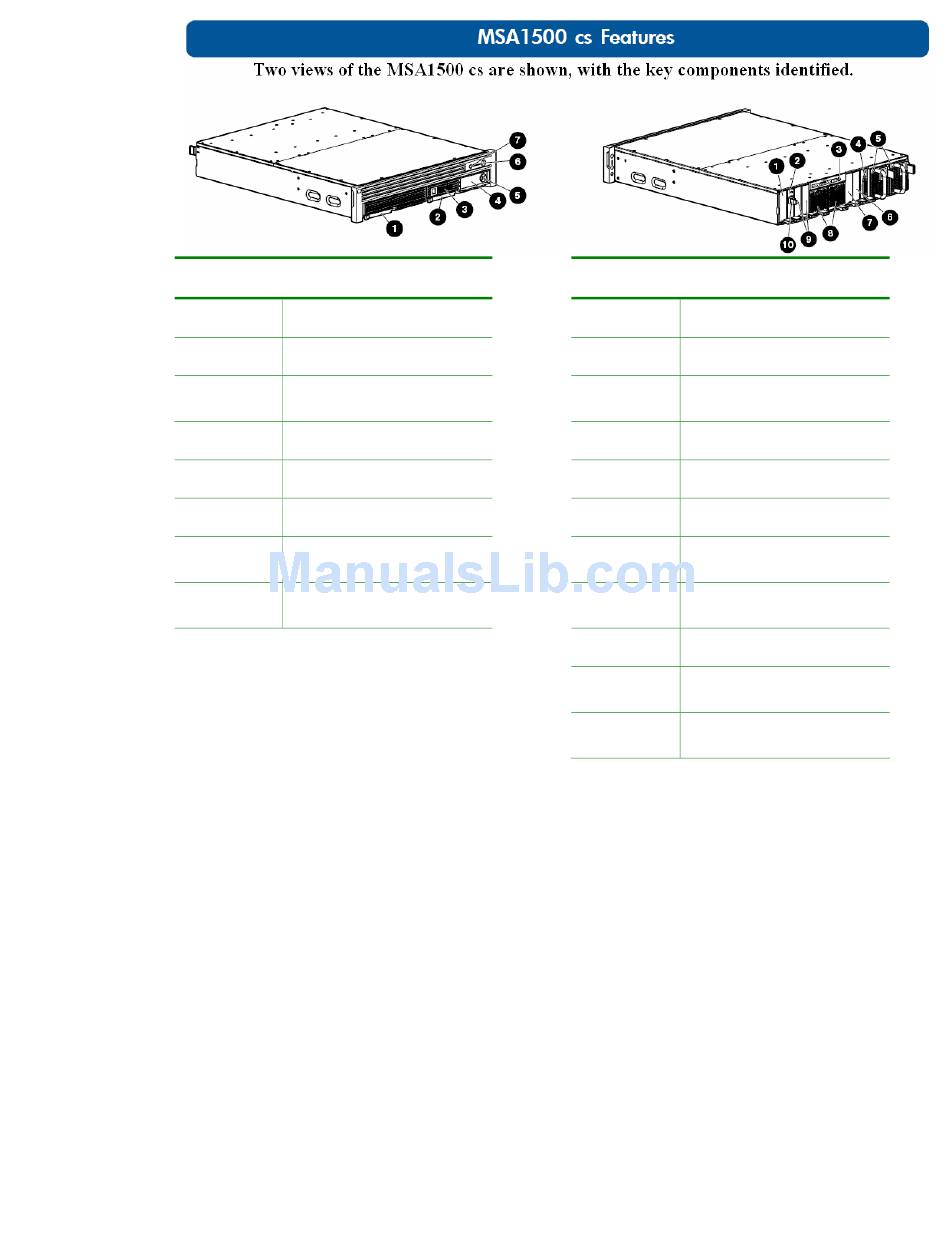

MSA1500 cs (Front View)
Reference # Identifier
1
Redundant controller slot blank
2
Primary controller
3
Status indicators
4
Display panel
5
Display push buttons
6
Power switch
7
Unit ID button and indicator
MSA1500 cs (Rear View)
Reference # Identifier
1
Reserved for future use
Primary Fibre Channel I/O
2
module
3
System information panel
4
SCSI I/O module, bus 0
5
Power supplies
Additional SCSI I/O module
6
slot, bus 1
Redundant Fibre Channel I/O
7
module slot
8
Fan modules
Additional SCSI I/O module
9
slots, buses 2 and 3
2-Gb Small Form Factor
10
Pluggable (SFP) Transceiver
