MS-80IR+ overview

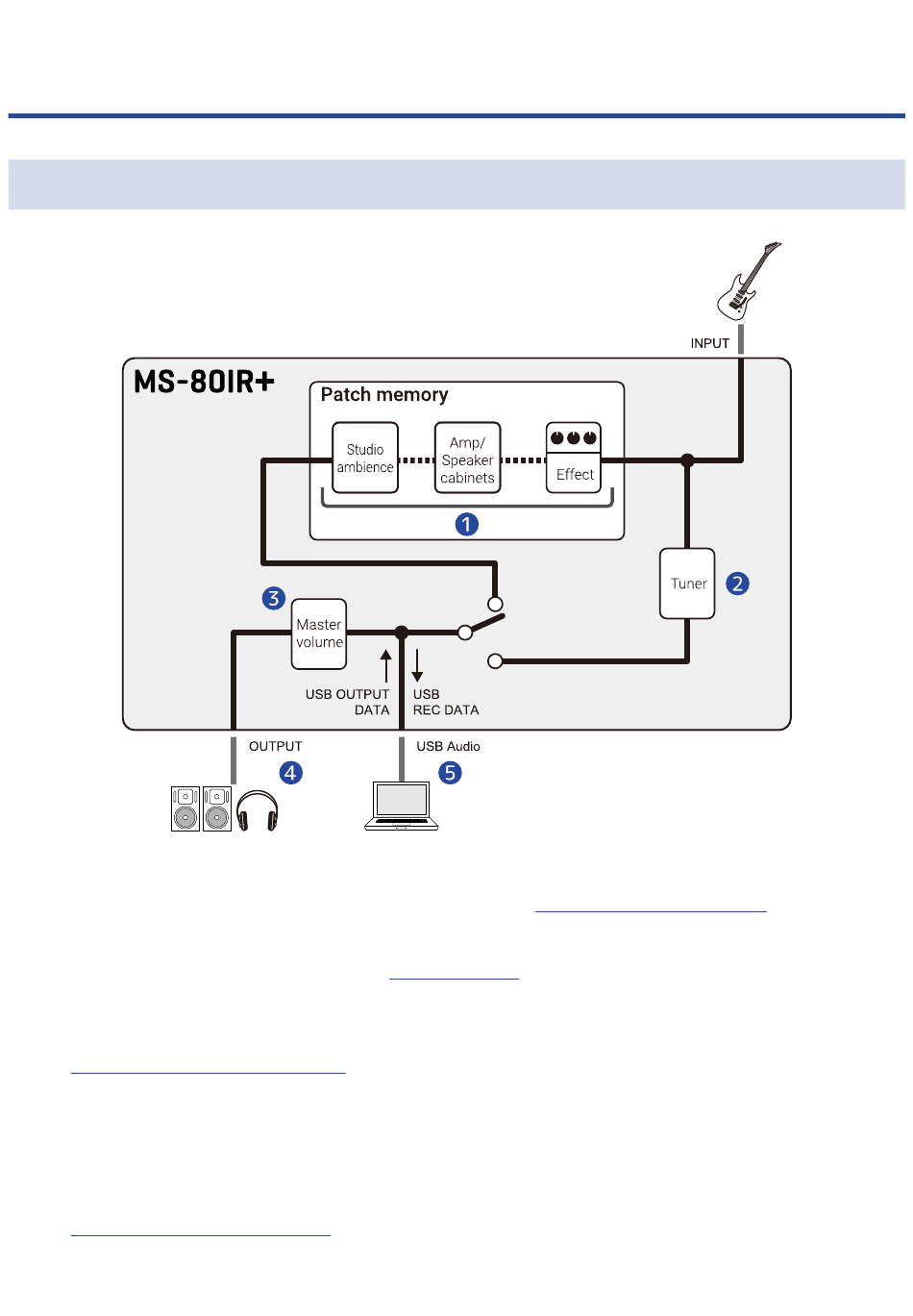

Signal flow
❶
Patch memory
The input guitar sound passes through effects in order.
❷
Tuner
Use this to tune the connected guitar.
❸
Master volume
This adjusts the overall volume. This setting is retained even when the patch memory is changed.
(→ Adjusting the overall output
❹
OUTPUT
Connect powered monitors or headphones here.
❺
USB audio
Audio data can be exchanged with a computer or smartphone using the audio interface function.
(→ Using audio interface
(→ Using the
level)
functions)
(→ Adjusting effect
tuner)
6
parameters)
