Icom BC-119N Service Manual page 10

5-2 BC-121N

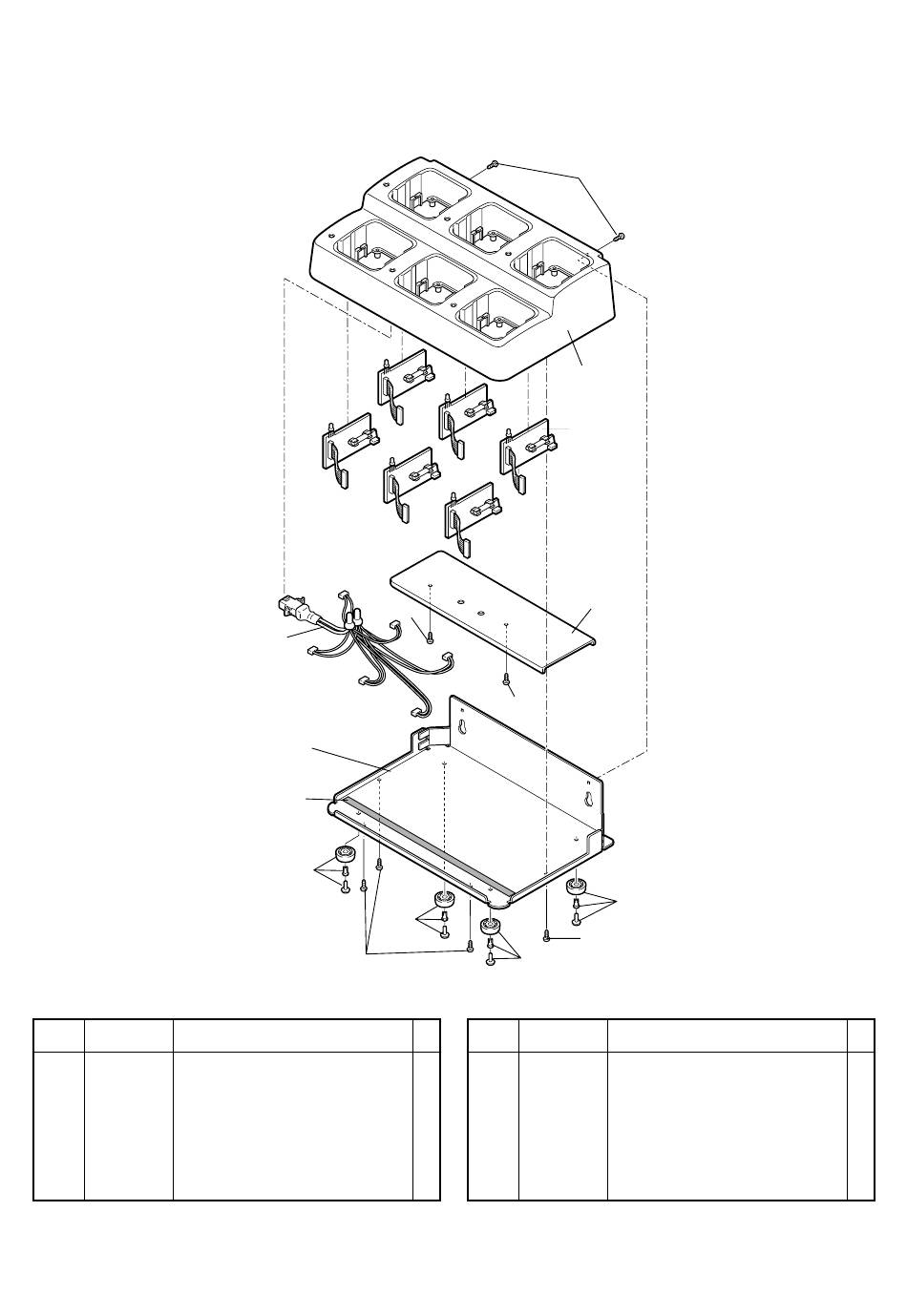

[CHASSIS PARTS]
REF ORDER
NO. NO.
MP1 8510014530 1800 case (B)
MP2 8110005890 1800 cover
MP3 8930057960 2571 plate
Screw PH BT M3 × 8 NI-ZU
MP4 8810008660
Screw PH BT M3 × 8 NI-ZU
MP5 8810008660
MP7 8930040590 Rubber foot (K)
MP8 8930037900 Sheet BB
W1 8900011310 Cable OPC-1161
Screw abbreviations
BT: Self-tapping PH: Pan head NI-ZU: Nickel-Zinc
MAIN-C
MAIN-F
MAIN-E
MP5
W1
MP2
MP8
MP7
MP7
MP4
QTY.
DESCRIPTION
MP4
MP1
MAIN-B
MAIN-A
UNIT
MAIN-D
MP3
MP5
MP4
MP7
[ACCESSORIES]
REF ORDER
NO. NO.
1 MP1 8930041660
1
1
6
2
4
1
1
5 - 2
MP7
DESCRIPTION
Stand leg cushion (B)
QTY.
4
