Icom BC-119NS Instructions

INSTRUCTIONS
DESKTOP CHARGER
BC-1 19 N
CAUTION
R WARNING! To reduce the risk of injury,
charge only specified Icom Ni-Cd, Ni-MH
or Li-Ion rechargeable battery packs.
Other types of battery packs/cases may
burst, causing damage and personal
injury.
R USE INDOORS ONLY! NEVER expose
the charger to rain, snow or any liquids.
NEVER let metal, wire, etc. touch any
internal part of the charger.
NEVER incinerate used batteries. This
may cause an explosion.
NEVER use the charger when it is covered
by objects which impede heat dispersal.
Place the charger in a secure place to
avoid inadvertent use by children.
AVOID charging in conditions of extreme
cold or extreme heat
(under 10°C; +50°F)
(over +40°C; +104°F) . Batteries may not
charge under extreme temperatures.
Keep the charger away from TV sets or
radios to prevent interference.
R NEVER attempt to charge alkaline or
dry cell batteries. They may burst causing
damage and personal injury.
Information (U.S.A. only)
The Ni-Cd battery that you have
purchased is recyclable. At the
end of its life, under various state
and local laws, it may be illegal to
dispose of this battery into the
municipal waste stream. Call 1-800-822-8837 for
battery recycling options in your area or contact
your dealer.
Thank you for purchasing the BC-119N
. The BC-119N charges
DESKTOP CHARGER
a Ni-Cd or Ni-MH battery pack in approx.
1–2 hrs., or a Li-Ion battery pack in
approx. 2–3 hrs.
Please read these instructions thoroughly
before operating the BC-119N.
Make sure battery and charger con-
tacts are always clean, otherwise bat-
teries may not fully charge.
SAVE THESE INSTRUCTIONS! These
instructions contain important safety and
operating details for the BC-119N.
An appropriate desktop charger adapter
must be purchased separately to charge
your Icom battery packs.
In order to get the maximum life out of your
Ni-Cd batteries:
1. Avoid overcharging— batteries must be
removed from the charger to stop
charging. Batteries should not be
charged for more than 15 hours after
the LED indicator turns green.
2. Use the batteries until they become
almost completely exhausted under
normal conditions.
If your batteries seem to have no
capacity even after being fully charged,
completely discharge them, then fully
charge them again. If they still do not
retain a charge , new bat-
(or very little)
teries must be purchased.
Some versions of the BC-119N
which display the "CE" symbol on
the serial number comply with the
essential requirements of
89/336/EEC directive
Electromagnetic Compatibility.
This compliance is based upon the harmonised
CENELEC generic standard EN50 081-1: 1992
and EN50 082-1: 1991.

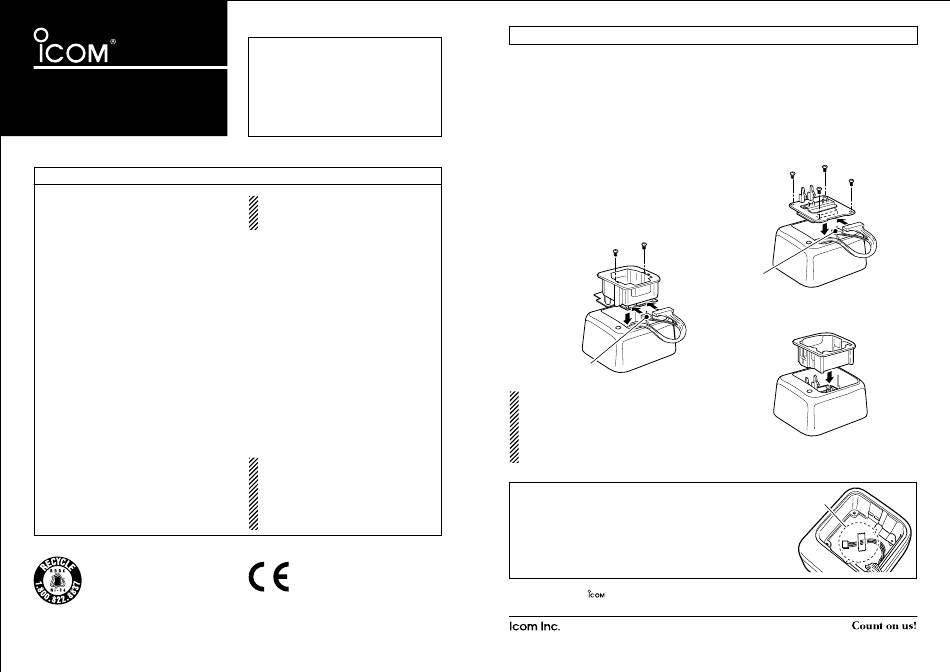

ATTACHING A DESKTOP CHARGER ADAPTER
There are 2 desktop charger adapter types
for the BC-119N. One has a PCB, the other
does not. The non-PCB types require an
additional PCB
(AD-75 or AD-88)
versions, the AD-75 or AD-88 is already in-
stalled in the BC-119N.
D D For the PCB types:
Connect the plugs of an appropriate desk-
top charger adapter and the BC-119N, then
installed the adapter with the screws
. For some versions, the
plied with the adapter)
desktop charger adapter is already installed.
• Installing the PCB type adapter
See NOTE below
NOTE: Some of the PCB type desktop
charger adapters
(incl. AD-75/88)
need connection of the 3-pin connector.
The connection is required only for the
installing adapter that is compatible with
charging a Li-Ion battery pack.
R CAUTION
About the 3-pin connector:
When you replace the desktop charger adapter
from the Li-Ion compatible type to non-compatible type, fix
the 3-pin connector to the bottom of the charger with adhe-
sive tape, etc., to prevent catching or touching the 3-pin con-
nector's terminals with the adapter's leads, etc.
the
for
Icom, Icom Inc. and
Kingdom, Germany, France, Spain, Russia and/or other countries.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
D D For types requiring the AD-75/AD-88:
Install the optional AD-75 or AD-88 to the
BC-119N with 4 screws
. For some
, then attach a desktop charger
75/AD-88)
adapter to the BC-119N. See the trans-
ceiver's instruction manual for an approved
desktop charger adapter.
• Installing the AD-75/AD-88
(sup-
Not used
See NOTE below
• Installing the non-PCB type adapter
do not
Fix the connector with
adhesive tape, etc.
are registered trademarks of Icom Incorporated (Japan) in the United States, United
(supplied with the AD-
A-6099D-1EX-q Printed in Japan
© 2001 Icom Inc.
