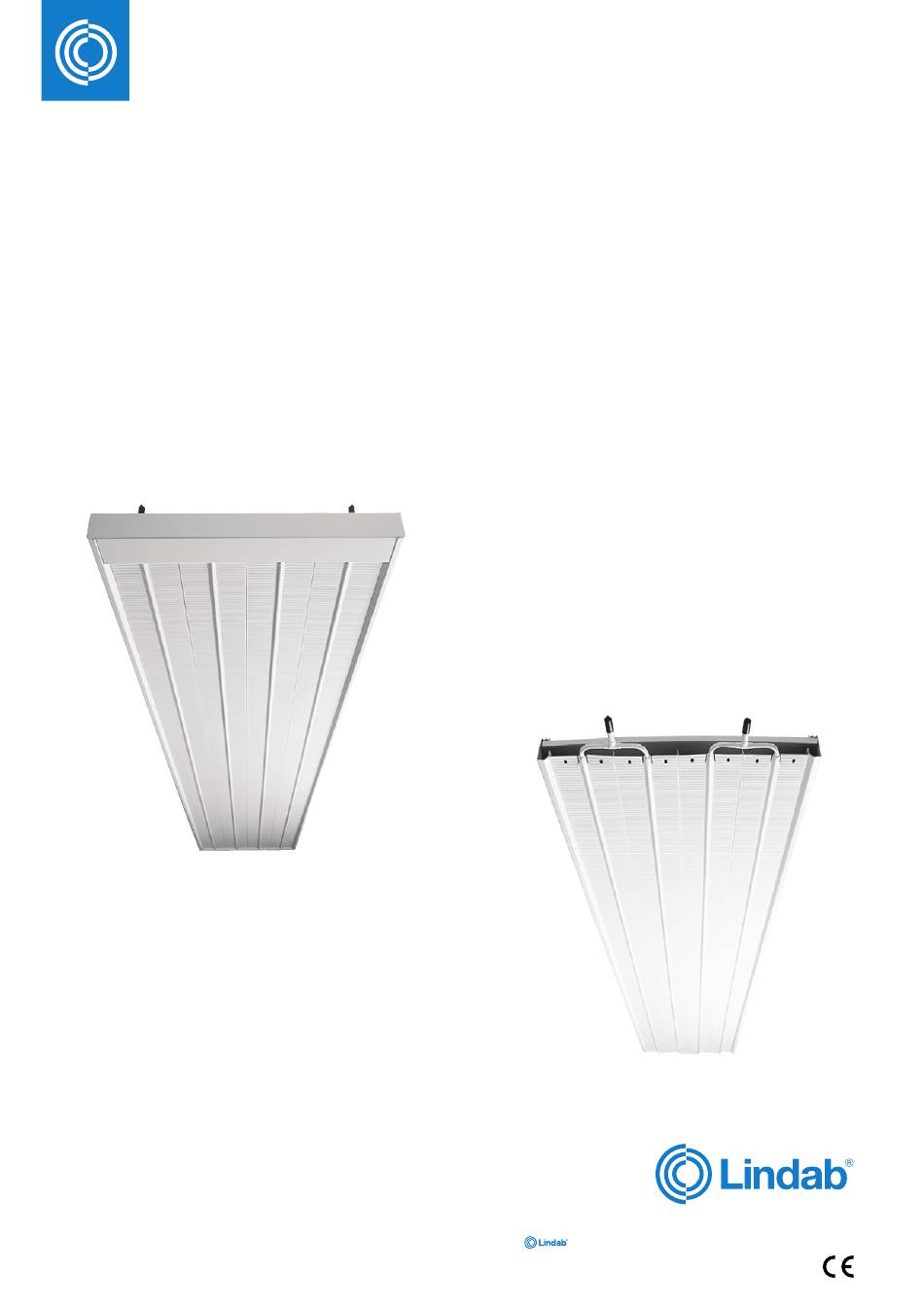

1.0 Installation 1.1 Product description Lindab’s heating and cooling panels Atrium /Loggia can be mounted almost anywhere in the ceiling or on the wall and primarily provide heating/cooling by radiation. The radiation share for the panels exceeds 50% to 60%, compared to approx. 5% for con- ventional finned products.
Page 3
Notice! The connection pipes are internally soft-welded, therefore it is not allowed to solder the beam to the pipes. For other than Lindab fittings and valves, please consult the installation guide for the specific fitting for further details on proper installation.
Page 4
Please refer to the suppliers manual. = 70 mm (to ensure you can open the couplings again). Lindab flexible hoses are available with straight end (male) for direct connection to Lindab valves also. Lindab reserves the right to make changes without prior notice...
Page 5
Goods mark : Marking noted on order. xxx xxxx xxx Goods mark: – Product ID : Product number. xx-xxxxxx-x Product ID: Sign: – Sign : To be signed when checked and commissioned on site. Lindab reserves the right to make changes without prior notice 2022-02-11...
Atrium / Loggia 3.0 Maintenance The interval of cleaning depends on the indoor environment where the beam is placed. Under optimal conditions the Atrium beams only need cleaning every 5 years. 3.1 Cleaning instructions – Only use lukewarm water and a mild detergent.
10 bar. 4.4 Water quality Lindab in general recommends the water treatment and quality to be according to: VDI 2035-2: 2009 “Prevention of damage in water heating installations Water-side corrosion” VDI/BTGA 6044: 2023 “Prevention of damage in cold and cooling water circuits”.
Page 8
Lindab reserves the right not to accept any claims related to leakage or corrosion in our products, if the system water quality of the filling water and the changed conditions during the entire period of operation have not been recorded in a system logbook or similar document, and/or one of the above recommendations has not been followed correctly.
Page 9
à l’adresse suivante : www.lindab.fr Toutes modifications réservées. Do you have trouble finding your local contacts please go to: www.lindab.com Atrium-20250211 For a better climate Lindab reserves the right to make changes without prior notice 2022-02-11...
