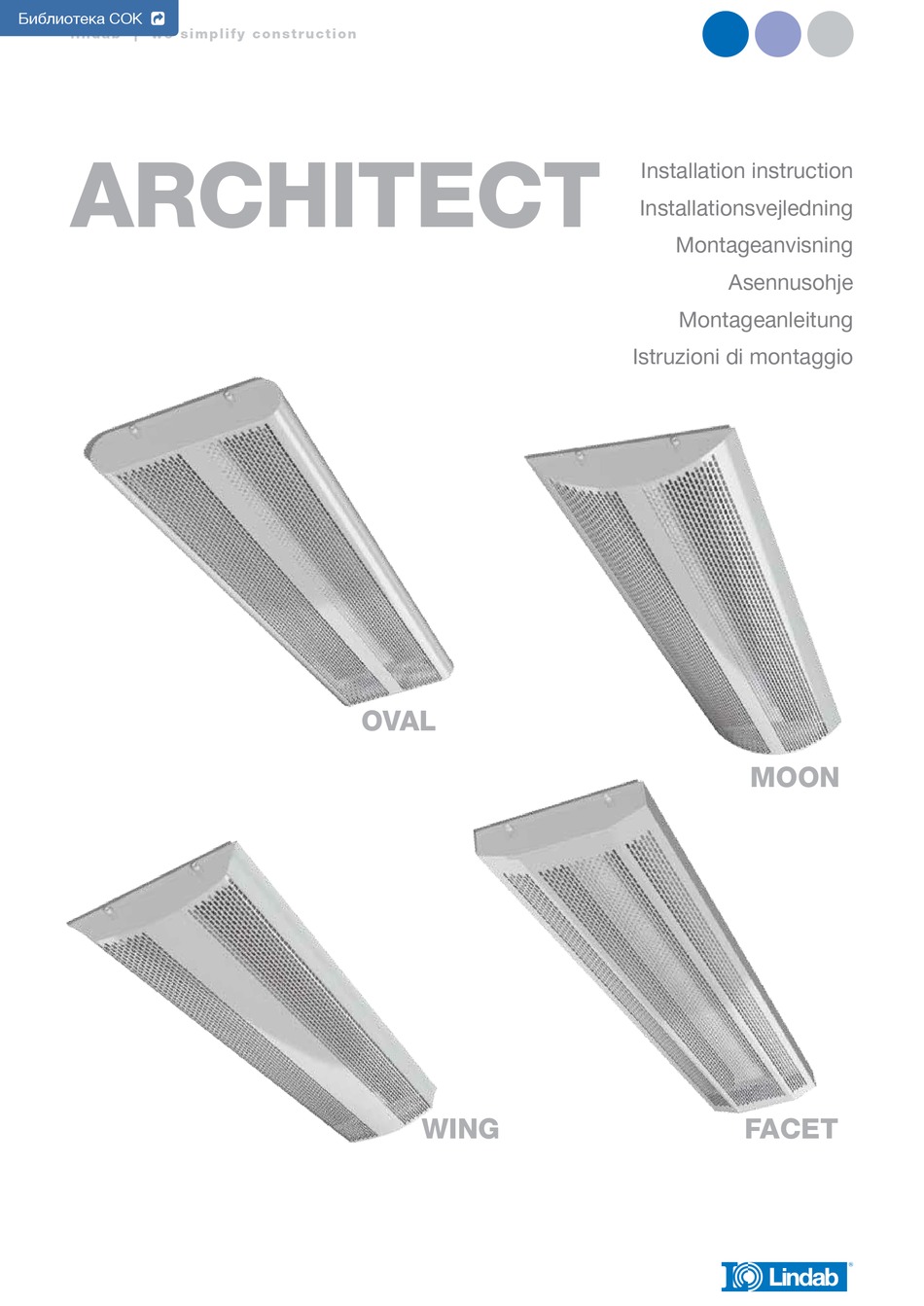

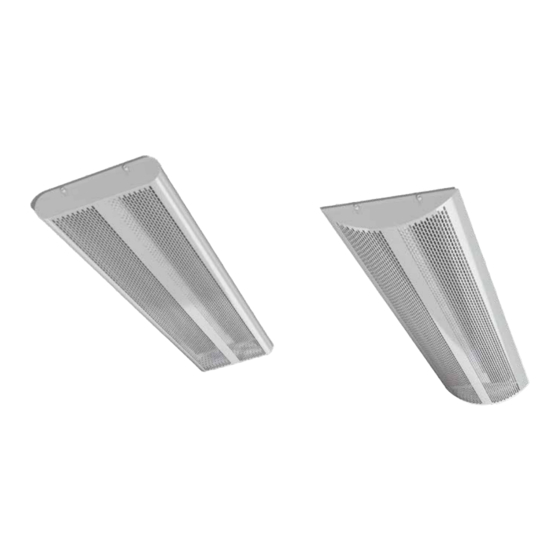

- Page 1 Библиотека СОК lindab | w e si m pl ify co n st r uc ti o n ArChITECT Installation instruction Installationsvejledning Montageanvisning Asennusohje Montageanleitung Istruzioni di montaggio OVAL MOON WING FACET...
- Page 2 li nd ab | w e s im pli fy c on st r u ct i o n Architect Dimensions Dimensioner Dimensioner Mitat Abmessungen Dimensioni Architect is as standard delivered in steps of 0.1 m between 1,2 m -3,6 m Architect leveres som standard i trin på...
- Page 3 li nd ab | w e s im pli fy c on st r u ct i o n Architect Possible connections - Supply air A, B Mulige tilslutninger - Indblæsning Anslutningsmöjligheter - Tilluft Liitosvaihtoehdot - Tuloilma Anschlussmöglichkeiten - Zuluft Connessioni possibili - Mandata Possible connections - Water Cooling...
- Page 4 li nd ab | w e s im pli fy c on st r u ct i o n Architect Possible connections - Water Heating 1, 2, 3, 4 Mulige tilslutninger - Vand Varme Anslutningsmöjligheter - Vatten Värme Liitosvaihtoehdot - Vesi Lämmitys Anschlussmöglichkeiten - Wasser Heizung...
- Page 5 li nd ab | w e s im pli fy c on st r u ct i o n Architect Option 1 Option 2 Option 3 Mount upper part Monter overpart Montera överdel Yläosan asennus Oberteil montieren Montaggio parte superiore Screw Suspended Ceiling bracket...
- Page 6 li nd ab | w e s im pli fy c on st r u ct i o n Architect Option 1 - Screw Option 1 - Screw Option 1 - Screw Vaihtoehto 1 - Ruuvikiinnitys Option 1 - Screw Option 1 - Screw Architect Moon Option 2 - Suspended...
- Page 7 li nd ab | w e s im pli fy c on st r u ct i o n Architect Option 3 - Ceiling bracket Option 3 - Ceiling bracket Option 3 - Ceiling bracket Vaihtoehto 3 - Kattokannakkeet Option 3 - Ceiling bracket Option 3 - Ceiling bracket Architect Moon...
- Page 8 li nd ab | w e s im pli fy c on st r u ct i o n Architect Suspension, Ø100 mm connection Ophængning, tilslutning Ø100 mm Upphängning, anslutning Ø100 mm Ripustus, Ø 100 mm liitos Aufhängung, Ø100 mm Anschluss Staffaggi per collegamento Ø100 mm Suspension, Ø125 mm connection Ophængning, tilslutning Ø125 mm...
- Page 9 li nd ab | w e s im pli fy c on st r u ct i o n Architect Connection dimensions, Ø100 mm cooling Mål tilslutning, Ø100 mm køling Mått anslutning, Ø100 mm kyla Liitäntämitta, Ø 100 mm jäähdytys Abmessungen der Anschlüsse, Ø100 mm Kühlung Misure, Ø100 mm raffrescamento Ø...
- Page 10 li nd ab | w e s im pli fy c on st r u ct i o n Architect Connection dimensions, Ø125 mm cooling Mål tilslutning, Ø125 mm køling Mått anslutning, Ø125 mm kyla Liitäntämitta, Ø 125 mm jäähdytys Abmessungen der Anschlüsse, Ø125 mm Kühlung Misure, Ø125 mm raffrescamento Connection 3...
- Page 12 Änderungen vorbehalten. IT - Qui potete trovare istruzioni di montaggio, informa- zioni sul prodotto ed un supporto tecnico qualificato Tel. 011 9952099 - e-mail: lindab@lindab.it www.lindab.it Soggetto a modifica senza obbligo di preavviso. Do you have trouble finding your local contacts please go to: www.lindab.com...
