Summary of Contents for Gardenline GT-GwF-01

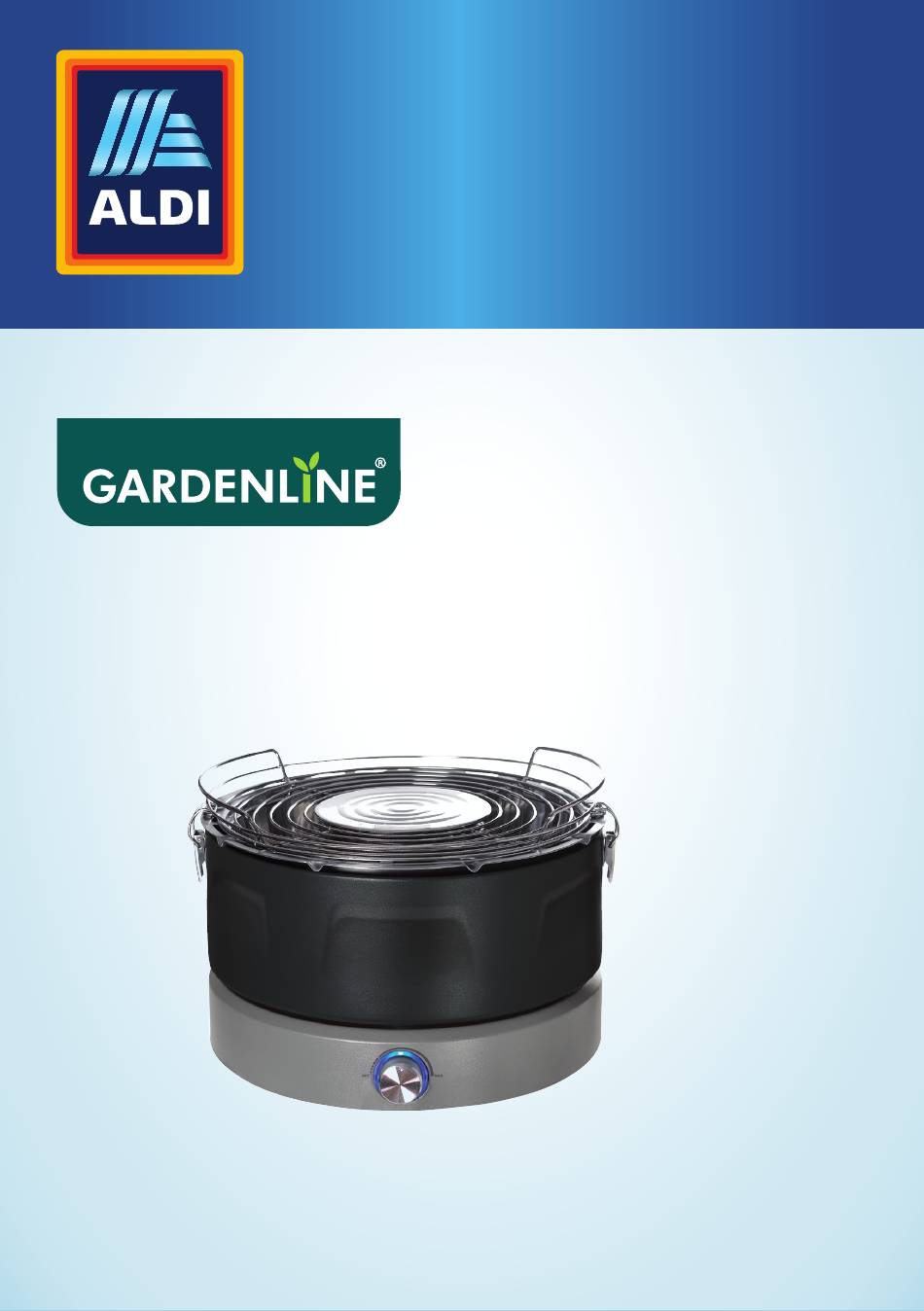

- Page 1 User Manual PORTABLE CHARCOAL BARBECUE...
-
Page 2: Parts List
Parts List Parts List... -
Page 3: Sevice Parts
Sevice parts Sevice parts Barbecue grill rack Charcoal container Lighting bowl Inner bowl Outer bowl Air blow-in pipe Clamp Battery compartment (underside) On/off switch 4x batteries type LR6 (AA) / 1.5 V Not illustrated: - Transport and storage bag - Operating instructions with guarantee card... -
Page 4: Table Of Contents
Contents Contents Parts List ................2 Sevice parts ................. 3 General ................5 Read and keep operating instructions .........5 Explanation of symbols ............5 Safety ...................6 Intended use ................6 Safety notes ................6 Check scope of delivery ............ 10 Prepare barbecue ............10 Information about the location ..........10 Inserting batteries ..............11 Assembling the barbecue ............11... -
Page 5: General
General General Read and keep operating instructions These operating instructions belong to this Portable Charcoal Barbecue (hereinafter referred to as “barbecue”). They contain important information regarding initial use and handling. Before using the barbecue, read through the operating instructions carefully, particularly the safety instructions. Failure to comply with these operating instructions can lead to serious injuries or damage to the barbecue. -
Page 6: Safety
Safety Safety Intended use This barbecue is intended for barbecuing commercially available barbecue foods with charcoal. It is designed for private household use and the usual quantities occurring there. The barbecue is unsuitable for commercial or household-like use (e.g. in kitchens for employees in shops, offices and other commercial areas, such as restaurants). - Page 7 Safety WARNING! Hazards for children and persons with impaired physical, sensory or mental capabilities (e.g. partially disabled, elderly persons with impairment to their physical and mental capabilities) or a lack of experience and knowledge (for example, older children). − This device can be used by persons with impaired physical, sensory or mental abilities or a lack of experience and/or knowledge, if they are under supervision or after receiving instruction on safe use of the appliance and have understood...
- Page 8 Safety − Never use flammable liquids, such as methylated spirits, petrol, lamp oil or other highly hazardous substances as lighting aids or pour them into the embers. When using these liquids, there is a risk of serious burns! − ATTENTION! This barbecue will become very hot and must not be moved during operation! Always let the barbecue cool off completely after use, before cleaning, transporting or putting it away.
- Page 9 Safety − Pay attention to a sufficient distance, if you position the barbecue underneath a sun umbrella or an awning. − Only position the barbecue on a solid and level surface, in order to prevent it from tipping over. The surface must also be heat- resistant and insensitive to spraying fat and embers.
-
Page 10: Check Scope Of Delivery
Check scope of delivery − Do not use any aggressive chemical detergents, abrasives, hard sponges or similar for cleaning. − Store the barbecue in a dry place. Protect it from moisture, rain etc. − Handle the charcoal container with care. Do not exert any pressure on the side of the fabric and only touch the container on the top, reinforced edge. -
Page 11: Inserting Batteries
Prepare barbecue Inserting batteries 1. Push in the locking clip of the battery compartment cover slightly and lift off the battery compartment cover. 2. Insert the supplied batteries , as illustrated on the base of the battery compartment Pay attention to the correct polarity (+/-) of the batteries. - Page 12 Prepare barbecue • Only use charcoal, no charcoal briquettes. • Barbecue lighting gel is not included with this barbecue. Exclusively use barbecue lighting gel that is specifically for this purpose. The gel should comply with the EN 1860-3 specification and be certified by DINCERTCO. 1.
- Page 13 Prepare barbecue 4. Apply a 1-cm-wide ring of barbecue ignition gel onto the lighting bowl in a circular shape. 5. Place the lighting bowl into the inner bowl. 6. Turn the on/off switch clockwise as far as it will go to the right (MAX). The switch lamp lights up and the fan switches on with an audible click.
- Page 14 Prepare barbecue 8. Place the filled charcoal container with the attached lid onto the burning lighting bowl. 9. Place the barbecue grill rack onto the outer bowl. 10. Lock in the barbecue grill rack with both clamps The barbecue grill rack and outer bowl are now firmly attached to one another.
-
Page 15: Initial Use
General barbecuing tips 12. Then regulate the air supply a little. This prevents a possible flying of sparks if the sparks get too big. Initial use When using it for the first time, we recommend not placing any barbecue food on the barbecue grill rack yet, as production residues might evaporate and lead to smoke formation. -
Page 16: Refilling Charcoal
Refilling charcoal − It is recommended to use the outer edge of the barbecue grill rack for toasting bread. − Avoid using foods that contain too much fat; the holding capacity of fat in the inner bowl is limited. − Sausages should not be exposed to high heat immediately. For this, it is recom- mended to place approx. -
Page 17: After Barbecuing
After barbecuing NOTE! Risk of damage! Improper handling of the barbecue may result in damage. − When refilling the charcoal, place the hot parts, such that no damage occurs. The barbecue grill rack and lid of the charcoal container become very hot. To lengthen the barbecuing time, you can refill charcoal. -
Page 18: Care
Care Care Cleaning WARNING! Burn hazard! The parts of the barbecue become hot during use. − Allow the barbecue to cool down completely before cleaning NOTE! Risk of damage! Improper handling may lead to damage. − Do not immerse the outer bowl in water or other liquids. Also do not clean it in the dishwasher. -
Page 19: Storage
Troubleshooting • Depending on the use and type of storage, these parts will need to be replaced with spare parts sooner or later. • Wear and tear parts, such as the charcoal container and the lid, can be ordered through the service centre. You will also find out the prices and shipping costs there. -
Page 20: Technical Data
(see “Refilling charcoal” barbecuing. section). Technical data Type: GT-GwF-01 Battery: 4x LR6 (AA)/ 1,5 V , 6 V , 250 mA = Symbol for direct current) Product number: 822012 Because our products are constantly being further developed and improved, design modifications and technical changes are possible. -
Page 21: Disposal
Disposal Disposal Disposal of packaging Sort the packaging before you dispose of it. Dispose of the cardboard with the recycled paper service and plastic with the appropriate collection service. Disposal of barbecue Dispose of the barbecue in compliance with the regulations that apply to your country. - Page 24 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 822012 0800 / 328 6020 00800 / 4467 5888 info@globaltronicssupport.com YEAR MODEL: WARRANTY 04/2024 GT-GwF-01...
Need help?
Do you have a question about the GT-GwF-01 and is the answer not in the manual?
Questions and answers
I have a “Quigg houtskoolbarbeque met electrische ventilator” , MODEL: GT-GwF-01, where the charcoal container splitted in two parts. See attached photo. I bought this barbeque last year in Aldi, and only used it for 3 to 4 times. This morning, when I wanted to remove the ashes from the container, it broke. See attached photo. The barbeque is still almost new, so I was very surprised that this container broke. What do I need to do to have this repaired ? Regards Jan Delmotte Kleine Bruanestraat 32 8800 Roeselare Belgium
