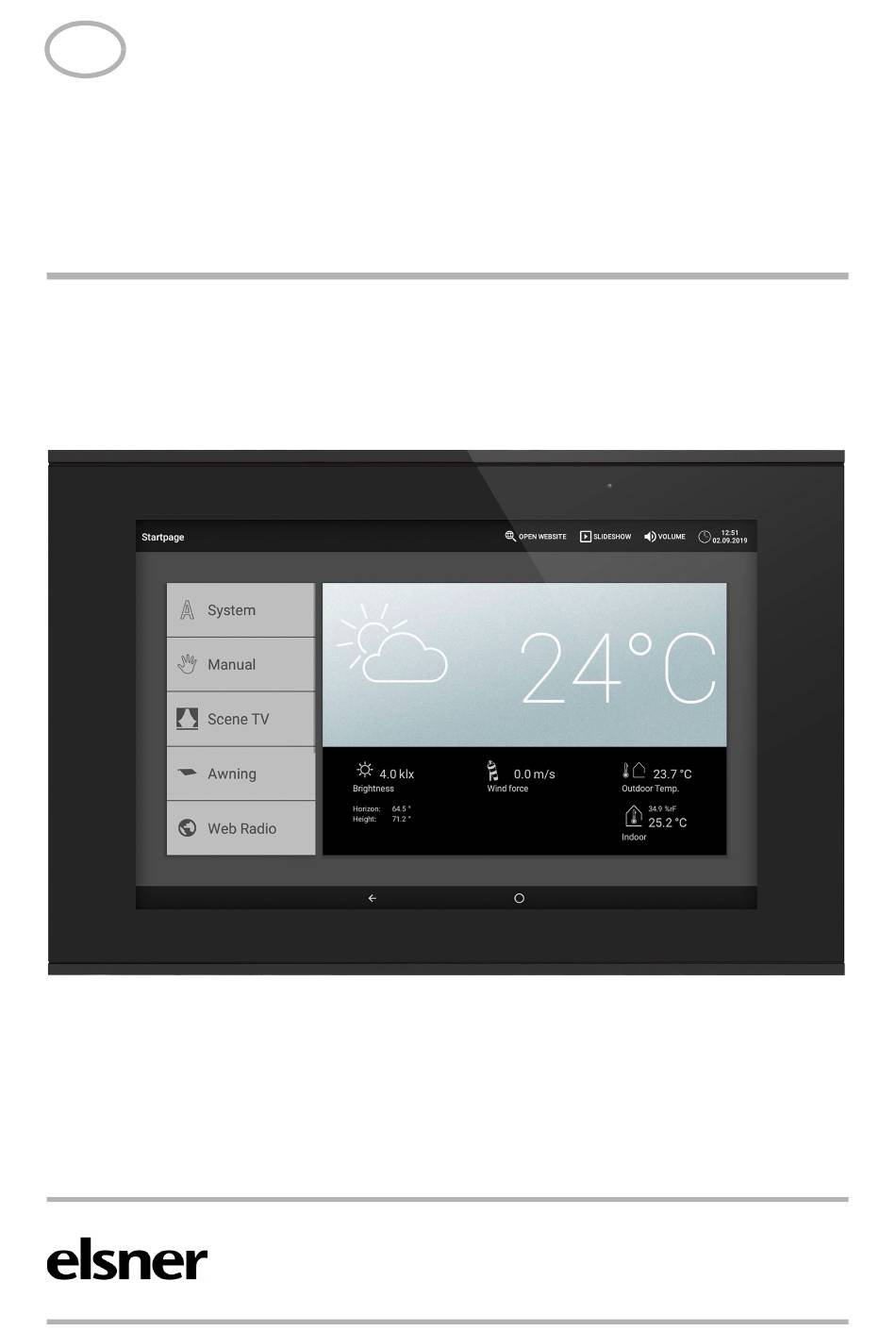

WS1000 Connect
Building control system
Article numbers 60241-60246
Installation, setting, operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS1000 Connect and is the answer not in the manual?

Questions and answers

Related Manuals for Elsner WS1000 Connect

Summary of Contents for Elsner WS1000 Connect

  • Page 1 WS1000 Connect Building control system Article numbers 60241-60246 Installation, setting, operation...

  • Page 3: Table Of Contents

    3.3.1. Motors and devices without automatic functions ..........38 3.3.2. Set automatic sun protection ................38 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany WS1000 Connect Control System • from software version 2.02 Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 4 5.1.1. Set motors and motor groups ................73 Tips on connecting windows ................76 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany WS1000 Connect Control System • from software version 2.02 Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 5 6.5. Wiring diagrams ................108 Connection examples for multifunction outputs ..........112 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany WS1000 Connect Control System • from software version 2.02 Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 6 Contents 6.6. Personal automatic settings data ..........113 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany WS1000 Connect Control System • from software version 2.02 Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 7 The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to- date version of the manual is available.
  • Page 8 Clarification of signs...

  • Page 9: Description

    Description 1. Description WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 10: Area/Field Of Application

    The WS1000 Connect is delivered as a set, which includes the sensors needed for room climate and weather data as well as the central unit (display with control elec- tronics).
  • Page 11 - RF-L wireless dimmer: The wireless actuators with a production date after 14.01.2016 are compatible with the WS1000 Connect system. The production date can be found as part of the serial number which has the following structure "DD MM YY consecutive number".

  • Page 12: Overview Of Connection And Control Options

    Automatic functions of the motors and devices Devices (e.g. lights) connected via the "Dimming" output do not have automatic functions. However, they can be operated manually via the display. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 13 If a smoke detector is connected, awnings are retracted automatically if there is a fire alarm. Automatic functions for blinds: • Close depending on brightness and sun position or keep open irrespective of brightness (closing only time-controlled or WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 14 • Switch on during the day below a selectable indoor temperature • Lowering at night (period and temperature can be set, to which it should be lowered) WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 15 5 minutes if there is no new alarm signal • Smoke detector: If there is an alarm, shades retract (escape routes), windows open, fans open/switch on (smoke removal) and heating and air-conditioning WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 16: Technical Data, Central Unit Ws1000 Connect

    868.2 MHz (Elsner RF). nels WLAN frequency band 2.4 GHz and 5 GHz Loudspeaker integrated Moving parts none (fanless) The product is compliant with the provisions of EU Directives. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 17: Operation

    Operation 2. Operation WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 18: Start Page

    So that a motor/device is displayed in the Manual menu and/or as a Favourite, the dis- play has to be activated in the setting "Manual menu" in the installation settings. System > Installation > Motor/Multif.output > Manual menu WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 19: Weather Data Display

    If there is a rain message and there are temperatures above -3 °C it is raining Snow If there is a rain message and there are temperatures below -3 °C it is snowing. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 20: Outside Temperature

    3.3. Set night back cooling (ventilation) 3.3. Adjust frost alarm 3.3. Set movement limit (windows) Indoor data: WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 21: The Touch Display

    A group key summarises a motor or device with the same function (e.g. all blinds in a room). These motors/devices are operated simultaneously with the key. 5.1.6. Allocate internal keys (group keys), Page 86 WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 22: Examples Of Manual Pages

    Examples of manual pages Blinds in automatic mode: Sliding bar position Field for Selection info icons Position informa- tion Control buttons WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 23: Key Functions And Display Fields

    Switch lights to automatic mode: Field for Selection info icons Status informa- tion Control buttons Key functions and display fields Up/down keys: The keys Up and Down have a timer automatic. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 24 ( Building on automatic:, Page 88). In addition, an automatic reset can be activated in the automatic settings of each motor group and each device, both at a fixed WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 25: Info Icons

    Icons for various functions: Smoke alarm! Manual operation blocked. Wind alarm! Manual operation blocked. Rain alarm! Manual operation blocked. Frost alarm! Manual operation blocked. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 26 No shading Outside temperature too low. No shading Brightness requires shade. Night closing active. Time closing active Time opening active Retraction and extension delay has not yet expired. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 27 Gap ventilation active. Time ventilation active. Time closing active. Outside temperature too low. Limited opening position for windows. Air-conditioning unit in use. Ventilation prevented. Circulation air for heat gain WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 28: External Keys

    Several Remo 8 (pro)s can be taught to the Control System. System > Installation > Radio connection 5.1.4. Wireless connections, Page 78 WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 29: Ws1000 Connect App

    Operation 2.3.5. WS1000 Connect App The WS1000 Connect App is available for Android and iOS free of charge in the re- spective APP store. Install the App on the mobile device. As soon as the mobile device and WS1000 Con- nect are on the same network (WLAN), the WS1000 Connect Control System can be controlled via the App.

  • Page 30: Navigate In The System Menu

    Change individual data such as time/date and time and match the screen display to your personal desires (settings) • Restart the Control System, reset to factory settings, change internal settings and start remote maintenance (service) WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 31: Internet (Browser)

    System > Installation > Homepage > Bookmarks You can also delete the individual bookmarks here. You cannot display or download PDF documents in the browser of the WS1000 Con- nect Control System. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 32: Slide Show

    The image changes approx. every 45 seconds (for images with 24-bit colour intensity). To interrupt the screen saver, touch the screen or remove the SD card. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 33: Automatic

    Automatic 3. Automatic WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 34: Set-Up Automatic

    Adjust the settings for motors and devices to the individual situations. This is the only way alarm and block functions such as rain or wind warnings can help to protect ex- ternal awnings, for example, or prevent rain entering the window. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 35: Safety Notice For Automatic And Alarm Functions

    If cleaning or maintenance work is to be carried out in the conservatory/building, the control system must be de-energised and secure against restart by disconnection of the customer-installed fuse. This ensures that the connected drives cannot start. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 36: Adjust General Automatic Settings

    16 periods can be set in the weekly clock, which can be used for different automatic functions. A start and end point, as well as a week of the day must be set for each time period. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 37: Adjust Ventilation Lock (Air-Conditioning Unit)

    Shows the settings for the night back cooling as soon as the back cooling has been set up. Touch the field to perform the configuration. Switch the night back cooling On in order to set up and use for windows / fans. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 38: Adjust Frost Alarm

    First determine when the frost alarm is to be triggered. Use the slider to set the outside temperature which must be undercut in order to trigger the frost alarm. Default: 2.0°C. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 39: Set Movement Limit (Windows)

    For shades, a delay time after the wind alarm can also be set, during which the shade controls is blocked. This means the controls initially remain switched off after the wind WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 40: Specify Automatic Reset

    Devices (e.g. lights) connected via the "Dimming" output do not have automatic functions. However, they can be operated manually via the display. 3.3.2. Set automatic sun protection System > Set-up automatic > Awning | Blind | Shutters WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 41: Alarm Functions

    Set-up automatic Light intensity: Shows the brightness from which shades are deployed. Touch the field to set the shad- ing. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 42 Default: 75%. Select whether a reference run is to be carried out before the shading position. If No is selected, the shade moves directly to the set position. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 43: Sensor Selection

    3.0°C below the set value (hysteresis). Note that the shades are only re- tracted when the travel delay time has passed. System > Set-up automatic > General settings > Travel delays 3.2.2. Change travel delay (shades), Page 34 WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 44 The output still reacts to wind, rain and frost alarm even when the outdoor temperature block is active, as well as to night and timed travel commands and manual travel commands. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 45 If there is a frost alarm, manual operation of the shade is initially blocked. You can re- move the manual block by hand however. To do this, select the corresponding shade WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 46: Wind Sensor

    Default: No. The rain alarm protects sensitive curtains from rain by retracting the shades. The rain alarm can only be activated if the rain automatic is deactivated. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 47: Automatic Reset

    If there is a frost, wind or rain alarm, all windows are closed and cannot be opened manually. Gap ventilation during a rain alarm is an exception; in automatic mode it only restricts the window's range of motion. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 48: Ventilation Settings

    Shows the humidity from which ventilation is active. The setting is only active if an in- door sensor is selected. Touch the field to adjust the humidity. Select OFF if the window should not react to the humidity (default). WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 49: Number Of Steps

    System > Set-up automatic > General settings > Night back cooling 3.2.5. Set night back cooling (ventilation), Page 35 WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 50 Touch the field and set the maximum open position (0% = closed, 100% = fully open). Default: 50%. The window can still be fully opened manually. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 51 A wind alarm actuated for the drive will remain active for 5 minutes. If the saved value is exceeded in these 5 minutes, the stoppage time will be restarted. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 52 System > Set-up automatic > General settings > Frost alarm 3.2.6. Adjust frost alarm, Page 36 If there is a frost alarm, there is no timed ventilation or night back cooling. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 53: Set Automatic Ventilation

    Automatic reset Alarm functions If there is a fire alarm from a smoke detector, ventilation is activated and cannot be influenced either by the automatic controls or manually. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 54: Ventilation Settings

    For fan heaters, the heating is activated as soon as the temperature falls below the pre- set value. The heating stops when the temperature rises more than 0.5 °C over the pre- set value (hysteresis). WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 55 ) above the set values, the faster the fan. Ventilation intensity, heating (fan heater): For fan heaters, shows the speed range for automatic heating. Touch the field and set the intensity. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 56 For exhaust air units, shows the speed during night back cooling. Touch the field to ad- just the strength using a slider. The setting will only be activated once a night-time re- WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 57 Shows the behaviour of a fan heater after a manual operation. Touch the field and specify whether the heating remains on permanently after the manual switch-on of switches off again after how many minutes. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 58: Ventilation Modes, Radio Roof Fan

    Shows the indoor temperature below which the heating is engaged during the day. The setting is only active if an indoor sensor is selected. Touch the field and adjust the indoor temperature. Default: 20.0°C. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 59: Night Mode

    For connected cooling/air-conditioning units, you can change the following automatic settings. • Indoor sensor evaluated for the cooling • Indoor temperature, day • Night mode (period) and indoor temperature, night • Switch automatic reset on/off WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 60 You can set the time or period for automatic resets. System > Set-up automatic > General settings > Automatic reset 3.2.9. Specify automatic reset, Page 38 WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 61: Set Automatic Light Controls

    System > Set-up automatic > General settings > Automatic reset 3.2.9. Specify automatic reset, Page 38 3.3.8. Set automatic gutter heating System > Set-up automatic > Gutters WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 62: Temperature Range

    (alarm live). Activate one or more periods in the list. If you want to change the periods, touch the tool icon. 3.2.3. Set timer, Page 34 WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 63 3.3.9. Set alarm > Alarm output, Page 60 Light can also be switched on if there is an alarm from a motion detector. 3.3.7. Set automatic light controls, Page 59 WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 64 Automatic WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 65: Installation And Commissioning

    Installation and commissioning 4. Installation and commissioning WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 66: Procedure

    • Comply with the locally applicable directives, regulations and provisions for electrical installation. • Immediately take the device or system out of service and secure it against unintentional switch-on if risk-free operation is no longer guaranteed. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 67: Notes On Wireless Equipment

    Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions. 4.1.4. Notes on wireless equipment When planning facilities with devices that communicate via radio, adequate radio re- ception must be guaranteed.

  • Page 68: Power Failure, Maintenance Works, Etc. (Restart Of Control)

    Shades with different alignments (east, south, west) should be installed in different motor groups. Only in this way can the shades be controlled according to the position of the sun. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 69: Connect Device To Multifunction Outputs

    The device works at 230 V AC 50 Hz, the power consumption depends on the number and power of the connected motors. For version WS1000 Connect (for 230 V motors) each motor output can be loaded with max. 400 Watts. The total installed power must not exceed approx. 1.5 kW, how- ever.

  • Page 70: Connect Hand Button

    Connect motors and devices wirelessly with the Control System The wireless connection of devices and motors uses the Elsner radio module (e.g. RF relay, RF-MSG motor controls, RF-L dimmer). Elsner Elektronik fans can be taught to the Control System without an additional device. Please note the installation instruc- tions enclosed with the radio modules and fans.

  • Page 71: Start Control System

    After installation, cabling and check of all connections, switch on the mains power. The Control System starts and first of all the model (WS1000 Connect) and operating system (Android) are displayed. When the Control System has fully booted, the Control System is in the output position with weather data display.
  • Page 72 25% rF to 65% rF in living rooms. After installation, the hygrometer may need several hours before normal values are displayed. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 73: Basic Setting

    Basic setting 5. Basic setting WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 74: The "Installation" Menu

    Internal keys/group keys (with the possible settings Type, Name, Display in the manual menu, and Allocation to motor groups) • Multifunction output (with the possible settings Type, Name, Display and he manual menu) WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 75: Set Motors And Motor Groups

    "closed" to the other limit stop. You need the values for the setting "Actuation times" (see below). ATTENTION Rain and wind alarms are deactivated while this menu item is displayed. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 76 The actuation time for can- vas tightening is 1 second. Slat turning (blinds): Shows whether and in what case the slats are turned. Touch the field to set the slat turn. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 77: Manual Menu

    The contacts are connected to the MF inputs. If the safety contact is open, the motor moves to the safe position (window closes, shades retract) and manual operation is blocked. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 78: Tips On Connecting Windows

    Reserve (unused) • Heating • Dimmer • Air-conditioning unit • ventilation • Light • Gutter • Alarm You can test the relay function with the key Close. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 79: Set Multifunction Inputs

    6.4. Alarm and error messages > Smoke alarm, Page 106 A heater or air-conditioning unit (air-conditioning alarm) operated independent- ly of the Control System can be connected to a multifunction input with its potential- WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 80: Wireless Connections

    Shows whether the relay is currently open or closed. 5.1.4. Wireless connections Devices, which communicate wirelessly with the Control System, first have to be taught to the Control System. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 81 Display serial number, version and RF router used Radio Status Displays Radio Status Name Shows the name. Touch the field and enter the desired name using the keyboard that appears. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 82 Touch the field to perform the allocation. If necessary, select the key (right/left). ATTENTION! Only drives/devices that have the same function should be operated together with one key (e.g. only blinds or only windows). WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 83 WL-Z supply air unit: Radio Module Type Display "WL-Z" Display serial number, version and RF router used Radio Status Displays Radio Status WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 84 Relay RF-relay, RF-heating, Heatstrip radiator: Radio Module Type Display "RF-Relay" Display serial number, version and RF router used Radio Status Displays Radio Status WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 85 Display serial number, version and RF router used Radio Status Displays Radio Status Name Shows the name. Touch the field and enter the desired name using the keyboard that appears. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 86 Touch a radio participant and confirm the deletion. Radio activity in the 868.2 MHz band: Shows the radio capacity utilisation The higher the percentage, the more radio traffic on the band. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 87: Allocate External Keys

    Only one device can be allocated to a single key (change/on/off), multiple motors or de- vices can be allocated to a double key (up/down). WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 88: Allocate Internal Keys (Group Keys)

    ATTENTION Only drives/devices that have the same function should be operated together with one key (e.g. only blinds or only windows). WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 89: Scenes

    5.1.8. Start page Favourites and bookmarks are displayed on the left of the start page. You can set dif- ferent display options here. System > Installation > Start page WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 90: Manual Page

    Hold an entry by the list symbol on the right and move it to the desired position. Subject groups: Touch the field to create subject groups. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 91: Weather Display

    The displayed temperature of the weather station can be adjusted. If multi- ple temperature sensors are installed, select the sensor here, whose data should be displayed on the start page. System > Installation > Weather display WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 92: Outdoor Temperature

    Three conditions can be defined, when an event should start, e.g. when a motor (blind or shutter) is extended/retracted or when a light is switched on or off. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 93: Set Up Ws1000

    (access code) • Save the setting details for the Control System on SD card or read from SD card (SD card) • Set up the internet/network connection (internet) WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 94: Settings

    Shows the currently selected language. Touch the field to select a different language. Set up screen The WS1000 Connect can display picture file, time/temperature as a screen saver or simple a black screen. The screen saver is activated if the display has not been touched for 5 minutes.
  • Page 95 Default setting: "medium" For the automatic switch-off, the central control unit of the WS1000 Connect Con- trol System records the brightness. If it is bright in the room, the display lighting is automatically switched on.

  • Page 96: Switch Key Tone Off/On

    Touching the "Cleaning mode" menu item switches off the touch function of the screen for 60 seconds. During this period, the screen can be wiped with a damp cloth. Please WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 97: Reset (Restart)

    Remote set up/remote maintenance Access to the WS1000 Connect Control System is possible via the internet using the remote maintenance function. An internet connection is needed for this. A service technician can then see and change the settings without being on site.

  • Page 98: Access Code

    Touch the field to open the software. Follow the instructions. To create the connection, the device ID of the WS1000 Connect must be input at the PC used for the remote maintenance. Then every menu and function of the WS1000 Connect can be viewed and controlled from the PC.

  • Page 99: Using An Sd Card

    "System", "Installation" and "Set Automatic"): • for the automatic backup • to save the personal settings, for example a summer and a winter configuration WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 100: Show Pictures On The Display

    Touch an entry to delete the file (deletion must be confirmed). Show pictures on the display The WS1000 Connect can display digitally saved picture data as a slide show or a single image. The picture data for this must be saved on an SD card.

  • Page 101: Internet

    • Use of Apps (with smartphones and tablets in the same network/WLAN) If the WS1000 Connect is also connected to the internet via the internal network, the following functions are also possible: • Accessing web contents in the Control System's browser •...

  • Page 102: Device Information

    If the control is connected to the internet, the control downloads up- dates automatically after confirmation. Alternatively, you load the new software from the Elsner Elektronik website and save it to the SD card. After inserting the SD card into the socket on the WS1000 Connect, continue.

  • Page 103: Tables, Plans, Maintenance

    Tables, plans, maintenance 6. Tables, plans, maintenance WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 104: Maintenance And Care

    Remove fingerprints from the touchscreen ideally using a wet cloth or a microfibre cloth. Use the cleaning mode for this. This function locks the touch display WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 105: Units For Sun And Wind

    Observe the response of the awning or blinds or the window to wind and then correct the wind value accordingly. The following table should make it easier to find the optimal values for your situation: WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 106: Disposal

    If the network connection via WLAN is interrupted, a crossed-out radio symbol icon is displayed in the top right corner of the start page. Check the function of the wireless network. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 107: Alarm Display In The Weather Data Area

    Enter time and date manually, Page 92 Radio module defective! means that the internal radio module is not working properly. Contact customer ser- vice in order to have the Control System checked. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 108: Smoke Alarm

    Manual operation is blocked. The fire alarm can only be switched off by a reset/restart of the Control System in the menu System > Set up WS1000 > Service > Reset or by disconnecting the power supply. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 109: Weather Station Errors

    Only use emergency mode briefly in order to position drives manually and then switch it off again. • Emergency mode also remains active if weather data is received again. Switch it off again manually! WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 110: Wiring Diagrams

    Tables, plans, maintenance 6.5. Wiring diagrams Motor and MF outputs WS1000 Connect (60241-60244): max. 400 W per motor output, total max. 1.5 kW for all motor outputs WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 111 230 V and SELV must not be mixed at adjacent multifunction outputs (1 and 2 or 3 and 4). A mixed connection does not correspond to the SELV specifications. Either 230 V or extra-safety voltages are permitted here. WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 112 Tables, plans, maintenance E.g. it is possible to connection SELV to MF outputs 1 and 2 and 230 V to MF outputs 3 and 4 (or vice versa). WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 113 Tables, plans, maintenance Inputs: WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 114: Connection Examples For Multifunction Outputs

    Tables, plans, maintenance Connection examples for multifunction outputs 230 V consumers at MF outputs: MF Output 1 MF Output 2 MF Output 3 MF Output 4 Neutre WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 115: Personal Automatic Settings Data

    (on-site) 6.6. Personal automatic settings data Awnings, blinds, shutters Drive no. (output) Name Function Light intensity (kLUx) Direction of sun Height of sun Movement position Slat position WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 116 Indoor sensor Indoor temperature (°C) Air humidity (%) CO2 (ppm) Supply air temperature block Night-time re-cooling (period, temp., position) Movement position/num- ber of steps Timed ventilation (period) WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 117 Night-time re-cooling ven- til. (period, temperature) Timed ventil. /Night mode (period, temperature) Heat recovery recircula- tion (temperature, step) Condensation air recircu- lation (level) Automatic reset? Reset following manual intervention? WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 118: General Settings

    Night time cooling: Temper- ature (°C), for longer than (min) Frost alarm: outdoor tem- perature (°C), standby (h) Window travel limit (°C) Automatic shading wind delay (min) WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.
  • Page 119 Tables, plans, maintenance Time point for general auto- matic reset Reset following manual intervention (min) Timer time periods Name from WS1000 Connect Control System • Version: 31.01.2023 • Technical changes and errors excepted.

  • Page 120: Questions About The Product

    Questions about the product? You can reach the technical service of Elsner Elektronik under Tel. +49 (0) 70 33 / 30 945-250 or service@elsner-elektronik.de We need the following information to process your service request: • Type of appliance (model name or item number) •...

This manual is also suitable for:

602416024660242602436024460245

Table of Contents
