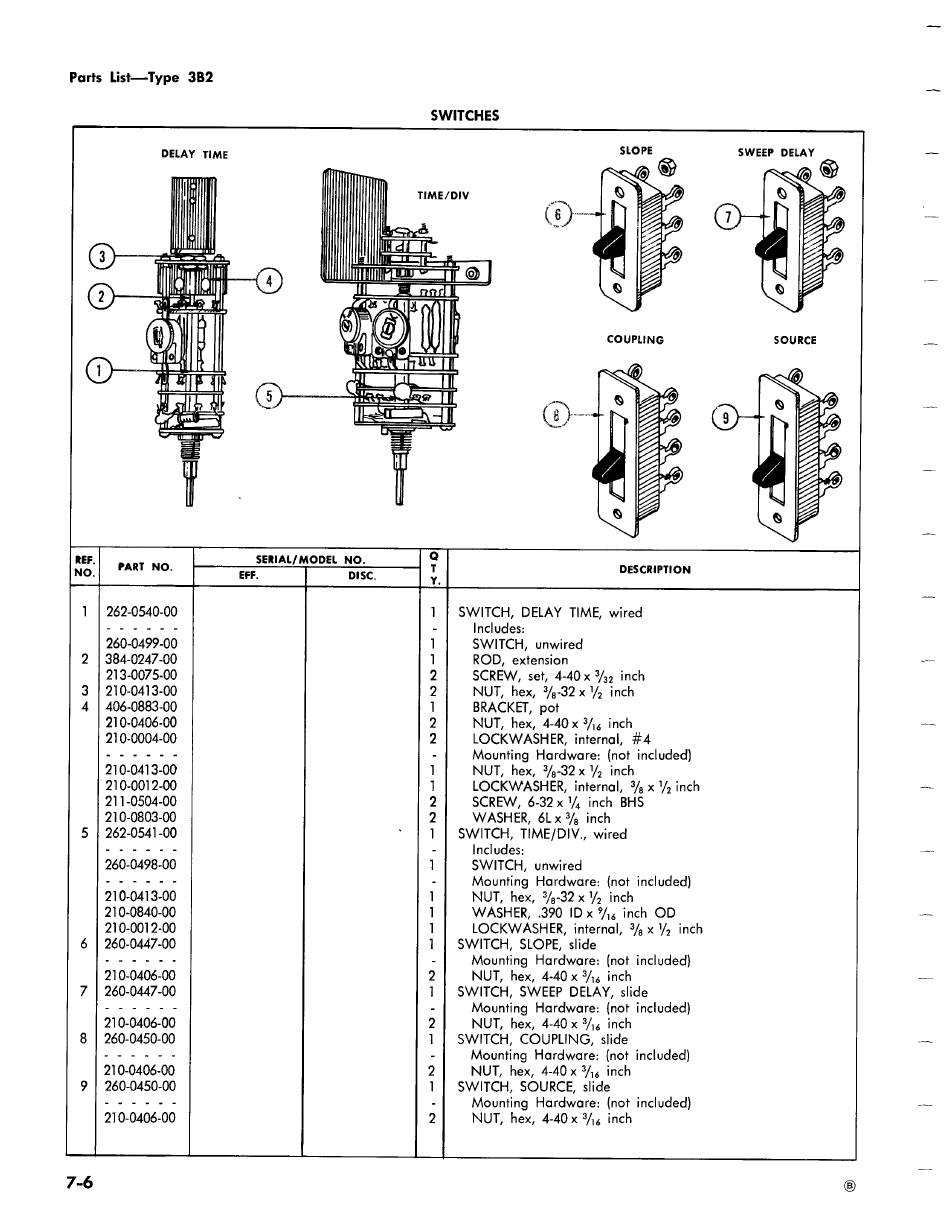

Parts List—Type 3B2
SWITCHES
TIME/DIV
a]
SWEEP DELAY
Re
i AG
C)
@) Tp
; a
| t
Q
1 | 262-0540-00 1 | SWITCH, DELAY TIME, wired
- ee eee - Includes:
260-0499-00 1 SWITCH, unwired
2 | 384-0247-00 ] ROD, extension
213-0075-00 2 SCREW, set, 4-40 x 3/32 inch
3 | 210-0413-00 2 NUT, hex, 3/5-32 x Y inch
4 | 406-0883-00 1 BRACKET, pot
210-0406-00 2 NUT, hex, 4-40 x 344 inch
210-0004-00 2 LOCKWASHER, internal, #4
- ee eee - Mounting Hardware: (not included)
210-0413-00 1 NUT, hex, °/5-32 x Y inch
210-001 2-00 ] LOCKWASHER, internal, 3/, x Yo inch
211-0504-00 2 SCREW, 6-32 x %, inch BHS
210-0803-00 2 WASHER, 6L x 3/4 inch
5 | 262-0541-00 1 | SWITCH, TIME/DIV., wired
yee - Includes:
260-0498-00 1 SWITCH, unwired
7 ete - Mounting Hardware: (not included)
210-0413-00 1 NUT, hex, 3/g-32 x Y, inch
210-0840-00 1 WASHER, .390 ID x %/4 inch OD
210-001 2-00 1 LOCKWASHER, internal, 3/4, x Y. inch
6 | 260-0447-00 1 | SWITCH, SLOPE, slide
see eee - Mounting Hardware: (not included}
210-0406-00 2 NUT, hex, 4-40 x 3/44 inch
7 | 260-0447-00 1 | SWITCH, SWEEP DELAY, slide
- ee eee - Mounting Hardware: (not included}
210-0406-00 2 NUT, hex, 4-40 x 3/44 inch
8 | 260-0450-00 1 | SWITCH, COUPLING, slide
----+-- - Mounting Hardware: (not included)
210-0406-00 2 NUT, hex, 4-40 x 34. inch
9 | 260-0450-00 1 | SWITCH, SOURCE, slide
se eee - Mounting Hardware: (not included)
210-0406-00 2 NUT, hex, 4-40 x 344 inch
