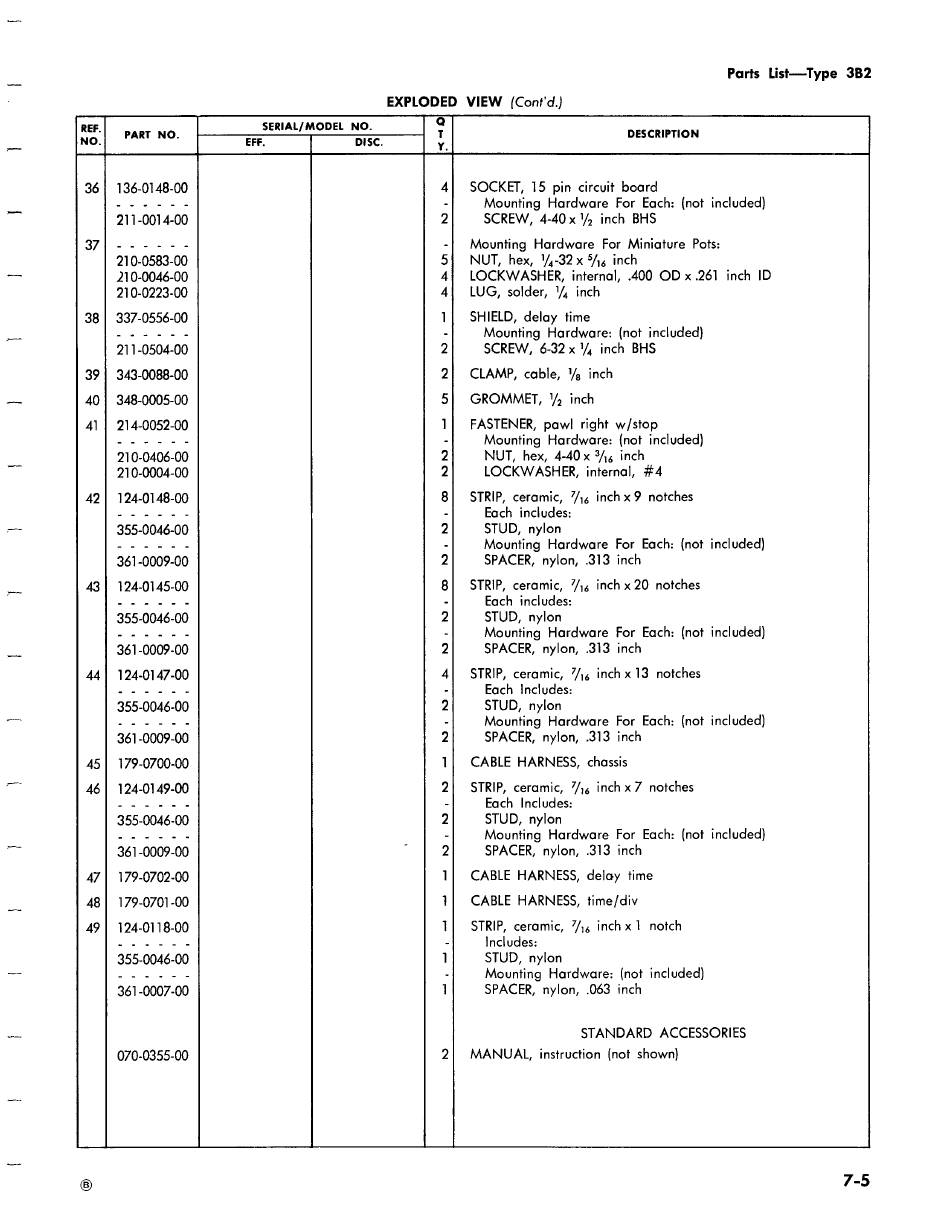

Tektronix 3B2 TIME-BASE Instruction Manual page 25

EXPLODED VIEW (Cont'd.)
NO. PART NO. EFF. DISC. y. DESCRIPTION
36 {| 136-0148-00 4| SOCKET, 15 pin circuit board
eee eee - Mounting Hardware For Each: (not included)
211-001 4-00 2 SCREW, 4-40x 1%. inch BHS
37} ------ -| Mounting Hardware For Miniature Pots:
210-0583-00 5{ NUT, hex, %4-32 x 5/6 inch
210-0046-00 4} LOCKWASHER, internal, .400 OD x .261 inch ID
210-0223-00 4i LUG, solder, % inch
38 | 337-0556-00 1| SHIELD, delay time
- ee eee - Mounting Hardware: (not included}
211-0504-00 2 SCREW, 6-32 x Y% inch BHS
39 | 343-0088-00 2} CLAMP, cable, Yg inch
40 | 348-0005-00 5| GROMMET, 1% inch
4l | 214-0052-00 1] FASTENER, pawl right w/stop
wee eee - Mounting Hardware: (not included}
210-0406-00 2 NUT, hex, 4-40 x 3/444 inch
210-0004-00 2 LOCKWASHER, internal, #4
42} 124-0148-00 8| STRIP, ceramic, 7/1g inchx 9 notches
wee eee - Each includes:
355-0046-00 2 STUD, nylon
see - Mounting Hardware For Each: (not included}
361-0009-00 2 SPACER, nylon, .313 inch
43} 124-0145-00 8| STRIP, ceramic, 7/1, inch x 20 notches
wee eee - Each includes:
355-0046-00 2 STUD, nylon
- eee ee - Mounting Hardware For Each: (not included)
361-0009-00 2 SPACER, nylon, .313 inch
44] 124-0147-00 A] STRIP, ceramic, 7/;4 inch x 13 notches
wee eee - Each Includes:
355-0046-00 2 STUD, nylon
-- ee ee - Mounting Hardware For Each: (not included}
361-0009-00 2 SPACER, nylon, .313 inch
45| 179-0700-00 1| CABLE HARNESS, chassis
46} 124-0149-00 2| STRIP, ceramic, 7/;, inch x 7 notches
ee eee - Each Includes:
355-0046-00 2 STUD, nylon
-- ee ee - Mounting Hardware For Each: (not included)
361-0009-00 2 SPACER, nylon, .313 inch
49 | 124-0118-00 T| STRIP, ceramic, 7/;4 inchx 1 notch
wee eee - Includes:
- ee eee - Mounting Hardware: (not included]
361-0007-00 1 SPACER, nylon, .063 inch
STANDARD ACCESSORIES
