Gymnova 3750C Assembly Instructions

45 RUE G. DE FLOTTE
13012 MARSEILLE
(FRANCE)
TEL : 33.(0).4.91.87.51.20
FAX : 33.(0).4.91.93.86.89
www.gymnova.com - info@gymnova.com
Warning: Warning: Warning:
Warning: Warning:
This equipment should be installed by a qualified individual.
The apparatus should be used by only one person at a time, supervised by a qualified individual and with appropriate
landing mats or a landing pit.
Attachments that are provided with the apparatus may only be used if the concrete support complies with the CC19
specifications. If the support is not made of concrete, the bracket may be secured to IPE, in accordance with the CC30F
specifications. Using this equipment for purposes other than those originally intended is not allowed.
Compliance: Compliance: Compliance: Compliance: Compliance:
This equipment complies with the requirements of the European standard EN 913 "Gymnastic equipment - General safety
requirements and test methods".
Recommendations: Recommendations: Recommendations: Recommendations: Recommendations:
As shown in French Standard NF S52-400 the following is recommended:
- keep these instructions for subsequent reference (inspection, maintenance, etc.).
- periodically carry out predictive maintenance.
- depending on how much it is used have the equipment serviced yearly or every few years.
Packaging: Packaging: Packaging: Packaging: Packaging:
- 1 Pack (Ref.: 3750/20) -> Horizontal crossbar + 2-hole pivot cap + Attachments
Weight: 12.6 kg
- 1 Pack (Ref.: 3750/30) -> Slant crossbar + 4-hole pivot cap + Attachments
Weight: 14.7 kg
- 1 Pack (Ref.: 3750/40) -> Rings + Cables + 2-hole plates + Attachments
Weight: 11 kg
Constantly aiming to improve our products, we reserve the right to make changes to the equipment and dimensions without further discussion.

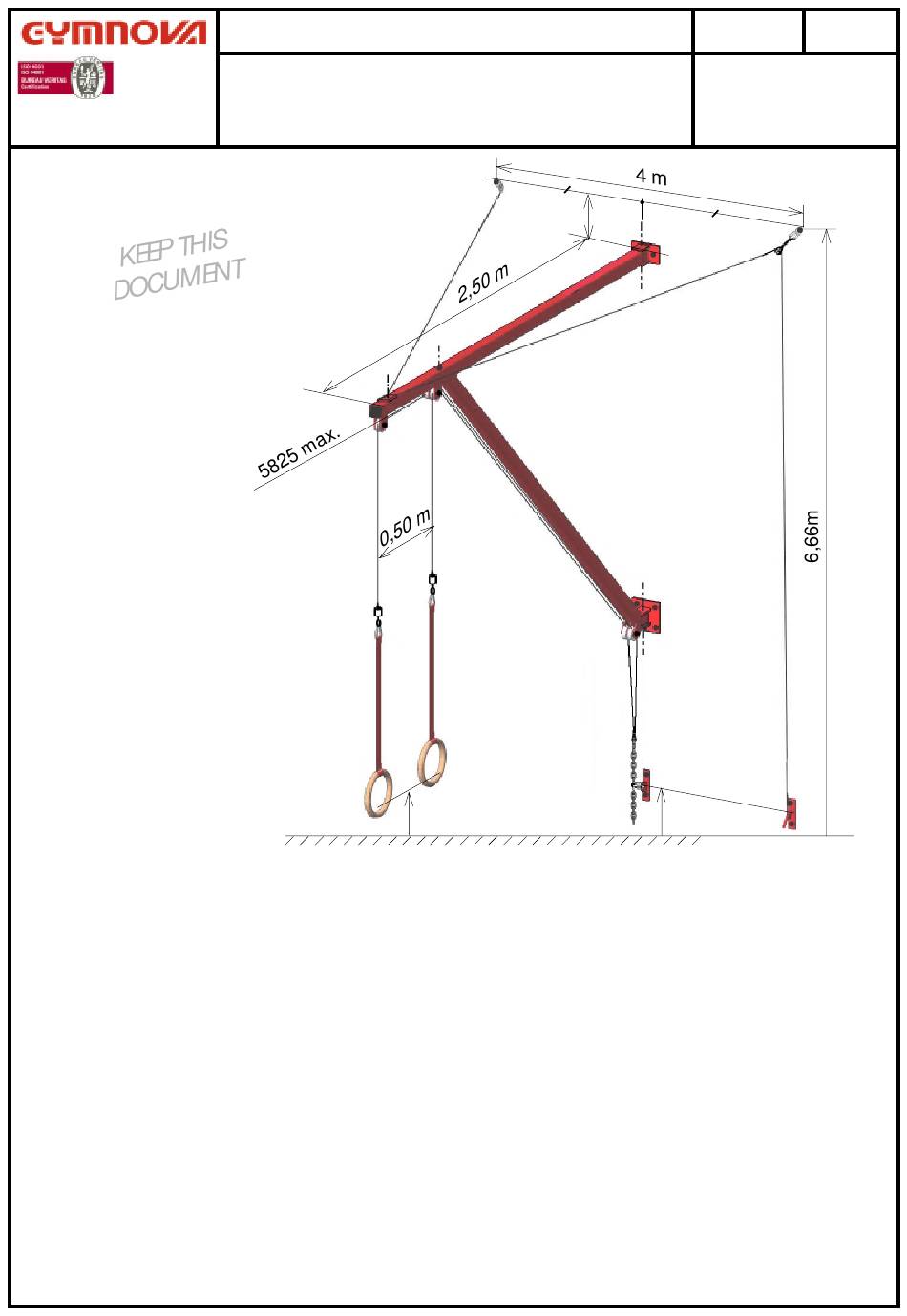

A A A A A
SSEMBLY Y Y Y Y SSEMBL SSEMBL SSEMBL SSEMBL
W W W W W M M M M M
ALL ALL ALL ALL ALL OUNTED OUNTED OUNTED OUNTED OUNTED
M'2010 M'2010
M'2010 M'2010 M'2010
Floor
Dimensions: 2590 x 210 x 120 mm
Dimensions: 2740 x 280 x 120 mm
Dimensions: 400 x 310 x 210 mm
I I I I I
NSTRUCTIONS NSTRUCTIONS NSTRUCTIONS NSTRUCTIONS NSTRUCTIONS
B B B B B A A A A A
RACKET RACKET RACKET RACKET RACKET SSEMBL SSEMBL SSEMBLY Y Y Y Y SSEMBL SSEMBL
0,80 m
2,80 m
NM12G-GB NM12G-GB 04/06/15 04/06/15
NM12G-GB NM12G-GB NM12G-GB 04/06/15 04/06/15 04/06/15
3750C 3750C
3750C 3750C 3750C
1,25 m
CC19 CC19 CC19I I I I I
CC19
CC30F CC30F CC30F
CC30F
Volume: 0.07 m 3
Volume: 0.09 m 3
Volume: 0.03 m 3
