45 RUE G. DE FLOTTE
13012 MARSEILLE (FRANCE)
TEL : 33.(0).4.91.87.51.20
FAX : 33.(0).4.91.93.86.89
www.gymnova.com
info@gymnova.com
This equipment should be installed by a qualified individual.
The apparatus should be used by only one person at a time, supervised by a qualified individual and with appropriate
landing mats or a landing pit.
Using this equipment for purposes other than those originally intended is not allowed.
This equipment complies with the requirements of the European standards EN 913 "Gymnastic equipment - General safety
requirements and test methods" and EN 12655 "Gymnastic equipment – Rings – Safety requirements and test methods".
This equipment is F.I.G. approved.
As shown in French Standard NF S52-400 the following is recommended:
- keep these instructions for subsequent reference (inspection, maintenance, etc.).
- periodically carry out predictive maintenance.
- depending on how much it is used, have the equipment serviced yearly or every few years.
Weight of the apparatus:
Ref. : 3700 —> 79 kg (174.17 lb)
Overall size:
- Apparatus without cabling: 2.70 x 0.10 m (106.30 x 3.94 in)
- Apparatus with standard cabling: 5.50 x 4.00 m (216.54 x 157.48 in)
Frame height:
- Maximum frame height: 6.05 m (238.19 in)
Package
Ref.
3700
Ring frame
Volume (ft
)
3
Weight (lb)
Dimensions (in)
120.08 x 7.09 x 3.94
Constantly aiming to improve our products, we reserve the right to make changes to the equipment and dimensions without further discussion.
A
SSEMBLY

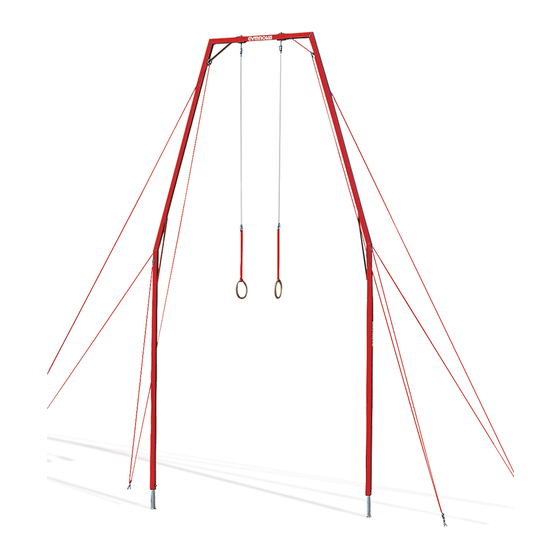

RING FRAME
370/04
370/07
Pair of
Pair of
Lower uprights
Upper uprights
1
1
1.939
1.515
59.52
63.93
111.02 x 7.48 x 3.15
I
NSTRUCTIONS
370/06
3730
Ring Frame
Pair of rings +
Head
straps + cabling
1
1
3.440
0.434
17.64
4.41
65.75 x 20.87 x 4.33
14.17 x 12.20 x 4.33
NM9j
29/11/06
3700
3770/10
No.
Ring frame
of
bracing cables
Packages
1
5
0.848
28.66
15.75 x 11.81 x 7.87
Advertisement
Table of Contents
Related Manuals for Gymnova 3700
Summary of Contents for Gymnova 3700
- Page 1 - depending on how much it is used, have the equipment serviced yearly or every few years. Weight of the apparatus: Ref. : 3700 —> 79 kg (174.17 lb) Overall size: - Apparatus without cabling: 2.70 x 0.10 m (106.30 x 3.94 in) - Apparatus with standard cabling: 5.50 x 4.00 m (216.54 x 157.48 in)
- Page 2 I. Preparing the cables: Figure 1 Refer to the Assembly Instructions NM181. II. Assembling the apparatus (minimum of six people required) (see Fig. 1): Note: Prepare a clean area for assembling the apparatus. 1 - Lay both lower uprights (3) parallel on the floor. 2 - Fit the upper uprights (4) onto the lower uprights (3).
- Page 4 Attachments that are not provided with the apparatus may only be used if the support complies with the CC34 specifications for GYMNOVA chemical anchors, (ref. : 2005 or ref. : 2010) or CC22 for GYMNOVA retractable anchors, (ref. : 2000/40 - 2000/80).
- Page 5 I. Preparing the cables: 1 - Floor positioning (see Fig. 1, Fig. 2, Fig. 3 and Fig. 4): - Plot the floor positioning of the anchors and distances between legs. - Drill in accordance with the assembly instructions NM13 for chemical anchors or NM25 for retractable anchors (for pivots (7): drill ø12,45 mm (1.77 in) deep, if required).
- Page 6 3 - Assembly principle and precautions: - Make sure you assemble the quick links (3) in the proper direction (always tighten downward) (see Fig. 5). - Adjust the turnbuckles (5) to medium length to enable the cables to be adjusted easily. Note: Do not lock the floor attachments so that the bracing flats (8) can be positioned.
