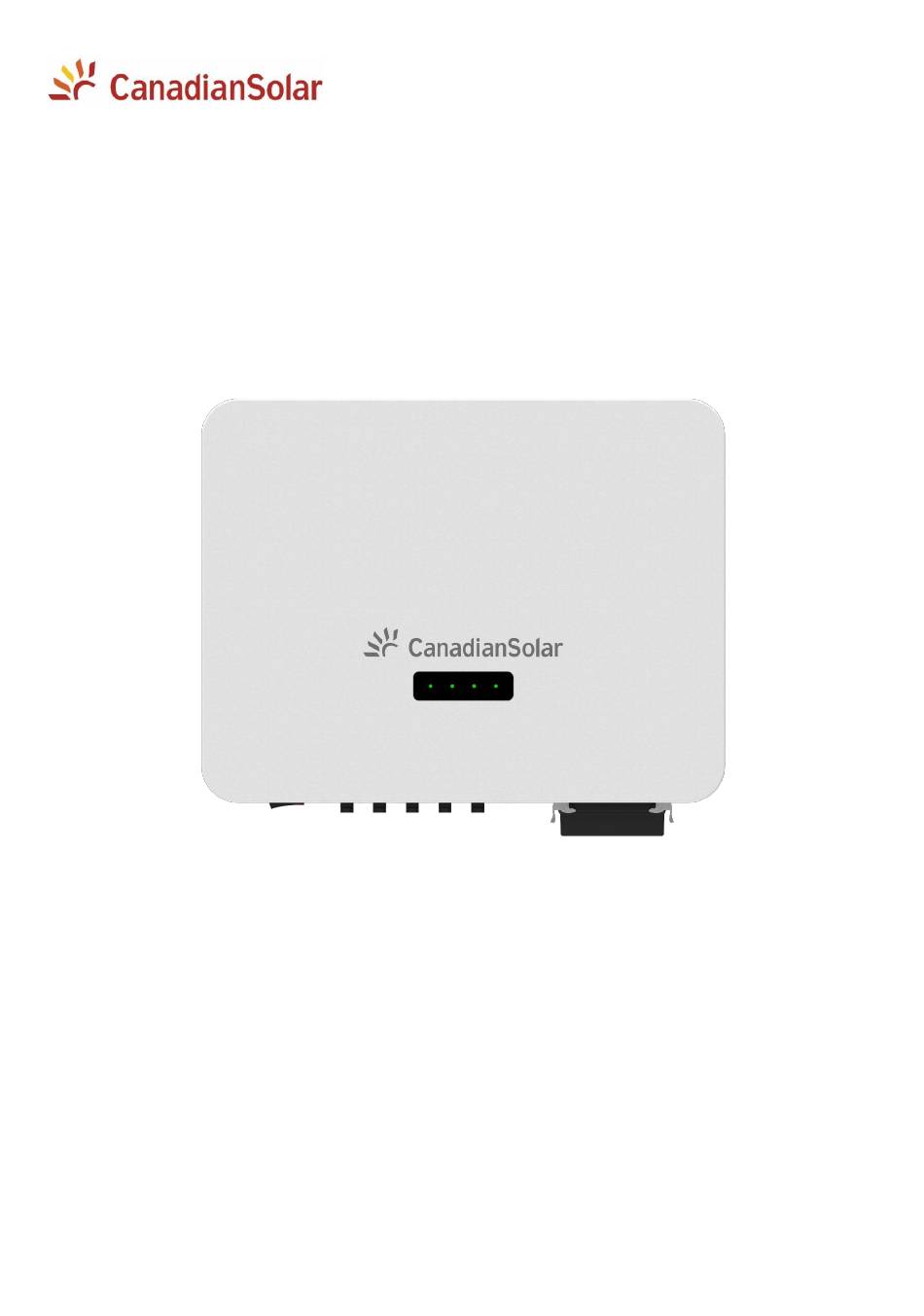

- Page 1 CSI-40K-T4001A-E CSI-50K-T4001A-E CSI-60K-T4001A-E PV Inverter Quick Installation Guide （Part No: 91000469; Release Date: December, 2023 EN-Rev QI/V02a December, 2023. CSI Solar Co., Ltd.
-
Page 2: About This Guide
1 About This Guide This guide only applies to the following inverters: CSI-40K-T4001A-E, CSI-50K-T4001A-E, CSI-60K-T4001A-E. This instruction only provides an overview of the installation of the above-mentioned inverters. Due to product version upgrades or other reasons, this guidance will be updated irregularly. Under no circumstances can this guide replace the user manual and the safety instructions on the product. -
Page 3: Installation Environment Requirements
CSI-60K-T4001A-E COM.-1 PV-1 PV-3 PV-5 PV-7 PV-9 AC OUTPUT COM.-2 DC SWITCH-2 MPPT-1 MPPT-2 MPPT-3 MPPT-4 MPPT-5 COM.-3 PV-2 PV-4 PV-6 PV-8 PV-10 DC SWITCH-1 DO NOT DISCONNECT UNDER LOAD! 1. LED indicator panel 7. PV input connectors 2. Side handles and mounting ears 8. -
Page 4: Installation Clearance Requirements
3.4 Installation Clearance Requirements 1）Reserve enough clearance around the inverter to ensure sufficient space for heat dissipation, as shown in FIG 3-3. ( Under the premise of ensuring installability, the clearance on both sides of the inverter can be reduced to 200mm, but it is recommended to be ≥... -
Page 5: Inverter Installation
12N.m FIG 3-7 Locate the mounting hole 3.5.2 Steel Frame Installation Mounting Steps: Step 1: Level the assembled mounting bracket by using a level, and mark the positions for drilling holes on the steel frame. Drill the holes. Recommended aperture 10mm. Step 2: Secure the mounting bracket with M8 bolts and nuts. -
Page 6: Electrical Connection Overview
Step 3: Hang the inverter to the mounting bracket and ensure that the mounting ears perfectly engage with the mounting bracket. Step 4: Fix the inverter with screws M6x30. FIG 3-10 Install the inverter 4 Electrical Connection 4.1 Electrical Connection Overview A）PV string;... -
Page 7: Communication Cable Connection
Table 4-2 PE wire requirements Phase wire cross PE wire cross-section Note section S The specifications are valid only when the phase wire and PE wire use the 16<S≤35 mm² 16 mm² same material. If otherwise, ensure that the cross section of PE wire S＞35mm²... -
Page 8: Dongle Connection
Step 2: Insert the conductors into the corresponding pins of the plug(see table in FIG 4-4), and then fix the conductors by screws firmly，as per FIG.5-4. Tool: Phillips screwdriver #1. Torque: 0.6~0.8N.m. Step 3: Tighten the pressure nut, and then push the threaded sleeve into the plug, as per FIG 4-4. Step 4: Finally, insert the assembled connector into the Multifunctional communication receptacle (COM.-3) on the inverter，... -
Page 9: Ac Cable Connection
4.6 AC Cable Connection 4.6.1 AC Side Requirements Before connecting the inverter to the grid, ensure the grid voltage and frequency comply with inverter(s) technnical specification. Otherwise, contact the electric power company for help. Connect the inverter to the grid only after getting an approval from the local electric power company. 4.6.2 Connection Procedure Step 1: Disconnect the AC-side circuit breaker and prevent it from inadvertent reconnection. -
Page 10: Dc Cable Connection
Step 6: Connect the AC cable with crimped terminals to the inverter AC terminal block. Recommended locking torque: 8-10N.m L1 L2 L1 L2 FIG 4-10 Connect AC cable Step 7: Pull back the buckle to secure the wiring compartment. Step 8: Gently pull the cable backwards to ensure firm connection, and fasten the swivel nut clockwise. Gland for AC output cable Seal ring-3 For cable... - Page 11 There is a risk of inverter damage! The following requirements should be met. Failure to do so will void guarantee and warranty claims. • Make sure the maximum voltage of each string is always less than 1100 V. • The inverter enters the standby state when the input voltage ranges between 1,000V and 1,100V.
- Page 12 999.9 礎 FIG 4-12 DC switch FIG 4-13 Check the polarity of PV string FIG 4-14 Connect the PV connectors to the inverter If the DC input power cable is reversely connected and DC switches are set to ON, do not immediately turn off the DC switches or reconnect the positive and negative connectors.
-
Page 13: Electrical Inspection
5 Commissioning Inverter 5.1 Electrical Inspection 1) The inverter DC switch and external circuit breaker are disconnected 2) The inverter should be accessible for operation, maintenance and service. 3) Nothing is left on the top of the inverter. 4) The inverter is correctly connected to the external devices, and the cables are routed in a safe place or protected against mechanical damage. -
Page 14: App Introduction
6 CSI Smart Energy App - Local Mode 6.1 APP Introduction The CSI SmartEnergy APP can establish a communication connection to the dongle via the Bluetooth, thereby achieving local access to the inverter. Users can use the App to view basic information, alarms , set parameters, etc. 6.2 Download and Install the App Method 1：... - Page 15 Step 2：Select “ More tools”->“ Local Access”. Scan the QR code of the dongle, and the mobile phone will connect the dongle automatically. Step 3：If it is the first time to boot the inverter, you need to set the Grid Code as required on the boot page EN-Rev QI/V02a December, 2023.
- Page 16 Must select the correct gird code where the inverter is installed. If the gird code is not suitable, it may cause the inverter to report a fault error. Notice You can also set the grid code on the “Parameter”-> “Inverter Basic Information-DSP”->”Grid Code”...
-
Page 17: Function List
6.4 Function List 7 Obtaining User Manual Please scan the QR code for more detailed information in the user manual. EN-Rev QI/V02a December, 2023. CSI Solar Co., Ltd. 16 / 16...
