3. Depending on the application, you may want to further secure the mud box by fastening the
mud box to nearby rebar using bailing wire. See the diagram on the following page. Be sure
that the mud box face is flush or no more than ¼" underflush to the proposed tile line.
4. With the HLMUDBOX secure and in place, install the plastic cover to prevent cement from
entering the mud box.
5. Pour concrete and allow to cure. Remove cover.

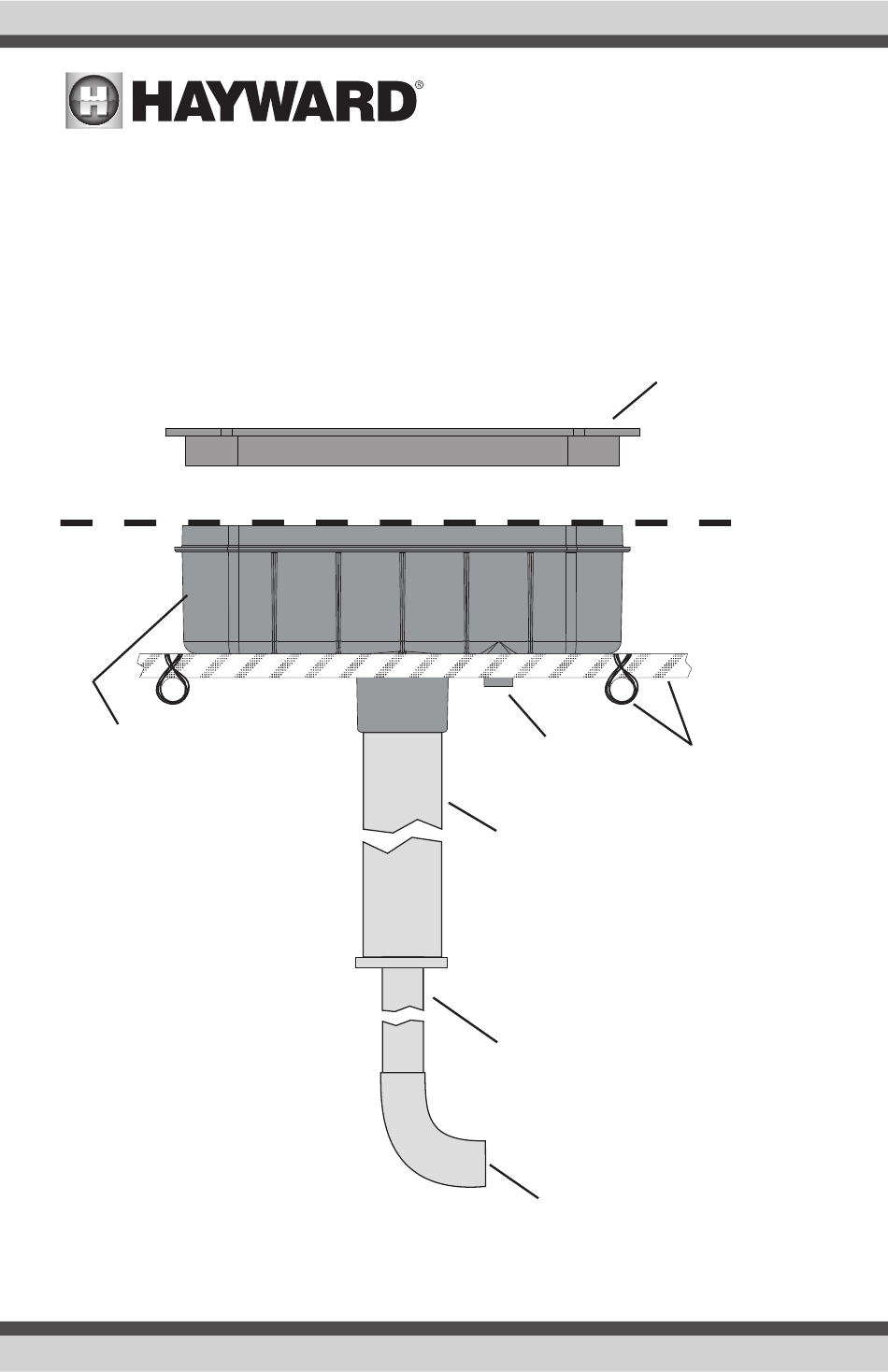

TILE LINE
If additional support is needed,
fasten to rebar using bailing
wire
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Cover
TILE LINE
Drain Boss
Minimum 6" length of
1" or 1½" PVC pipe for
adequate support
Reduce down to ½" or ¾" electrical
conduit and run back to the Omni-
Logic/OmniHub control
To aid in pulling through the HL-
SPASIDE cable, use sweep elbows
for all turns
Rebar
