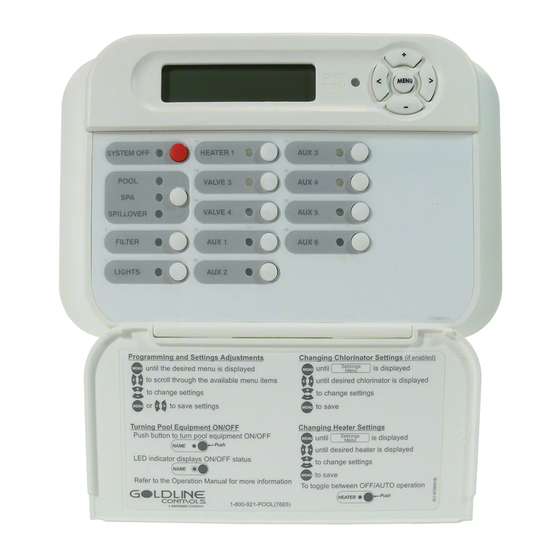

Remote Display
for Aqua Logic and Pro Logic
Owner's Manual
AQL2-WB-PS-4
AQL2-WB-PS-8
AQL2-WB-PS-16
Hayward Pool Products
620 Division Street, Elizabeth NJ 07207
Phone: (908) 355-7995
www.hayward.com
Contents
Installation..............................2
Troubleshooting.......................5
Warranty..................................7
AQL2-WW-PS-4
AQL2-WW-PS-8
AQL2-WW-PS-16
092147C RevB
Advertisement
Table of Contents
Related Manuals for Hayward AQL2-WB-PS-4
Summary of Contents for Hayward AQL2-WB-PS-4
- Page 1 092147C RevB Remote Display for Aqua Logic and Pro Logic Owner’s Manual Contents Installation......2 Troubleshooting.......5 Warranty........7 AQL2-WB-PS-4 AQL2-WW-PS-4 AQL2-WB-PS-8 AQL2-WW-PS-8 AQL2-WB-PS-16 AQL2-WW-PS-16 Hayward Pool Products 620 Division Street, Elizabeth NJ 07207 Phone: (908) 355-7995 www.hayward.com...
-
Page 2: Installation
(use is optional) Push Screwdriver blade through slot and pull up cover 2. If bezel will be used, snap baseplate into bezel before mounting. 3. Screw the baseplate in the desired position (screws supplied by installer). USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 3 “1” to “1”, “2” to “2”, etc. Wired Remote Aqua Logic Control Center Display unit 500 ft max Connect screw terminals “1” to “1”, “2” to “2”, etc. Wired Remote Pro Logic Control Center Display unit 500 ft max USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 4: Aql2-Wb-Ps
Display r4.00 The “r4.00” is the software revision level. The actual revision level for your remote display may be different. Refer to the Pro Logic or Aqua Logic Operation Manual for complete operating instructions. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 5: Troubleshooting
“3” in the cable between the remote display and the Pro Logic/Aqua Logic main control unit. If you are unable to find the problem, contact the Hayward Technical Support department Monday through Friday, from 8AM to 8PM eastern time. - Page 6 The most likely cause of this problem is that wires “2” and “3” in the cable between the control unit and the remote display are crossed. If you are unable to find the problem, contact the Hayward Technical Support department Monday through Friday, from 8AM to 8PM eastern time.
-
Page 7: Warranty
(3) years. Hayward also warrants its Aqua Trol chlorination products to be free of defects in materials and workmanship, under normal use and service for a period of one (1) year. These warran- ties are applicable from the initial date of purchase on private residential swimming pools in the US and Canada. - Page 8 Hayward is a registered trademark and Aqua Trol are trademarks of Hayward Industries, Inc. © 2016 Hayward Industries, Inc. All other trademarks not owned by Hayward are the property of their respective owners. Hayward is not in any way affiliated with or endorsed by those third parties.
