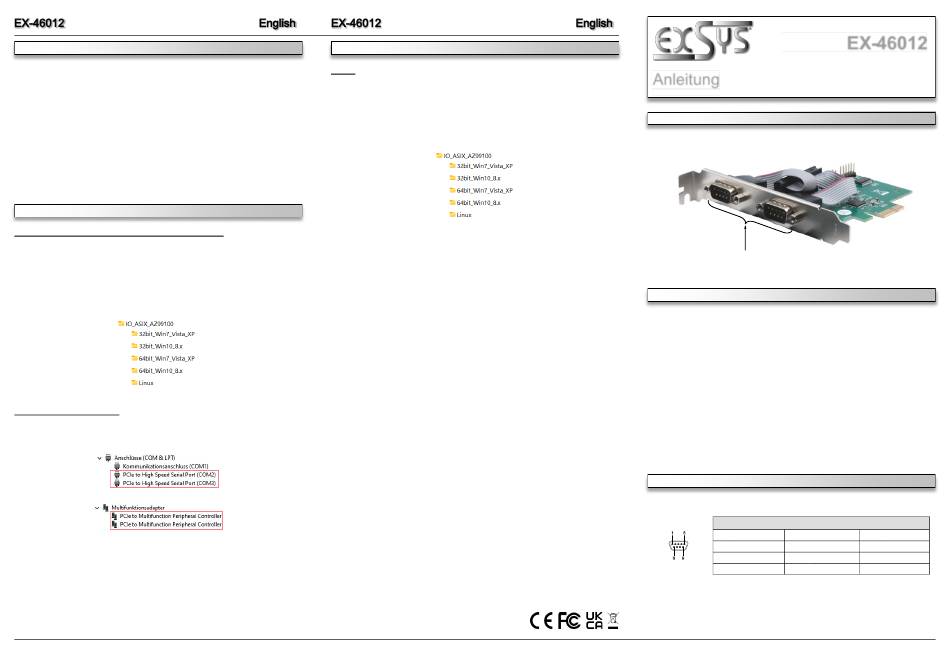

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-46012. Please refer your
computer's reference manual whenever in doubt.
1.
Turn off the power to your computer and any other connected peripherals.
2.
Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3.
Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4.
Then attach the card with a screw to the rear panel of the computer.
5.
Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx
After the hardware installation is completed, the operating system automatically detects the EX-
46012 and shows you a new „Serial PCI-Port". First, please download the driver from
www.exsys.de or www.exsys.ch. The driver is available for your product under "Downloads".
Open now the folder „IO_ASIX_AZ99100". Now select the folder of your operating system and
start the application „AX99100_Setup" which is located in the respective folder (see picture).
Follow the installation instructions and complete the installation. Important! Restart your PC
after the installation.
CHECK INSTALLED DRIVER
Open the >Device-Manager<. Now you should see at „Ports (COM & LPT)" and at
„Mutlifunction adapter" the following new Entries:
If you see these or similar entries, the card is installed correctly.
5
DRIVER INSTALLATION
Linux
After the hardware installation is completed, the operating system automatically recognizes the
EX-46012. First, please download the driver from www.exsys.de or www.exsys.ch. The driver is
available for your product under "Downloads". Open now the folder „IO_ASIX_AZ99100". The
drivers for your Linux system are located in the „Linux" folder (see picture). Important! Restart
your PC after the installation.
Germany:
Switzerland:
Italy:
EXSYS Vertriebs GmbH
EXSYS Vertriebs GmbH
EXSYS Italia Srl
Industriestrasse 8
Dübendorfstrasse 17
Via Belvedere, 45/B
61449 Steinbach
8602 Wangen
I-22100 Como
www.exsys.ch
www.exsys.it
www.exsys.de
6
Anleitung
Vers. 1.1 / 06.03.25
AUFBAU
2x 9-Pin D-Sub Seriell Stecker
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-46012 ist eine seriell RS-232 PCI-Express Karte. Sie ist mit zwei seriellen FIFO 16C550
Anschlüsse für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B.
Modem, Plotter, Drucker, Scanner usw.) ausgestattet. Die EX-46012 unterstützt alle PCI-
Express Slots von x1 bis x16. Der serielle PCI-Express Bus unterstützt optimal die Leistung des
schnellen ASIX Chipsatz. Die Karte gewährleistet so eine sichere Datenübertragung und exzel-
lente Performance von bis zu 115KBaud/s für jedes angeschlossene serielle Gerät! Es ist nicht
möglich die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte
vom System (BIOS) und beim installieren des Betriebssystems automatisch vorgenommen
werden.
Kompatibilität:
PCI-Express x1 bis x16
Betriebssysteme:
Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx / Linux
Anschlüsse:
2x 9-Pin D-Sub Seriell Stecker
Lieferumfang:
EX-46012, Low Profile Bügel, Anleitung
ANSCHLÜSSE
9-Pin D-Sub Seriell Stecker:
9-Pin D-Sub Seriell Stecker
Pin
Signal
Pin
Signal
1
CDC
4
2
RXD
5
GROUND
3
TXD
6
1
EX-46012
Pin
Signal
DTR
7
RTS
8
CTS
DSR
9
RI
