What's in the Box
Check to make sure you have everything below.
Device Overview
- Volume Down
- Light mode
- Previous Button
- Multi-function Button
- Play/Pause
- Next Button
- Power On/Off
- Volume Up
- AUX Jack/Reset Button
- Type-C Charging Port
- USB Input
Charging Your Device
Turn On/Off
Long Press 2"

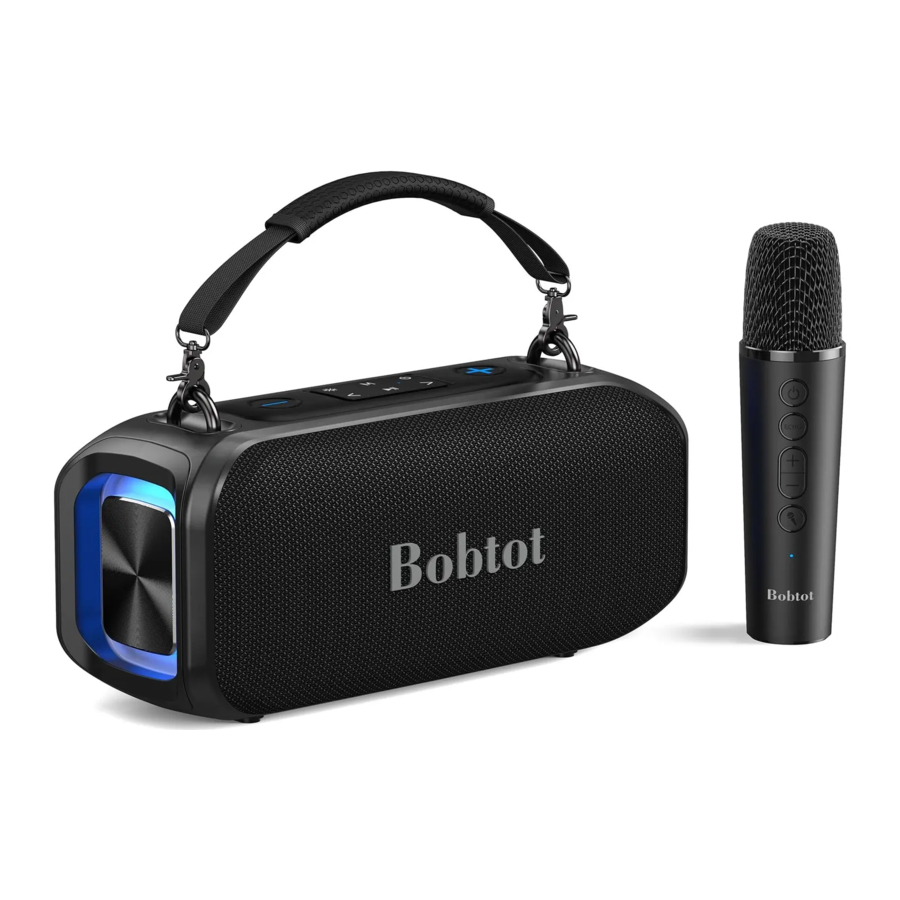

Long Press the POWER button 2 Seconds to turn on/off the Bobtot ET200 portable speaker.
BT Connection/Disconnection
NOTE:
- Automatically shut down after 10 minutes of no connection in BT mode.
- Automatically shut down after 20 minutes of no playback or pause after connection.
Wireless Microphone
Multi-function Mode
AUX/USB/BT
Plug AUX or USB flash drive into the speaker, it will automatically play. When using one of the connection ways, please make sure the other source is disconnected.
Short Press
Specification
| BT Version: | 5.3 |
| Output Power: | 20W |
| Operating Range: | 33ft (10m) |
| Battery Capacity: | 7.4V 4000mAh |
| Microphone Battery Capacity: | 3.7V 250mAh |
| Playtime: | Up to 10 hours (Vol 50%) |
| Charging time: | 3.5 hours |
| Power Supply: | DC 5V |
| Frequency Response: | 90Hz-17KHz |
| Audio Inputs: | BT/AUX/USB/MIC |
| IPX Rating: | IPX5 |
Reset Your Device
If the speaker does not work properly, you may reset it by inserting needle to AUX jack to press and hold the button for approximately 2 seconds until the speaker powers off, and then powers on again.
Need help?
If you have any questions or concerns, please don't hesitate to reach out to us.
We will be happy to assist you:
Call or Message: +1 888 572 1718
Email: support@bobtot.net
bobtot.net
