Bobtot Sound Air2 Manual

Packing Content

1x Bobtot Sound Air2

1x USB charging cable(Type-C)

1x 3.5mm AUX cable

1x Quick Start Guide

Specifications

Wireless Version: V5.1

Transmission distance: 10m

Battery: 2500mAh

Input: DC 5V/1A

Charging: USB Type-C

Frequency: 180Hz-18kHz

Connection: BT,USB,AUX,TF supported

Play time: Up to 14hours (varies by volume level and content)

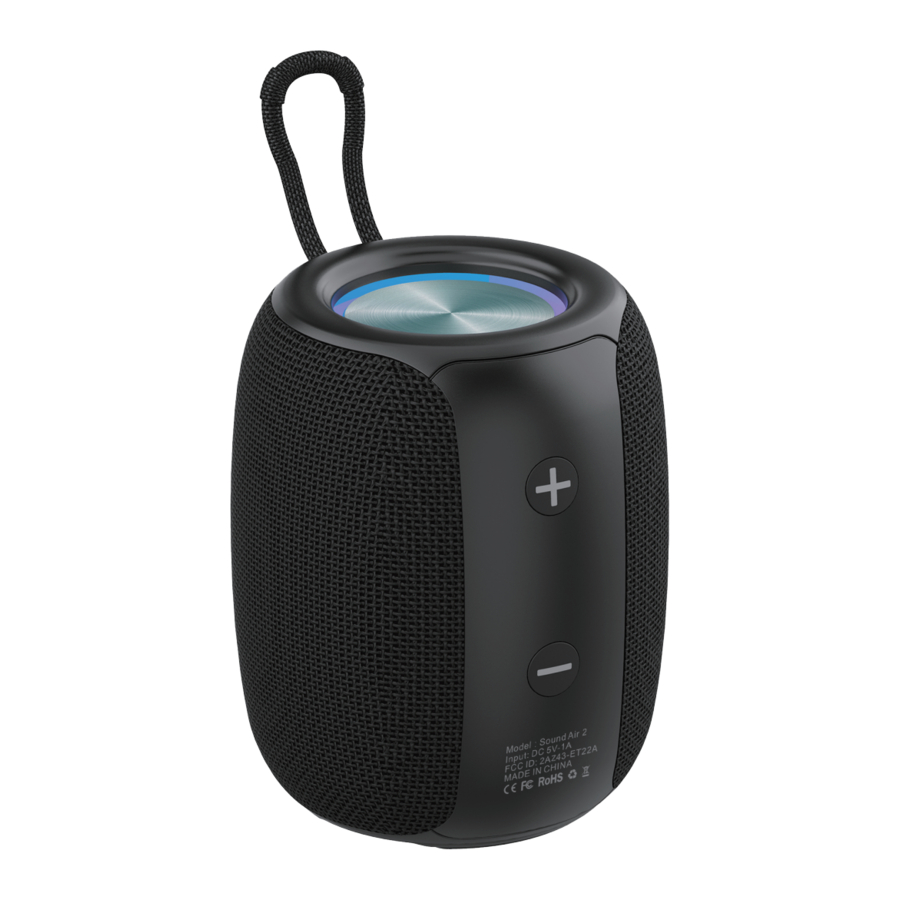

Device Overview

Buttons & Controls

Buttons	You want to	How to
	Turn on/off	Long press
	Play/pause	Short press
	Call back	Double click (in BT mode)
	Accept an incoming call	Short press (in calling mode)
	End an incoming call	Short press(in calling mode)
	Switch light ( 6 modes to light off)	Short press
	Switch play (BT-USB-TF-AUX mode)	Double click
	Pair two speakers (TWS)	Triple press
	Disconnect the BT	Long press (in BT mode)
	Reject an incoming call	Press 2s(in BT mode)
	Increase the volume	Short press
	Next song	Long press
	Decrease the volume	Short press
	Previous song	Long press

Getting Started

Charging the speaker

The Sound Air2 comes pre-charged, but you may need to charge it before the first use, in case it is low on battery. it will take 3.5-4 hours to fully charge.

warning Note:

We recommend using a USB wall adapter with a DC 5V=1A output. (USB Type-C)
The indicator light is red when charging.
The indicator light turns off once full charged

Turn ON the speaker

Long press the power button to turn on the Sound Air 2 speaker.

Pairing your mobile device

Enable the BT feature on your smartphone or tablet and search for "Bobtot Sound Air2", then tap to connect.
When hearing the prompt sound "connected" the wireless is pairing successfully. You can enjoy the music.

Connect your device with the speaker via 3.5mm audio cable

When using the audio input mode, control audio playback via the connected device.
When aux cable is plugged, play mode will automatically switch to AUDIO in mode.

Play music from a micro TF card or a USB flash drive

Support capacity: max file size 64Gb

Support files: mp3, flac, wav,

Play in order: music will play in the download/copy order.

Automatically play: when the TF card/ USB drive is inserted, the play mode will automatically switch to TF mode/ USB mode.
(Normally the speaker would play the last inserted media.)
Play music from a micro TF card or a USB flash drive

How to Set TWS Sync Mode?

Step1, Long press the power button about 2s speakers to turn the first speaker on.

Step 2,Turn on the BT searching mode on your device, search "Bobtot Sound Air 2" and connected.

Step 3, Long press the power button about 2s to turn the second speaker on.

Step 4, Quickly triple-click the light button of either speaker.
You can hear a indicates sound, which means connect successfully.

warning Note:

While stereo pairing, the speaker will reconnect with the device if they used to be connected. Triple press button to disconnect the stereo pairing.
When you are listening to the music from one speaker and want to set up the stereo pairing, triple-click the button, would enter into stereo pairing mode.

Resetting your device

Press and hold the 8s until the power off. Then long press the to reset.

Troubleshooting

Automatic shut down: when the battery power is low, the speaker will turn off automatically, please charge it.
Unable to play music: Reset the speaker and connect the bt again. If the music file store in the USB or TF card, check if the right connect mode, double press the to choose the right mode.
Unable to connect to the computer: Check if the computer has bt function. If not, please connect the speaker and computer by the AUX cable and choose the right model by pressing the .
The button does not respond or the function is disordered: try again after reset.
Stuck in an abnormal situation: press the power button for 8 seconds to reset.

Warning

Do NOT drop, hit or shake the device.
Do NOT disassemble, repair or modify the speaker.
Do NOT use cleaning products that contain benzene, solvents or alcohol.
Do NOT expose the speaker to excessive heat or direct sunlight for prolonged periods of time.
Do NOT store the device in a place with high humidity or dust. Do NOT use the speaker near a microwave oven or wireless LAN products.
