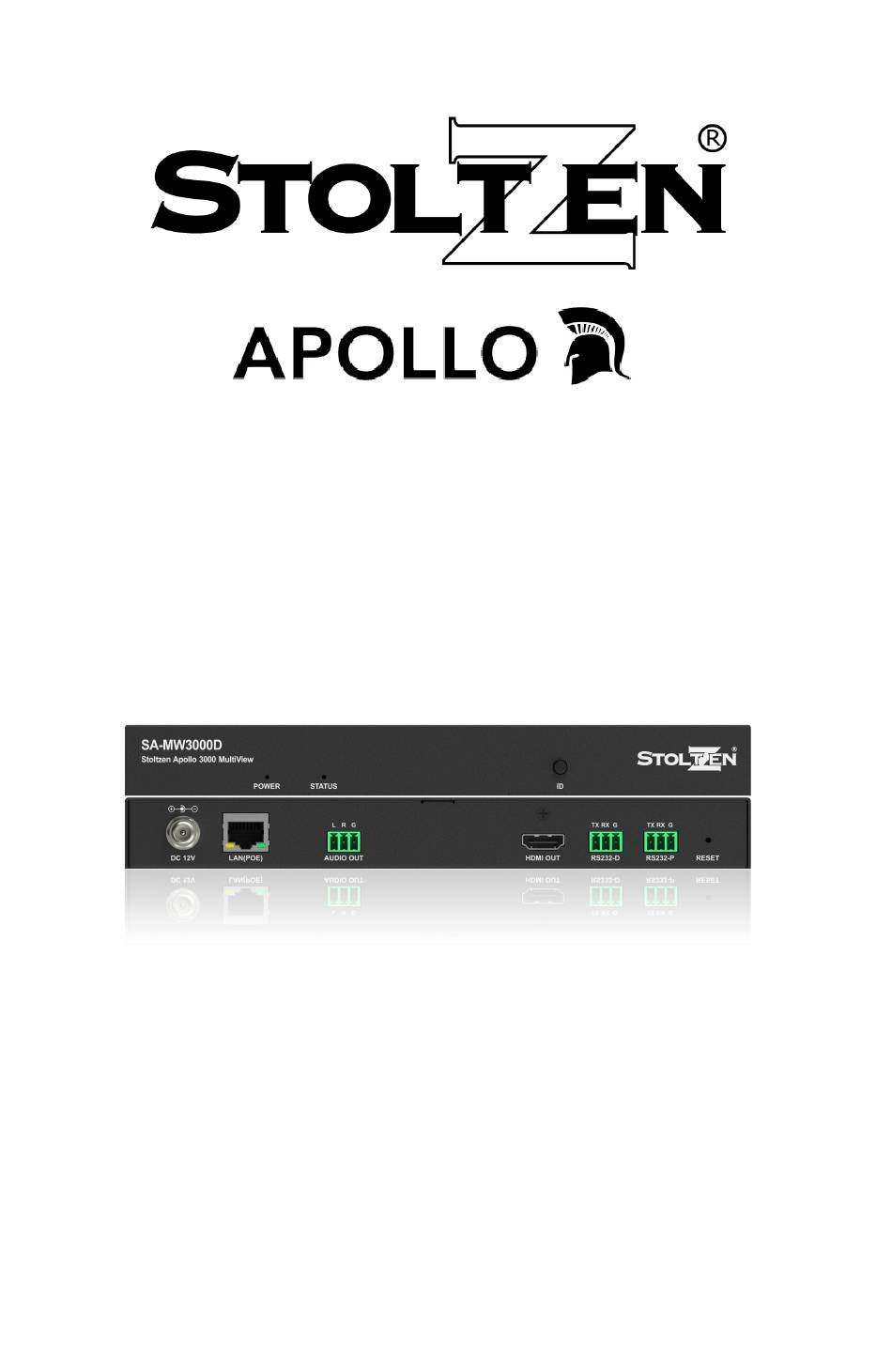

- Page 1 1080P IP Decoder w/ Multi-window SA-MW3000D USER MANUAL...
-
Page 2: Important Safety Information
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. Only use attachments/accessories specified by Stoltzen to avoid fire, shock, or other hazards. 10. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. -
Page 3: Table Of Contents
Contents Important Safety Information ................1 Introduction ...................... 3 Recommended Software Versions............3 Features ....................4 Package Contents ..................5 Panel Description ..................... 6 Front Panel ....................6 Rear Panel ....................6 Specifications ....................8 Installation ......................9 Typical Application ..................10 Firmware Upgrade .................. -
Page 4: Introduction
Introduction SA-MW3000D is a high performance H.264 decoder that works with H.264 encoders to provide complete end-to-end streaming systems. It has the capability to simultaneously decode a maximum of nine IP streams in tile mode, and decode a maximum of six IP streams in overlay mode, and show them in various multi-view layouts on a single display. -
Page 5: Features
Features Supports live IP video stream decoding. Uses with H.264 encoders to provide complete end-to-end streaming systems. Input: one Ethernet input to accept up to nine H.264 high profile video streams. Output: one HDMI output, and one analog audio output that allows audio ... -
Page 6: Package Contents
Supports bidirectional serial, allowing control of remote RS232 devices from both sides of decoders and IP control box. Provides two power supply options -- the local power adapter and remote PoE-enabled power source equipment. Selectable network settings from Auto-IP, DHCP and static IP. ... -
Page 7: Panel Description
Panel Description Front Panel Name Description On: The device is powered on. Power LED Off: The device is powered off. Solid on: The device is connected to encoder and • the video is displayed. • Blinking: The device is disconnected from encoder. Status LED •... - Page 8 Name Description HDMI Out Connect to an HDMI display. RS232-D: connect this port to a PC for debugging • SA-MW3000D. • RS232-P: connect this port to a RS232 device such Serial Communication projector bi-directional serial communication with a RS232 device on the IP control box side.
-
Page 9: Specifications
Specifications Technical Input Video Ports 1 x gigabit RJ-45 port Input Video Type H.264/MPEG-4 AVC Input Video Resolutions 480p@60Hz~1080p@60Hz Max. Number of Input In tile mode: nine IP streams. Streams In overlay mode: six IP streams. Output Video Ports 1 x HDMI port Output Video Type HDMI HDMI:... -
Page 10: Installation
General (W x H x D) Net Weight 0.78 kg/1.72lb Installation Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the device in a suitable location: Remove the four screws from the two side panels. Position and install the mounting brackets on the two side panels using the mounting screws provided in package. -
Page 11: Typical Application
Typical Application SA-MW3000D is designed to work with H.264 encoders to perform matrix switching. Audio/Video Input Audio/Video Output Ethernet Switch Display Desktop (with Decoder HDMI PC configurator) Encoder HDMI RS232 Decoder 3 x 3 Video Wall HDMI Encoder Blu-ray Player HDMI RS232 Decoder... - Page 12 Tel: +47 22 90 37 00 | http://www.stoltzen.eu Sales: sales@stoltzen.eu | Technical: support@stoltzen.eu Address: Dronning Mauds Gate 15, 0250 OSLO, Norway Version: V1.0.1...
