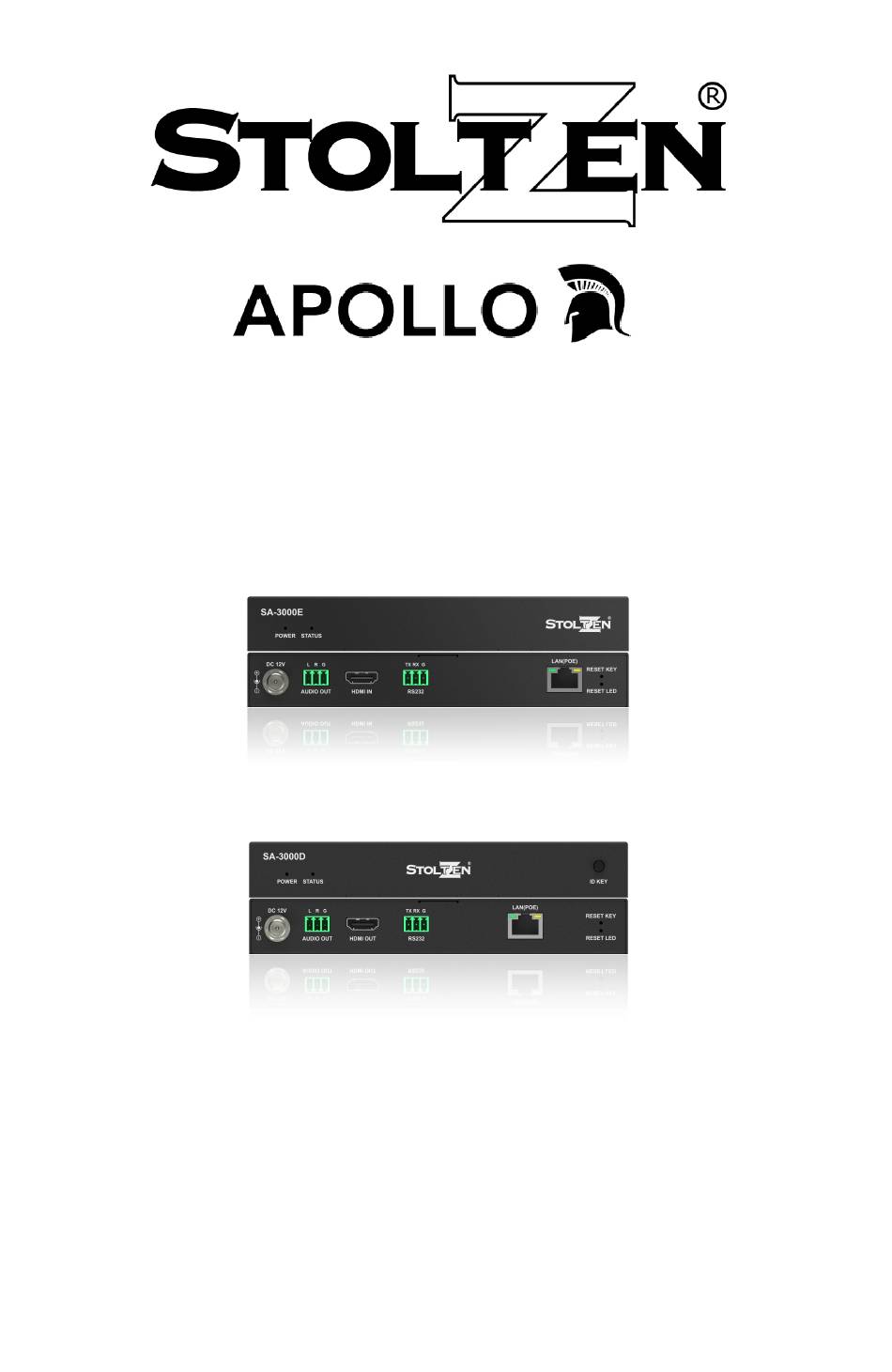

- Page 1 1080P HDMI over IP Encoder & Decoder SA-3000E & SA-3000D USER MANUAL...
-
Page 3: Important Safety Information
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. Only use attachments/accessories specified by Stoltzen to avoid fire, shock, or other hazards. 10. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. -
Page 4: Table Of Contents
Contents Important Safety Information ................1 Introduction ...................... 3 Features ....................3 Package Contents ..................4 Panel Description ..................... 6 Encoder ....................6 Front Panel ..................6 Rear Panel ..................6 Decoder ....................7 Front Panel ..................7 Rear Panel ..................7 Specifications .................... -
Page 5: Introduction
Introduction The H.264 IP encoder (SA-3000E) and decoder (SA-3000D) can work together to provide complete end-to-end streaming systems. Video, audio and RS232 signals can be routed together or separately throughout the matrix system. They can also function video wall up to the dimensions of 16 x 16 with input and output HDMI resolutions supported up to 1920 x 1080@60Hz. -
Page 6: Package Contents
Features video wall up to the dimensions of 16 x 16. Available API interface for third party control system integration, offers control through IP control box (SA-C), PC configurator (Apollo Configurator) and Apollo Visual Composer Touch on iPad. Supports firmware upgrade through Apollo Maintenance Tool. - Page 7 Decoder 1 x SA-3000D Unit 1 x DC 12V Power Adapter (with US, UK, EU, AU pins) 2 x Phoenix Male Connector (3.5 mm, 3 Pins) 2 x Mounting Brackets (with Screws) ...
-
Page 8: Panel Description
Panel Description Encoder Front Panel Name Description On: Encoder is powered on. Power LED Off: Encoder is powered off. On: Encoder detects valid signal input. Status LED Blinking: Encoder detects no signal input. Off: Encoder is powered off or in the boot process. ... -
Page 9: Decoder
Name Description power adapters. Reset LED Reset key is used to reset device. Use a pointed stylus to hold down this key, when Reset Reset Key LED is on for about 1 second and then off, release this key, encoder reboots and restores to its factory default. Decoder Front Panel Name... - Page 10 Name Description HDMI Out Connect to an HDMI display device. Connect this port to a RS232 device to bidirectionally RS232 communicate with a RS232 device at the IP controller or encoder side. Connect to an Ethernet Switch for IP streaming input and device control.
-
Page 11: Specifications
Specifications Encoder Technical Input Video Port 1 x HDMI Input Video Type HDMI 1.3, HDCP 1.4 640 x 480@60Hz, 480p@60Hz，576i@50Hz, 576P@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz, Input Resolution 1366 x 768@60Hz, 1400 x 1050@60Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 540@60Hz, 1080i@50Hz, 1080i@60Hz,... -
Page 12: Decoder
General Device Dimension 175 mm x 25 mm x 100.2 mm / 6.9'' x 0.98'' x 3.9'' (W x H x D) Net Weight 0.60kg / 1.32lbs Decoder Technical Input Video Port 1 x LAN Input Video Type H.264/MPEG-4 AVC Input Resolution From 480p@60Hz to 1920x1080@60Hz Output Video Port... -
Page 13: Installation
General Net Weight 0.60kg / 1.32lbs Installation Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the device in a suitable location: Attach the mounting bracket to the enclosure using the screws provided in the package separately. -
Page 14: Typical Application
Typical Application You can use H.264 encoders and decoders to meet different applications. The link relationship between encoders and decoders is as follows. Link relationship SA-3000E SA-3000D SA-3000D IP matrix, Video wall SA-MW3000D Multiview SA-3000VP Window Roaming IP Matrix You can use encoders and decoders to build a network of IP matrix with PC configurator or IP control box. -
Page 15: Video Wall
Video Wall You can use encoders and decoders to build a M x N video wall with PC configurator and IP control box. M, N is an integer ranging from 1 to 16. Audio/Video Input Audio/Video Output Ethernet Switch Desktop (with PC configurator) Encoder 2 x 2 Video Wall... -
Page 16: Windowing
Windowing You can use encoders, decoders and SA-3000VP windowing processor to realize up to 6 windows overlay and roaming in a video wall or a single display with PC configurator, IP control box and Apollo Visual Composer Touch. Audio/Video Input Ethernet Switch Audio/Video Output Desktop (with... -
Page 17: Hardware Installation
Hardware Installation Laptop (with IP Control Box Blu-ray Player Wireless Router iPad with PF-I P Touch PC configurator) HDMI RS232 Encoder Decoder Audio Audio RS232 HDMI Ethernet Switch RS232 Device Amplifier Amplifier Display Note: • Before the installation, disconnect the power supplies from all the devices. •... -
Page 18: Device Control
Device Control The encoder and decoder allow you to use PC configurator, Apollo Visual Composer Touch and IP control box for controlling them. This section briefly introduces how to route the video from source to the display using these tools. By default, audio, video and RS232 signals are routed together. - Page 20 Tel: +47 22 90 37 00 | http://www.stoltzen.eu Sales: sales@stoltzen.eu | Technical: support@stoltzen.eu Address: Dronning Mauds Gate 15, 0250 OSLO, Norway Version: V1.0.2...
