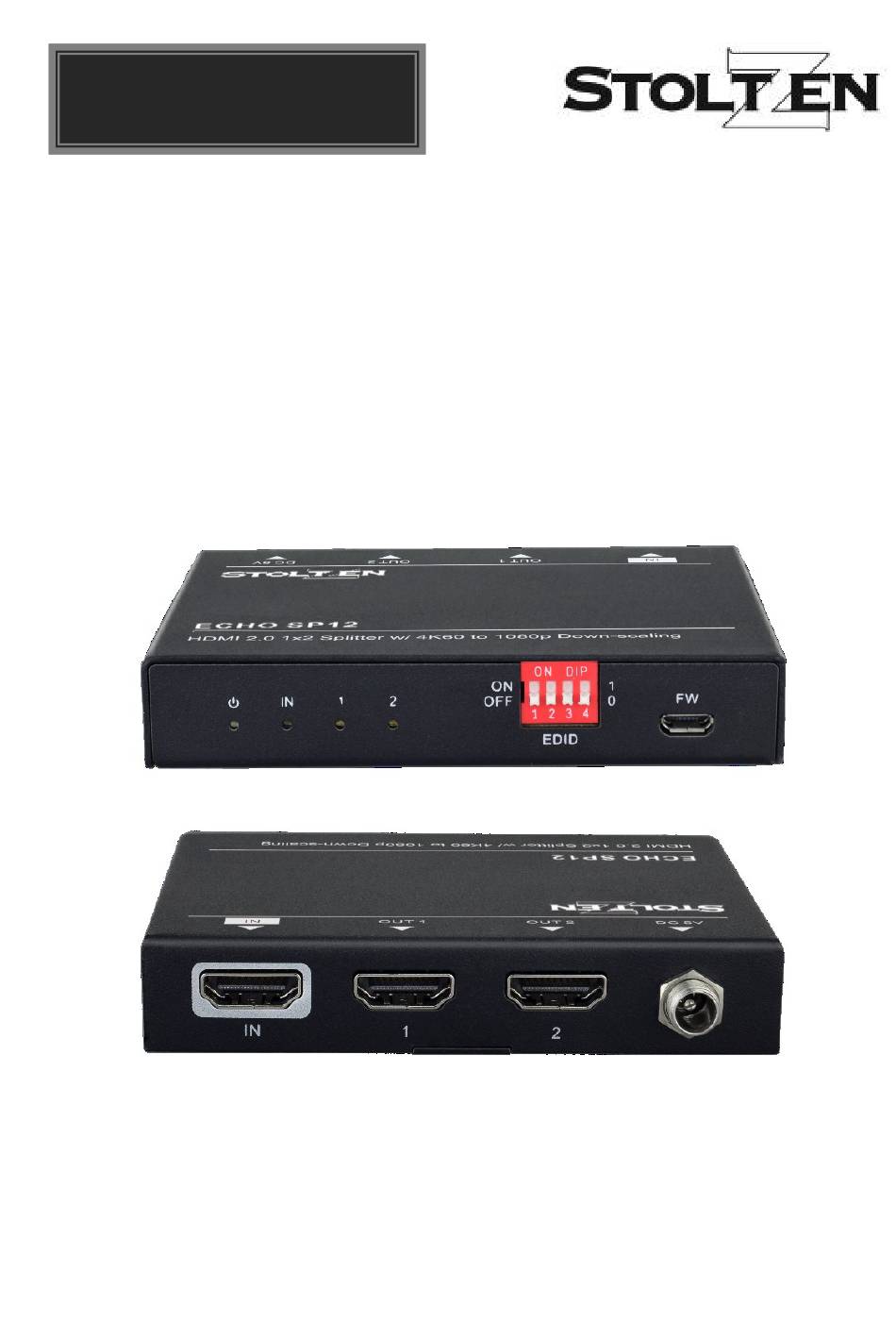

- Page 1 User Manual ECHO SP12 HDMI 2.0 1:2 Splitter with 4K to 1080P Down-scaling All Rights Reserved Version: ECHO_SP12_2019V1.0...
-
Page 2: Safety Precaution
Stoltzen ECHO SP12 HDMI 2.0 1x2 Splitter Statement Thanks for purchasing this product, please read this user manual carefully before using this product. The functions described in this version are updated till June, 2019. In the constant effort to improve our product, we reserve the right to make functions or parameters changes without notice or obligation. -
Page 3: Product Introduction
Stoltzen ECHO SP12 HDMI 2.0 1x2 Splitter Product Introduction Thanks for choosing Stoltzen ECHO SP12 HDMI 2.0 Splitter, which can distribute one HDMI input to two outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel. -
Page 4: Dip Switch Operation
Stoltzen ECHO SP12 HDMI 2.0 1x2 Splitter ④ EDID: 4-pin DIP switch for EDID setting and HDCP mode selection. Please refer to the EDID Management for more details. ⑤ FW: Micro-USB port for firmware upgrade. Rear Panel DC 5V ① INPUT: Type-A female HDMI input port to connect a HDMI source. - Page 5 Stoltzen ECHO SP12 HDMI 2.0 1x2 Splitter setting are shown at the back of the product. Switch Status Video Resolution Audio Format Obtains EDID from the first detected display starting at HDMI output 1>2. Obtains EDID from the first detected display starting at HDMI output 2>1.
-
Page 6: Firmware Upgrade
Stoltzen ECHO SP12 HDMI 2.0 1x2 Splitter Video Resolution Down-scaling The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P display, shown in the below chart. Input Output Color Resolution... -
Page 7: Technical Specification
Stoltzen ECHO SP12 HDMI 2.0 1x2 Splitter Technical Specification Video Input Input (1) HDMI Input Connector (1) Type-A female HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version 2.2, 1.4 compliant Supported Video Output Output (2) HDMI... -
Page 8: System Connection
Stoltzen ECHO SP12 HDMI 2.0 1x2 Splitter Main Video Resolution Parameters: Frame Rate (Hz) Bit Depth Color Space 4:4:4 Resolution 59.94 8 bit, 10bit, 12bit 4:2:2 4:2:0 1080P √ √ √ √ √ √ √ √ 1920x1200 √ √ √...
