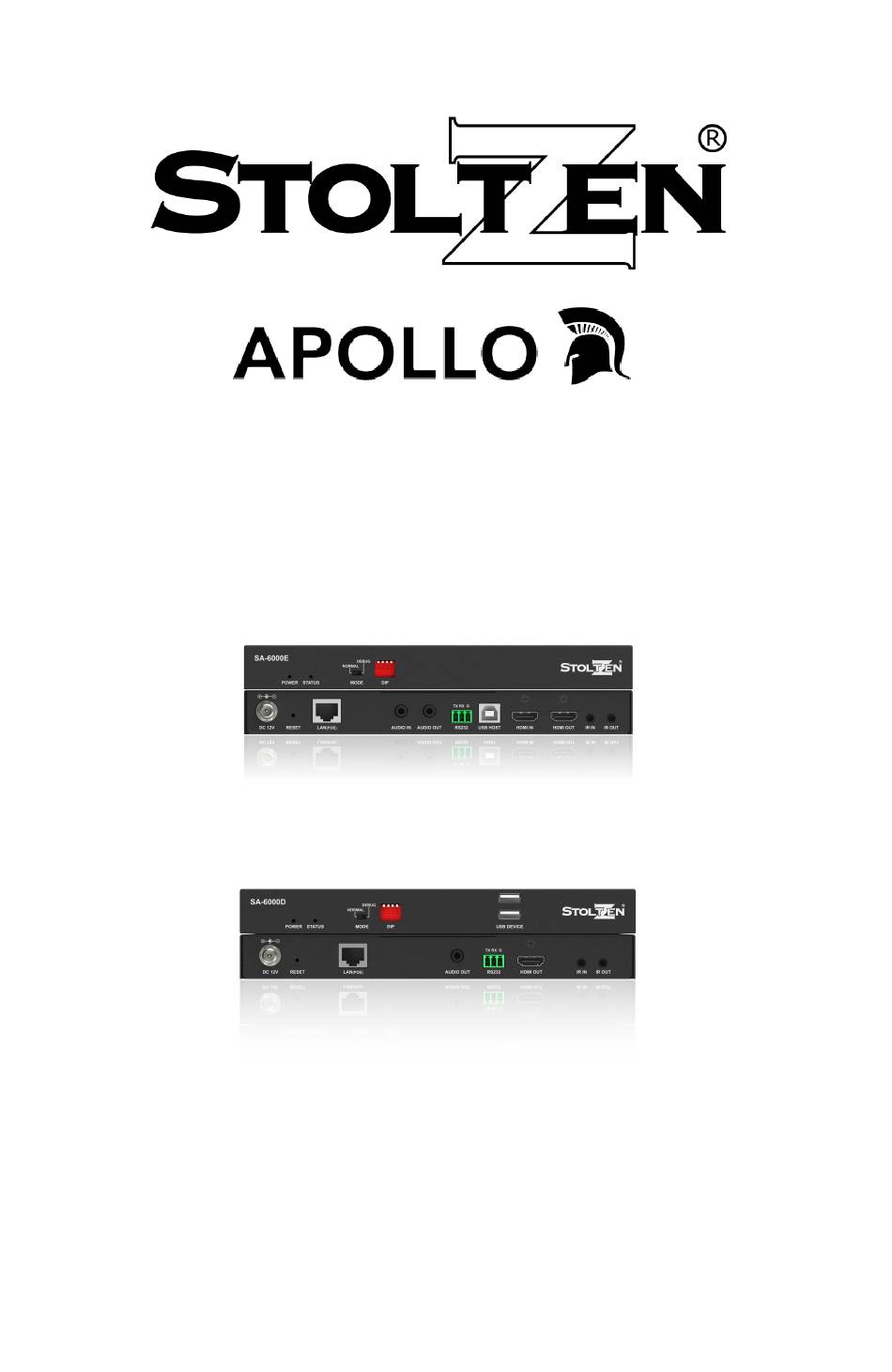

- Page 1 4K HDMI over IP Encoder & Decoder w/ KVM SA-6000E & SA-6000D USER MANUAL...
-
Page 2: Important Safety Information
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. Only use attachments/accessories specified by Stoltzen to avoid fire, shock, or other hazards. 10. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. -
Page 3: Table Of Contents
Contents Important Safety Information ................1 Introduction ...................... 3 Features ....................3 Package Contents ..................5 Panel Description ..................... 7 Encoder ....................7 Front Panel ..................7 Rear Panel ..................8 Decoder ....................9 Front Panel ..................9 Rear Panel ..................10 Specifications .................... -
Page 4: Introduction
Introduction SA-6000E encoders and SA-6000D decoders provide the flexible, powerful, and scalable solution at resolutions up to 3840 x 2160@60Hz 4:2:0, 3840 x 2160@30Hz 4:4:4. They allow 4K UHD media to be switched and distributed over standard gigabit Ethernet networks, providing complete end-to-end streaming systems. - Page 5 4:4:4. Supports streaming resolutions up to 3840 x 2160@30Hz 4:4:4. Features video wall up to the dimensions of 16 x 16. Supports HDR10. Supports CEC one-touch-play and standby commands to power on/off the display, as well as CEC Frame. Supports multi-channel audio up to PCM 7.1, Dolby Atmos and DTS:X.
-
Page 6: Package Contents
Supports Mouse Roaming. (See Configuring Mouse Roaming section for more information) Supports point-to-point, point-to-multipoint, multipoint-to-point, multipoint-to-multipoint applications. Supports PoE to be remotely powered by compatible power source equipment such as a PoE-enabled Ethernet switch, eliminating the need for a nearby power outlet. - Page 7 Decoder 1 x SA-6000D Unit 1 x Phoenix Male Connector (3.5mm, 3 Pins) 1 x IR Emitter (3.9ft/1.2m) 1 x Broadband IR Receiver (3.9 ft/1.2 m, 30 kHz ~ 50 kHz) 2 x Mounting Brackets ...
-
Page 8: Panel Description
Panel Description Encoder Front Panel Name Description On: SA-6000E is powered on. Power LED Off: SA-6000E is powered off. Solid on: SA-6000E is connected to both an active video source and SA-6000D. Blinking: SA-6000E is disconnected from an active ... -
Page 9: Rear Panel
Rear Panel Name Description DC 12V Connect this port to a 12 V 1 A power adapter. Use this button to reset device. When SA-6000E is powered on, use a pointed stylus to Reset hold down this button for five or more seconds, and then release it, it will reboot and restore to its factory defaults. -
Page 10: Decoder
Name Description the "DEBUG" position, connect this port to a RS232 device such as a computer for debugging SA-6000E. Connect a type A male to type B male USB cable USB Host between this port and the USB port of a desktop or laptop. -
Page 11: Rear Panel
Name Description This DIP switch consists of four manual switches, which are used to route audio, video together with IR, and USB signals between SA-6000E and SA-6000D based on their positions. By default, each individual switch is in the up position. For more information, see "Using DIP Switch to Perform Routing". - Page 12 Name Description management. Default Protocol Default IP Mode Auto IP IP Address 169.254.x.x Subnet mask 255.255.0.0 Connect this 3.5 mm stereo tip-ring-sleeve port to an Audio Out audio receiver such as a speaker or amplifier for unbalanced, stereo audio signal output. Use this port to perform bi-directional serial communication and device debug functions.
-
Page 13: Specifications
Specifications Encoder Technical Input Video Port 1 x female HDMI type A (19 pins) Input Video Type HDMI, HDCP 2.2 3840 x 2160p@24Hz 4:4:4, 3840 x 2160p@30Hz 4:4:4, 3840 x 2160p@50Hz 4:2:0, 3840 x 2160p@60Hz 4:2:0, 640 x 480p@60Hz, 720 x 480p@60Hz 1280 x 720p@60Hz, 1920 x 1080i@60Hz, 1920 x 1080p@60Hz, 720 x 576p@50Hz 1280 x 720p@50Hz, 1920 x 1080i@50Hz... - Page 14 Technical Maximum Pixel Clock 297 MHz Max Video Data Rate 8.91 Gbps (2.97 Gbps per color) HDMI: 1 x female HDMI type A Input Audio Port Audio In: 1 x 3.5 mm stereo jack HDMI: LPCM 2.0/2.1/5.1/ 7.1; Dolby 5.1/7.1/Atmos; ...
-
Page 15: Decoder
Decoder Technical Input Video Port 1 x female RJ-45 Input Video Type IP stream Input Resolution Up to 3840 x 2160@30Hz 4:4:4 Output Video Port 1 x female HDMI type A (19 pins) Output Video Type HDMI, HDCP 2.2 Output Resolution Up to 3840 x 2160@30Hz 4:4:4 Video Impendence 100 Ω... -
Page 16: Installation
Installation Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the encoder in a suitable location: Remove the four screws from the two side panels. Position and install the mounting brackets on the two side panels using the mounting screws provided in package. -
Page 17: Typical Application
Typical Application Scenario 1 1 GbE Ethernet Switch Amplifier Apple TV Encoder HDMI IN AUDIO OUT Decoder 3 x 3 Video Wall HDMI OUT Set-top Box Encoder HDMI IN Serial Decoder HDMI OUT 4K Media Player Encoder HDMI IN 4 x 5 Video Wall Decoder HDMI OUT Workstation/PC... -
Page 18: Scenario 2
Scenario 2 1 GbE Ethernet Switch Apple TV Remote Encoder Encoder HDMI IN 7.1 Surround Sound System Display Set-top Box Encoder HDMI IN Decoder HDMI OUT HDMI OUT 4K Media Player Encoder HDMI IN Display Remote Workstation/PC Decoder Encoder HDMI IN USB(PC) HDMI OUT AUDIO IN... -
Page 19: Hardware Installation
Hardware Installation Audio In Display Lapto p HDMI OUT HDMI OUT Amplifier Projector Display Remote Remote Projector (Keyboard and Mouse) Serial Comm- (PC) unication AUDIO AUDIO HDMI HDMI RS23 2 Devic e AUDIO Serial Amplifier IR IN IR IN Communication IP Control Box IP Stream Control... -
Page 20: Operating The Devices
Operating the Devices Introduction to Different Operation Tools You can use the front panel link DIP switch, Apollo PC Configurator, Apollo Visual Composer Touch and IP control box to manage and control SA-6000E and SA-6000D codecs. This section briefly introduces how to route the video from source to the display using these tools. -
Page 21: Using Dip Switch To Perform Routing
When audio, video together with IR, and USB signals are routed separately via IP control box's API commands, they can be routed as a whole with other operation tools. Using DIP Switch to Perform Routing Before using the DIP switch, check that routing operations were not performed by other tools. -
Page 22: Configuring Mouse Roaming
Configuring Mouse Roaming SA-6000E and SA-6000D codecs features Mouse Roaming. With configuration on PC Configurator (Apollo Configurator), you can move the mouse to the edge of the screen to control different computers in a system. They support one set of mouse and keyboard to control up to 16 host computers. - Page 23 Create a video wall. Click ungrouped in the RX list > Create VW > Name a video wall VW1 and choose rows and columns > OK. Create a layout for the video wall. Click VW1 in the RX list > Create Layout/Scene in the working area > name this layout layout1 and choose Mouse Roaming >...
- Page 24 Drag decoders from the RX list and encoders from Other Devices area to display tiles in the working area. Configure Master and Slave. Right click the RX to which the mouse and keyboard are connected and choose Select Master > right click the other one and choose Select Slave >...
- Page 25 Now you can use the Master Roaming mouse to control both computers.
-
Page 26: Configuring Before Hdr10 Signal Input
Configuring before HDR10 Signal Input SA-6000E and SA-6000D Support HDR10 only if the HDMI Timing Hybrid is set to “Pass-through” mode (default setting). Before you input HDR10 video, ensure the source and all displays support HDR10, and follow the steps below to configure the decoder through PF-PC Console. -
Page 27: Firmware Upgrade
Firmware Upgrade You can use Apollo Maintenance Tool to update the encoders and decoders to their latest versions to obtain new features. For more information, see the user guide of Apollo Maintenance Tool. - Page 28 Tel: +47 22 90 37 00 | http://www.stoltzen.eu Sales: sales@stoltzen.eu | Technical: support@stoltzen.eu Address: Dronning Mauds Gate 15, 0250 OSLO, Norway Version: V1.0.1...
