Phasor Measurement Unit
PMU PRO
Installation and Operation Manual
BG0649 Rev. A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMU PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Satec PMU PRO

Summary of Contents for Satec PMU PRO

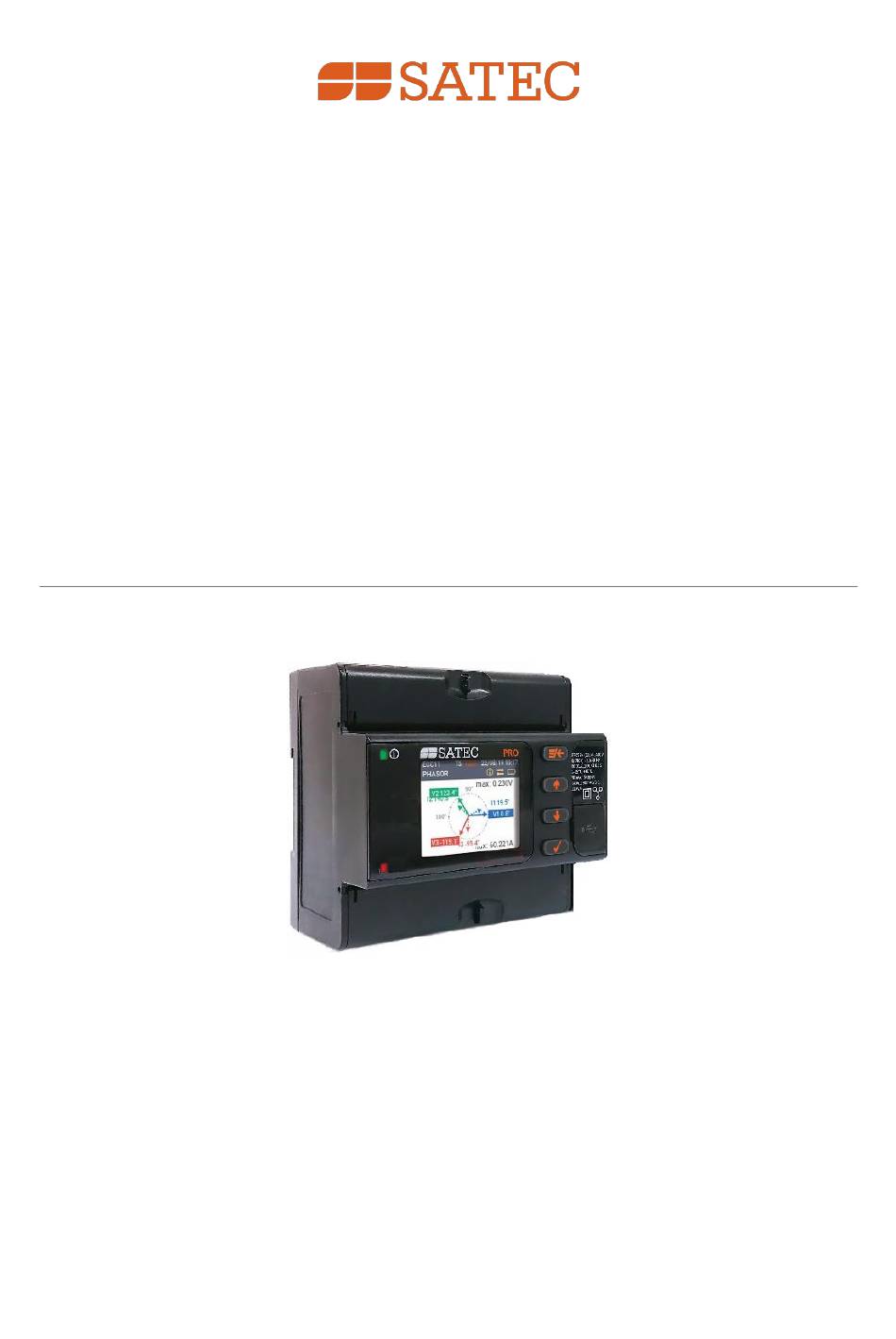

  • Page 1 Phasor Measurement Unit PMU PRO Installation and Operation Manual BG0649 Rev. A1...

  • Page 2: Limited Warranty

    Ensure that the current transformer wiring is secured using an external strain relief to reduce mechanical strain on the screw terminals, if necessary. Only qualified personnel familiar with the instrument and its associated electrical equipment must perform setup procedures. PMU PRO Phasor Measurement Unit...
  • Page 3 Failure to observe precautions can result in serious or even fatal injury or damage to equipment. All trademarks are property of their respective owners June 2024 Copyright 2024 © SATEC Ltd. PMU PRO Phasor Measurement Unit...

  • Page 4: Table Of Contents

    Operating Analog Input ..................25 3.10 Operating Recorders......................26 3.10.1 Operating the Event Recorder ...............26 3.10.2 Operating the Data Recorder .................26 3.11 Communicating with the PMU PRO ................26 3.11.1 Internet Communications ................26 3.11.2 Telnet Communications .................27 3.11.3 Modbus Communications ................28 3.11.4 DNP3 Communications ..................29...
  • Page 5 4.3.4 Phasor Diagram ....................44 4.3.5 Trend Graph .....................44 4.3.6 Events Menu ....................44 4.3.7 Setup Menus ....................45 Setting Up the PMU PRO ....................48 Authorization ........................48 General Device Settings ....................48 5.2.1 Basic Setup .......................48 5.2.2 Transformer Correction..................50 5.2.3 Display Setup ....................51 5.2.4...
  • Page 6 7.5.4 Viewing the Data Log ..................98 Appendix A Technical Specifications..................100 Appendix B Measurement Specifications ................105 Appendix C Measured Parameters ..................107 Appendix D Data Scales ......................113 Appendix E Diagnostic Messages ................... 114 PMU PRO Phasor Measurement Unit...

  • Page 7: General

    1 General 1 General The PMU PRO is a compact DIN rail mounted phasor measurement unit (PMU) designed to meet the requirements of users ranging from electrical panel builders to substation operators. The PMU PRO provides synchrophasor and frequency measurements compliant with the P and M performance classes of IEEE C37.118.1/1a and IEC/IEEE 60255-118-1:2018...
  • Page 8 Up to three I/O expansion modules can be daisy-chained into the side expansion connector • 8DI module option with eight optically isolated digital inputs; dry contacts or 24V, 48V, 125V and 250V wet contacts options PMU PRO Phasor Measurement Unit...
  • Page 9 PAS – free configuration and data acquisition tool for remote configuring and monitoring the device • Exporting data in Microsoft Excel workbook, CSV, or Electrotek PQDIF file format • eXpertPower – SATEC proprietary Internet services PMU PRO Phasor Measurement Unit...
  • Page 10 BG0651 PMU PRO DNP3 Protocol Reference Guide BG0652 PMU PRO IEC 60870-5 Protocol Reference Guide BG0653 PMU PRO IEC 61850 Protocol Reference Guide BG0654 PMU PRO IEC 61850 Protocol Implementation Conformance Statement (PICS) BG0655 PMU PRO IEEE C37.118.2 Protocol Reference Guide Reference documents IEEE Std C37.118.1-2011, IEEE Standard for Synchrophasor Measurements for Power...

  • Page 11: Installation

    2 Installation Mechanical Installation 2 Installation 2.1 Mechanical Installation Figure 2-1 Device Dimensions and Mounting PMU PRO Phasor Measurement Unit...

  • Page 12: Mounting Expansion Modules

    2 Installation Mounting Expansion Modules 2.2 Mounting Expansion Modules Figure 2-2 Expansion Module Dimensions and Mounting Figure 2-3 Expansion Module (front view) PMU PRO Phasor Measurement Unit...

  • Page 13: Electrical Installation

    Connections to the PMU PRO are made via front terminals as shown in Figure 2-5. Please pay attention to the following notes before installation: •...

  • Page 14: Power Supply Connection

    2 Installation Electrical Installation Figure 2-5 PMU PRO Connections 2.3.1 Power Supply Connection The power supply can be dedicated-fused, or from a monitored voltage if it is within the instrument power supply range. For AC power supply, connect line to terminal L/+ and neutral to terminal N/-.

  • Page 15: Current Inputs Connection

    Figure 2-7 4-wire WYE PT Connection 2.3.3 Current Inputs Connection Connect input current wires to terminals I1+/I1-, I2+/I2-, and I3+/I3-. See Figure 2-6 and Figure 2-7 for connection diagram. 2.3.4 Built-in I/O Connection Figure 2-8 PMU PRO Built-in I/O Terminals PMU PRO Phasor Measurement Unit...

  • Page 16: Digital Input

    For I/O ratings, see the expansion I/O specifications in Appendix A . 8DI Expansion Module The 8DI expansion module provides additional 8 optically isolated dry contact or wet contact digital inputs. See the following figures for module connections. PMU PRO Phasor Measurement Unit...
  • Page 17 Dry contact inputs have an internal 24VDC power supply. For wet contact inputs, use an external power supply with an operating voltage of 24V, 48V, 125V or 250V, which can be connected in any polarity. Figure 2-13 Dry Contact Inputs Connection Figure 2-14 Wet Contact Inputs Connection PMU PRO Phasor Measurement Unit...

  • Page 18: Communication Connections

    2 Installation Electrical Installation 2.3.7 Communication Connections See Figure 2-15 for the location of the PMU PRO communication ports. Figure 2-15 Communication Ports Location RS-485 Serial Port The built-in RS-485 port with user-configurable response delay and inter-message break timeout can operate at speeds from 2400 to 115200 bps with 7E, 8N and 8E data formats.

  • Page 19: Ethernet Ports

    Electrical Installation USB Port The PMU PRO USB port is a full speed USB 2.0 port equipped with a Type C receptacle. It is operated over Modbus RTU protocol on Windows 7, 10 and 11 using a proprietary device driver.
  • Page 20 2 Installation Electrical Installation Figure 2-19 Daisy Chain Connection with Linear Topology (daisy chain port mode) Figure 2-20 Daisy Chain Connection with Ring Topology (daisy chain port mode) PMU PRO Phasor Measurement Unit...

  • Page 21: Operating The Pmu Pro

    3.2 Device Diagnostics Device diagnostic messages may appear as a result of the PMU PRO built-in diagnostic tests performed during start-up and device operation. See 4.1.2 “Status Indicators” for diagnostic indications on the front display.

  • Page 22: Clock And Time Synchronization

    Time synchronization provides a common time basis for synchrophasor measurements and data recorders. The PMU PRO clock must be synchronized to UTC time using an external IRIG-B timecode source or from an IEEE 1588 PTPv2 master clock. You can see the clock status in the status bar on the front display and check the time quality on the Monitor/Clock Status screen (see “Device Clock Status”...

  • Page 23: Synchrophasor Measurements

    3.5 Synchrophasor Measurements 3.5.1 Synchrophasor Estimation The PMU PRO calculates and reports synchrophasor estimates as defined and described in IEEE C37.118.1 Clause 4. Phasor estimates include three-phase voltage and current phasors, as well as positive and negative sequence voltage and current phasors, calculated from input waveforms synchronized to an absolute time reference.

  • Page 24: Frequency And Rocof Estimation

    All electrical quantities are fundamental components and are based on voltage and current synchrophasor measurements synchronized to the device’s reporting rate. See Appendix C for a full list of the measurements provided by the PMU PRO. 3.7 Instrument Transformer Correction...

  • Page 25: Operating Device I/O

    3.9 Operating Device I/O 3.9.1 Operating Digital Inputs The PMU PRO can monitor up to 25 digital inputs including one built-in digital input and others located on 3 expansion modules. See 2.3 “Electrical Installation” for the connection diagrams and location of the digital input terminals.

  • Page 26: Operating Recorders

    Operating Recorders 3.10 Operating Recorders The PMU PRO recorders provide recording events and data to the bult-in eMMC flash memory. Each log file can contain up to 65535 records. The behavior of a file when it is full can be chosen from two options: recording stops until the file is cleared (non-wrap mode), or recording continues over old records (wrap-around mode).

  • Page 27: Port Numbers

    3.11.2 Telnet Communications The PMU PRO comes with a Telnet server that can be used to monitor or check the current status and operations of the device. Run a “telnet” command with your device’s IP address, log into the device with your user password and enter a command from the suggested list.

  • Page 28: Modbus Communications

    PMU PRO Modbus Reference Guide. Modbus protocol is used as a default communication protocol for communicating with the PMU PRO via PAS, remote configuring and monitoring the device, and retrieving event and data log files.

  • Page 29: Dnp3 Communications

    The DNP3 TCP port number is configurable via the DNP3 setup. By default, the DNP3 TCP server uses the standard port number 20000 assigned by IANA. The PMU PRO implements Level 2 of the DNP3 communication protocol. The device does not support unsolicited requests or hardware collision avoidance.
  • Page 30 5 data streams are running will be ignored. To avoid resource leaks due to dead UDP connections, the PMU PRO provides a command the user can send to the device through the IEEE C37.118.2 configuration dialog that stops all active commanded UDP streams and releases the associated data stream slots.

  • Page 31: Iec 61850 Communications

    Synchrophasor data transfer in the context of IEC 61850 uses IEEE C37.118 to IEC 61850 mapping mechanism defined in IEC 61850-90-5. PMU is modeled as a dedicated logical device within the PMU PRO IED. The detailed PMU data model is shown as part of the ICD definition file provided with your device.

  • Page 32: Iec 60870 Communications

    Event Reporting The PMU PRO provides up to 64 configurable setpoints for reporting events when the measured value exceeds a specified threshold or changes by a certain percentage, or the status of a binary point changes. The event scan period is half the power frequency cycle time for binary objects and 200 ms for analog objects.

  • Page 33: Using The Front Display

    4 Using the Front Display Controls and Indicators 4 Using the Front Display Figure 4-1 PMU PRO Controls 4.1 Controls and Indicators 4.1.1 Status LEDs Device Status LED The green device status LED flashes at 2 second intervals to indicate the operational status of the device as described in the following table.

  • Page 34: Status Indicators

    Ethernet ports and transmission direction. It is displayed in the status bar as two opposite horizontal arrows: orange when there is any data transfer occurring, and gray when there is no activity on the communication ports. PMU PRO Phasor Measurement Unit...

  • Page 35: Operating The Display

    The current page position is highlighted in orange. 4.2 Operating the Display The PMU PRO is equipped with a high contrast 1.77” TFT color graphics display for local data read outs, device setup and servicing. The display is normally updated once per second.

  • Page 36: Navigation Buttons

    4 Using the Front Display Operating the Display 4.2.2 Navigation Buttons The PMU PRO has four multi-function navigation buttons with functionality described in the following table. Button Function Operation a) In the menu: returns to the top-level menu b) In an editable field: rejects the changes made and returns to the ...

  • Page 37: Entering Parameters

    OK button as many times as necessary until the letter you want appears in the correct case. Enter the following letters in the same way. PMU PRO Phasor Measurement Unit...

  • Page 38: Display Menus

    4.3.1 Main Menu The main device menu is shown in the following picture. If you are in another screen, press the ESCAPE button as many times as necessary until you return to the main menu. PMU PRO Phasor Measurement Unit...

  • Page 39: Favorites Menu

    To add a new screen to your Favorites menu, navigate to the screen that you want to place in the menu and that is not already listed in the menu, press the OK button and then confirm your choice, as shown in the following picture. PMU PRO Phasor Measurement Unit...

  • Page 40: Monitor Menus

    By default, this is the screen that displays line-to-neutral voltages. You can choose any other screen as your default screen. The example below shows how to select the line-to-line voltage screen as your default screen. See Navigating in Setup Menus for information on navigating in setup menus. PMU PRO Phasor Measurement Unit...
  • Page 41 4 Using the Front Display Display Menus Custom Screen The PMU PRO allows you to build your own customized screen that will be listed in the Monitor menu and will appear like any other screen. You can also set it as your default screen.
  • Page 42 Power Screens Device I/O Status I/O status screens display the current status of the device’s digital and analog I/O. The analog input value is indicated in engineering units according to the user-configured analog input scale. PMU PRO Phasor Measurement Unit...

  • Page 43: Communication Status

    For the IRIG-B time source, no time error is reported. Device Information These screens provide information about the device serial number and firmware versions, as well as detailed information about communication port settings. PMU PRO Phasor Measurement Unit...

  • Page 44: Phasor Diagram

    The numbers below the graph indicate last measured values. 4.3.6 Events Menu The Events menu allows you to view the device’s event log and device diagnostic messages. Event records are listed in order from newest to oldest. PMU PRO Phasor Measurement Unit...

  • Page 45: Setup Menus

    Network 2 Switch Mode Device I/O Setup Digital Inputs Relay Outputs Analog Input Display Setup Custom Name/ID Default Screen Setup Custom Screen Adjustment Language Auto-return Resolution Date & Time Clock Localization Reset Counters Diagnostics Logs PMU PRO Phasor Measurement Unit...
  • Page 46 See 4.2.4 “Entering Parameters” for information on how to change a parameter value using the on-screen keyboard. Once the desired value has been set and confirmed, press the ESCAPE button return to the top-level menu. PMU PRO Phasor Measurement Unit...
  • Page 47 4 Using the Front Display Display Menus PMU PRO Phasor Measurement Unit...

  • Page 48: Setting Up The Pmu Pro

    5 Setting Up the PMU PRO Authorization 5 Setting Up the PMU PRO See 4.3.7 “Setup Menus” for information on how to view and modify device settings via the front display. See 7.1.4 “Configuring the Device” to learn how to work with PAS.
  • Page 49 5 Setting Up the PMU PRO General Device Settings Using PAS Select General Setup from the Meter Setup menu and click the Basic Setup tab. The following table lists available options. Parameter Options Default Description PT Ratio 1.0-6500.0 The ratio of the primary and secondary...

  • Page 50: Transformer Correction

    5 Setting Up the PMU PRO General Device Settings 5.2.2 Transformer Correction Transformer correction allows you to compensate ratio and phase angle inaccuracies of the voltage and current instrument transformers. Using the Front Display Navigate to the General Setup menu, press the OK button to open the drop-down menu, and then select Transformer Correction.

  • Page 51: Display Setup

    5 Setting Up the PMU PRO General Device Settings The following table lists available options. Parameter Options Default Description Ratio Correction 0.900-1.100 1.000 The ratio of the true transformer ratio to the Factor marked ratio Phase Angle Error +/-600 minutes The phase offset between the primary and secondary values in arc minutes.

  • Page 52: Device Localization

    5 Setting Up the PMU PRO General Device Settings 5.2.4 Device Localization Device localization allows you to adjust your time zone’s settings, including time zone offset and daylight-saving time options, and select an external time synchronization source. Using the Front Display Navigate to the Date &...
  • Page 53 5 Setting Up the PMU PRO General Device Settings The following table lists available options. Parameter Options Default Description Country Country name Default Indicates the location of the device. The default setting stands for the U.S.A. Time zone offset -720 to 720 min...

  • Page 54: Configuring Digital Inputs

    5 Setting Up the PMU PRO General Device Settings 5.2.5 Configuring Digital Inputs Using the Front Display Navigate to the Device I/O Setup menu, press the OK button to open the drop-down menu, and then select Digital Inputs. To view or configure an expansion digital input, first enter the input number.

  • Page 55: Configuring Relay Outputs

    5 Setting Up the PMU PRO General Device Settings The following table lists available options. Parameter Options Default Description Input Polarity NORMAL NORMAL Input polarity for static input INVERTING Pulse Input Mode PULSE MODE PULSE PULSE: one of the edges, leading or...
  • Page 56 5 Setting Up the PMU PRO General Device Settings The following table lists available options. Parameter Options Default Description Operation mode UNLATHCED, UNLATCHED Relay operating mode (see below) LATCHED, PULSE, Polarity NORMAL (N.O.), NORMAL NORMAL: the relay is de-energized when inactive and energized when activated INVERTING (N.C.)

  • Page 57: Configuring Analog Input

    5 Setting Up the PMU PRO General Device Settings The relay can operate in the following modes: • UNLATCHED: the relay goes into the active state when the control setpoint is in the active (operated) state, and returns to the inactive state when the control setpoint is released •...

  • Page 58: Configuring Counters

    5.2.8 Configuring Counters The PMU PRO has 32 nine-digit general purpose counters intended to count input pulses and events with a programmable scale factor. They can be used by the logic controller to perform repeated operations or as temporary storage.

  • Page 59: Configuring Periodic Timers

    Send. Several digital inputs can be connected to the same counter. 5.2.9 Configuring Periodic Timers The PMU PRO provides 16 interval timers with programmable time periods from half- cycle to 24 hours. They are intended to be used by the logic controller for periodic recording and triggering time-based operations.

  • Page 60: Configuring The Logic Controller

    5 Setting Up the PMU PRO General Device Settings 5.2.10 Configuring the Logic Controller The logic controller provides 32 setpoints with programmable operate and release delays, each of which evaluates a conditional expression with up to 8 arguments. Whenever the expression evaluates to true, the logic controller can perform up to 4 user-programmable actions, including data recording on a periodic basis at programmable rate and on any internal or external trigger.
  • Page 61 5 Setting Up the PMU PRO General Device Settings The setpoint options are described in the following table. Parameter Options Description OR/AND OR, AND The logical operator for the trigger Input group See Appendix C The trigger parameter group Trigger...
  • Page 62 5 Setting Up the PMU PRO General Device Settings Delta operators evaluate a logical expression to true if the following conditions are met: • Delta: the absolute difference between the last reported value and the current value exceeds the specified threshold •...

  • Page 63: Using Interval Timers

    5 Setting Up the PMU PRO General Device Settings Using Numeric Triggers For numeric (analog) triggers, a setpoint allows you to specify two thresholds for each trigger to provide hysteresis (dead band) for setpoint operations. The operate limit defines the operating threshold, and the second release limit defines the release threshold for the trigger.

  • Page 64: Configuring Communication

    5 Setting Up the PMU PRO Configuring Communication • Up to four programmable actions can be performed when the setpoint is activated. Typically, setpoint actions are performed independently for each setpoint and can be repeated several times for the same target.

  • Page 65: Serial Communications

    5 Setting Up the PMU PRO Configuring Communication 5.3.2 Serial Communications Using the Front Display Navigate to the Communication Setup menu, press the OK button to open the drop- down menu, and then select COM 1. Scroll through serial port settings using the UP and DOWN arrow buttons.
  • Page 66 5 Setting Up the PMU PRO Configuring Communication To change the port settings in your device, select desired port parameters and click Send. The following table lists available communication options. Parameter Options Default Description Protocol Modbus RTU, Modbus RTU Communication protocol...

  • Page 67: Configuring The Tcp Notification Client

    5.3.3 Configuring the TCP Notification Client The TCP notification client can establish connections with a remote Modbus/TCP server and send notification messages either on events or periodically. See the PMU PRO Modbus Reference Guide for more information on the client operation and the notification message structure.

  • Page 68: Configuring Recorders

    5 Setting Up the PMU PRO Configuring Recorders To set up the eXpertPower client, select Communication Setup from the Meter Setup menu and click the ExpertPower Client tab. To enable the eXpertPower client, change the XPW Client Enabled status to YES, and click Send.
  • Page 69 5 Setting Up the PMU PRO Configuring Recorders 3. Click OK. For your reference, the record size in bytes and the number of available records are shown at the top. To delete an existing file: 1. Click Delete. 2. Click OK.

  • Page 70: Configuring The Data Recorder

    5 Setting Up the PMU PRO Configuring Recorders 5.4.2 Configuring the Data Recorder The Data recorder is programmable for recording up to 16 data parameters per record in each of the data log files. The list of parameters to be recorded is configurable individually for each file.

  • Page 71: Device Management

    Clock. Use the UP and DOWN arrow buttons to move through the clock parameters. Using PAS Click the Real-time Clock icon on the PAS toolbar, or select RTC from the Monitor menu. The RTC dialog displays the current PC time and the time of your device. PMU PRO Phasor Measurement Unit...

  • Page 72: Manual Relay Control

    To send a remote command to a relay, select Device Control from the Monitor menu in PAS and click the Remote Relay Control tab. Select the relay command in the Remote Command box, OPERATE to activate the relay, or RELEASE to remove the command, and then click Send. PMU PRO Phasor Measurement Unit...

  • Page 73: Manual Event Flag Control

    See 4.3.6 “Events Menu” for how to view the device diagnostic on the display. To clear the diagnostic messages, navigate to the Reset menu, press the OK button to open the drop-down menu, and then select Diagnostics. Press the OK button and then confirm your command. PMU PRO Phasor Measurement Unit...

  • Page 74: Clearing Counters

    To clear all counters, select “Reset all counters” and press the OK button. To clear a specific counter, select “Reset selected counter”, select the counter you want to reset, and then press the OK button. PMU PRO Phasor Measurement Unit...

  • Page 75: Clearing Files

    You can only clear the device’s event log using the front display. Navigate to the Reset menu, press the OK button to open the drop-down menu, and then select Logs. Press the OK button and then confirm your command. PMU PRO Phasor Measurement Unit...

  • Page 76: Firmware Update

    1. Make sure the On-line icon on the PAS toolbar is checked, select Flash Downloader from the Monitor menu, and confirm changes. 2. Point to the firmware update file, click Open, and then confirm the device update. PMU PRO Phasor Measurement Unit...
  • Page 77 4. Wait until download completes and the device reboots before any further manipulating with your device. NOTE After rebooting, your Internet connection may be temporarily lost. You may have to wait a while before PAS reestablishes a connection with your device. PMU PRO Phasor Measurement Unit...

  • Page 78: Using Pas

    Click New to create an empty database, or click Duplicate to create a copy of the template database, and click OK. 5. In the “Model” field, select “PMU PRO” as the device type of your PMU PRO. PAS automatically configures the appropriate settings for your device.
  • Page 79 You can rename existing groups or create new groups and drag sites from one group to another with the mouse. Click the plus sigh to the left of the tree items to expand the tree and view device configuration information. PMU PRO Phasor Measurement Unit...

  • Page 80: Setting Up Communications

    Tools menu. In the Communication group, select the type of connection to your device. 2. Set the device address you assigned to the PMU PRO port. 3. In the “Sampling Rate” field, select the rate at which PAS will update data on your screen when continuously polling the device in the PAS Data Monitor.
  • Page 81 2. In the Device field, select the PC’s COM port to which your device is connected and click Configure. 3. Select the baud rate and data format that match your device settings and click OK. To configure the communication protocol: 1. On the Connection tab, click Protocol. PMU PRO Phasor Measurement Unit...

  • Page 82: Configuring The Device

    Alternatively, click the plus sigh to the left of the site name in the site tree to expand the tree and click the desired setup. 3. Fill in the fields with new configuration data. PMU PRO Phasor Measurement Unit...
  • Page 83 Batch Download To download all settings to the device at once: 1. Make sure the On-line icon on the PAS toolbar is checked. 2. Select the device site from the site list on the PAS toolbar. PMU PRO Phasor Measurement Unit...

  • Page 84: Monitoring Devices

    PAS toolbar to open the site tree pane, right-click the device’s site name, and select Properties. The Properties window provides information about the device’s factory settings and device firmware. PMU PRO Phasor Measurement Unit...

  • Page 85: Viewing Real-Time Data

    RT Data Monitor supports 32 programmable datasets, each containing up to 40 data parameters. Set #0 is intended for devices with a limited number of low-resolution scaled parameters and is not recommended for use with the PMU PRO. PAS comes with a number of preconfigured datasets and others are blank. To re-...

  • Page 86: Polling Options

    “Wrap” to see a single record, or “UnWrap” to go to the multi-record view. The pictures below show what the data monitor windows look like in non-wrapped and wrapped views. PMU PRO Phasor Measurement Unit...
  • Page 87 Options. When the number of records received exceeds the number of rows in the window, the window scrolls up and older records are erased. PMU PRO Phasor Measurement Unit...

  • Page 88: Printing Data

    7.3 Viewing Event and Data Files On-line It may be useful to retrieve and view a portion of the recorded data from your device online while you wait for new logged data to appear. PMU PRO Phasor Measurement Unit...

  • Page 89: Retrieving And Storing Files

    4. Select a database or enter a name for the new database, and select the folder where you want to save it. 5. Click “Select Logs” and check the boxes for the files you want to retrieve from the device. PMU PRO Phasor Measurement Unit...

  • Page 90: Using The Upload Scheduler

    6. Select the number of attempts to upload data in case of temporary connection problems or when your device is unavailable, as well as the delay between attempts in minutes and seconds. PMU PRO Phasor Measurement Unit...

  • Page 91: Exporting Files

    Compress box before saving the file. Automatic Converting Files To automatically convert data files using the Upload Scheduler: 1. Open the Upload Scheduler. 2. Select the site row with the left mouse button and click Export. PMU PRO Phasor Measurement Unit...

  • Page 92: Archiving Files

    Upload Scheduler’s file archiver to automatically move old data to archives. The Upload Scheduler archives files on a weekly, monthly or yearly schedule. Archiving data creates a new database and moves old data with the expired archiving date from your current database to the archive. PMU PRO Phasor Measurement Unit...

  • Page 93: Compacting Files

    To set up a schedule for periodic compacting your files: 1. Click Configure in the scheduler window or double-click the site row. 2. Click Compact. 3. Check the Enable box and select the schedule period for compacting your files. 4. Click OK. PMU PRO Phasor Measurement Unit...

  • Page 94: Viewing Files

    2. Select a target database or enter a name for the new database. 3. Click Save. To avoid confusion, do not store data files into the “Sites” folder where the device site databases are located. PMU PRO Phasor Measurement Unit...

  • Page 95: Viewing Options

    Options, select the units you want, and click OK. Copying a Table To copy all or part of the table to the Clipboard or another application, such as Microsoft Excel or Word: PMU PRO Phasor Measurement Unit...

  • Page 96: Working With Graphic Windows

    To change the color or style of the grid lines, click the Grid line in the left pane and select the color and style of the grid. To turn off the grid, uncheck the Grid Visible box. To change the window frame color to white, check the White Frame box on the right. PMU PRO Phasor Measurement Unit...

  • Page 97: Viewing The Event Log

    The event log records timestamped events associated with configuration changes, resets, device diagnostics, and logic controller operations. The event log is displayed in a tabular form, one event per line. Use the scroll bar to view all log contents. PMU PRO Phasor Measurement Unit...

  • Page 98: Viewing The Data Log

    See 7.5.2 “Viewing Options” for information about the options available in the table and graph windows. An example of the data log view is shown in the following picture. PMU PRO Phasor Measurement Unit...
  • Page 99 7 Using PAS Viewing Files PMU PRO Phasor Measurement Unit...

  • Page 100: Appendix A Technical Specifications

    Measurement category: CAT III Operating range: 277/480 VAC +25%  Input impedance: 4000 k Burden: < 0.04 VA @ 400V, < 0.01 VA @ 120V Over-voltage withstands: 1000 VAC continuous, 2000 VAC for 1 second PMU PRO Phasor Measurement Unit...
  • Page 101 One solid-state relay rated at 100 mA/250 VAC/VDC, 1 contact (SPST Form A) Galvanic isolation: 5000VAC 1 min Wire size: 14 AWG (up to 1.5 mm Connector type: 2 pins, plug-in Turn-on time: 5 ms max Turn-off time: 5 ms max Update time: 1/2 cycle PMU PRO Phasor Measurement Unit...
  • Page 102   Sensitivity: open @ input resistance >100 k , closed @ input resistance < 100 Galvanic isolation: 4000 VAC 1 min Internal power supply: 24 VDC Wire size: 14 AWG (up to 1.5 mm2) PMU PRO Phasor Measurement Unit...
  • Page 103 Isolation: 4000 VAC 1 min Connector type: USB Type C Supported protocols: Modbus/TCP IRIG-B Port Optically isolated IRIG-B port Timecode signal: unmodulated (pulse-width coded), 100 pps Signal level: unbalanced 5V Timecode format: B004/B005 Isolation: 4000 VAC 1 min PMU PRO Phasor Measurement Unit...

  • Page 104: Real-Time Clock

    UL listing covers the base unit, the optional modules are not a part of UL listing AC and Impulse Insulation: Meets IEC 62052-11: 4000VAC during 1 minute, 6KV/500Ω @ 1.2/50 μs impulse Degree of protection: IP51 PMU PRO Phasor Measurement Unit...

  • Page 105: Appendix B Measurement Specifications

    At nominal frequency, > 40% rated current 0.05% Over frequency range 0.1% Over temperature range 0-50 °C 0.2% Phase At nominal frequency 0.025 degree Over frequency range 0.05 degree Over temperature range 0-50 °C 0.1 degree PMU PRO Phasor Measurement Unit...
  • Page 106 At nominal frequency, > 40% rated current 0.05% Over frequency range 0.1% Over temperature range 0-50 °C 0.2% Phase At nominal frequency 0.025 degree Over frequency range 0.05 degree Over temperature range 0-50 °C 0.1 degree PMU PRO Phasor Measurement Unit...

  • Page 107: Appendix C Measured Parameters

    Interval timer synced with clock (1-5, 10, 15, 20, 30, 60 min) TmStamp Timestamp, UTC seconds since 1/1/1970 TmStampMcs Timestamp, fraction of second RT PHASE Real-time fundamental phase measurements V1 voltage V2 voltage V3 voltage I1 current PMU PRO Phasor Measurement Unit...
  • Page 108 L2 kW L3 kW L3 kvar L1 kvar L1 kvar L2 kvar L2 kvar L3 kvar L3 kVA L1 kVA L1 kVA L2 kVA L2 kVA L3 kVA L3 PF L1 Displacement power factor L1 PMU PRO Phasor Measurement Unit...
  • Page 109 Negative sequence current I ZSEQ Zero sequence current I NSEQ UNB% Negative sequence current unbalance I ZSEQ UNB% Zero sequence current unbalance V0seq Zero sequence voltage (alias) V1seq Positive sequence voltage (alias) V2seq Negative sequence voltage (alias) PMU PRO Phasor Measurement Unit...
  • Page 110 I2 Im I2 phasor, Imaginary I3 Re I3 phasor, Real I3 Im I3 phasor, Imaginary V1seq mag Positive sequence voltage phasor magnitude V1seq ang Positive sequence voltage phasor angle I1seq mag Positive sequence current phasor magnitude PMU PRO Phasor Measurement Unit...
  • Page 111 0x3 = time within 100 ns 0x2 = time within 10 ns 0x1 = time within 1 ns 0x0 = locked to UTC traceable source Leap second pending Leap second occurred Leap second direction, 0 = add, 1=delete PMU PRO Phasor Measurement Unit...
  • Page 112 0 = good measurement data 1 = PMU error (no information about data) 2 = PMU in test mode or absent data tags inserted (do not use values) 3 = PMU error (do not use values) PMU PRO Phasor Measurement Unit...

  • Page 113: Appendix D Data Scales

    Appendix D Data Scales Appendix D Data Scales The maximum values for volts, amps and power in the PMU PRO setup and in communications are limited by the voltage and current scale settings. See 5.2.1 “Basic Setup” for how to change voltage and current scales in your device.

  • Page 114: Appendix E Diagnostic Messages

    Hardware failures are normally non-critical recoverable faults that do not cause system failure but may result in data loss. Hardware failures are often caused by excessive electrical noise in the area of the device. If the device continues to reset, contact your local distributor. PMU PRO Phasor Measurement Unit...

Table of Contents
