Summary of Contents for Zanussi ZZ14941WF

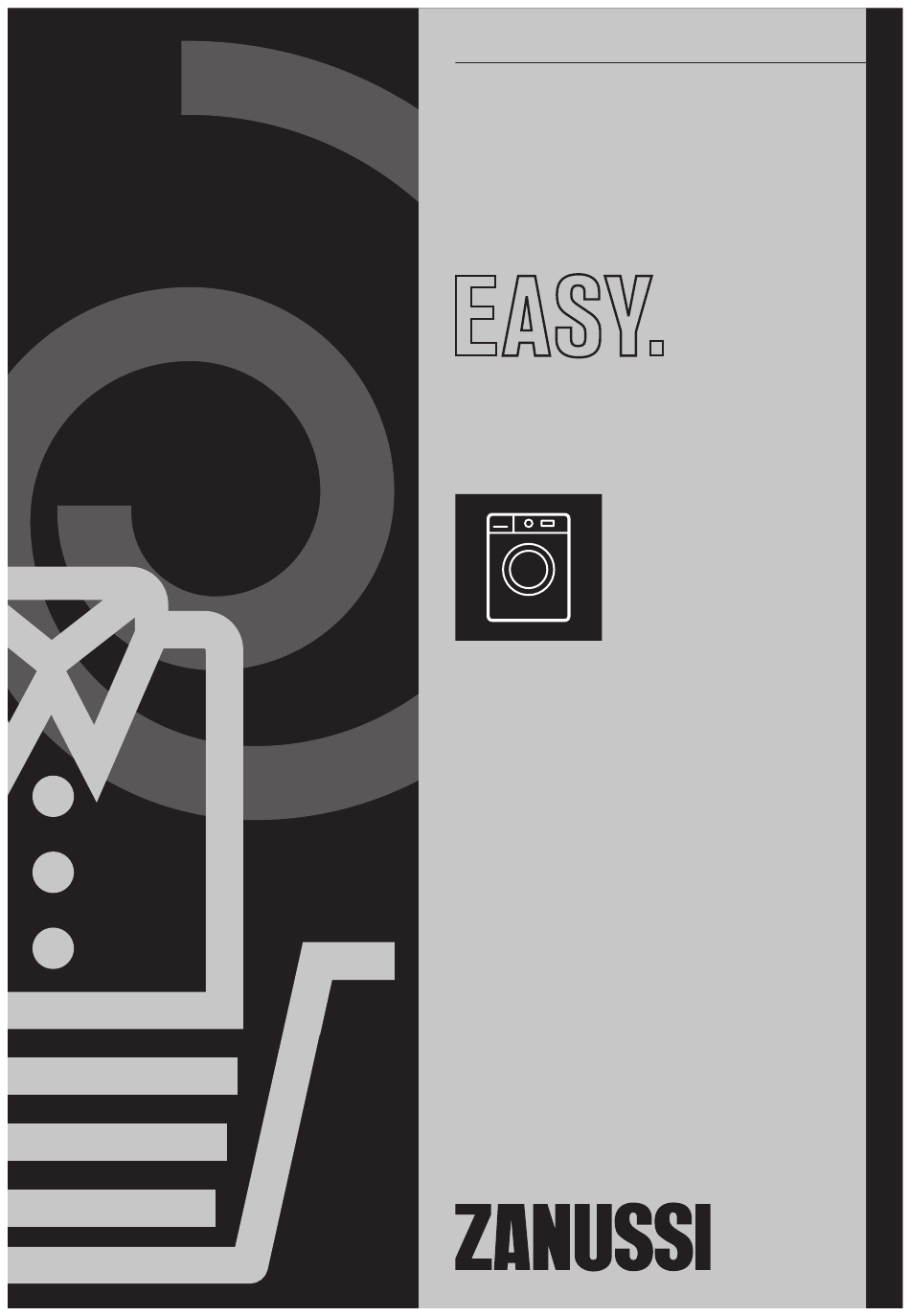

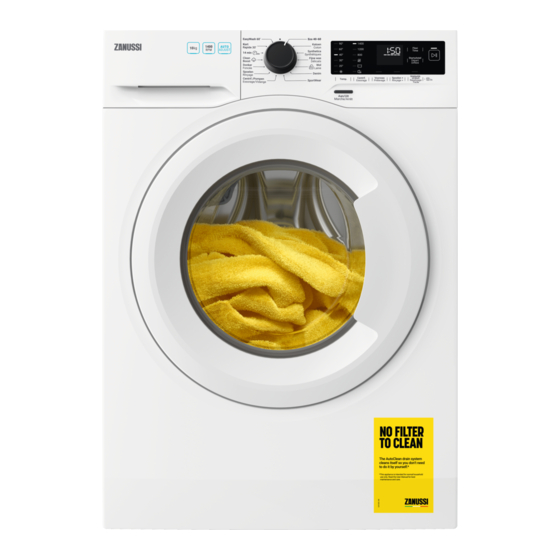

- Page 1 User Manual GETTING STARTED? EASY. ZZ14941WF EN User Manual Washing Machine...
-
Page 2: Safety Information
VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service and repair information: www.zanussi.com/support SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. -
Page 3: Safety Instructions
This appliance is intended to be used in household and similar • applications such as: staff kitchen areas in shops, offices and other working – environments; by clients in hotels, motels, bed & breakfast and other – residential type environments; areas for communal use in blocks of flats or in launderettes. -
Page 4: Electrical Connection
• Do not install or use the appliance where the • Ensure that there are no visible water leaks temperature can be less than 0°C or where it is during and after the first use of the appliance. exposed to the weather. •... -
Page 5: Product Description
professional repairers, and that not all spare • Disconnect the appliance from the mains parts are relevant for all models. electrical and water supplies. • Concerning the lamp(s) inside this product and • Cut off the mains electrical cable close to the spare part lamps sold separately: These lamps appliance and dispose of it. -
Page 6: Technical Data
The rating plate reports the model name (A) , product number (B), electrical ratings (C) and serial number (D). Mod. xxxxxxxxx Prod.No. 910000000 00 000V ~ 00Hz 0000 W 00000000 TECHNICAL DATA Dimension Width/ Height/ Total depth 59,7 cm /84,7 cm /65,8 cm Electrical connection Voltage 230 V... -
Page 7: Information For Installation
hose from the hose holders. 1. Install the appliance on a flat hard floor. The appliance must be levelled and stable. Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance. - Page 8 4. To a stand pipe with vent hole - Insert the drain You can extend the drain hose to hose directly into a drain pipe. Refer to the maximum 400 cm. Contact the illustration. authorised service centre for the other drain hose and the extension.
-
Page 9: Stacking Kit
FIXING PLATE KIT If you install the appliance on a plinth that is not an accessory supplied by ZANUSSI, secure the appliance in the fixing plates. Read carefully the instructions supplied with the accessory. -
Page 10: Control Panel Description
• This appliance is designed with a self cleaning maintenance and cleaning. Read the chapter draining system, allowing light fluff fibers that "Care and Cleaning" for best maintenance and fall off the clothes to be drained out with the care. water, in such a way that there is no need by the customer to access this area for regular CONTROL PANEL DESCRIPTION... -
Page 11: Dial And Buttons
DISPLAY Door locked indicator. Delay start indicator. The digital indicator can show: • Programme duration (e. g. • Delay time (e. g. • Cycle end ( • Warning code (e.g. FlexiTime bars level indicator. Drum clean indicator. Child safety lock indicator. Add garments indicator. -
Page 12: Startuitstel - Départ Différé
The relevant indicator illuminates. TEMP. • Use this option to add a pre-wash phase at When you select a washing programme, the 30 °C before the washing phase. appliance automatically proposes a default This option is recommended for heavily soiled temperature. -
Page 13: Programme Chart
display shows the new programme duration and a number of dashes will decrease accordingly: suitable for a full load of normally soiled garments. a quick cycle for a smaller lightly soiled garments (max. half load recommended). the shortest cycle to freshen up a small amount of laundry. - Page 14 Programme Reference spin Default tempera- speed Programme description Maximum load ture Spin speed (Type of load and level of soiling) Temperature range range Fijne was - Déli- 1200 rpm 2 kg Delicate fabrics such as acrylics, viscose cats (1200- 800 and mixed fabrics requiring gentler 30°C rpm)
- Page 15 Programme Reference spin Default tempera- speed Programme description Maximum load ture Spin speed (Type of load and level of soiling) Temperature range range EasyWash 60' 1400 rpm 5 kg Cotton and fast-coloured synthetic items. 30°C (1400- 800 Complete washing programme that, in only 60°C - 30°C rpm) 60 minutes, washes the daily soiled laundry...
- Page 16 Programme ■ ■ ■ ■ Wol - Laine ■ ■ ■ ■ ■ ■ ■ Denim ■ ■ ■ ■ ■ ■ ■ SportWear Centrif./Pompen - Es- ■ ■ ■ sorage/Vidange ■ ■ ■ ■ ■ Spoelen - Rinçage ■ ■...
-
Page 17: Acoustic Signals
Universal pow- Liquid Univer- Liquid for Delicates Programme Special coloureds woollens ▲ ▲ Wol - Laine ▲ ▲ ▲ Denim ▲ ▲ ▲ SportWear ▲ ▲ ▲ Donker - Foncée ▲ ▲ ▲ CleanBoost ▲ ▲ 14min ▲ ▲ Kort - Rapide 30' ▲... -
Page 18: Daily Use
DAILY USE WARNING! Refer to Safety chapters. ACTIVATING THE APPLIANCE 1. Connect the mains plug to the mains socket. 2. Open the water tap. 3. Press the Aan/Uit - Marche/Arrêt button for a few seconds to activate the appliance. A short tune sounds. LOADING THE LAUNDRY 1. -
Page 19: Setting A Programme
SETTING A PROGRAMME 1. Turn the programme dial to select the desired washing programme. The indicator of the Start/Pauze - Départ/Pause button flashes. The display shows an indicative programme duration. 2. To change the temperature and/or the spin speed, touch the related buttons. 3. - Page 20 INTERRUPTING A PROGRAMME AND 3. Touch the Start/Pauze - Départ/Pause CHANGING THE OPTIONS button again to start the programme When the programme is running, you can change immediately. only some options: Changing the delay start after the countdown 1. Touch the Start/Pauze - Départ/Pause has started button.
-
Page 21: Hints And Tips
2. Open the appliance door. If necessary, add or • The time area shows and the display remove the items. Close the door and touch shows the door locked the Start/Pauze - Départ/Pause button. • The drum still turns at regular intervals to The programme or the delay start continues. -
Page 22: Stubborn Stains
• Follow the washing instructions on the laundry We recommend that you pre-treat these stains care labels. before you put the items in the appliance. • Do not wash white and coloured items together. Special stain removers are available. Use the •... -
Page 23: Care And Cleaning
• Normally soiled laundry may be washed drying your laundry in a tumble dryer. This without prewash in order to save detergent, will save energy during drying! water and time (the environment is protected WATER HARDNESS too!). • Loading the appliance to the maximum If the water hardness in your area is high or capacity indicated for each programmes moderate, we recommend that you use a water... - Page 24 Regular detergents already contain water softening Always follow the instructions that you agents, but we recommend to run a cycle with an find on the packaging of the product. empty drum and a descaling product occasionally. Do not clean the drum with acidic descaling products, scouring products Always follow the instructions that you containing chlorine or iron or steel...
-
Page 25: Cleaning The Inlet Hose And The Valve Filter
cleaning, put the top part back into position. 4. Insert the detergent drawer into the guide rails and close it. Run the rinsing programme without any clothes in the drum. 3. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess. -
Page 26: Emergency Drain
45° 20° EMERGENCY DRAIN 3. Put the two ends of the inlet hose in a container and let the water flow out of the If the appliance cannot drain the water, carry out hose. the same procedure, described in 'Cleaning the 4. - Page 27 • Make sure that the water tap is open. • Make sure that the pressure of the water supply is not too low. For this The appliance does not information, contact your local water authority. fill with water properly. • Make sure that the water tap is not clogged.
- Page 28 Problem Possible solution The appliance fills with • Make sure that the drain hose is in the correct position. The hose may water and drains imme- be positioned too low. Refer to "Installation instruction". diately. • Set the spin programme. The spin phase does •...
-
Page 29: Consumption Values
CONSUMPTION VALUES INTRODUCTION See the web link www.theenergylabel.eu for detailed informa- tion about Energy Label. The QR code on the energy label supplied with the appliance pro- vides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other docu- ments provided with this appliance. -
Page 30: Environmental Concerns
Power consumption in different modes Off (W) Stand-by (W) Delay start (W) 0.50 0.50 4.00 Time to Off/Standby mode is 15 minutes maximum. COMMON PROGRAMMES These values are indicative only. Programme Litres h:mm °C Katoen - Coton 2.90 4:05 1400 90°C Katoen - Coton 1.80... - Page 32 WWW.ZANUSSI.COM/SHOP...
