Classic Exhibits ECO-4094 Setup Instructions

20' x 20'
Hide thumbs

Advertisement

Quick Links

Download this manual
© 2023
ECO-4094 - 20' x 20' Display
20'
Plan View
20'
SETUP INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECO-4094 and is the answer not in the manual?

Questions and answers

Related Manuals for Classic Exhibits ECO-4094

Summary of Contents for Classic Exhibits ECO-4094

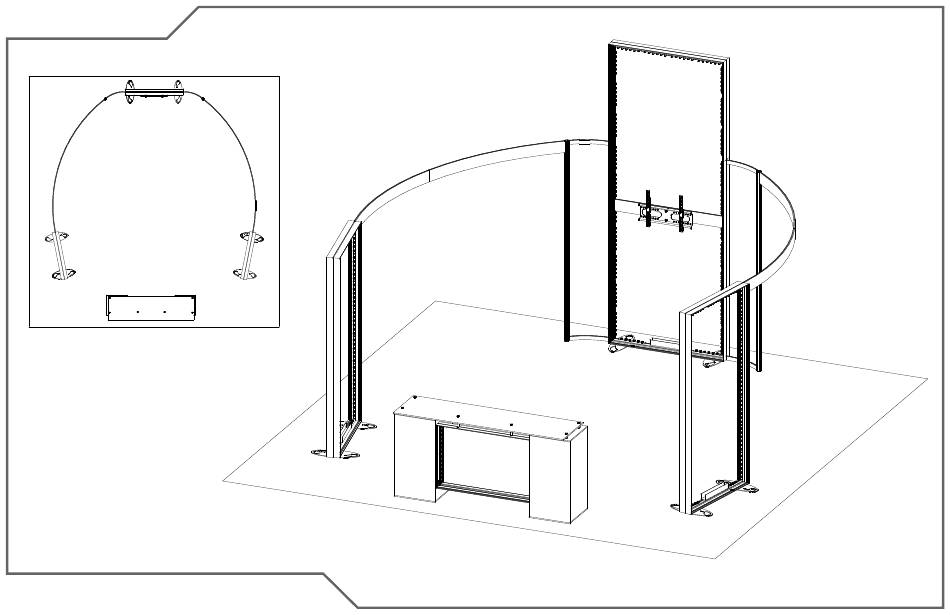

  • Page 1 © 2023 ECO-4094 - 20’ x 20’ Display 20’ Plan View 20’ SETUP INSTRUCTIONS...

  • Page 2: Grid View

    © 2023 Grid View = 1 sq foot...

  • Page 3: General Setup Instructions

    © 2023 General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 4 © 2023 EuroLT Assembly Level 1 = Blue Panel Lock Level 2 = When Required Level 3 = Green Level 4 = Black Panel Lock With Right Hand Thumb When Required Using Your Setup Instructions Close to Seam Color Coded Clip Squeeze, Left Hand Color Coded Clip...
  • Page 5 © 2023 Slide both connectors across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors. 1) Place extrusions end-to-end.
  • Page 6 © 2023 CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 7 © 2023 SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
  • Page 8 © 2023 Crate Packing CRATE PACKING Crate 1 of 1...
  • Page 9 © 2023 Backwall Assembly Item Qty. Description 96”h CEI152 Vertical Extrusion 49.823”h CEI152 Vertical Extrusion w/ reverse miter 96”h CEI152 Vertical Extrusion 49.823”h CEI152 Vertical Extrusion w/ reverse miter 56”w CEI152 Horizontal Extrusion 56”w CEI152 Horizontal Extrusion 52.353” Z140 Horizontal Extrusion 8”...
  • Page 10 © 2023 Backwall Assembly (cont’d) Item Qty. Description Steps: 96”h RSG540 Vertical Extrusion 1) Connect horizontals [10] between verticals [9] & 19.722” Z45 curved Horizontal Extrusion lightbox verticals [1/2], [3/4], inserting Infill. When assembled Step 2 of 10...
  • Page 11 © 2023 Backwall Wiring Steps: Power 1) Connect power cords to Supernova lights as shown. Break Light to Light Attachment Light to Transformer Attachment Male Female Lights Power Transformer 144W / 6 Amp / 24V Maximum of 7 lights per chain / 11 lights per Transformer Transformers FRONT VIEW Step 3 of 10...
  • Page 12 © 2023 Backwall Attachments Steps: Refer to the SEG Installation general information page. 1) Apply SEG Graphic to front of lightbox assembly. 2) Install Monitor Mount to horizontal [7]. Monitor Mount Attachment detail. 3) Apply SEG Graphic to back of lightbox assembly. S E G G r a p h When assembled...
  • Page 13 © 2023 Side Lightbox Assembly (Left) Item Qty. Description Steps: 96”h CEI152 Vertical Extrusion Refer to the CEI152 Frame Assembly general information page. 96”h CEI152 Vertical Extrusion 46”w CEI152 Horizontal Extrusion 1) Install U-Channel to horizontal [15]. See U-Channel Attachment detail.
  • Page 14 © 2023 Side Lightbox Assembly (Right) Item Qty. Description Steps: 96”h CEI152 Vertical Extrusion Refer to the CEI152 Frame Assembly general information page. 96”h CEI152 Vertical Extrusion 46”w CEI152 Horizontal Extrusion 1) Install U-Channel to horizontal [20]. See U-Channel Attachment detail.
  • Page 15 © 2023 Side Lightbox Wiring Steps: 1) Connect power cords to Supernova lights as shown. Light to Light Attachment Light to Transformer Attachment Male Female Lights Power Transformer 144W / 6 Amp / 24V Maximum of 7 lights per chain / 11 lights per Transformer Transformers LEFT &...
  • Page 16 © 2023 Side Lightbox Attachments Steps: Refer to the SEG Installation general information page. 1) Apply SEG Graphics to front & back of lightbox assembly. r a p h ic S E G G r a p h ic S E G G S E G G ra ph ic S E G G ra ph ic Step 8 of 10...

  • Page 17: Header Assembly

    © 2023 Header Assembly Item Qty. Description Steps: 71.66” Z140 curved Horizontal Extrusion 1) Assemble extrusions [11-12] together. See Z140 Spline Connecion detail. 71.66” Z140 curved Horizontal Extrusion 2) Attach assembly [11/12] between back lightbox verticals [9] & front lightbox verticals [14] & [19] as shown. Z140 Spline Connection Slide extrusion over spline connectors.
  • Page 18 © 2023 ECO-42C Reception Counter Item Qty. Description Steps: 30.5”h CEI110 Vertical Extrusion 1) Connect horizontals [3,4] between verticals [1,2], 46”w CEI110 Horizontal Extrusion sliding backer panel between verticals. CEI-110 Corner Connection detail. 2) Attach left & right cabinets to frame assembly [1/2/3/4] CEI-110 Corner Connection using bolts &...
