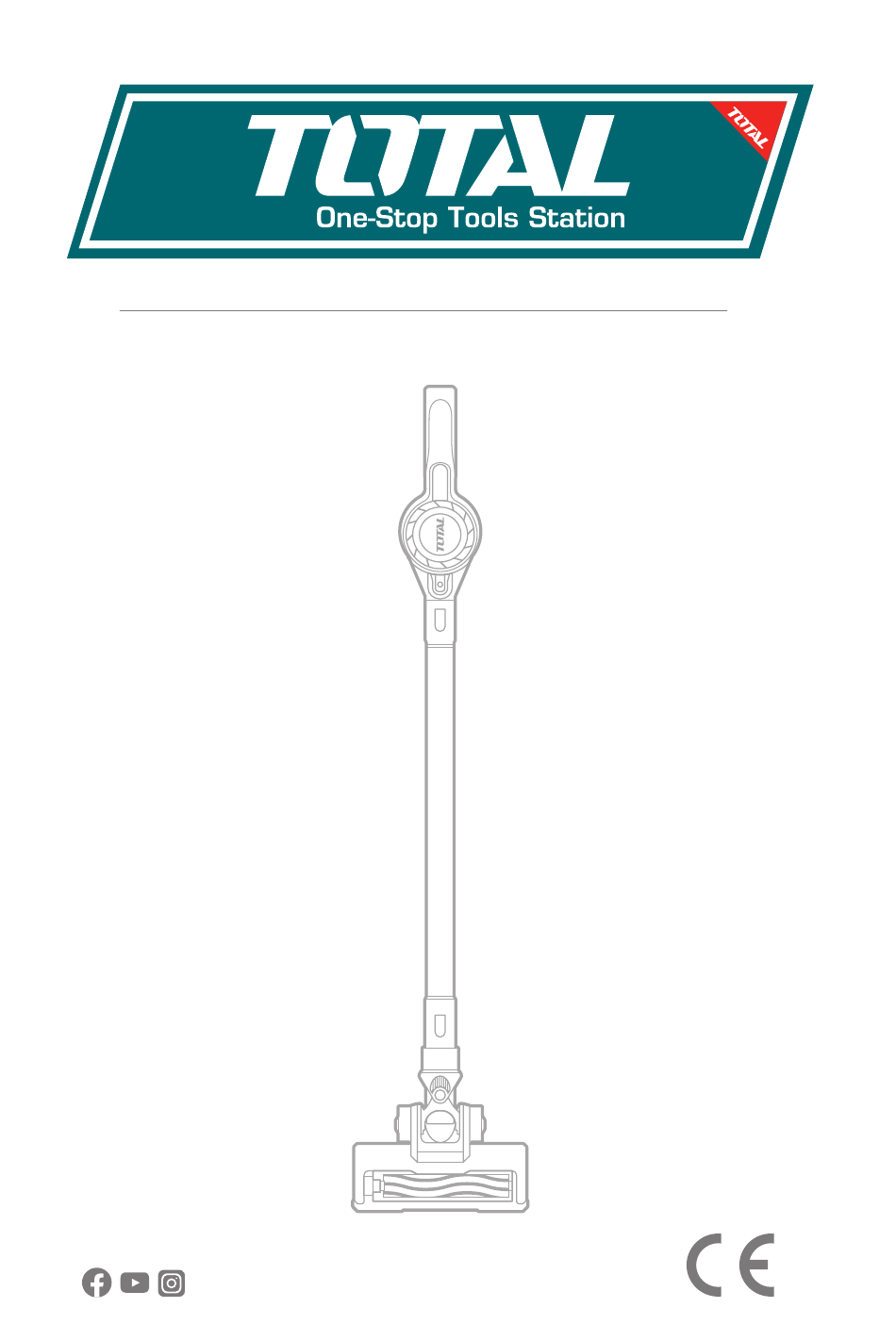

- Page 1 CORDLESS VACUUM CLEANER TVCH14111 TOTAL AI TECHNOLOGY TOTAL TOOLS WORLD Before using the product, please read the product instructions carefully.
- Page 2 The symbols in instruction manual and the label on the tool Read the instruction manual before using. CE conformity. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 3 IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE RETAIN INSTRUCTIONS FOR FUTURE REFERRENCE. Do not use in rain or leave outdoors whilst raining Basic safety precautions should always be observed when using anelectrical WARNING: appliance, including the following to reduce the risk of fire, electricalshock, or injury. Personal Safety : 1.
-
Page 4: Electrical Safety
7. Do not block the appliances opening or hinder air flow, keep opennings free of any objects including dust，lint,clothing,fingers(and all parts of the body); 8. Particularly keep hair away from openings and moving parts; Electrical Safety: 1. Use only the battery and charger provided by the supplier; 2. -
Page 5: Battery Safety
13.Do not store or charge the appliance outdoors; 14. The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance. Battery safety: 1.This appliance includes Li-ion batteries,do not incinerate batteries or expose to high temperatures ,as they may explode; 2.Liquid ejected from the battery may cause irritation or burns;... -
Page 6: Intended Use
damage and repair as necessary; 2. Do not use the appliance if any part is damaged or defective; 3. Repairs should be carried out by a service agent or a suitably qualified person in accordanc wit relevant safety regulations. Repairs by unqualified persons could be danerous;... -
Page 7: Introduction Of Components
Introduction of components: Switch Metal tube locker Dust cup Sofa Brush Metal tube Long crevice nozzle Dust cup locker Power brush locker fixed frame Power brush Charger 1. Use as the stick vacuum cleaner a）Attached the metal tube to the body as below until hear click sound b) Attached the brush to another head of metal tube as below showed —... -
Page 8: Battery Charging
c) Press the switch to work A Lower power It is lower power when your press the switch button first time Two level power control Switch B High power It is high power when you press the switch button second time it will be power off when press third time, it is kind of circle as below showed 2. -
Page 9: How To Empty The Dust Cup
HOW TO EMPTY THE DUST CUP: 1.Press the metal tube locker 2.unlock the dust cup locker 3.Empty the dust cup then take out the metal Metal tube locker HOW TO MAINTAIN THE FILTER: 1.Press the dust cup release button and turn 2.Open the dust cup as below showed the dust cup clockwise Dust cup locker... -
Page 10: Troubleshooting
TROUBLESHOOTING 1.Empty the dust bin Not cleaning well 2.Check dust bin is correctly fitted 3.Check the filter is correctly fitted 4.Clean the filter Stop or won't work 1.Charge battery 2.Clear debris from brush bar 1.Check connections Battery will not charge 2.Check wall socket TECHNICAL SPECIFICATION: 22.2V 2200mAh... - Page 11 TVCH14111 Exploded View — 10 —...
- Page 12 TVCH14111 Spare Part List Part Description Part Description Metal tube assembly Body screws Brush assembly Right case Roller Dust cup seal Dust cup bottom cover assembly Motor seal Dust cup bottom seal Motor Dust cup Decorative panel Suction port seal...
- Page 13 CORDLESS VACUUM CLEANER TOTAL AI TECHNOLOGY TVCH14111 www.totalbusiness.com MADE IN CHINA T0621.V04 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road，Suzhou Industrial Park，China.
