Summary of Contents for Total TVLI2006

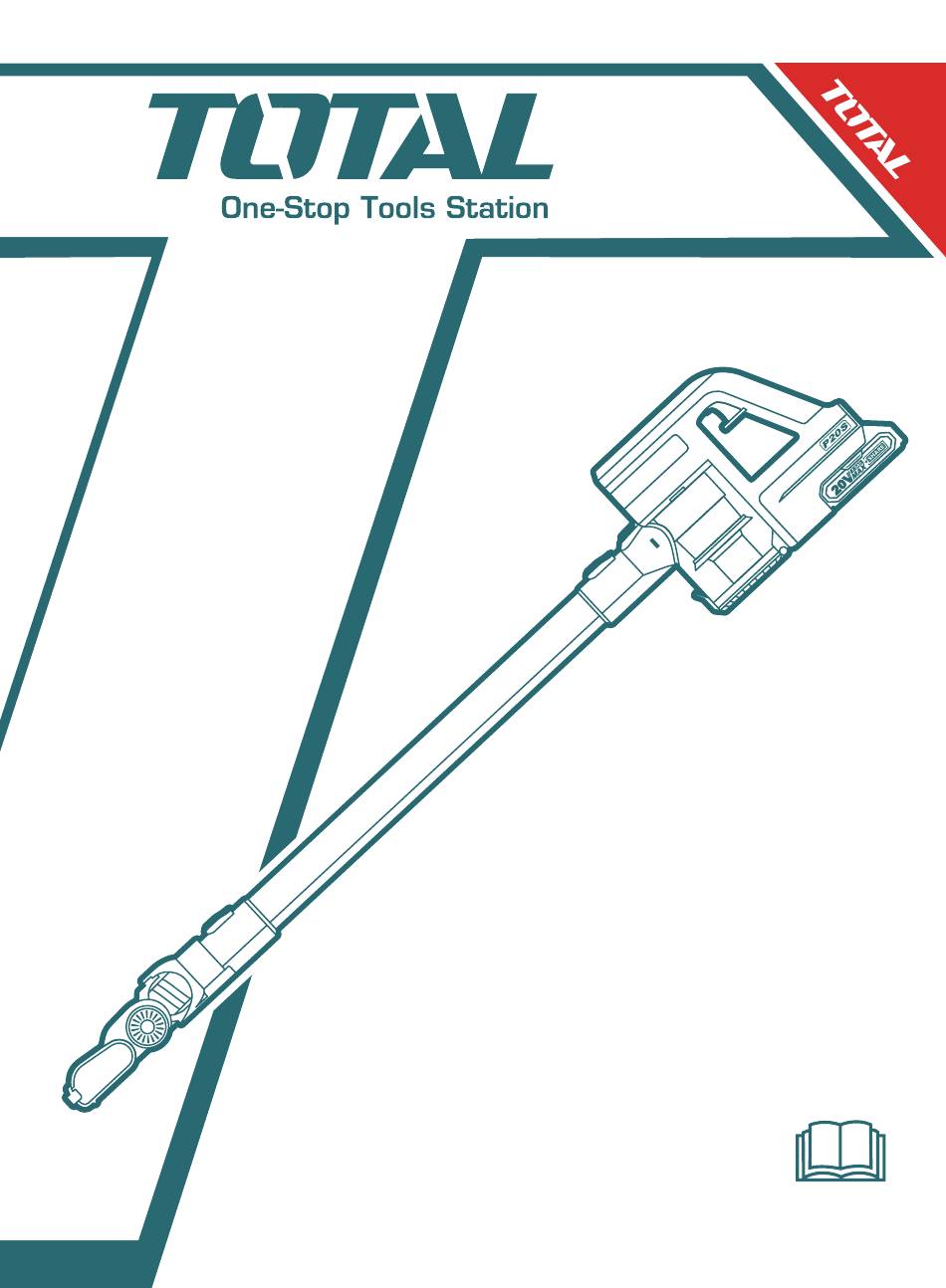

- Page 1 PRODUCT MANUAL LITHIUM-ION VACUUM CLEANER TVLI2006...
-
Page 2: General Safety Warnings
| English Original Instructions GENERAL SAFETY WARNINGS ⚠ Important: Read all instructions before use retain instructions for future referrence. Do not use in rain or leave outdoors whilst raining. ⚠ Warning! Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury. -
Page 3: Battery Safety
| English when used with another battery pack; Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock; Don not abuses the charger cord; Never carry the charge by the cord;... - Page 4 | English THE SYMBOLS IN INSTRUCTION MANUAL Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
-
Page 5: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING Before using the appliance and after any impact, check for signs of wear of damage and repair as necessary; Do not use the appliance if any part is damaged or defective; Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. -
Page 6: Specifications
| English SPECIFICATIONS 1. Metal tube locker 7. Dust cup locker 2. Metal tube 8. Long crevice nozzle 3. Power brush locker 9. Sofa brush 4. Power brush 10.Charger 5. Switch 11. Fixed frame 6. Dust cup... -
Page 7: Technical Specifications
| English Technical specifications Model No. TVLI2006 Battery 22.2V 2200mAh Charging period 4.5H Battery charger output 26.5V 450mA Net Weight 2.3kg Usage time 40min (low speed), 20min (high speed) Power 140W Vacuum 10kpa Net weight 2.3kg Usage time 30min (low speed), 15min (high speed) - Page 8 | English ⚠ Warning! Only use original battery pack and battery charger as below for this power tool: x (blank, 1, 2, 3, 4, 5, 6, 7, 8, 9, E, S, A, M) y (blank, -1, -2, -3, -4, -5, -6, -7, -8, -9, E, S, A, M) Product Battery pack TFBLI2001...
- Page 9 | English OPERATION PICTURE...
- Page 10 | English OPERATION PICTURE...
- Page 11 | English OPERATION PICTURE...
-
Page 12: Operation
| English OPERATION Use as the stick vacuum cleaner Attached the metal tube to the body as below until hear click sound. (see Figure A) Attached the brush to another head of metal tube as below showed. (see Figure B) A. -
Page 13: Troubleshooting
| English How to maintain the filter (see Figure G~N) Press the dust cup release button and turn the dust cup clockwise. (see Figure Open the dust cup as below showed. (see Figure H) Take out the filter and separator. (see Figure I) Wash the HEPA filter and separator. - Page 14 TOTAL TOOLS WORLD MADE IN CHINA T0623.V02 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
